HiLook 6MP Active Colour CCTV Kit

1 × IPC-T269H 6MP Active Colour Camera + 2 × IPC-T361H 6MP Network Cameras + 4CH NVR

The HiLook 6MP Active Colour CCTV Kit is a versatile three-camera IP security system combining 1 × IPC-T269H-MU/SL 6MP Active Colour Deterrence camera, 2 × IPC-T361H-MU 6MP Intelligent Dual IR network cameras and a HiLook NVR-104MH-K/4P 4-channel PoE Network Video Recorder.

This mixed-camera package provides the benefits of active colour surveillance and proactive deterrence at a priority location while using two Intelligent Dual IR cameras for discreet general surveillance.

The IPC-T269H-MU/SL combines 6MP imaging with IR and white supplementary lighting, human and vehicle classification, active warning functions and two-way audio, making it ideal for a front entrance, driveway or other high-priority location.

The two IPC-T361H-MU cameras provide 6MP surveillance with Intelligent Dual IR, human and vehicle classification, 120dB True WDR and built-in arrayed dual microphones.

With three cameras connected to the four-channel PoE NVR, the system retains 1 spare camera channel and 1 spare physical PoE port for future expansion.

Network cabling and installation accessories are supplied separately unless specifically stated otherwise.

This CCTV Kit includes:

3 x 6 Megapixel IP IntelliSense Turret (IPC-T361H)

1 x 6 Megapixel All-in-One IP Camera with Active Colour Deterrence (IPC-T269H-MU/SL)

1 x 4 Channel PoE NVR (NVR 104MH-C/4P)

Key Features

• 3 × 6MP IP Turret Cameras

• Maximum 3200 × 1800 Resolution

• 1 × Active Colour Deterrence Camera

• 2 × Intelligent Dual IR Cameras

• Human & Vehicle Classification

• Intelligent Motion Detection

• IR Night Surveillance

• White Supplementary Light on IPC-T269H-MU/SL

• Active Visual & Audible Deterrence

• Two-Way Audio on IPC-T269H-MU/SL

• Built-In Audio Across All 3 Cameras

• 120dB WDR

• H.265+ Compression

• IP67 Weather Protection

• PoE Connectivity

• 4-Channel PoE NVR

• 4 Built-In PoE Ports

• 1 Spare Camera Channel

• 1 Spare Physical PoE Port

• Expandable to 4 Cameras

• Up to 4K HDMI Output

• Motion Detection 2.0

• Selectable HDD Storage

• Remote Viewing

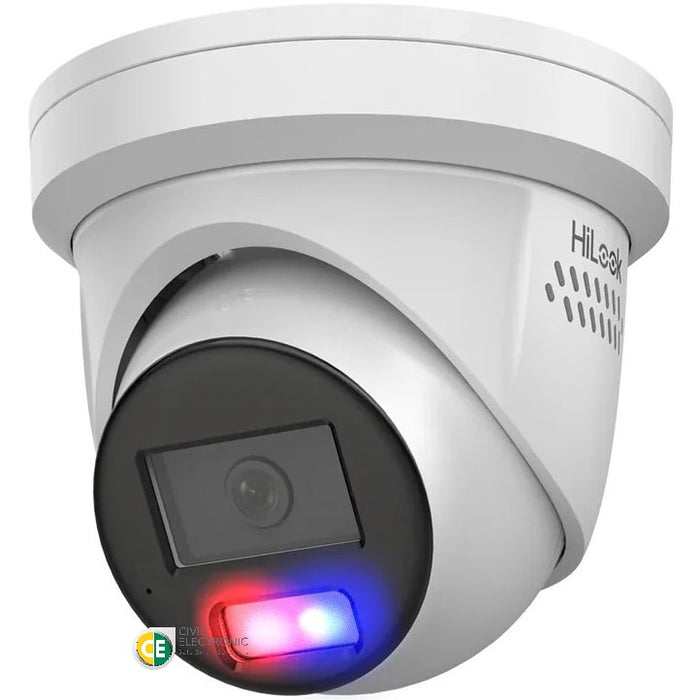

1 × IPC-T269H-MU/SL 6MP Active Colour Camera

The package includes:

1 × HiLook IPC-T269H-MU/SL 6MP All-in-One Active Colour Deterrence Fixed Turret Network Camera

This camera is designed for higher-priority areas where detailed colour surveillance and proactive security functions can provide additional protection.

6MP High-Resolution Imaging

The IPC-T269H-MU/SL provides a maximum resolution of:

3200 × 1800 – 6 Megapixels

This provides detailed surveillance footage suitable for monitoring:

• People

• Vehicles

• Clothing

• Entrances

• Driveways

• Shopfronts

• Garages

• Property Activity

• Security Incidents

Active Colour Night Surveillance

The IPC-T269H-MU/SL combines:

Infrared + White Supplementary Light

allowing the camera to adapt its night surveillance according to the configured operating mode.

White supplementary lighting can provide additional colour information when required, helping identify details such as:

• Clothing Colour

• Vehicle Colour

• Object Colour

• Property Details

• Other Scene Information

Up to 30m Supplementary Lighting

The camera provides:

• IR Range: Up to Approximately 30m

• White Light Range: Up to Approximately 30m

Actual performance depends on installation conditions and the surrounding environment.

Active Deterrence

The IPC-T269H-MU/SL provides proactive security functionality rather than simply recording an incident.

The camera incorporates:

• Active Visual Warning

• Audio Alarm

• Built-In Microphone

• Built-In Speaker

• Two-Way Audio

This makes it particularly useful at important property access points.

Human & Vehicle Classification

The IPC-T269H-MU/SL uses deep-learning technology to distinguish relevant targets including:

• Humans

• Vehicles

This helps the system focus intelligent security events on relevant activity and can reduce unnecessary events caused by environmental movement.

Two-Way Audio

The IPC-T269H-MU/SL provides:

Built-In Two-Way Audio

allowing authorised users to listen and communicate through the camera when correctly configured.

This can be useful for:

• Communicating with Visitors

• Delivery Instructions

• Warning Unwanted Visitors

• Remote Security Intervention

• Monitoring Commercial Entrances

120dB WDR

The active colour camera features:

120dB Wide Dynamic Range

helping maintain useful image detail where bright and dark areas occur within the same scene.

This is particularly beneficial around:

• Entrances

• Driveways

• Shopfronts

• Garages

• Areas Facing Bright Outdoor Light

2 × IPC-T361H-MU 6MP Intelligent Dual IR Cameras

The package also includes:

2 × HiLook IPC-T361H-MU 6MP Intelligent Dual IR Fixed Turret Network Cameras

These cameras provide discreet high-resolution surveillance for areas where active warning functions and visible white supplementary lighting are not required.

6MP High-Resolution Surveillance

Each IPC-T361H-MU provides:

3200 × 1800 – 6 Megapixel Resolution

giving the complete three-camera system consistent 6MP surveillance coverage.

Intelligent Dual IR

The IPC-T361H-MU features:

Intelligent Dual IR

for reliable surveillance in low-light and dark environments.

The camera uses infrared illumination rather than visible white supplementary lighting, making it suitable for discreet night monitoring.

Human & Vehicle Classification

The IPC-T361H-MU also provides deep-learning classification of:

• Humans

• Vehicles

This helps supported intelligent events focus on relevant security targets.

Built-In Arrayed Dual Microphones

Each IPC-T361H-MU features:

Built-In Arrayed Dual Microphones

for real-time high-quality audio security.

When connected to a compatible recorder, CCTV recordings can therefore include:

Video + Audio

without requiring a separate external microphone.

120dB True WDR

The IPC-T361H-MU provides:

120dB True Wide Dynamic Range

for improved surveillance imaging in challenging high-contrast lighting conditions.

H.265+ Video Compression

Both camera models support:

H.265+ Video Compression

which can help reduce storage and network bandwidth requirements compared with older video compression technologies.

This is particularly useful when recording multiple 6MP cameras continuously.

IP67 Weather Protection

All three supplied cameras provide:

IP67 Water & Dust Resistance

making them suitable for correctly installed indoor and outdoor surveillance applications.

Strategic Mixed-Camera Security

The major advantage of this kit is that different camera technologies can be positioned according to the security requirements of each location.

Active Colour Camera at the Priority Location

Position the IPC-T269H-MU/SL at an important approach point such as:

• Front Entrance

• Driveway

• Garage

• Side Gate

• Shopfront

• Business Entrance

This location benefits from active colour surveillance, intelligent human and vehicle detection, two-way audio and deterrence functionality.

Intelligent Dual IR Cameras for General Coverage

Position the two IPC-T361H-MU cameras around locations such as:

• Side Access

• Rear Entrance

• Rear Yard

• Internal Areas

• Storage Areas

• Secondary Entrances

These cameras provide discreet 6MP IR surveillance without requiring visible supplementary lighting.

HiLook NVR-104MH-K/4P 4CH PoE NVR

The package includes the:

HiLook NVR-104MH-K/4P 4-Channel PoE Network Video Recorder

providing:

4 × IP Camera Channels

and:

4 × Plug-and-Play PoE Camera Interfaces

With three cameras included:

3 Channels Are Used

and:

1 Channel Remains Available

for future expansion.

Expand from 3 to 4 Cameras

Cameras Included

3

Maximum Camera Capacity

4

Channels Used

3

Spare Camera Channels

1

The CCTV system can therefore be expanded with one additional compatible IP camera without replacing the NVR.

One Spare Physical PoE Port

The NVR provides four built-in PoE camera interfaces.

With three cameras connected:

3 PoE Ports Are Used

and:

1 Physical PoE Port Remains Available

for a future compatible PoE camera.

PoE Plug-and-Play

PoE – Power over Ethernet – allows compatible cameras to receive power and network connectivity through a single compatible Ethernet cable.

A typical installation is:

Camera → Cat5e/Cat6 Cable → NVR PoE Port

This simplifies professional IP CCTV installations by reducing the need for separate camera power supplies.

40Mbps Incoming Bandwidth

The NVR-104MH-K/4P provides:

40Mbps Incoming Bandwidth

for connected IP cameras.

High-Resolution Decoding

The current HiLook K-Series 4-channel NVR platform provides high-resolution decoding capability suitable for modern megapixel CCTV systems.

The Australian HiLook range specifies decoding capability up to:

4 × 8MP with NVR AI Off

providing ample decoding capability for the three supplied 6MP cameras.

4K Video Output

The recorder provides:

HDMI & VGA Video Output

with support for high-resolution local CCTV display.

A compatible 4K monitor or television can be used for high-resolution local viewing.

HDD Storage

The NVR provides:

1 × SATA HDD Interface

with the current Australian HiLook range supporting up to:

16TB HDD Capacity

HDD: Select storage capacity from available options

The appropriate surveillance HDD size depends on:

• Number of Cameras

• 6MP Recording Resolution

• Frame Rate

• Video Bit Rate

• Audio Recording

• Continuous or Event Recording

• H.265+ Compression

• Required Recording Retention

• Future Addition of a Fourth Camera

Remote Viewing

When connected to the internet and correctly configured, compatible HiLook remote-access functionality can provide:

• Live Camera Viewing

• Recorded Playback

• Event Notifications

• Multi-Camera Viewing

• Remote CCTV Monitoring

Recommended Residential Layout

A practical residential configuration could be:

Camera 1 – IPC-T269H-MU/SL – Front Entrance / Driveway

Use the Active Colour camera at the property's main approach point.

Camera 2 – IPC-T361H-MU – Side Access

Use Intelligent Dual IR for discreet side-property surveillance.

Camera 3 – IPC-T361H-MU – Rear Entrance / Rear Yard

Provide high-resolution rear-property surveillance.

Camera 4 – Spare

Add another compatible IP camera later if required.

Recommended Small Business Layout

A small commercial configuration could include:

Camera 1 – IPC-T269H-MU/SL – Main Entrance / Shopfront

Camera 2 – IPC-T361H-MU – Rear Entrance

Camera 3 – IPC-T361H-MU – Internal / Storage Area

Camera 4 – Spare for Future Expansion

IPC-T269H-MU/SL Main Specifications

• Quantity: 1

• Camera Type: Active Colour Deterrence Fixed Turret Network Camera

• Resolution: 6MP

• Maximum Resolution: 3200 × 1800

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Minimum Illumination: 0.003 Lux @ F1.6, AGC On

• Lens Options: 2.8mm / 4mm

• 2.8mm Horizontal FOV: Approx. 105.1°

• Supplementary Light: White Light + IR

• IR Range: Up to Approx. 30m

• White Light Range: Up to Approx. 30m

• Human Classification: Supported

• Vehicle Classification: Supported

• Active Deterrence: Supported

• Audio Alarm: Supported

• Two-Way Audio: Supported

• WDR: 120dB

• Video Compression: H.265+ / H.265 / H.264+ / H.264

• PoE: Supported

• Weather Protection: IP67

IPC-T361H-MU Main Specifications

• Quantity: 2

• Camera Type: Intelligent Dual IR Fixed Turret Network Camera

• Resolution: 6MP

• Maximum Resolution: 3200 × 1800

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Night Vision: Intelligent Dual IR

• Human Classification: Supported

• Vehicle Classification: Supported

• WDR: 120dB True WDR

• Audio: Built-In Arrayed Dual Microphones

• Video Compression: H.265+ / H.265 / H.264+ / H.264

• PoE: Supported

• Weather Protection: IP67

NVR Specifications

• Model: NVR-104MH-K/4P

• IP Camera Channels: 4

• Plug-and-Play PoE Channels: 4

• Cameras Included: 3

• Channels Used: 3

• Spare Camera Channels: 1

• Spare Physical PoE Ports: 1

• Incoming Bandwidth: 40Mbps

• Decoding Capability: Up to 4 × 8MP with NVR AI Off

• HDD Interfaces: 1 × SATA

• Maximum HDD Capacity: Up to 16TB

• Video Output: HDMI & VGA

• H.265+: Supported

• Remote Viewing: Supported

• HDD: Select Storage Capacity from Available Options

Ideal For

• Home CCTV

• Residential Security

• Small Business CCTV

• Retail CCTV

• Office Security

• Workshops

• Driveways

• Front Entrances

• Side Access

• Rear Entrances

• Active Colour CCTV

• Active Deterrence CCTV

• Human & Vehicle Detection CCTV

• 6MP CCTV Systems

• 3-Camera CCTV Kits

• Mixed Camera CCTV Systems

• 4CH PoE CCTV Systems

• Expandable CCTV Systems

• Professional IP CCTV Installations

Benefits

• Three high-resolution 6MP cameras

• 1 Active Colour camera

• 2 Intelligent Dual IR cameras

• Human and vehicle classification

• IR + white supplementary lighting on active colour camera

• Active visual and audible deterrence

• Two-way audio on IPC-T269H-MU/SL

• Built-in audio across all three cameras

• 120dB WDR

• H.265+ compression

• IP67 weather protection

• Professional PoE connectivity

• 4-channel PoE NVR

• 1 spare camera channel

• 1 spare physical PoE port

• Expandable to four cameras

• High-resolution decoding

• Selectable HDD storage

• Remote viewing capability

The HiLook 6MP Active Colour 4CH CCTV Kit combines an IPC-T269H-MU/SL Active Colour camera with two IPC-T361H-MU Intelligent Dual IR cameras, providing a practical balance between proactive security and discreet general surveillance.

The Active Colour camera can protect the property's main risk point with human and vehicle classification, IR + white supplementary lighting, active deterrence and two-way audio, while the two IPC-T361H-MU cameras provide discreet 6MP Intelligent Dual IR surveillance with built-in dual microphones.

Combined with the NVR-104MH-K/4P 4-channel PoE NVR, the system retains one spare camera channel and one spare physical PoE port for future expansion.

Hikvision HiLook 6MP IPC-T361H-MU#AUS Smart Dual IR Camera with IntelliSense with Built in Mic

Upgrade your security system with the Hikvision HiLook 6MP IPC-T361H-MU#AUS IntelliSense Turret IP Camera. Featuring dual IR technology and a built-in mic, this camera captures every detail with crystal clear 6MP resolution. Enjoy peace of mind with advanced surveillance capabilities.

6 MP AI Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• human and vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)

Manufacturer Specs

Hikvision Hilook IPC-T269H-MU/SL All-in-One Camera with Active Colour Deterrence

The Hilook IPC-T269H-MU/SL is an advanced all-in-one security camera featuring Active Colour Deterrence technology. It delivers vivid, full-color video even in low-light conditions, enhancing threat detection and deterrence. Designed for professional surveillance, this camera integrates high-resolution imaging with intelligent lighting to provide clear, detailed footage and proactive security alerts, making it ideal for comprehensive monitoring in various environments.

• Active Colour Deterrence 6MP high resolution camera
• Alarms, notifications, any audio clips can be broadcasted by camera when event occurs. Users can use Mobile App to customize audio message easily.
• Working with Intelligent human & vehicle classification technology to reduce FALSE alarm.
• Strobe light alarm and Audio alarm to warn intruders off in real-time
• The All-in-One camera has colourful images at night with White light supplement
• Working with Hilook NVR(new firmware needed), you can simply control alarms with one tap on the easy-to-use mobile APP HiLookVision
• IP67 Ingress Protection
• One Tap to Alarm/Disarm with Mobile APP

Manufacturer Specs

Hikvision HiLook NVR-104MH-C/4P 4CH PoE 4K NVR

The HiLook NVR-104MH-C/4P is a four-channel network video recorder that supports H.265+/H.264/MPEG4 formats, as well as mobile monitoring via the Hik-Connect app. This Plug&Play 4K NVR can be connected to third-party network cameras, and can support up to four cameras simultaneously.

Features :

• 4CH 4xPoE Plug & Play 4K NVR
• Third-party network cameras supported
• 1 HDMI, 1 VGA, HMDI up to 4K (3840x2160)
• 4ch network cameras with 40M bandwidth
• Up to 1 SATA interfaces
• Plug & Play with up to 4 independent PoE
• Support VCA detection and VCA search
• Support H.265+/H.264/MPEG4 formats
• Support mobile monitoring via Hik-Connect
• 315 x 240 x 48 mm

Manufacturer Specs

Genuine Product Assurance, We are officially an authorized reseller of Hikvision

Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.

Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.

1. Free and Express Shipping

• Free Standard Shipping applies to all orders valued at $300 or more.
• Express Shipping is available for an additional $65 per order.

Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:

Australia Post Coverage

2. Order Processing

• Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
• Orders are processed Monday to Friday, excluding weekends and public holidays.
• Tracking information will be provided via email after 11:00 AM on the day the order is shipped.

All orders are dispatched using the most efficient postage method available to ensure timely delivery.

3. Delivery Timeframes

• Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
• Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
• Standard Shipping: Please allow up to 10 business days from dispatch.

If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.

4. Delivery Requirements and Limitations

• All deliveries require a signature upon receipt.
• Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
• If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
• We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.

Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.

We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.

If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.

5. Tracking Your Order

Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.

To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.

6. Additional Information

We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.

Price Beat Guarantee

At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.

How It Works

If you find a cheaper price, simply:

1. Provide a link to the competitor's advertised product
2. Confirm the seller is an authorised Australian reseller
3. Submit your request before placing your order

Our team will verify the details and respond promptly.

Eligibility Requirements

To qualify for our Price Beat Guarantee, the following conditions must be met:

• The competitor must be an authorised Australian reseller
• The seller must operate as a legitimate Australian retail business
• The item must be identical (same brand, model number and specifications)
• The product must be brand new and currently in stock
• The price must be publicly advertised (not a private quote or member-only offer)
• The advertised price must include GST
• Shipping costs must be included in the total comparison
• The competitor must supply Australian warranty support

Exclusions

Our Price Beat Guarantee does not apply to:

• Dropshippers or intermediary sellers who do not physically stock the product
• Sellers operating without a verifiable Australian retail presence
• Businesses with no registered retail location or identifiable trading address
• Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
• Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
• Refurbished, used or open-box items
• Pricing errors or misprints
• Bundle deals, bonus offers or cashback promotions
• Trade, bulk or special contract pricing

Important Conditions

• Price Beat requests must be approved prior to purchase
• Approved offers are valid for 24 hours only
• Civic Electronic reserves the right to verify reseller authorisation status
• We reserve the right to decline requests that do not meet the above criteria
• This policy may be modified or withdrawn at any time without notice

Why Buy From Civic Electronic?

• 100% Genuine Products
• Authorised Australian Reseller
• Local Australian Warranty
• Real Stock, Not Dropshipped
• Expert Technical Support
• Fast & Secure Dispatch
