HiLook 6MP Active Colour Deterrence CCTV Kit

4 × IPC-T269H 6MP Active Colour Deterrence Cameras + 2 × IPC-T361H 6MP Network Cameras

The HiLook 6MP Active Colour Deterrence 8CH CCTV Kit is a professional mixed-camera security system combining 4 × IPC-T269H-MU/SL 6MP Active Colour Deterrence turret cameras with 2 × IPC-T361H-MU 6MP Intelligent Dual IR turret cameras and an 8-channel PoE Network Video Recorder.

This combination provides six high-resolution 6MP cameras while allowing different camera technologies to be strategically positioned around the property.

The four IPC-T269H-MU/SL Active Colour Deterrence cameras are ideal for priority security areas where visual warning, audible deterrence, IR + white supplementary lighting and two-way audio can provide proactive protection.

The two IPC-T361H-MU Intelligent Dual IR cameras provide discreet high-resolution surveillance with human and vehicle classification, Intelligent Dual IR night vision and built-in arrayed dual microphones.

With six cameras connected to an eight-channel PoE NVR, the system also retains 2 spare camera channels and 2 spare physical PoE ports for future expansion.

Network cabling and installation accessories are supplied separately unless specifically stated otherwise.

This CCTV Kit includes:

2 x 6 Megapixel IP IntelliSense Turret (IPC-T361H) (White Only)

4 x 6 Megapixel All-in-One IP Camera with Active Colour Deterrence (IPC-T269H-MU/SL) (White Only)

1 x 8 Channel PoE NVR (NVR 108MH-C/8P)

.

Key Features

• 6 × 6MP IP Turret Cameras

• Maximum 3200 × 1800 Resolution

• 4 × Active Colour Deterrence Cameras

• 2 × Intelligent Dual IR Cameras

• Human & Vehicle Classification

• Intelligent Motion Detection

• Line Crossing Detection

• Intrusion Detection

• IR Night Surveillance

• White Supplementary Lighting on Active Deterrence Cameras

• Active Visual Warning

• Audible Warning

• Two-Way Audio on IPC-T269H-MU/SL Cameras

• Built-In Audio Across All 6 Cameras

• 120dB True WDR

• H.265+ Compression

• IP67 Weather Protection

• PoE Connectivity

• 8-Channel PoE NVR

• 8 Built-In PoE Ports

• 6 Cameras Included

• 2 Spare Camera Channels

• 2 Spare PoE Ports

• Expandable to 8 Cameras

• Up to 4K HDMI Output

• Remote Viewing

• Selectable HDD Storage

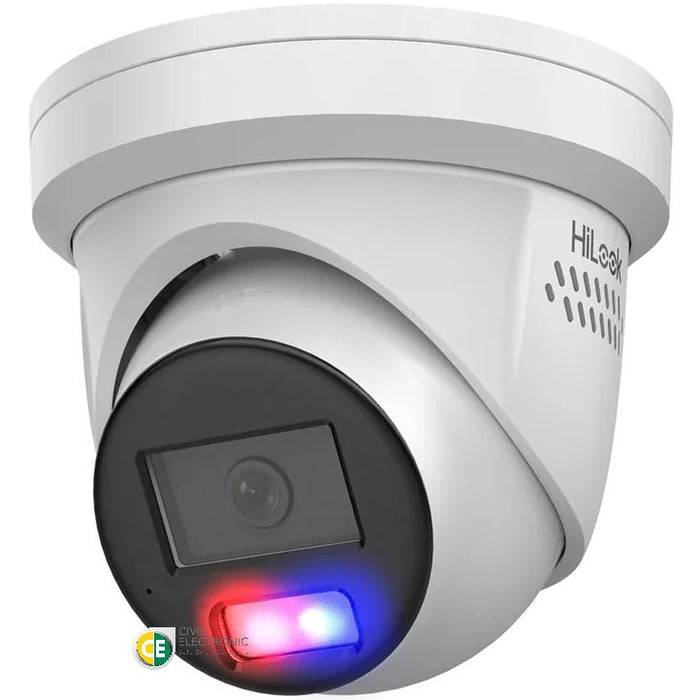

4 × IPC-T269H-MU/SL 6MP Active Colour Deterrence Cameras

The package includes:

4 × HiLook IPC-T269H-MU/SL 6MP Active Colour Deterrence Fixed Turret Network Cameras

These cameras are designed for higher-priority surveillance locations where proactive security is required.

Rather than simply recording activity, the IPC-T269H-MU/SL combines intelligent detection with visual and audible deterrence, supplementary white lighting and two-way audio.

6MP High-Resolution Imaging

Each IPC-T269H-MU/SL provides:

3200 × 1800 – 6 Megapixel Resolution

6MP surveillance provides significantly greater image detail than conventional 1080p Full HD CCTV.

This additional detail can assist when reviewing:

• People

• Clothing

• Vehicles

• Entrances

• Driveways

• Property Activity

• Shopfronts

• Car Parks

• Loading Areas

• Security Incidents

Active Colour Deterrence

The IPC-T269H-MU/SL is designed to provide a proactive response to security events.

Depending on configuration, the camera can use:

• Visual Warning

• Audible Warning

• White Supplementary Lighting

• Two-Way Audio

to help discourage unwanted activity.

This makes the active deterrence cameras particularly useful around:

• Front Entrances

• Driveways

• Garages

• Side Gates

• Shopfronts

• Warehouse Entrances

• Loading Areas

• Restricted Areas

IR + White Supplementary Lighting

The IPC-T269H-MU/SL provides:

IR + White Supplementary Lighting

with illumination up to approximately:

30 Metres

The camera can provide conventional infrared night surveillance while also using white supplementary lighting when colour detail or active visual security is required.

Human & Vehicle Classification

The IPC-T269H-MU/SL supports intelligent classification of:

• Humans

• Vehicles

This allows security events to focus on relevant targets rather than treating every movement within the image equally.

This can help reduce unnecessary events caused by:

• Trees

• Leaves

• Rain

• Shadows

• Animals

• Changing Light

• Other Environmental Movement

Intelligent Perimeter Protection

The active deterrence cameras support intelligent functions including:

• Line Crossing

• Intrusion Detection

• Region Entrance

• Region Exiting

• Human Classification

• Vehicle Classification

These functions can provide more targeted security monitoring for defined areas.

Two-Way Audio

The IPC-T269H-MU/SL provides integrated audio functionality for:

Two-Way Communication

This allows authorised users to listen and communicate through the camera when correctly configured with a compatible system.

Potential applications include:

• Warning an Intruder

• Communicating with Visitors

• Delivery Instructions

• Remote Site Communication

• Security Intervention

120dB True WDR

The IPC-T269H-MU/SL supports:

120dB True Wide Dynamic Range

helping maintain useful image detail in scenes containing both bright and dark areas.

This is particularly valuable around:

• Entrances

• Driveways

• Shopfronts

• Loading Areas

• Areas Facing Strong Outdoor Light

2.8mm / 4mm Lens Options

The IPC-T269H-MU/SL is available with:

• 2.8mm Fixed Lens

• 4mm Fixed Lens

The 2.8mm version provides a horizontal field of view of approximately:

105.1°

making it suitable for wide general surveillance coverage.

2 × IPC-T361H-MU 6MP Intelligent Dual IR Cameras

The package also includes:

2 × HiLook IPC-T361H-MU 6MP Intelligent Dual IR Fixed Turret Network Cameras

These cameras provide discreet high-resolution surveillance for locations where active warning lights and speakers are not required.

They are particularly useful for continuous general security coverage.

6MP High-Resolution Surveillance

Each IPC-T361H-MU provides:

3200 × 1800 – 6 Megapixel Resolution

providing consistent 6MP image quality across the complete six-camera CCTV system.

Intelligent Dual IR Night Vision

The IPC-T361H-MU features:

Intelligent Dual IR

for effective night surveillance without requiring visible white supplementary lighting.

This makes the T361H particularly suitable for areas where discreet monitoring is preferred.

Human & Vehicle Classification

The IPC-T361H-MU uses deep-learning technology to distinguish:

• Humans

• Vehicles

This helps improve event accuracy and reduces unnecessary alerts generated by non-relevant movement.

Built-In Arrayed Dual Microphones

Each IPC-T361H-MU features:

Built-In Arrayed Dual Microphones

for real-time audio capture.

When used with a compatible recorder, surveillance footage can therefore include:

Video + Audio

without requiring a separate external microphone.

Intelligent Detection Across the CCTV System

Both camera types provide intelligent security functionality designed to focus surveillance events on relevant activity.

Depending on configuration, supported functions include:

• Human Detection

• Vehicle Detection

• Intelligent Motion Detection

• Line Crossing Detection

• Intrusion Detection

This provides a more intelligent security system than conventional motion-only CCTV.

Strategic Mixed-Camera Security

One of the main advantages of this package is that the cameras can be positioned according to the security risk of each area.

Active Deterrence at Priority Locations

Use the IPC-T269H-MU/SL Active Colour Deterrence cameras around higher-risk locations such as:

• Front Entrance

• Driveway

• Garage

• Side Gate

• Shopfront

• Warehouse Entrance

• Loading Area

• Restricted Access Point

These areas can benefit from visual and audible deterrence when a relevant security event occurs.

Discreet Surveillance for General Coverage

Use the IPC-T361H-MU Intelligent Dual IR cameras around areas such as:

• Rear Yard

• Secondary Side Access

• Internal Areas

• Storage Areas

• Car Parks

• General Perimeter Areas

This provides discreet high-resolution monitoring without active warning functions at every camera location.

8-Channel PoE Network Video Recorder

The package includes a compatible:

HiLook 8-Channel PoE Network Video Recorder

providing:

8 × IP Camera Channels

and:

8 × Built-In PoE Camera Interfaces

With six cameras supplied:

6 Channels Are Used

and:

2 Channels Remain Available

for future expansion.

Expand from 6 to 8 Cameras

Cameras Included

6

Maximum NVR Camera Capacity

8

Channels Currently Used

6

Spare Camera Channels

2

The system can therefore be expanded with up to two additional compatible IP cameras without replacing the NVR.

Two Spare Physical PoE Ports

The NVR provides eight built-in PoE camera interfaces.

With six cameras connected:

6 PoE Ports Are Used

and:

2 PoE Ports Remain Available

Additional compatible PoE cameras can therefore connect directly to the recorder.

PoE Plug-and-Play Connectivity

PoE – Power over Ethernet – allows compatible cameras to receive electrical power and network connectivity through a single compatible Ethernet cable.

A typical installation is:

Camera → Cat5e/Cat6 Cable → NVR PoE Port

This helps reduce the need for:

• Separate Camera Power Supplies

• Individual PoE Injectors

• Separate Camera Power Cabling

and provides a clean professional IP CCTV architecture.

4K Local Display

The compatible HiLook 8-channel NVR provides:

Up to 4K HDMI Video Output

allowing connection to a compatible 4K monitor or television for high-resolution local surveillance viewing.

H.265+ Video Compression

The cameras and compatible recorder support:

H.265+ Video Compression

which can help reduce network bandwidth and HDD storage requirements compared with older compression technologies.

This is particularly beneficial when continuously recording six high-resolution 6MP cameras.

HDD Storage

HDD: Select storage capacity from available options

The appropriate surveillance HDD capacity depends on:

• Six 6MP Cameras

• Potential Expansion to Eight Cameras

• Recording Resolution

• Frame Rate

• Video Bit Rate

• Audio Recording

• H.265+ Compression

• Continuous or Event Recording

• Required Recording Retention

A surveillance-rated HDD is recommended for continuous CCTV recording.

Remote Viewing

When connected to the internet and correctly configured, compatible HiLook remote-access functionality can provide:

• Live Camera Viewing

• Recorded Playback

• Event Notifications

• Multi-Camera Viewing

• Remote CCTV Monitoring

Recommended Residential Camera Layout

A strong residential configuration could be:

Camera 1 – IPC-T269H-MU/SL – Front Entrance

Camera 2 – IPC-T269H-MU/SL – Driveway

Camera 3 – IPC-T269H-MU/SL – Garage

Camera 4 – IPC-T269H-MU/SL – Side Gate

Camera 5 – IPC-T361H-MU – Rear Entrance

Camera 6 – IPC-T361H-MU – Rear Yard

This concentrates active deterrence around the four most important approach points while providing discreet surveillance across the rear of the property.

Two spare NVR channels remain available for future cameras.

Recommended Commercial Camera Layout

A commercial configuration could include:

Camera 1 – IPC-T269H-MU/SL – Main Entrance

Camera 2 – IPC-T269H-MU/SL – Customer Entrance

Camera 3 – IPC-T269H-MU/SL – Loading Area

Camera 4 – IPC-T269H-MU/SL – Restricted Rear Entrance

Camera 5 – IPC-T361H-MU – Internal Warehouse

Camera 6 – IPC-T361H-MU – General Car Park / Perimeter

IPC-T269H-MU/SL Main Specifications

• Quantity: 4

• Camera Type: Active Colour Deterrence Fixed Turret Network Camera

• Resolution: 6MP

• Maximum Resolution: 3200 × 1800

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Minimum Colour Illumination: Approx. 0.003 Lux @ F1.6, AGC On

• Lens Options: 2.8mm / 4mm

• 2.8mm Horizontal FOV: Approx. 105.1°

• Supplementary Light: IR + White Light

• IR Range: Up to Approx. 30m

• White Light Range: Up to Approx. 30m

• Human Classification: Supported

• Vehicle Classification: Supported

• Perimeter Protection: Supported

• Visual Warning: Supported

• Audible Warning: Supported

• Two-Way Audio: Supported

• WDR: 120dB

• Video Compression: H.265+ / H.265 / H.264+ / H.264

• PoE: Supported

• Weather Protection: IP67

IPC-T361H-MU Main Specifications

• Quantity: 2

• Camera Type: Intelligent Dual IR Fixed Turret Network Camera

• Resolution: 6MP

• Maximum Resolution: 3200 × 1800

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Night Vision: Intelligent Dual IR

• Human Classification: Supported

• Vehicle Classification: Supported

• Intelligent Events: Supported

• WDR: 120dB True WDR

• Audio: Built-In Arrayed Dual Microphones

• Video Compression: H.265+ / H.265 / H.264+ / H.264

• PoE: Supported

• Weather Protection: IP67

System Specifications

• Total Cameras: 6

• Camera Resolution: 6MP

• Active Deterrence Cameras: 4

• Intelligent Dual IR Cameras: 2

• NVR Channels: 8

• Built-In PoE Interfaces: 8

• Channels Used: 6

• Spare Camera Channels: 2

• Spare Physical PoE Ports: 2

• Maximum Camera Capacity: 8

• Video Compression: H.265+ Supported

• Local Display: Up to 4K HDMI

• Remote Viewing: Supported

• HDD: Select Storage Capacity from Available Options

Ideal For

• Residential CCTV

• Home Security

• Commercial CCTV

• Retail Stores

• Offices

• Workshops

• Warehouses

• Car Parks

• Driveways

• Garages

• Building Entrances

• Loading Areas

• Building Perimeters

• Active Deterrence CCTV

• Human & Vehicle Detection CCTV

• 6MP CCTV Systems

• Mixed Camera CCTV Systems

• 6-Camera CCTV Systems

• Expandable 8-Channel CCTV Systems

• Professional IP CCTV Installations

Benefits

• Six high-resolution 6MP cameras

• 4 active deterrence cameras

• 2 Intelligent Dual IR cameras

• Human and vehicle classification

• Intelligent perimeter protection

• IR night surveillance

• White supplementary lighting on deterrence cameras

• Visual warning

• Audible warning

• Two-way audio on active deterrence cameras

• Built-in audio across all six cameras

• 120dB WDR

• H.265+ compression

• IP67 weather protection

• Professional PoE connectivity

• 8-channel PoE NVR

• 2 spare camera channels

• 2 spare physical PoE ports

• Expandable to eight cameras

• Up to 4K local display

• Selectable HDD storage

• Remote viewing capability

The HiLook 6MP Active Colour Deterrence 8CH CCTV Kit with 4 Active Deterrence cameras and 2 Intelligent Dual IR cameras provides a balanced security solution combining proactive protection with discreet general surveillance.

The four IPC-T269H-MU/SL cameras can protect the property's most important entry and approach points using intelligent detection, visual and audible deterrence and two-way audio, while the two IPC-T361H-MU cameras provide discreet 6MP surveillance with human and vehicle classification and built-in audio.

Combined with an 8-channel PoE NVR, the six-camera package also retains two spare camera channels and two spare physical PoE ports for future expansion.

Hikvision HiLook 6MP IPC-T361H-MU#AUS Smart Dual IR Camera with IntelliSense with Built in Mic

Upgrade your security system with the Hikvision HiLook 6MP IPC-T361H-MU#AUS IntelliSense Turret IP Camera. Featuring dual IR technology and a built-in mic, this camera captures every detail with crystal clear 6MP resolution. Enjoy peace of mind with advanced surveillance capabilities.

6 MP AI Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• human and vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)

Manufacturer Specs

Hikvision Hilook IPC-T269H-MU/SL All-in-One Camera with Active Colour Deterrence

• Active Colour Deterrence 6MP high resolution camera
• Alarms, notifications, any audio clips can be broadcasted by camera when event occurs. Users can use Mobile App to customize audio message easily.
• Working with Intelligent human & vehicle classification technology to reduce FALSE alarm.
• Strobe light alarm and Audio alarm to warn intruders off in real-time
• The All-in-One camera has colourful images at night with White light supplement
• Working with Hilook NVR(new firmware needed), you can simply control alarms with one tap on the easy-to-use mobile APP HiLookVision
• IP67 Ingress Protection
• One Tap to Alarm/Disarm with Mobile APP

Manufacturer Specs

Hikvision HiLook NVR-108MH-C/8P 8CH PoE 4K NVR

The HiLook NVR-108MH-C/8P is an eight-channel network video recorder that supports up to 1 SATA interfaces, as well as H.265+/H.264/MPEG4 formats. To monitor remotely from your mobile, this NVR can be connected via the Hik-Connect app. This Plug&Play 4K NVR can be connected to third-party network cameras, and can support up to eight cameras simultaneously.

Features:

• 8CH 8xPoE Plug & Play 4K NVR
• Third-party network cameras supported
• 1 HDMI, 1 VGA, HMDI up to 4K (3840x2160)
• 8ch network cameras with 80M bandwidth
• Up to 1 SATA interfaces
• Plug & Play with up to 8 independent PoE
• Support VCA detection and VCA search
• Support H.265+/H.264/MPEG4 formats
• Support mobile monitoring via Hik-Connect
• 315 x 240 x 48 mm

Manufacturer Specs

Genuine Product Assurance, We are officially an authorized reseller of Hikvision

Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.

Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.

1. Free and Express Shipping

• Free Standard Shipping applies to all orders valued at $300 or more.
• Express Shipping is available for an additional $65 per order.

Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:

Australia Post Coverage

2. Order Processing

• Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
• Orders are processed Monday to Friday, excluding weekends and public holidays.
• Tracking information will be provided via email after 11:00 AM on the day the order is shipped.

All orders are dispatched using the most efficient postage method available to ensure timely delivery.

3. Delivery Timeframes

• Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
• Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
• Standard Shipping: Please allow up to 10 business days from dispatch.

If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.

4. Delivery Requirements and Limitations

• All deliveries require a signature upon receipt.
• Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
• If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
• We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.

Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.

We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.

If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.

5. Tracking Your Order

Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.

To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.

6. Additional Information

We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.

Price Beat Guarantee

At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.

How It Works

If you find a cheaper price, simply:

1. Provide a link to the competitor's advertised product
2. Confirm the seller is an authorised Australian reseller
3. Submit your request before placing your order

Our team will verify the details and respond promptly.

Eligibility Requirements

To qualify for our Price Beat Guarantee, the following conditions must be met:

• The competitor must be an authorised Australian reseller
• The seller must operate as a legitimate Australian retail business
• The item must be identical (same brand, model number and specifications)
• The product must be brand new and currently in stock
• The price must be publicly advertised (not a private quote or member-only offer)
• The advertised price must include GST
• Shipping costs must be included in the total comparison
• The competitor must supply Australian warranty support

Exclusions

Our Price Beat Guarantee does not apply to:

• Dropshippers or intermediary sellers who do not physically stock the product
• Sellers operating without a verifiable Australian retail presence
• Businesses with no registered retail location or identifiable trading address
• Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
• Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
• Refurbished, used or open-box items
• Pricing errors or misprints
• Bundle deals, bonus offers or cashback promotions
• Trade, bulk or special contract pricing

Important Conditions

• Price Beat requests must be approved prior to purchase
• Approved offers are valid for 24 hours only
• Civic Electronic reserves the right to verify reseller authorisation status
• We reserve the right to decline requests that do not meet the above criteria
• This policy may be modified or withdrawn at any time without notice

Why Buy From Civic Electronic?

• 100% Genuine Products
• Authorised Australian Reseller
• Local Australian Warranty
• Real Stock, Not Dropshipped
• Expert Technical Support
• Fast & Secure Dispatch
