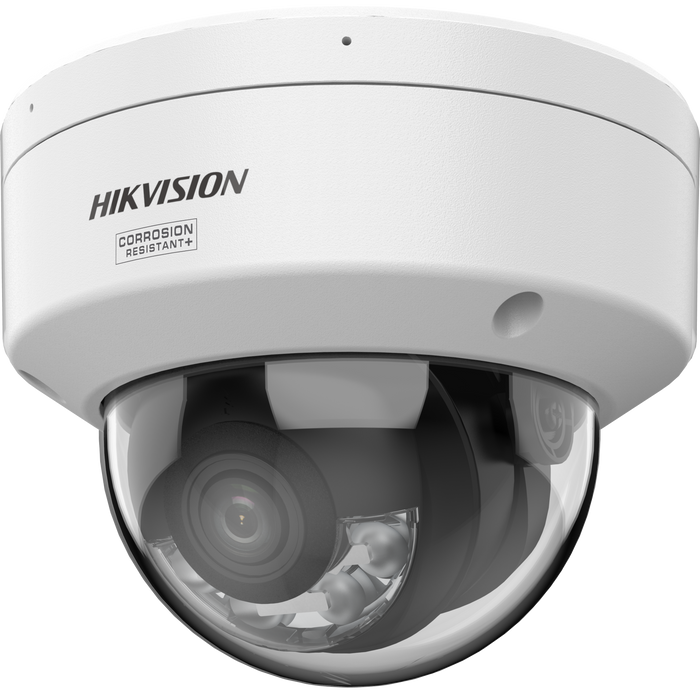

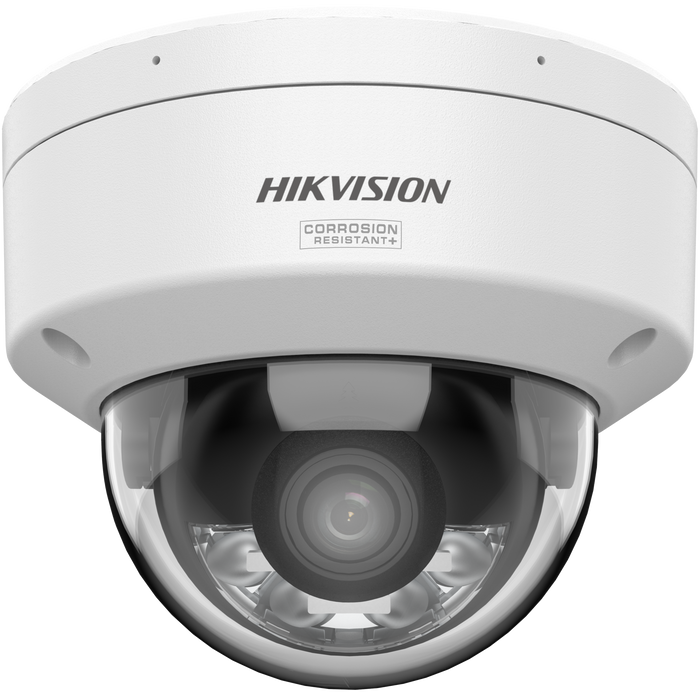

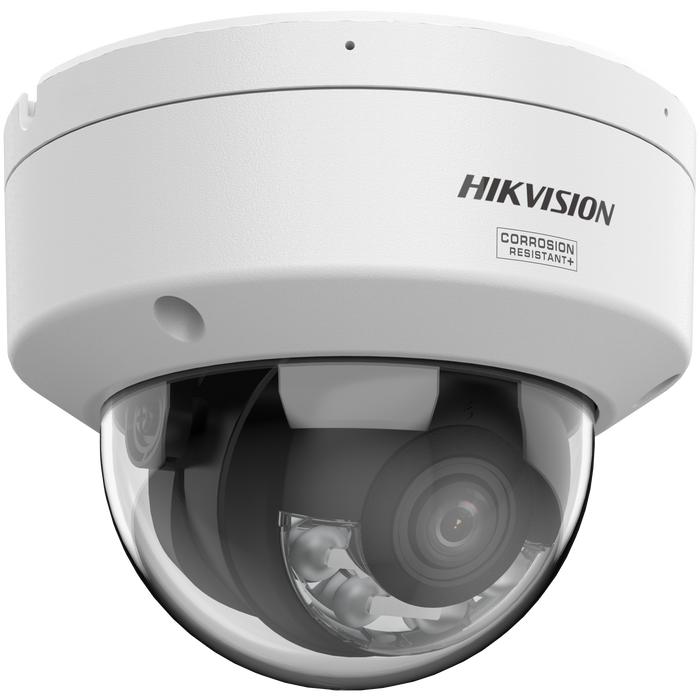

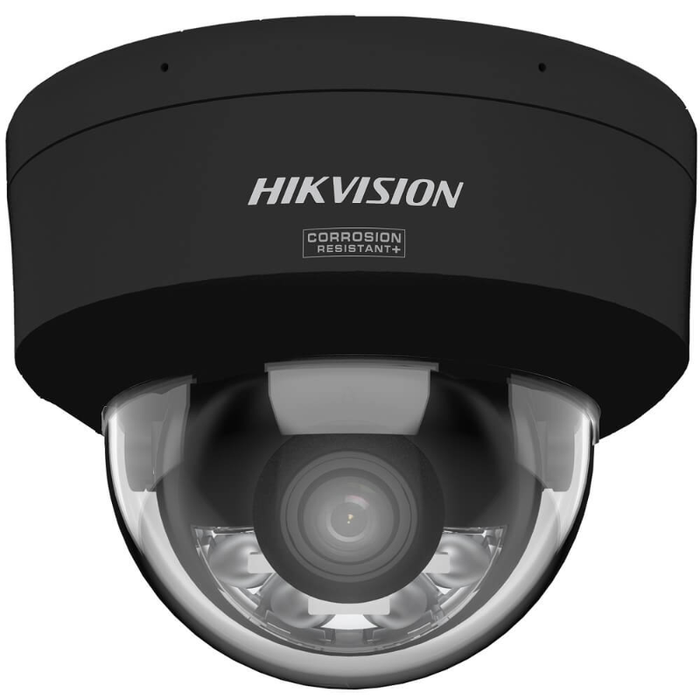

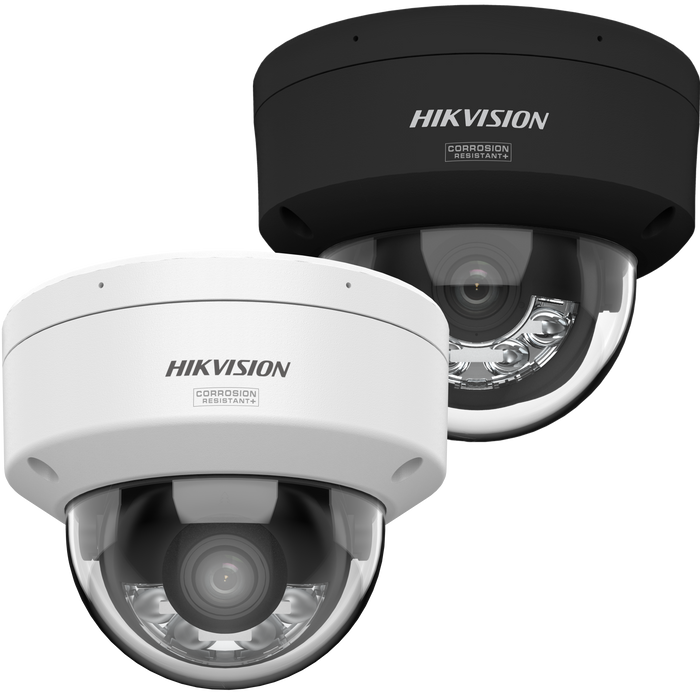

Hikvision DS-2CD2187G3-LIS2UY 8MP 4K ColorVu 3.0 Smart Hybrid Light Fixed Mini Dome Network Camera
The Hikvision DS-2CD2187G3-LIS2UY is a professional
8MP 4K ColorVu 3.0 Smart Hybrid Light fixed mini dome network camera
designed to deliver high-resolution surveillance, advanced colour
imaging and intelligent security detection for residential,
commercial and industrial CCTV installations.
Featuring Hikvision's advanced ColorVu 3.0 technology,
HikAI-ISP image processing and an F1.0 super-aperture lens,
this camera delivers detailed colour images in challenging
low-light environments.
The camera captures high-resolution
3840 × 2160 4K Ultra HD video using a
1/1.8-inch Progressive Scan CMOS sensor,
providing excellent image detail for professional security monitoring.
Advanced Smart Hybrid Light technology
combines infrared and white-light illumination with
three selectable lighting modes, providing flexible
night-time surveillance with a range of up to
30 metres.
The DS-2CD2187G3-LIS2UY also incorporates
intelligent human and vehicle classification,
face capture, built-in arrayed dual microphones,
130dB Wide Dynamic Range
and efficient H.265+ video compression.
With IP67 weather protection,
IK10 vandal resistance and
NEMA 4X anti-corrosion protection,
this professional mini dome camera is suitable for
demanding indoor and outdoor security installations.
Key Features
-
8MP 4K Ultra HD: Detailed 3840 × 2160 security imaging.
-
ColorVu 3.0 Technology: Advanced full-colour imaging in low-light environments.
-
HikAI-ISP: Intelligent image processing for improved clarity and noise reduction.
-
1/1.8" CMOS Sensor: High-performance progressive scan imaging.
-
F1.0 Super Aperture: Enhanced light collection for colour surveillance.
-
Smart Hybrid Light: Integrated infrared and white-light illumination.
-
Three Lighting Modes: IR, white light and smart hybrid illumination.
-
30m Illumination: Supplementary lighting range up to 30 metres.
-
Human and Vehicle Detection: Deep-learning-based target classification.
-
Face Capture: Intelligent face capture functionality.
-
130dB WDR: Improved visibility in high-contrast lighting conditions.
-
Dual Microphones: Built-in arrayed microphones for audio capture.
-
Fixed Lens Options: 2.8mm or 4mm depending on the selected variant.
-
H.265+ Compression: Efficient recording and bandwidth management.
-
Local Recording: Supports compatible microSD cards up to 512GB.
-
Audio and Alarm Interfaces: Additional integration options for professional systems.
-
PoE Support: Simplified installation using compatible network equipment.
-
IP67 Protection: Weather-resistant construction for outdoor applications.
-
IK10 Vandal Resistance: Durable dome housing for exposed installations.
-
NEMA 4X Protection: Enhanced resistance to corrosion.
-
3-Year Warranty: Australian camera warranty support, subject to applicable terms.
Technical Specifications
| Model |
DS-2CD2187G3-LIS2UY |
| Camera Type |
8MP ColorVu 3.0 Smart Hybrid Light Fixed Mini Dome |
| Maximum Resolution |
3840 × 2160 / 8MP 4K Ultra HD |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Imaging Technology |
ColorVu 3.0 / HikAI-ISP |
| Minimum Illumination |
Colour: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with Light |
| Lens Options |
2.8mm / 4mm Fixed Lens |
| Lens Aperture |
F1.0 |
| 2.8mm Horizontal FOV |
108.8° |
| 4mm Horizontal FOV |
93.3° |
| Supplementary Lighting |
Infrared + White Light |
| Lighting Range |
Up to 30m |
| IR Wavelength |
850nm |
| Wide Dynamic Range |
130dB WDR |
| Intelligent Detection |
Human and Vehicle Classification |
| Smart Analytics |
Face Capture, Line Crossing, Intrusion, Region Entrance and Region Exiting |
| Audio |
Built-In Arrayed Dual Microphones |
| Audio Interfaces |
1 Input / 1 Output (Line Level) |
| Alarm Interfaces |
1 Input / 1 Output |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Maximum Frame Rate |
25fps at 3840 × 2160 (50Hz) |
| Local Storage |
microSD / microSDHC / microSDXC Up to 512GB |
| Network Interface |
RJ45 10/100Mbps Ethernet |
| Network Compatibility |
ONVIF Profiles S, G and T |
| Power Supply |
12V DC / IEEE 802.3af PoE |
| Maximum Power Consumption |
9W DC / 10.5W PoE |
| Weather Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Anti-Corrosion Protection |
NEMA 4X - Moderate Protection |
| Camera Adjustment |
Manual Pan 0°–355°, Tilt 0°–75°, Rotate 0°–355° |
| Operating Temperature |
-30°C to +60°C |
| Dimensions |
Ø121.5 × 97.6mm |
| Weight |
Approximately 600g |
| Warranty |
3 Years - Subject to Applicable Australian Warranty Terms |
Detailed Features & Benefits
8MP 4K Ultra HD Surveillance
The Hikvision DS-2CD2187G3-LIS2UY captures
high-resolution video at up to
3840 × 2160 pixels,
providing detailed 4K Ultra HD security
footage for professional CCTV installations.
The high-resolution image helps improve
visibility across entrances, driveways,
commercial premises, warehouses and
outdoor surveillance areas.
ColorVu 3.0 Full-Colour Imaging
Hikvision ColorVu 3.0 technology combines
a high-performance image sensor,
F1.0 super-aperture lens and
advanced image processing.
This helps capture detailed colour
images in low-light environments,
improving the visibility of important
security details.
When additional illumination is needed,
the camera can use its integrated
white-light system to support
colour surveillance.
HikAI-ISP Intelligent Image Processing
HikAI-ISP technology provides advanced
image processing and noise reduction,
helping preserve useful image detail
during challenging night-time surveillance.
This intelligent processing helps
produce clearer images while reducing
unwanted visual noise.
Smart Hybrid Light Technology
The camera combines infrared and
white-light illumination with
three selectable lighting modes.
Installers can configure infrared,
white-light or smart hybrid operation
to suit the security environment.
Smart Hybrid Light provides
flexible night-time surveillance
while supporting colour imaging
when white-light illumination
is activated.
30m Supplementary Illumination
The camera supports supplementary
lighting at distances of up to
30 metres.
Actual illumination performance
depends on the selected lighting
mode and installation conditions.
130dB Wide Dynamic Range
The DS-2CD2187G3-LIS2UY features
130dB WDR to help balance
bright and dark areas within the
same surveillance scene.
This is particularly useful for
building entrances, doorways
and locations exposed to
strong backlighting.
Intelligent Human and Vehicle Detection
Advanced deep-learning algorithms
help distinguish humans and vehicles
from other moving objects.
This improves the relevance of
security notifications and helps
reduce unnecessary alerts caused
by environmental movement.
Face Capture Functionality
The camera supports intelligent
face capture for compatible
security monitoring applications.
This provides additional flexibility
for professional installations
requiring face-related security events.
Intelligent Perimeter Protection
The camera supports line crossing,
intrusion detection, region entrance
and region exiting functions.
Human and vehicle classification
can be applied to supported
security events.
Built-In Dual Microphones
The DS-2CD2187G3-LIS2UY includes
an integrated arrayed dual-microphone
system for audio capture.
The microphones support audio
monitoring through compatible
Hikvision recording systems.
The camera also provides external
audio input and output interfaces
for compatible audio equipment.
Audio recording must be configured
and used in accordance with
applicable privacy and
surveillance regulations.
2.8mm and 4mm Fixed Lens Options
The camera is available with
2.8mm and 4mm fixed-lens options.
The 2.8mm lens provides wider
coverage, while the 4mm lens
offers a narrower viewing angle.
The correct lens should be
selected according to the
installation location and
required surveillance coverage.
H.265+ Video Compression
Hikvision H.265+ compression
helps reduce video storage
requirements and network
bandwidth consumption when
used with compatible equipment.
This supports efficient recording
of high-resolution 4K
surveillance footage.
Local microSD Recording
The camera supports compatible
microSD cards up to
512GB.
Local storage can provide an
additional recording option
alongside compatible network
video recorders.
Power over Ethernet
Power over Ethernet allows
the camera to receive network
communication and electrical
power through compatible
Ethernet infrastructure.
This simplifies installation
and reduces the need for
separate power cabling.
IP67 Weather Protection
The camera features IP67-rated
protection against dust and
water ingress.
This makes it suitable for
properly installed indoor
and outdoor CCTV applications.
IK10 Vandal-Resistant Housing
The durable IK10-rated dome
housing provides enhanced
protection against physical
impacts.
This makes the camera suitable
for exposed installation
locations where vandal
resistance is important.
NEMA 4X Anti-Corrosion Protection
The camera features a
NEMA 4X-rated anti-corrosion
design for enhanced durability
in demanding environments.
Hikvision classifies this
model as providing moderate
anti-corrosion protection.
Installers should assess
environmental conditions before
using the camera in highly
corrosive locations.
Ideal Applications
-
Residential Properties: Entrances, driveways and outdoor surveillance.
-
Commercial Buildings: Office entrances, corridors and external security.
-
Retail Premises: Shop entrances and customer access areas.
-
Warehouses: Loading bays, storage areas and access points.
-
Apartment Buildings: Common areas, corridors and building entrances.
-
Car Parks: Monitoring vehicle and pedestrian activity.
-
Industrial Facilities: Indoor and outdoor security monitoring.
-
Exposed Outdoor Locations: Areas requiring vandal-resistant and weather-protected cameras.
Compatibility & Installation
The Hikvision DS-2CD2187G3-LIS2UY
is designed for integration with
compatible Hikvision network
video recorders and professional
IP surveillance systems.
The camera supports Ethernet
networking and IEEE 802.3af
Power over Ethernet through
compatible network equipment.
Its fixed mini dome housing allows
manual adjustment of the viewing
direction during installation.
Important:
This camera does not support
remote motorised pan, tilt
or optical zoom.
Installers should confirm the
correct 2.8mm or 4mm lens
version before ordering.
The camera supports compatible
Hikvision software and recording
platforms, including Hik-Connect
and supported Hikvision NVRs.
Professional installation is
recommended to ensure optimal
camera positioning, network
configuration and intelligent
detection performance.
Package Contents
- 1 × Hikvision DS-2CD2187G3-LIS2UY 8MP ColorVu 3.0 Fixed Mini Dome Network Camera.
Please note:
NVR, hard drive, microSD card,
network cabling, external power supply,
optional mounting accessories and
installation services are not included
unless specifically stated.
Frequently Asked Questions
What resolution does this camera provide?
The camera provides up to
8MP 4K Ultra HD resolution
at 3840 × 2160 pixels.
Does this camera support full-colour night vision?
Yes. Hikvision ColorVu 3.0
technology supports colour
imaging in low-light conditions.
Smart Hybrid Light can activate
white-light illumination to
support colour imaging when
ambient lighting is insufficient.
Does this camera have infrared night vision?
Yes. Smart Hybrid Light combines
infrared and white-light illumination.
How far does the supplementary lighting reach?
The manufacturer specifies
a supplementary lighting
range of up to 30 metres.
Does it support human and vehicle detection?
Yes. The camera supports
intelligent human and
vehicle classification.
Does the camera support face capture?
Yes. Intelligent face capture
functionality is supported.
Does the camera have a built-in microphone?
Yes. The LIS2UY version includes
built-in arrayed dual microphones.
Does this camera support two-way audio?
The camera includes built-in
microphones and external audio
input and output interfaces.
It does not feature an integrated
speaker for standalone
two-way audio communication.
Can the camera record to a memory card?
Yes. It supports compatible
microSD cards up to 512GB.
Does the camera support PoE?
Yes. The camera supports
IEEE 802.3af Power over Ethernet.
Is this camera suitable for outdoor installation?
Yes. It features IP67 weather
protection, IK10 vandal resistance
and moderate anti-corrosion protection.
Is the lens motorised?
No. This model uses a fixed
2.8mm or 4mm lens,
depending on the selected variant.
Does this model include a built-in speaker or flashing deterrent light?
No. The DS-2CD2187G3-LIS2UY
includes dual microphones and
Smart Hybrid Light illumination,
but does not include the built-in
speaker and active deterrence
features of certain /SL models.
Is this camera compatible with Hikvision NVRs?
Yes. It is designed for use
with compatible Hikvision
network video recorders.
Why Buy from Civic Electronic?
Civic Electronic is an
Authorised Hikvision Sales Partner
and Hikvision Training Centre
in Australia.
We supply genuine Australian
security equipment to professional
security installers, electricians
and system integrators.
- Genuine Australian Hikvision Stock
- Australian Manufacturer Warranty Support
- Competitive Wholesale & Trade Pricing
- Professional Product Selection Assistance
- Fast Australia-Wide Delivery
- Free Standard Shipping on Eligible Orders Over $300
- 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
- Professional Security Installer Support
For Hikvision camera selection,
trade pricing or CCTV compatibility
assistance, contact
Civic Electronic on 1300 024 842.
