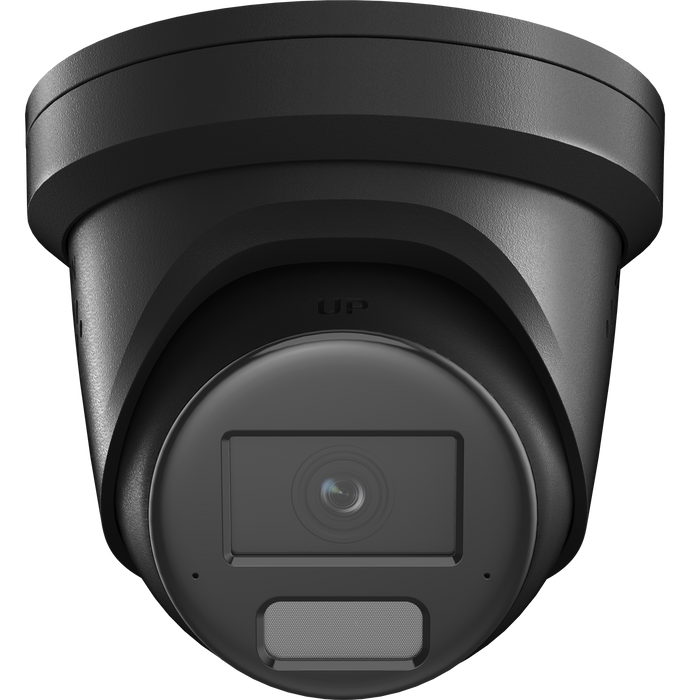

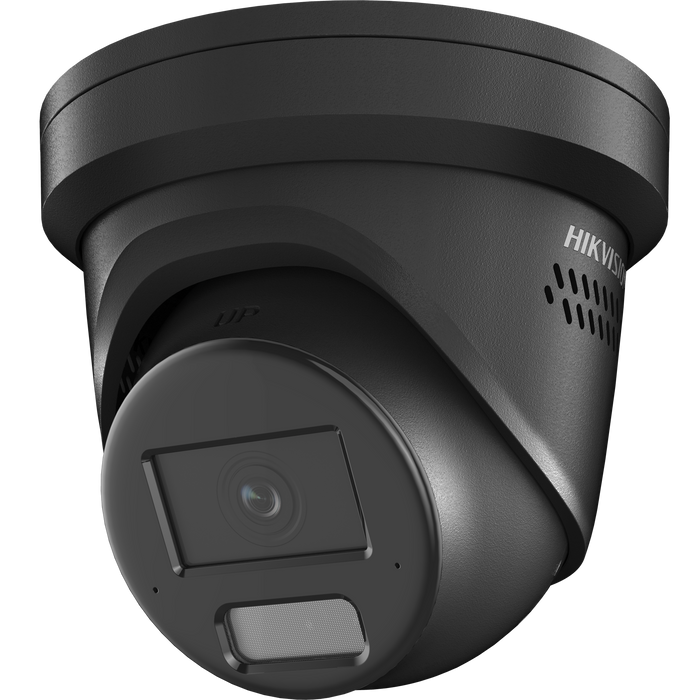

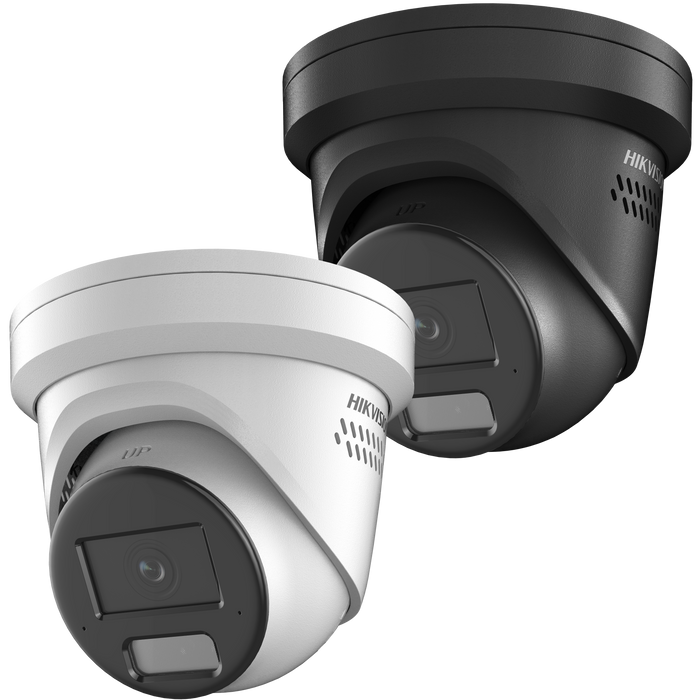

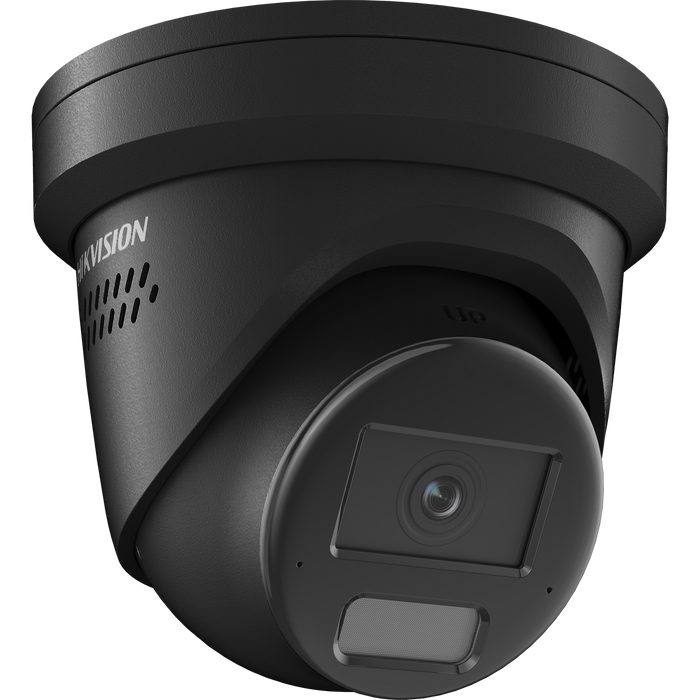

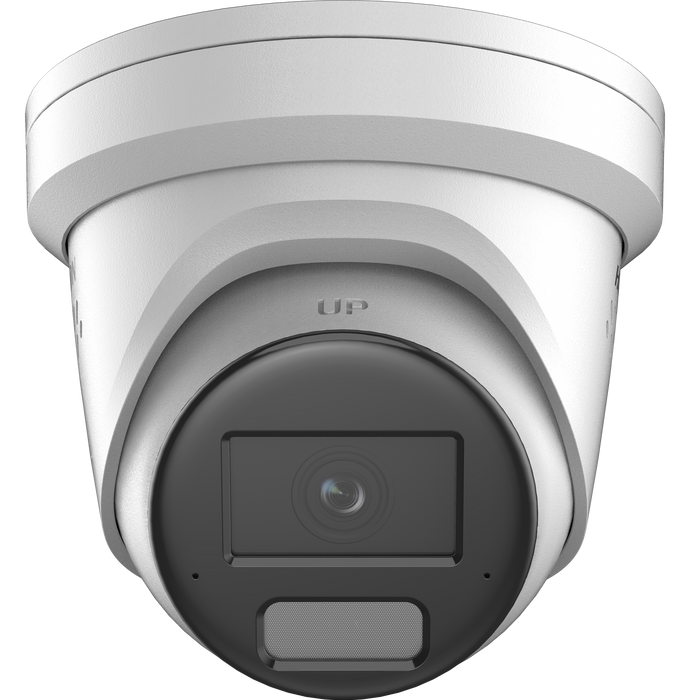

Hikvision DS-2CD2386G2H-IS2U/SL 8MP 4K AcuSense DarkFighter Fixed Turret Network Camera with Active Deterrence
The Hikvision DS-2CD2386G2H-IS2U/SL is a professional
8MP 4K AcuSense fixed turret network camera
featuring advanced low-light imaging, intelligent human and vehicle
classification, active strobe-light deterrence and built-in
two-way audio communication.
Designed for residential, commercial and industrial CCTV installations,
this advanced Hikvision security camera combines
3840 × 2160 Ultra HD resolution with intelligent
security detection and real-time deterrence capabilities.
Featuring a high-performance
1/1.8-inch Progressive Scan CMOS sensor
and an F1.0 super-aperture lens,
the camera delivers detailed images in challenging
lighting conditions.
Advanced Hikvision AcuSense technology
uses deep-learning algorithms to distinguish humans
and vehicles from other moving objects, helping
reduce unnecessary security notifications.
The integrated white strobe light
and audible warning speaker
provide active deterrence when configured
with supported security events.
The camera also incorporates
two built-in microphones,
a powerful integrated speaker,
30-metre infrared night vision,
120dB Wide Dynamic Range,
face capture and efficient H.265+ video compression.
With IP67 weather protection,
durable metal construction and
IEEE 802.3at PoE+ connectivity,
the DS-2CD2386G2H-IS2U/SL is suitable
for demanding indoor and outdoor
security installations.
Key Features
-
8MP 4K Ultra HD: Detailed 3840 × 2160 security imaging.
-
Advanced Low-Light Imaging: High-performance 1/1.8-inch CMOS sensor and F1.0 lens.
-
Hikvision AcuSense: Intelligent human and vehicle classification.
-
Active Strobe-Light Deterrence: Integrated white flashing light to warn intruders.
-
Audible Warning: Built-in speaker for configurable security alerts.
-
Two-Way Audio: Two built-in microphones and an integrated speaker.
-
F1.0 Super Aperture: Enhanced light collection for low-light surveillance.
-
30m Infrared Night Vision: Reliable monitoring in darkness.
-
120dB WDR: Improved visibility in high-contrast lighting conditions.
-
Fixed Lens Options: 2.8mm or 4mm depending on the selected variant.
-
Face Capture: Intelligent face capture functionality.
-
Perimeter Protection: Line crossing, intrusion and region-based detection.
-
H.265+ Compression: Efficient recording and bandwidth management.
-
Local Recording: Supports compatible microSD cards up to 512GB.
-
Audio Interfaces: External audio input and output connections.
-
Alarm Interfaces: One alarm input and one alarm output.
-
PoE+ Support: IEEE 802.3at Power over Ethernet.
-
IP67 Protection: Weather-resistant construction for outdoor applications.
-
Metal Housing: Durable professional camera construction.
-
3-Year Warranty: Australian camera warranty support, subject to applicable terms.
Technical Specifications
| Model |
DS-2CD2386G2H-IS2U/SL |
| Camera Type |
8MP AcuSense Active Deterrence Fixed Turret Network Camera |
| Maximum Resolution |
3840 × 2160 / 8MP 4K Ultra HD |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Minimum Illumination |
Colour: 0.0008 Lux @ F1.0, AGC ON; B/W: 0 Lux with IR |
| Lens Options |
2.8mm / 4mm Fixed Lens |
| Lens Aperture |
F1.0 |
| 2.8mm Horizontal FOV |
105° |
| 4mm Horizontal FOV |
90° |
| Night Vision |
850nm Infrared |
| Infrared Range |
Up to 30m |
| Wide Dynamic Range |
120dB WDR |
| Intelligent Detection |
AcuSense Human and Vehicle Classification |
| Smart Analytics |
Face Capture, Line Crossing, Intrusion, Region Entrance and Region Exiting |
| Active Deterrence |
White Strobe Light and Audible Warning |
| Built-In Microphones |
2 Microphones |
| Built-In Speaker |
2W; Up to 105dB at 10cm |
| Two-Way Audio |
Supported Through Compatible Systems |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Maximum Frame Rate |
25fps at 3840 × 2160 (50Hz) |
| Local Storage |
microSD / microSDHC / microSDXC Up to 512GB |
| Audio Interfaces |
1 Input / 1 Output (Line Level) |
| Alarm Interfaces |
1 Input / 1 Output |
| Network Interface |
RJ45 10/100Mbps Ethernet |
| Network Compatibility |
ONVIF Profiles S, G and T |
| Power Supply |
12V DC / IEEE 802.3at PoE+ Class 4 |
| Maximum Power Consumption |
16W DC / 18W PoE+ |
| Weather Protection |
IP67 |
| Housing Material |
Metal Cover and Main Body |
| Camera Adjustment |
Manual Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360° |
| Operating Temperature |
-30°C to +60°C |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 780g |
| Warranty |
3 Years - Subject to Applicable Australian Warranty Terms |
Detailed Features & Benefits
8MP 4K Ultra HD Surveillance
The Hikvision DS-2CD2386G2H-IS2U/SL captures
high-resolution video at up to
3840 × 2160 pixels,
providing detailed 4K Ultra HD security footage
for professional CCTV installations.
Its 8MP resolution provides excellent image
detail for monitoring entrances, driveways,
commercial premises, warehouses and
outdoor security areas.
Advanced Low-Light Imaging
The camera combines a high-performance
1/1.8-inch Progressive Scan CMOS sensor
with an F1.0 super-aperture lens
to capture more available light.
This supports detailed colour imaging
where sufficient ambient illumination
is available.
When lighting becomes insufficient,
the camera uses infrared illumination
for black-and-white night-time surveillance.
AcuSense Human and Vehicle Detection
Hikvision AcuSense technology uses
deep-learning algorithms to distinguish
humans and vehicles from other moving objects.
This helps reduce unnecessary notifications
caused by environmental movement such as
vegetation, shadows and changing lighting.
Human and vehicle classification is
particularly useful for monitoring
driveways, entrances, car parks
and commercial outdoor areas.
Active White Strobe-Light Deterrence
The DS-2CD2386G2H-IS2U/SL features
an integrated white strobe light
designed to provide a visible warning
during supported security events.
When configured with intelligent
detection functions, the camera
can activate its flashing light
to help discourage unwanted activity.
This provides an additional
security response beyond
conventional CCTV recording.
Built-In Audible Warning
The camera includes an integrated
2W speaker
for configurable audible warnings.
The speaker provides a maximum
sound pressure level of approximately
105dB at 10cm.
Audio alerts can be activated
through compatible security
event settings.
Two-Way Audio Communication
The camera features
two built-in microphones
and an integrated speaker
for two-way audio communication.
When used with compatible Hikvision
software and recording systems,
authorised users can listen
and communicate through the camera.
Audio recording and communication
must comply with applicable privacy
and surveillance regulations.
30m Infrared Night Vision
The camera incorporates infrared
illumination with a range of up to
30 metres.
Infrared night vision allows
security monitoring to continue
in darkness without requiring
continuous visible white-light illumination.
120dB Wide Dynamic Range
The DS-2CD2386G2H-IS2U/SL features
120dB Wide Dynamic Range
to help balance bright and dark
areas within the same scene.
This is particularly useful for
doorways, entrances and locations
exposed to strong backlighting.
2.8mm and 4mm Fixed Lens Options
The camera is available with
2.8mm and 4mm fixed-lens options.
The 2.8mm lens provides a wider
105-degree horizontal field of view,
while the 4mm lens provides
a narrower 90-degree field of view.
The correct lens should be selected
according to the installation location
and required surveillance coverage.
Intelligent Perimeter Protection
The camera supports intelligent
perimeter protection functions,
including line crossing,
intrusion detection,
region entrance and region exiting.
Human and vehicle classification
can help improve the relevance
of supported security events.
Face Capture Functionality
The camera supports intelligent
face capture for compatible
security monitoring applications.
This provides additional flexibility
for professional installations
requiring face-related security events.
H.265+ Video Compression
Hikvision H.265+ compression
helps reduce video storage
requirements and network
bandwidth consumption when
used with compatible equipment.
This supports efficient recording
of high-resolution 4K
surveillance footage.
Local microSD Recording
The camera supports compatible
microSD cards up to
512GB.
Local storage can provide
an additional recording option
alongside compatible network
video recorders.
PoE+ Power over Ethernet
The DS-2CD2386G2H-IS2U/SL supports
IEEE 802.3at PoE+ Class 4.
PoE+ allows network communication
and electrical power through
compatible Ethernet infrastructure.
Important:
Installers should use a compatible
PoE+ switch or injector capable
of meeting the camera's power requirements.
IP67 Weather Protection
The camera features IP67-rated
protection against dust and
water ingress.
This makes it suitable for
properly installed indoor
and outdoor CCTV applications.
Durable Metal Turret Housing
The camera features a durable
metal cover and main body
designed for professional
surveillance installations.
Its fixed turret design allows
manual adjustment of the
viewing direction during installation.
Ideal Applications
-
Residential Properties: Entrances, driveways and outdoor security.
-
Commercial Buildings: Office entrances and external surveillance.
-
Retail Premises: Shopfronts and customer access areas.
-
Warehouses: Loading bays, storage entrances and security monitoring.
-
Apartment Buildings: Common areas, entrances and car parks.
-
Car Parks: Monitoring vehicle and pedestrian activity.
-
Industrial Facilities: External access points and building perimeters.
-
Active Deterrence Installations: Locations requiring flashing-light and audible security warnings.
Compatibility & Installation
The Hikvision DS-2CD2386G2H-IS2U/SL
is designed for integration with
compatible Hikvision network
video recorders and professional
IP surveillance systems.
The camera supports Ethernet
networking and IEEE 802.3at PoE+
through compatible network equipment.
Important:
This model requires PoE+ rather than
standard IEEE 802.3af PoE
when powered through Ethernet.
Its fixed turret housing allows
manual adjustment of the
viewing direction during installation.
The camera does not support
remote motorised pan, tilt
or optical zoom.
Installers should confirm the
correct 2.8mm or 4mm lens
version before ordering.
The camera supports compatible
Hikvision software and recording
platforms, including Hik-Connect
and supported Hikvision NVRs.
Professional installation is
recommended to ensure optimal
camera positioning, network
configuration, intelligent
detection and active deterrence settings.
Package Contents
- 1 × Hikvision DS-2CD2386G2H-IS2U/SL 8MP AcuSense Active Deterrence Fixed Turret Network Camera.
Please note:
NVR, hard drive, microSD card,
network cabling, external power supply,
PoE+ switch or injector,
optional mounting accessories and
installation services are not included
unless specifically stated.
Frequently Asked Questions
What resolution does this camera provide?
The camera provides up to
8MP 4K Ultra HD resolution
at 3840 × 2160 pixels.
Does this camera support colour night vision?
The F1.0 aperture supports
low-light colour imaging where
sufficient ambient light is available.
In darkness, the camera uses
infrared illumination for
black-and-white surveillance.
How far does the infrared night vision reach?
The manufacturer specifies
an infrared illumination
range of up to 30 metres.
Does it support human and vehicle detection?
Yes. Hikvision AcuSense technology
supports intelligent human
and vehicle classification.
Does this camera have active deterrence?
Yes. The /SL version includes
a white flashing strobe light
and built-in speaker for
configurable audible warnings.
Does this camera support two-way audio?
Yes. The camera includes
two built-in microphones
and an integrated speaker.
Does the camera support face capture?
Yes. Intelligent face capture
functionality is supported.
Can the camera record to a memory card?
Yes. It supports compatible
microSD cards up to 512GB.
Does the camera support PoE?
Yes. The camera requires
IEEE 802.3at PoE+ Class 4
for Ethernet-powered operation.
Is this camera suitable for outdoor installation?
Yes. It features IP67-rated
weather protection.
Is this a ColorVu camera?
No. This model uses infrared
night vision and does not
feature ColorVu Smart Hybrid Light.
Does this camera have a red and blue flashing light?
No. The /SL version uses
a white strobe light.
Red and blue flashing lights
are associated with the
separate /SRB variant.
Is the lens motorised?
No. This model uses a fixed
2.8mm or 4mm lens,
depending on the selected variant.
Is this camera compatible with Hikvision NVRs?
Yes. It is designed for use
with compatible Hikvision
network video recorders.
NVR compatibility should be
confirmed for the required
audio and intelligent
security functions.
Why Buy from Civic Electronic?
Civic Electronic is an
Authorised Hikvision Sales Partner
and Hikvision Training Centre
in Australia.
We supply genuine Australian
security equipment to professional
security installers, electricians
and system integrators.
- Genuine Australian Hikvision Stock
- Australian Manufacturer Warranty Support
- Competitive Wholesale & Trade Pricing
- Professional Product Selection Assistance
- Fast Australia-Wide Delivery
- Free Standard Shipping on Eligible Orders Over $300
- 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
- Professional Security Installer Support
For Hikvision camera selection,
trade pricing or CCTV compatibility
assistance, contact
Civic Electronic on 1300 024 842.
