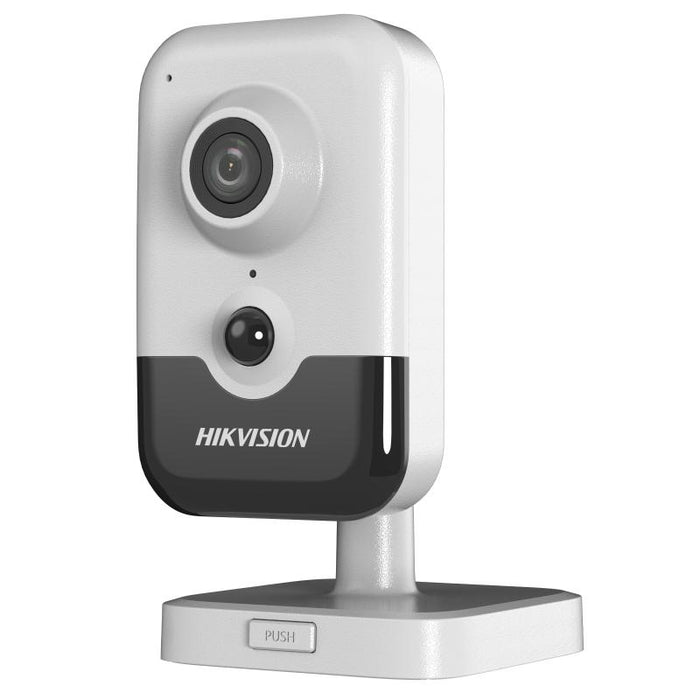

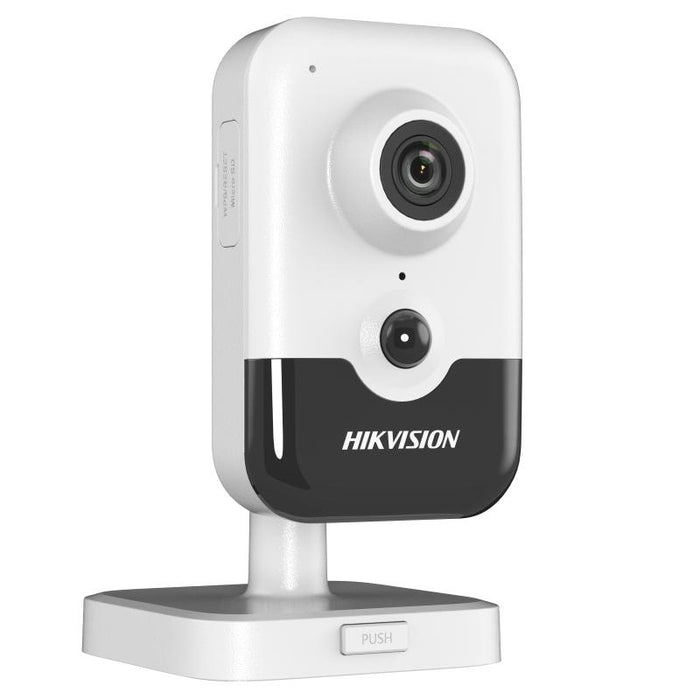

Hikvision DS-2CD2466G2-I 6MP AcuSense DarkFighter Fixed Cube Network Camera
The Hikvision DS-2CD2466G2-I is a professional
6MP AcuSense fixed cube network camera
designed for intelligent indoor surveillance in homes,
offices, retail premises and commercial environments.
Combining Powered by DarkFighter technology,
intelligent human and vehicle classification,
built-in two-way audio and passive infrared
motion detection, this compact camera delivers
advanced security monitoring in a discreet design.
The camera captures high-resolution
3200 × 1800 video using a
1/2.4-inch Progressive Scan CMOS sensor
and an F1.6 fixed lens.
Hikvision AcuSense technology uses deep-learning
algorithms to distinguish humans and vehicles
from other moving objects, helping improve
the relevance of security notifications.
An integrated PIR sensor detects
body heat and movement at distances of up to
8 metres, providing an additional
detection method for indoor security applications.
The DS-2CD2466G2-I also features
10-metre infrared night vision,
120dB Wide Dynamic Range,
a built-in microphone and speaker,
and efficient H.265+ video compression.
With support for IEEE 802.3af PoE,
12V DC power and microSD recording up to 512GB,
this camera provides flexible installation
and recording options for professional
indoor CCTV systems.
Key Features
-
6MP High Resolution: Detailed 3200 × 1800 security imaging.
-
Powered by DarkFighter: Advanced low-light imaging technology.
-
Hikvision AcuSense: Intelligent human and vehicle classification.
-
Compact Cube Design: Discreet camera housing for indoor installations.
-
1/2.4" CMOS Sensor: High-performance progressive scan imaging.
-
F1.6 Fixed Lens: Reliable imaging in varying lighting conditions.
-
Fixed Lens Options: 2.8mm or 4mm depending on the selected version.
-
10m Infrared Night Vision: Indoor monitoring in darkness.
-
120dB WDR: Improved visibility in high-contrast lighting.
-
Built-In PIR Sensor: Detects human body heat and movement.
-
8m PIR Detection Range: Additional indoor motion detection capability.
-
Two-Way Audio: Integrated microphone and speaker.
-
Audible Warning: Supports configurable audio alerts.
-
Smart Motion Detection: Human and vehicle target classification.
-
H.265+ Compression: Efficient video storage and bandwidth management.
-
Local Recording: Supports microSD cards up to 512GB.
-
Network Storage: Supports compatible NAS and NVR recording systems.
-
PoE Support: IEEE 802.3af Power over Ethernet.
-
Hik-Connect Compatibility: Remote viewing through supported systems.
-
3-Year Warranty: Australian camera warranty support, subject to applicable terms.
Technical Specifications
| Model |
DS-2CD2466G2-I |
| Camera Type |
6MP AcuSense Fixed Cube Network Camera |
| Maximum Resolution |
3200 × 1800 / 6MP |
| Image Sensor |
1/2.4" Progressive Scan CMOS |
| Imaging Technology |
Powered by DarkFighter |
| Minimum Illumination |
Colour: 0.003 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Lens Options |
2.8mm / 4mm Fixed Lens |
| Lens Aperture |
F1.6 |
| 2.8mm Horizontal FOV |
105° |
| 4mm Horizontal FOV |
78° |
| Night Vision |
850nm Infrared |
| Infrared Range |
Up to 10m |
| Wide Dynamic Range |
120dB WDR |
| Intelligent Detection |
AcuSense Human and Vehicle Classification |
| PIR Sensor |
Built-In Passive Infrared Sensor |
| PIR Detection Range |
Up to 8m |
| PIR Detection Angle |
Horizontal 90° / Vertical 80° |
| Built-In Microphone |
Yes |
| Built-In Speaker |
1W; Up to 91dB at 10cm |
| Two-Way Audio |
Supported Through Compatible Systems |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Maximum Frame Rate |
12.5fps at 3200 × 1800 (50Hz) |
| Reduced Resolution Frame Rate |
25fps at 2688 × 1520 (50Hz) |
| Local Storage |
microSD / microSDHC / microSDXC Up to 512GB |
| Network Interface |
RJ45 10/100Mbps Ethernet |
| Network Compatibility |
ONVIF Profiles S, G and T |
| Power Supply |
12V DC / IEEE 802.3af PoE |
| Installation Environment |
Indoor |
| Camera Adjustment |
Manual Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360° |
| Warranty |
3 Years - Subject to Applicable Australian Warranty Terms |
Detailed Features & Benefits
6MP High-Resolution Indoor Surveillance
The Hikvision DS-2CD2466G2-I captures
high-resolution video at up to
3200 × 1800 pixels.
Its 6MP resolution provides detailed
security footage for monitoring offices,
retail premises, reception areas
and residential indoor spaces.
Powered by DarkFighter Technology
Hikvision's Powered by DarkFighter
technology improves image quality
in challenging low-light environments.
The camera combines a 1/2.4-inch
CMOS sensor with an F1.6 lens
to support detailed imaging
under varying lighting conditions.
When ambient lighting becomes
insufficient, infrared illumination
supports black-and-white monitoring.
Hikvision AcuSense Human and Vehicle Detection
AcuSense technology uses
deep-learning algorithms to
distinguish humans and vehicles
from other moving objects.
This helps reduce unnecessary
security notifications caused
by environmental movement.
Human and vehicle classification
provides more relevant security
events for compatible recording
and monitoring systems.
Built-In PIR Motion Detection
The DS-2CD2466G2-I includes
a built-in passive infrared
(PIR) sensor.
Unlike conventional video motion
detection, PIR sensing detects
changes in infrared energy
associated with body heat.
The sensor supports detection
at distances of up to
8 metres.
This provides an additional
security detection method
for indoor monitoring.
10m Infrared Night Vision
The camera incorporates
infrared illumination with
a manufacturer-specified range
of up to 10 metres.
Infrared night vision allows
indoor monitoring to continue
in darkness without requiring
visible white-light illumination.
120dB Wide Dynamic Range
The camera features
120dB Wide Dynamic Range
to help balance bright and
dark areas within the same scene.
This is particularly useful
for reception areas, offices
and entrances exposed to
strong backlighting.
Built-In Two-Way Audio
The DS-2CD2466G2-I includes
a built-in microphone
and integrated speaker.
When used with compatible
Hikvision software and
recording systems, authorised
users can listen and communicate
through the camera.
Two-way audio is useful for
reception areas, offices
and indoor monitoring applications.
Audio recording and communication
must comply with applicable
privacy and surveillance regulations.
Integrated Audible Warning
The camera's built-in speaker
supports configurable audible
warning functions.
The integrated speaker has
a maximum rated output of 1W
and a specified sound pressure
level of up to 91dB at 10cm.
This provides an additional
local notification option
for compatible security events.
2.8mm and 4mm Fixed Lens Options
The camera is available with
2.8mm and 4mm fixed lenses.
The 2.8mm lens provides a
105-degree horizontal
field of view.
The 4mm lens provides a narrower
78-degree horizontal
field of view.
The appropriate lens should
be selected according to
the room size and required
surveillance coverage.
H.265+ Video Compression
Hikvision H.265+ compression
helps reduce video storage
requirements and network
bandwidth consumption when
used with compatible equipment.
This supports efficient recording
of high-resolution indoor
surveillance footage.
Local microSD Recording
The camera supports compatible
microSD cards up to
512GB.
Local storage provides an
additional recording option
alongside compatible network
video recorders.
Network Video Recording Compatibility
The DS-2CD2466G2-I is designed
for integration with compatible
Hikvision NVRs and professional
IP surveillance systems.
The camera also supports
compatible network storage
and Hikvision management software.
Installers should confirm
the selected NVR supports
6MP recording and the required
intelligent security functions.
Power over Ethernet
The camera supports
IEEE 802.3af PoE,
allowing electrical power
and network communication
through compatible Ethernet
infrastructure.
This simplifies installation
and reduces the need for
separate power cabling.
Compact Indoor Cube Design
The compact fixed cube housing
is designed for discreet
indoor security monitoring.
Its adjustable mounting design
allows installers to position
the camera for the required
viewing direction.
The camera is suitable for
offices, reception areas,
retail premises and
residential interiors.
Ideal Applications
-
Residential Interiors: Indoor rooms, hallways and entry areas.
-
Offices: Workspaces, reception areas and internal entrances.
-
Retail Premises: Indoor shop monitoring and customer access areas.
-
Reception Areas: Security monitoring with two-way audio communication.
-
Small Businesses: Indoor surveillance and intelligent motion detection.
-
Commercial Interiors: Internal corridors and shared spaces.
-
Indoor PIR Applications: Areas requiring body-heat-based motion detection.
-
Professional IP CCTV Systems: Compact indoor cameras integrated with compatible NVRs.
Compatibility & Installation
The Hikvision DS-2CD2466G2-I
is designed for integration
with compatible Hikvision
network video recorders
and professional IP CCTV systems.
The camera supports Ethernet
networking and
IEEE 802.3af PoE
through compatible equipment.
It can also operate using
a suitable 12V DC power supply.
The built-in microphone
and speaker support two-way
audio through compatible
Hikvision software.
The integrated PIR sensor
provides an additional
indoor detection method
with a specified range
of up to 8 metres.
Important:
This is an indoor fixed
cube camera and should
not be installed outdoors
without an appropriate
protective enclosure.
The camera does not feature
motorised pan, tilt or
optical zoom.
Installers should confirm
the correct 2.8mm or 4mm
lens version before ordering.
Professional installation
is recommended to ensure
appropriate positioning,
network configuration,
PIR coverage and
intelligent detection settings.
Package Contents
- 1 × Hikvision DS-2CD2466G2-I 6MP AcuSense Fixed Cube Network Camera.
Please note:
NVR, hard drive, microSD card,
network cabling, external power supply,
optional mounting accessories
and installation services are
not included unless specifically stated.
Frequently Asked Questions
What resolution does this camera provide?
The camera provides up to
6MP resolution
at 3200 × 1800 pixels.
Does this camera support AcuSense?
Yes. It supports intelligent
human and vehicle classification
using deep-learning technology.
Does the camera have a PIR sensor?
Yes. The integrated PIR sensor
detects changes in infrared
energy associated with body heat.
What is the PIR detection range?
The manufacturer specifies
a PIR detection range
of up to 8 metres.
Does this camera support night vision?
Yes. It features infrared
night vision with a range
of up to 10 metres.
Does this camera support two-way audio?
Yes. The camera includes
a built-in microphone
and speaker.
Does the camera support audible warnings?
Yes. Its built-in speaker
supports configurable
audible alerts.
Does this camera have a flashing strobe light?
No. This model does not
include an active deterrence
strobe light.
Can the camera record to a memory card?
Yes. It supports compatible
microSD cards up to
512GB.
Does the camera support PoE?
Yes. It supports
IEEE 802.3af PoE.
Is this camera suitable for outdoor installation?
No. The DS-2CD2466G2-I
is intended for indoor
surveillance applications.
Is this a Wi-Fi camera?
The DS-2CD2466G2-I is a
wired Ethernet network camera.
It should not be confused
with wireless variants
from other Hikvision
cube camera ranges.
Does the camera record at 25fps in 6MP?
No. At its maximum
3200 × 1800 resolution,
the camera supports up to
12.5fps in 50Hz mode.
It supports 25fps at
lower resolutions such
as 2688 × 1520.
Is this camera compatible with Hikvision NVRs?
Yes. It is designed for
use with compatible Hikvision
network video recorders.
The selected NVR should
support 6MP recording
and the required intelligent
security functions.
Why Buy from Civic Electronic?
Civic Electronic is an
Authorised Hikvision Sales Partner
and Hikvision Training Centre
in Australia.
We supply genuine Australian
security equipment to professional
security installers, electricians
and system integrators.
- Genuine Australian Hikvision Stock
- Australian Manufacturer Warranty Support
- Competitive Wholesale & Trade Pricing
- Professional Product Selection Assistance
- Fast Australia-Wide Delivery
- Free Standard Shipping on Eligible Orders Over $300
- 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
- Professional Security Installer Support
For Hikvision camera selection,
trade pricing or CCTV compatibility
assistance, contact
Civic Electronic on 1300 024 842.
