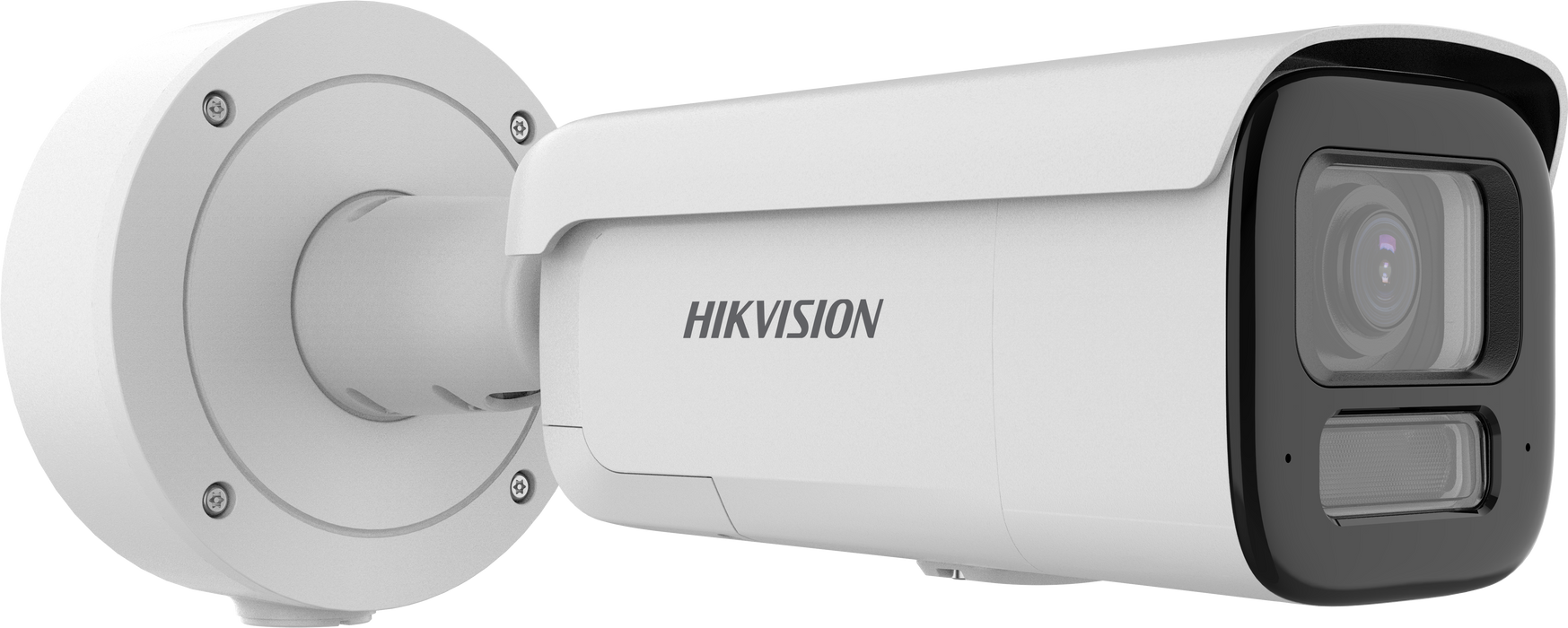

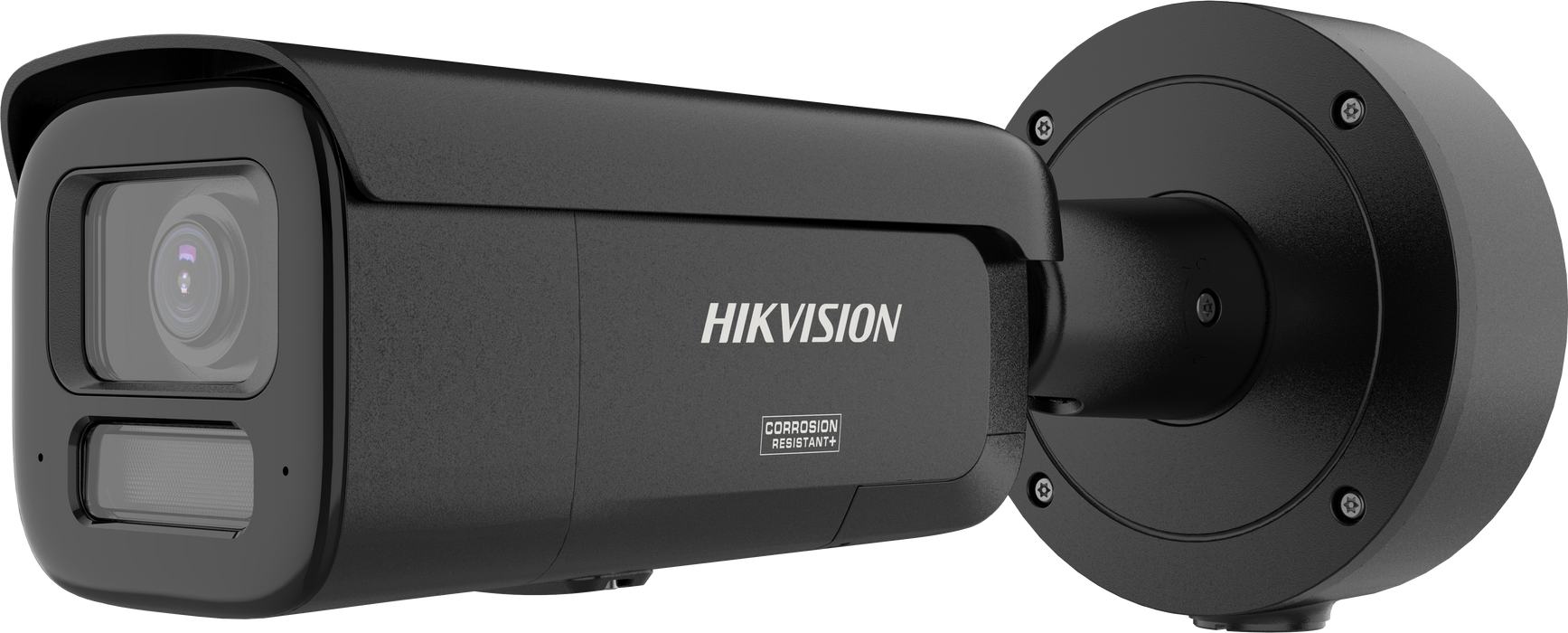

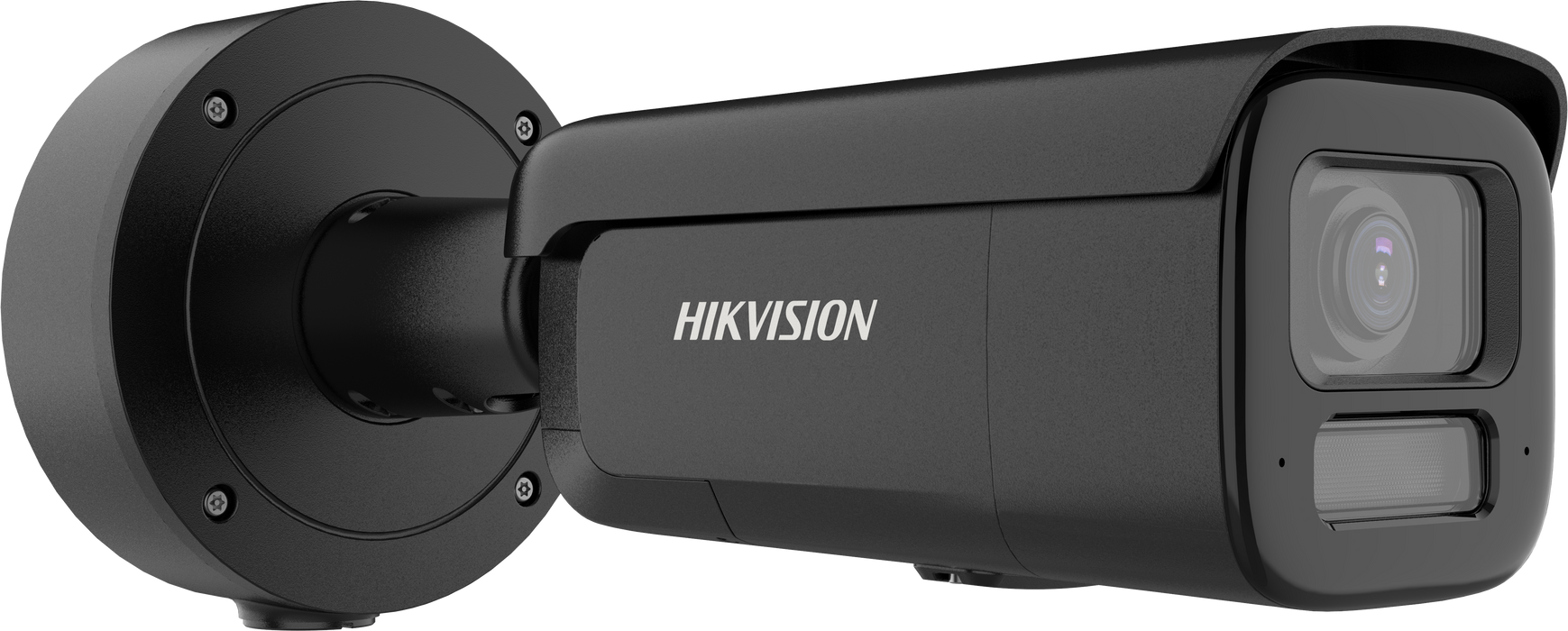

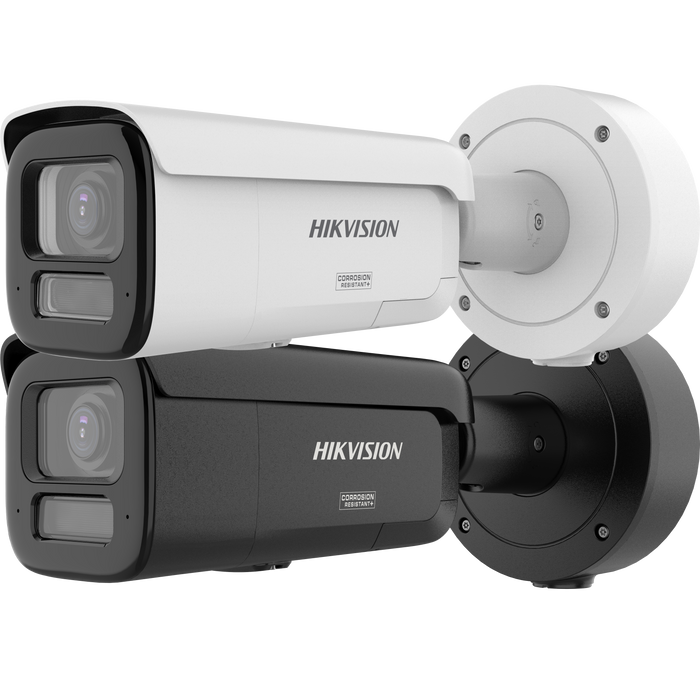

Hikvision DS-2CD3687G3-LIZSUY/SL 8MP ColorVu 3.0 Motorised Varifocal Bullet Network Camera
The Hikvision DS-2CD3687G3-LIZSUY/SL is a premium
8MP 4K motorised varifocal bullet network camera
combining advanced low-light imaging, intelligent human and vehicle
detection, Smart Hybrid Light and active deterrence technology.
Designed for professional residential, commercial and industrial
CCTV installations, this Hikvision camera delivers detailed
3840 × 2160 Ultra HD security footage through its
high-performance 1/1.8-inch Progressive Scan CMOS sensor.
Featuring advanced ColorVu imaging technology and HIK AI-ISP,
the camera provides enhanced image processing and improved colour
performance in challenging lighting conditions.
Its 2.7–13.5mm motorised varifocal lens allows installers
to adjust the viewing angle remotely, providing flexible coverage
for entrances, driveways, warehouses, car parks and building perimeters.
The camera incorporates Smart Hybrid Light technology,
combining infrared and white-light illumination with three
supplementary lighting modes and a maximum illumination range
of 60 metres.
Advanced Hikvision AcuSense technology uses deep-learning
algorithms to classify human and vehicle targets during supported
security events, helping reduce irrelevant notifications.
For additional security, the DS-2CD3687G3-LIZSUY/SL includes
an integrated strobe light, audible warning system,
dual microphones and built-in speaker.
These features support active deterrence and two-way audio
through compatible Hikvision systems.
With 130dB Wide Dynamic Range,
H.265+ compression, IP67 weather protection,
IK10 impact resistance and
NEMA 4X anti-corrosion protection,
this camera is designed for demanding professional CCTV applications.
Key Features
-
8MP 4K Ultra HD: High-resolution 3840 × 2160 security imaging.
-
ColorVu Imaging: Advanced colour imaging technology for challenging lighting conditions.
-
DarkFighter 2.0 Technology: Enhanced low-light performance with an F1.2 lens.
-
HIK AI-ISP: Advanced image processing and noise reduction.
-
1/1.8" CMOS Sensor: High-performance progressive scan imaging.
-
Motorised Varifocal Lens: 2.7–13.5mm remotely adjustable focal length.
-
Wide Viewing Angle: Horizontal field of view from 112.3° to 41.2°.
-
F1.2 Aperture: Improved available-light collection.
-
Smart Hybrid Light: Infrared and white-light illumination with three lighting modes.
-
60m Supplementary Illumination: Integrated IR and white-light system.
-
130dB WDR: Enhanced image visibility in high-contrast lighting.
-
Hikvision AcuSense: Intelligent human and vehicle classification.
-
Active Deterrence: Integrated flashing strobe light and audible warning.
-
Dual Microphones: Built-in microphone array for audio monitoring.
-
Two-Way Audio: Built-in speaker and microphone system.
-
Intelligent Perimeter Protection: Supported line crossing and intrusion detection.
-
25fps at 8MP: Full-resolution recording in Australian 50Hz mode.
-
H.265+ Compression: Efficient recording and bandwidth management.
-
Local Storage: Supports compatible microSD cards up to 512GB.
-
External Alarm Connections: Two alarm inputs and two alarm outputs.
-
PoE+ Support: IEEE 802.3at Power over Ethernet.
-
IP67 Weather Protection: Dust and water ingress protection.
-
IK10 Impact Resistance: Vandal-resistant construction.
-
NEMA 4X Anti-Corrosion: Additional environmental protection on the -Y model.
-
3-Year Warranty: Australian camera warranty support, subject to applicable terms.
Technical Specifications
| Model |
DS-2CD3687G3-LIZSUY/SL |
| Camera Type |
8MP Motorised Varifocal Bullet Network Camera with Active Deterrence |
| Maximum Resolution |
3840 × 2160 / 8MP / 4K UHD |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Imaging Technology |
ColorVu / DarkFighter 2.0 / HIK AI-ISP |
| Minimum Illumination |
Colour: 0.001 Lux @ F1.2, AGC ON; 0 Lux with Supplementary Light |
| Lens Type |
Motorised Varifocal |
| Focal Length |
2.7–13.5mm |
| Lens Aperture |
F1.2 |
| Iris Type |
Auto-Iris |
| Horizontal Field of View |
112.3°–41.2° |
| Vertical Field of View |
58.1°–23.1° |
| Diagonal Field of View |
137.4°–47.3° |
| Lens Adjustment |
Remote Motorised Focal Length Adjustment |
| Supplementary Light |
Infrared and White Light |
| Supplementary Light Range |
Up to 60m |
| Lighting Technology |
Smart Hybrid Light - Three Supplementary Lighting Modes |
| IR Wavelength |
850nm |
| Wide Dynamic Range |
130dB WDR |
| Image Enhancement |
BLC / HLC / 3D DNR / Defog |
| Intelligent Classification |
Human and Vehicle Classification |
| Intelligent Detection |
AcuSense Perimeter Protection |
| Active Deterrence |
Strobe Light and Audible Warning |
| Built-In Microphones |
Arrayed Dual Microphone |
| Built-In Speaker |
Yes / 2W |
| Two-Way Audio |
Supported |
| External Audio Interfaces |
1 Input / 1 Output |
| Alarm Interfaces |
2 Inputs / 2 Outputs |
| Maximum Frame Rate |
25fps at 3840 × 2160 (50Hz) |
| 60Hz Frame Rate |
Up to 30fps at 3840 × 2160 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Video Streams |
Main / Sub / Third / Fourth Stream (subject to configuration) |
| Local Storage |
microSD / microSDHC / microSDXC Up to 512GB |
| Network Interface |
RJ45 10/100Mbps Ethernet |
| Power Supply |
12V DC / IEEE 802.3at PoE+ Class 4 |
| Maximum PoE Consumption |
18W |
| Weather Protection |
IP67 |
| Impact Resistance |
IK10 |
| Anti-Corrosion Protection |
NEMA 4X - Y Version |
| Operating Temperature |
-30°C to +60°C |
| Camera Adjustment |
Manual Pan 0°–355°, Tilt 0°–90°, Rotate 0°–360° |
| Installation Environment |
Indoor / Outdoor |
| Warranty |
3 Years - Subject to Applicable Australian Warranty Terms |
Detailed Features & Benefits
8MP 4K Ultra HD Surveillance
The Hikvision DS-2CD3687G3-LIZSUY/SL captures
high-resolution video at up to
3840 × 2160 pixels.
Its 8MP resolution provides detailed
security footage for monitoring
commercial buildings, driveways,
warehouses, car parks and perimeter areas.
The camera supports up to
25fps at full 8MP resolution
in Australian 50Hz mode.
Advanced ColorVu Imaging Technology
The camera incorporates Hikvision's
advanced colour imaging technology
to improve image quality in
challenging lighting conditions.
Its high-performance image sensor,
large-aperture lens and supplementary
lighting system work together to
support detailed security monitoring
throughout the day and night.
DarkFighter 2.0 Low-Light Performance
The DS-2CD3687G3-LIZSUY/SL features
DarkFighter 2.0 imaging technology.
Combined with its
F1.2 aperture,
the camera is designed to
capture more available light
and improve image visibility
in low-light environments.
HIK AI-ISP Image Processing
Hikvision HIK AI-ISP technology
provides advanced image processing
and noise reduction.
This helps improve image clarity
and preserve useful security
details in challenging scenes.
2.7–13.5mm Motorised Varifocal Lens
The camera features a
2.7–13.5mm motorised varifocal lens
that allows the field of view
to be adjusted remotely.
At the wide end, the camera
provides approximately
112.3° horizontal coverage.
At the telephoto end, the
horizontal viewing angle
narrows to approximately
41.2°.
This flexibility allows installers
to refine the monitored area
without manually changing
the lens focal length.
Smart Hybrid Light Technology
Hikvision Smart Hybrid Light
combines infrared and white-light
illumination within one camera.
The system provides three
supplementary lighting modes,
allowing the camera to use
different lighting strategies
according to its configuration.
The maximum specified
supplementary illumination
range is 60 metres.
Infrared Night Vision
The camera includes integrated
infrared illumination for
night-time surveillance.
Infrared operation allows
the camera to capture
black-and-white footage
when ambient light is insufficient.
White-Light Colour Monitoring
The integrated white-light
illumination can support
colour imaging in dark
environments.
Actual night-time colour
performance depends on
lighting mode, installation
conditions and available light.
130dB Wide Dynamic Range
The camera features
130dB Wide Dynamic Range
to help maintain image detail
in scenes containing both
bright and dark areas.
This is particularly useful
for entrances, loading docks,
shopfronts and locations
exposed to strong backlighting.
Hikvision AcuSense Human and Vehicle Detection
Hikvision AcuSense technology
uses deep-learning algorithms
to classify human and
vehicle targets.
This helps distinguish
relevant security events
from unrelated movement.
AcuSense classification is
particularly useful for
driveways, entrances,
car parks and building
perimeter monitoring.
Intelligent Perimeter Protection
The camera supports
intelligent perimeter
monitoring functions
including line crossing
and intrusion detection.
Human and vehicle
classification helps
improve the relevance
of supported alerts.
Active Strobe Light Deterrence
The DS-2CD3687G3-LIZSUY/SL
includes an integrated
active strobe light.
The strobe can be linked
to supported security events
to provide a visible warning
at the monitored location.
Built-In Audible Warning
The camera includes
an integrated speaker
for audible security warnings.
Compatible event settings
can activate configured
warning sounds when
security conditions are met.
Dual Microphones and Two-Way Audio
The camera features an
arrayed dual-microphone system
for audio monitoring.
A built-in speaker supports
two-way communication through
compatible Hikvision systems.
Audio recording and communication
must comply with applicable
Australian privacy and
surveillance regulations.
External Audio and Alarm Interfaces
The camera provides
external audio input
and output connections.
It also supports
two alarm inputs
and two alarm outputs
for compatible security
system integrations.
H.265+ Video Compression
Hikvision H.265+ compression
helps reduce recording
storage requirements and
network bandwidth consumption
when used with compatible equipment.
This supports efficient
recording of high-resolution
8MP security footage.
Local microSD Recording
The camera includes a
memory card slot supporting
compatible microSD cards
up to 512GB.
Local recording provides
an additional storage
option alongside compatible
Hikvision NVR systems.
IP67 Weather Protection
The camera features
IP67-rated protection
against dust and water ingress.
This makes it suitable
for properly installed
indoor and outdoor
security applications.
IK10 Vandal Resistance
The DS-2CD3687G3-LIZSUY/SL
features IK10-rated
impact resistance.
This provides additional
protection for installations
where the camera may be
exposed to physical impact.
NEMA 4X Anti-Corrosion Protection
The -Y version
includes additional
anti-corrosion protection
meeting NEMA 4X requirements.
This provides enhanced
environmental resistance
compared with standard
camera constructions.
Installation suitability
should still be assessed
according to local
environmental conditions.
Professional PoE+ Connectivity
The camera supports
IEEE 802.3at PoE+
for power and network
communication through
compatible Ethernet infrastructure.
The selected PoE switch
or NVR must provide
sufficient power for
the camera's operating
requirements.
Ideal Applications
-
Residential Properties: Driveways, entrances and perimeter monitoring.
-
Commercial Buildings: External walls, access points and security entrances.
-
Warehouses: Loading docks, storage entrances and surrounding areas.
-
Car Parks: Monitoring vehicle and pedestrian movement.
-
Industrial Facilities: Building perimeters and controlled access areas.
-
Retail Premises: Shopfronts and external entrances.
-
Apartment Buildings: Driveways, common areas and car parks.
-
Active Deterrence Installations: Locations requiring strobe and audible warning functions.
-
Professional CCTV Projects: Installations requiring 4K imaging, intelligent detection and remote lens adjustment.
Compatibility & Installation
The Hikvision DS-2CD3687G3-LIZSUY/SL
is designed for integration
with compatible Hikvision
network video recorders
and professional IP
surveillance systems.
The camera supports
IEEE 802.3at PoE+
and compatible 12V DC
power supplies.
Installers should confirm
that the selected NVR
or PoE switch provides
sufficient power for
the camera.
The motorised varifocal
lens allows remote
adjustment of the
viewing angle between
2.7mm and 13.5mm.
Important:
This is a motorised
varifocal bullet camera,
not a PTZ camera.
Although the lens can
be adjusted remotely,
the camera does not
provide motorised
pan and tilt movement.
The Smart Hybrid Light
system should be configured
according to the required
night-time surveillance
and lighting conditions.
The built-in strobe light
and audible warning functions
should be configured according
to the site's security
requirements.
Two-way audio requires
compatible recording
or remote-access software.
The selected NVR should
support 8MP recording,
the required intelligent
security functions and
compatible audio features.
The camera features
IP67 weather protection,
IK10 impact resistance
and NEMA 4X anti-corrosion
protection on this -Y model.
Professional installation
is recommended to ensure
appropriate mounting,
network configuration,
night-vision performance,
active deterrence setup
and intelligent detection.
Package Contents
- 1 × Hikvision DS-2CD3687G3-LIZSUY/SL 8MP Motorised Varifocal Bullet Network Camera.
Please note:
NVR, hard drive, microSD card,
network cabling, external power
supply, optional mounting
accessories and installation
services are not included
unless specifically stated.
Frequently Asked Questions
What resolution does this camera provide?
The camera provides up to
8MP 4K Ultra HD
resolution at 3840 × 2160 pixels.
Does this camera support ColorVu technology?
Yes. Hikvision identifies
the camera as supporting
advanced colour imaging
technology.
Does this camera support DarkFighter 2.0?
Yes. The camera incorporates
DarkFighter 2.0 low-light
imaging technology.
What lens does this camera use?
It features a
2.7–13.5mm
motorised varifocal lens.
Can the viewing angle be adjusted remotely?
Yes. The motorised lens
allows remote focal-length
adjustment through
compatible software.
Is this a PTZ camera?
No. The camera provides
motorised lens adjustment
but does not have
motorised pan or tilt.
Does this camera support Smart Hybrid Light?
Yes. It combines infrared
and white-light illumination
with three supplementary
lighting modes.
What is the night-vision range?
The camera provides
supplementary illumination
up to 60 metres.
Does this camera support AcuSense?
Yes. It supports intelligent
human and vehicle classification
for compatible security events.
Does this camera have active deterrence?
Yes. It includes an
integrated strobe light
and audible warning system.
Does this camera support two-way audio?
Yes. It includes
dual microphones and
a built-in speaker.
Does this camera support 130dB WDR?
Yes. It features
130dB Wide Dynamic Range.
Does this camera support H.265+?
Yes. H.265+ compression
is supported for efficient
video recording.
Can this camera record to a memory card?
Yes. It supports compatible
microSD cards up to
512GB.
Does this camera support PoE?
Yes. It supports
IEEE 802.3at PoE+.
Is this camera suitable for outdoor installation?
Yes. The camera features
IP67 weather protection
and IK10 impact resistance.
What does the -Y suffix mean?
The -Y version includes
additional NEMA 4X
anti-corrosion protection.
Is this camera compatible with Hikvision NVRs?
Yes. It is designed
for use with compatible
Hikvision network
video recorders.
The selected NVR should
support 8MP recording
and the required intelligent
security functions.
Why Buy from Civic Electronic?
Civic Electronic is an
Authorised Hikvision Sales Partner
and Hikvision Training Centre
in Australia.
We supply genuine Australian
security equipment to professional
security installers, electricians
and system integrators.
- Genuine Australian Hikvision Stock
- Australian Manufacturer Warranty Support
- Competitive Wholesale & Trade Pricing
- Professional Product Selection Assistance
- Fast Australia-Wide Delivery
- Free Standard Shipping on Eligible Orders Over $300
- 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
- Professional Security Installer Support
For Hikvision camera selection,
trade pricing or CCTV compatibility
assistance, contact
Civic Electronic on 1300 024 842.
