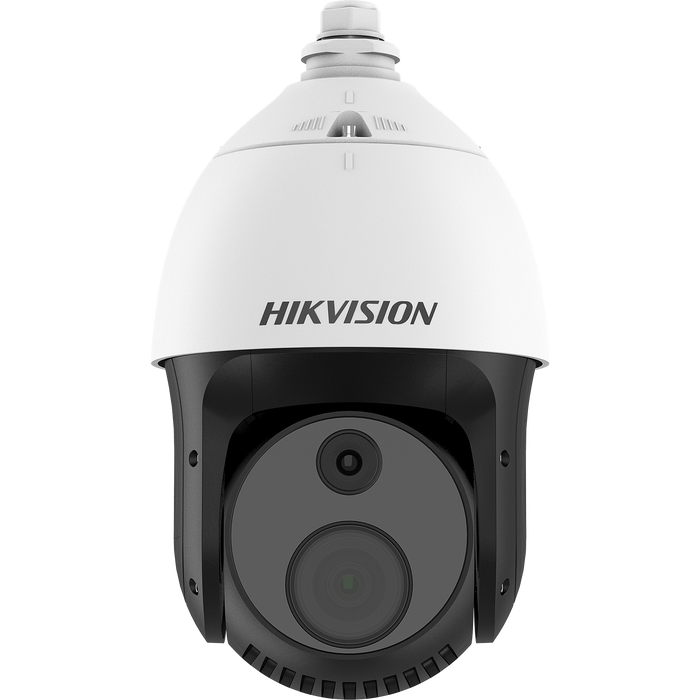

Hikvision DS-2TD4228T-10/S2 Thermographic Thermal & Optical Bi-spectrum PTZ Network Speed Dome Camera
Professional thermographic PTZ surveillance camera from Hikvision designed for advanced perimeter protection, fire prevention, temperature monitoring, and critical infrastructure security applications.
The Hikvision DS-2TD4228T-10/S2 combines thermal imaging and high-resolution optical surveillance into a powerful bi-spectrum PTZ security solution. Featuring a thermal module with temperature measurement capability and a 4MP optical camera with 32× optical zoom, the system delivers reliable detection, identification, and intelligent event monitoring in complete darkness, harsh weather, smoke, or challenging environments.
Designed for mission-critical security applications, the camera supports temperature exception alarms, fire and smoke detection, perimeter protection analytics, and intelligent smart tracking. Its advanced thermal technology enables accurate temperature measurement from -20°C to 550°C, making it ideal for industrial facilities, substations, warehouses, airports, ports, and high-risk perimeter monitoring.
Key Features
- Thermal & optical bi-spectrum surveillance
- 4MP optical camera with 32× optical zoom
- Thermal imaging for detection and fire prevention
- Temperature measurement from -20°C to 550°C
- Fire and smoke detection algorithms
- Perimeter protection analytics
- Smart PTZ tracking functionality
- Thermal and optical image linkage
- Up to 100m IR night vision
- H.265+ advanced video compression
- 360° continuous pan rotation
- IP66 weatherproof protection
Technical Specifications
- Model: DS-2TD4228T-10/S2
- Camera Type: Thermographic PTZ Network Speed Dome
- Thermal Resolution: 256 × 192 VOx UFPA
- Thermal Lens: 10mm Fixed Lens
- Thermal Pixel Pitch: 12μm
- NETD: ≤ 35mK
- Optical Resolution: 4MP (2688 × 1520)
- Optical Lens: 4.8mm to 153mm
- Optical Zoom: 32×
- Digital Zoom: ×2 / ×4 / ×8
- Temperature Range: -20°C to 550°C
- Temperature Accuracy: ±2°C / ±2%
- AI Features: Intrusion, Line Crossing, Smart Tracking
- Night Vision: IR up to 100m
- Video Compression: H.265+/H.264+
- Connectivity: RJ45 Ethernet
- Pan Range: 360° Endless Rotation
- Weather Rating: IP66
Applications
Perfect for:
- Critical infrastructure security
- Fire prevention monitoring
- Power substations
- Industrial perimeter protection
- Warehouses and factories
- Ports and airports
- Mining and transport facilities
- High-risk outdoor surveillance
The Hikvision DS-2TD4228T-10/S2 delivers advanced thermal detection, intelligent AI analytics, and professional long-range PTZ surveillance, making it an ideal solution for critical security and industrial monitoring environments.
DS-2TD4228T-10/S2
Thermographic Thermal & Optical Bi-spectrum Network Speed Dome
- Perimeter Protection function: line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
- Fire detection algorithm
- 256 × 192 (the resolution of output image is 1280 × 720) resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years warranty
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
- Smoke detection for fire prevention
