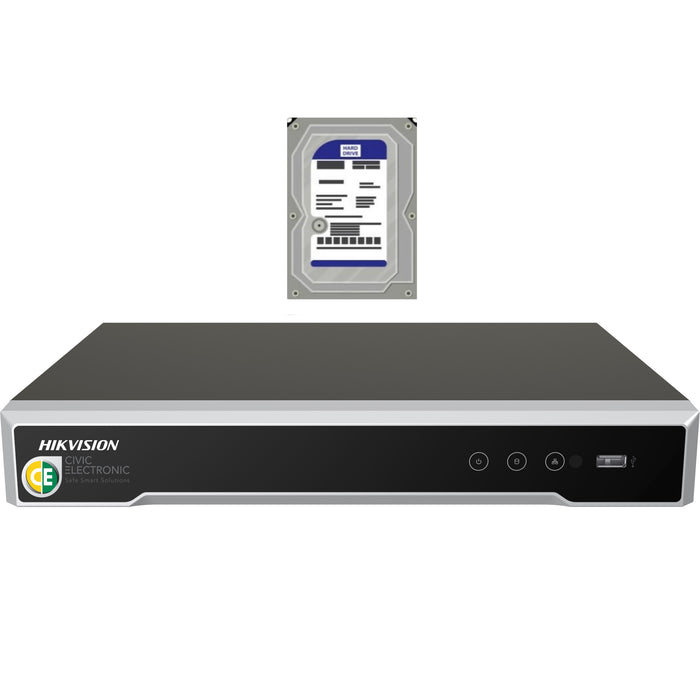

Hikvision DS-7604NI-M1/4P 4CH 4K NVR with 4 PoE Ports + 4TB HDD

Hikvision DS-7604NI-M1/4P 4-Channel 4K PoE Network Video Recorder with 4TB Surveillance HDD

The Hikvision DS-7604NI-M1/4P is a professional 4-channel M-Series Network Video Recorder (NVR) featuring four integrated PoE camera ports, high-resolution IP camera recording, advanced H.265+ video compression, independent HDMI and VGA display outputs, and an included 4TB surveillance hard drive.

Designed for professional residential and small commercial CCTV installations, this Hikvision NVR provides reliable network video recording, convenient PoE camera connectivity and flexible local and remote surveillance management.

The recorder supports up to four compatible IP security cameras, with four built-in Power over Ethernet (PoE) interfaces allowing compatible cameras to connect directly to the NVR without requiring a separate PoE switch.

Each PoE interface supports compatible IEEE 802.3af/at devices, with a combined 60W PoE power budget for connected cameras.

The DS-7604NI-M1/4P supports compatible IP camera recording resolutions up to 32MP, subject to available incoming bandwidth, camera compatibility and supported recording configurations.

With up to 40 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth, the recorder provides network recording and transmission capacity for professionally configured four-camera surveillance systems.

Its advanced decoding performance supports up to four 8MP camera streams at 30fps, allowing smooth multi-camera monitoring when suitable camera streams and configurations are used.

Although commonly described as a 4K CCTV NVR, this M-Series model also supports 8K HDMI output at up to 7680 × 4320 at 30Hz, providing additional display flexibility with compatible monitors.

The recorder supports 4K HDMI output at 30Hz, along with 2K and Full HD display resolutions. Independent HDMI and VGA outputs allow compatible local surveillance displays to operate separately.

For efficient video recording, the DS-7604NI-M1/4P supports H.265+, H.265, H.264+ and H.264 compression formats, helping reduce storage requirements and optimise network bandwidth when supported by the connected cameras.

The included 4TB surveillance HDD provides recording storage for continuous, scheduled and event-triggered CCTV surveillance. Actual recording retention depends on camera resolution, frame rate, bitrate, compression settings and recording schedule.

The recorder features one internal SATA interface, supporting a compatible surveillance hard drive with a manufacturer-specified maximum capacity of 16TB.

Additional features include four-channel synchronous playback, dual-stream recording, compatible intelligent camera event integration, network-based remote monitoring, alarm input/output connections and USB video backup.

The DS-7604NI-M1/4P can be used with compatible Hikvision ColorVu, AcuSense and other professional IP cameras. Camera-based intelligent analytics depend on the connected camera model, firmware and supported recorder integration.

Combining four recording channels, four integrated PoE ports, 60W PoE power, 40 Mbps incoming bandwidth, 8K-capable HDMI output, H.265+ compression and an included 4TB surveillance HDD, the Hikvision DS-7604NI-M1/4P offers a capable recording solution for professional four-camera CCTV installations.

Three-year recorder warranty applies subject to terms. The included surveillance HDD carries its applicable separate warranty.

Key Features

• 4-Channel IP Recording: Supports up to four compatible IP security cameras.
• 4 Built-In PoE Ports: Direct connections for compatible PoE cameras.
• 4TB Surveillance HDD Included: Recording storage supplied with this package.
• Hikvision M-Series: Professional network video recorder platform.
• Up to 32MP Camera Input: Supports compatible high-resolution IP cameras.
• 8K HDMI Output: Up to 7680 × 4320 at 30Hz with a compatible display.
• 4K HDMI Output: Supports 3840 × 2160 at 30Hz.
• 4 × 8MP Decoding: Supports up to four 8MP streams at 30fps.
• 40 Mbps Incoming Bandwidth: Professional four-camera recording capacity.
• 80 Mbps Outgoing Bandwidth: Network video transmission capacity.
• 60W PoE Budget: Combined power capacity across four PoE ports.
• IEEE 802.3af/at: Supports compatible PoE and PoE+ cameras.
• H.265+ Compression: Helps optimise recording storage requirements.
• H.265 / H.264+ / H.264: Multiple supported video formats.
• 1 SATA Interface: Supports one internal surveillance hard drive.
• Up to 16TB HDD Capacity: Manufacturer-specified maximum supported storage.
• 4-Channel Synchronous Playback: Review four recordings simultaneously.
• Independent HDMI and VGA: Flexible local monitoring configurations.
• Dual-Stream Recording: Supports efficient recording and remote viewing.
• Gigabit Network Interface: 10/100/1000 Mbps Ethernet connection.
• ONVIF Compatibility: Supports compatible third-party IP cameras.
• RTSP Support: Compatible network video streaming.
• Compatible Hikvision ColorVu Cameras: Supports appropriate ColorVu IP camera models.
• Compatible Hikvision AcuSense Cameras: Supports appropriate AcuSense IP camera models.
• Camera-Based Intelligent Events: Supports selected analytics from compatible cameras.
• 4 Alarm Inputs: External alarm device integration.
• 1 Alarm Output: Compatible alarm signalling.
• USB Video Backup: Front and rear USB interfaces.
• Two-Way Audio: Supports compatible audio communication configurations.
• Compact Recorder: Suitable for professional small CCTV installations.
• 3-Year Recorder Warranty: Subject to applicable Australian warranty terms.

Detailed Features & Benefits

4-Channel Professional IP CCTV Recording

Connect and record up to four compatible IP security cameras through a centralised Hikvision network video recorder. Suitable for residential and small commercial CCTV installations requiring dependable high-definition surveillance.

Four Built-In PoE Camera Ports

The recorder includes four integrated PoE interfaces, allowing compatible IP cameras to connect directly without requiring a separate PoE network switch for those connections.

60W Combined PoE Power Budget

Supports compatible IEEE 802.3af/at IP cameras with a combined PoE power capacity of up to 60W. Installers should verify individual and total camera power requirements.

4TB Surveillance HDD Included

This Civic Electronic package includes a 4TB surveillance hard drive for continuous, scheduled or event-triggered CCTV recording.

Up to 32MP IP Camera Input

Supports compatible high-resolution IP camera inputs up to 32MP, subject to the recorder's 40 Mbps incoming bandwidth and supported recording configurations.

8K HDMI Display Capability

The DS-7604NI-M1/4P supports HDMI display output up to 7680 × 4320 at 30Hz, allowing compatible 8K monitors to display supported surveillance output.

4K Ultra HD Monitoring

Supports 3840 × 2160 HDMI output at 30Hz for professional 4K surveillance displays.

Independent HDMI and VGA Outputs

Provides flexible local monitoring options using compatible HDMI and VGA displays with independent output configurations.

Four 8MP Streams at 30fps

Supports decoding of up to four 8MP video streams at 30fps, subject to supported camera streams and recorder configuration.

40 Mbps Incoming Bandwidth

Provides incoming recording bandwidth for up to four compatible IP cameras.

80 Mbps Outgoing Bandwidth

Supports network video transmission and compatible remote monitoring within the recorder's published operating limits.

H.265+ Video Compression

Helps reduce recording storage requirements and network bandwidth utilisation when compatible cameras and encoding configurations are used.

One Internal SATA Interface

The recorder includes one SATA interface for a compatible internal surveillance hard drive.

Up to 16TB Supported HDD Capacity

Supports a compatible internal surveillance hard drive with a manufacturer-specified capacity of up to 16TB. Replacing the included 4TB drive is required for a larger single-drive configuration.

Four-Channel Synchronous Playback

Allows authorised users to review recordings from all four camera channels simultaneously.

Compatible Hikvision ColorVu Cameras

Supports appropriate Hikvision ColorVu IP cameras, allowing compatible colour surveillance footage to be recorded.

Compatible Hikvision AcuSense Cameras

Supports compatible Hikvision AcuSense IP cameras. Intelligent camera-generated events and available functions depend on the camera model and firmware.

Compatible Intelligent Camera Analytics

Selected intelligent events from compatible cameras can be integrated into supported recording and event-management workflows.

Dual-Stream Recording

Supports dual-stream recording configurations to help balance image quality, storage utilisation and network performance.

Network-Based Remote Monitoring

Supports compatible remote surveillance access through appropriately configured network connections and supported Hikvision software.

ONVIF and RTSP Integration

Supports integration with compatible third-party IP cameras using supported network protocols. Available camera functions may vary.

Alarm Input and Output Integration

Four alarm inputs and one alarm output provide integration options for compatible external alarm and security devices.

Two-Way Audio Support

Supports compatible audio communication configurations using the recorder's RCA audio interface.

USB Video Backup

Front and rear USB interfaces allow supported video export and recorder maintenance operations.

Compact Professional Design

The recorder's compact chassis makes it suitable for professional CCTV installations where space is limited.

Ideal Applications

• Residential CCTV: Homes requiring up to four IP security cameras.
• Small Businesses: Professional four-camera security systems.
• Retail Stores: Entrances, checkout counters and stockrooms.
• Offices: Reception areas, entrances and internal corridors.
• Warehouses: Small warehouse and storage-area surveillance.
• Workshops: Equipment and property security.
• Commercial Premises: Entry points and common areas.
• Medical and Professional Offices: Compatible CCTV security installations.
• Garages: Vehicle and property surveillance.
• Residential Property Upgrades: Replacing older four-channel recorders with a professional M-Series NVR.

Compatibility & Installation

The Hikvision DS-7604NI-M1/4P is designed for professional CCTV installations using compatible Hikvision and supported third-party IP cameras.

Four Channels and Four PoE Ports: The recorder supports four IP camera channels and includes four integrated PoE interfaces for compatible cameras.

PoE Power: The combined PoE power budget is 60W. Connected cameras must remain within the supported individual port and total power limits.

Camera Resolution: Compatible camera recording resolutions up to 32MP are supported, subject to incoming bandwidth and recording configuration limitations.

Included Storage: This package includes one 4TB surveillance HDD. Actual recording retention depends on camera resolution, frame rate, bitrate, compression and recording schedule.

Storage Expansion: The recorder has one internal SATA interface supporting up to 16TB. Storage upgrades require replacement of the installed hard drive.

8K Display: A compatible 8K monitor and suitable HDMI connection are required for maximum HDMI output resolution.

4K Display: Compatible 4K surveillance monitors can be used with supported HDMI configurations.

Intelligent Cameras: Compatible Hikvision AcuSense and ColorVu cameras can be connected. Intelligent analytics and supported event functions depend on the camera model.

Third-Party Cameras: Compatible third-party IP cameras can be connected through supported protocols. Confirm compatibility before installation.

Remote Monitoring: Remote viewing requires suitable network connectivity, supported software and appropriate configuration.

PTZ Cameras: Compatible IP PTZ cameras may be connected. Confirm PTZ control support and power requirements before installation.

Professional Installation: Installation by a qualified security professional is recommended for correct camera configuration, storage management, network security and recording performance.

Package Contents

• 1 × Hikvision DS-7604NI-M1/4P 4-Channel M-Series Network Video Recorder with 4 PoE Ports.
• 1 × 4TB Surveillance Hard Drive.
• Manufacturer-supplied standard accessories, as applicable to the Australian package.

Please note: Cameras, network cables, monitor, additional hard drives and installation services are not included unless specifically stated. The 4TB surveillance HDD is included in this advertised Civic Electronic package.

Frequently Asked Questions

How many cameras can the Hikvision DS-7604NI-M1/4P support?

The recorder supports up to four compatible IP security cameras.

Does this NVR have four built-in PoE ports?

Yes. It includes four integrated PoE camera interfaces.

Can I connect four cameras directly to the NVR?

Yes, provided the cameras are compatible and their combined power requirements remain within the recorder's 60W PoE budget.

Does this package include a 4TB hard drive?

Yes. This Civic Electronic package includes one 4TB surveillance HDD.

Does the recorder support 4K cameras?

Yes. It supports compatible 4K IP cameras, subject to the recorder's bandwidth and configuration limits.

Does the recorder support 8MP cameras?

Yes. It supports compatible 8MP IP cameras and can decode up to four 8MP streams at 30fps.

Does the NVR support 32MP cameras?

Yes. The manufacturer specifies support for compatible camera inputs up to 32MP, subject to bandwidth and recording limitations.

Does the recorder support 8K HDMI output?

Yes. The DS-7604NI-M1/4P supports HDMI output up to 7680 × 4320 at 30Hz with a compatible display.

Does the recorder support 4K HDMI output?

Yes. It supports 3840 × 2160 HDMI output at 30Hz.

Does this NVR have independent HDMI and VGA outputs?

Yes. Independent HDMI and VGA output configurations are supported.

What is the incoming bandwidth?

The maximum specified incoming bandwidth is 40 Mbps.

What is the outgoing bandwidth?

The maximum specified outgoing bandwidth is 80 Mbps.

What is the total PoE power budget?

The combined PoE power budget is 60W.

Does this recorder support PoE+ cameras?

Yes. Compatible IEEE 802.3at PoE+ cameras are supported within the available power limits.

How many hard drives can be installed?

The recorder supports one internal SATA hard drive.

What is the maximum supported HDD capacity?

Up to 16TB, according to Hikvision's published specifications.

Can I add a second internal hard drive?

No. This model has one internal SATA interface. A larger drive can replace the included 4TB HDD if additional capacity is required.

How long will the included 4TB HDD record?

Recording retention depends on camera count, resolution, bitrate, frame rate, compression and recording schedule.

Does the recorder support H.265+ compression?

Yes. H.265+, H.265, H.264+ and H.264 compression formats are supported.

Can I connect Hikvision ColorVu cameras?

Yes. Compatible Hikvision ColorVu IP cameras can be connected, subject to camera specifications and available PoE power.

Can I connect Hikvision AcuSense cameras?

Yes. Compatible Hikvision AcuSense IP cameras can be connected. Available intelligent functions depend on camera compatibility and firmware.

Does this NVR have built-in AcuSeek?

No. The DS-7604NI-M1/4P is an M-Series recorder and is not advertised as an AcuSeek VPro NVR.

Does this NVR support ONVIF cameras?

Compatible third-party ONVIF IP cameras can be integrated, although available functions may vary.

Can I view the cameras remotely?

Yes. Compatible remote monitoring is supported through appropriately configured network access and supported Hikvision software.

Does the recorder support PTZ cameras?

Compatible IP PTZ cameras can be connected. Confirm camera compatibility, PTZ control support and power requirements before installation.

Does the NVR support USB backup?

Yes. It includes front and rear USB interfaces for supported backup operations.

Does the recorder support two-way audio?

Yes. One-channel RCA two-way audio is supported with compatible equipment and configurations.

Is this NVR suitable for residential CCTV systems?

Yes. It is suitable for professional residential CCTV systems requiring up to four compatible IP cameras.

Is this recorder suitable for small businesses?

Yes. It provides professional four-camera recording for compatible small business and commercial security installations.

What warranty applies?

Civic Electronic supplies eligible Hikvision NVRs with a three-year Australian warranty. The included surveillance HDD carries its applicable separate one-year warranty, subject to warranty terms.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We supply genuine Australian Hikvision security products to professional security installers, electricians and system integrators.

• Genuine Australian Hikvision Stock
• Official Australian Warranty Support
• Competitive Wholesale and Trade Pricing
• Professional CCTV Product Selection Assistance
• Fast Australia-Wide Delivery
• Free Standard Shipping on Eligible Orders Over $300
• 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
• Professional Security Installer Support

For Hikvision NVR selection, trade pricing, hard drive upgrades or camera compatibility assistance, contact Civic Electronic on 1300 024 842.
