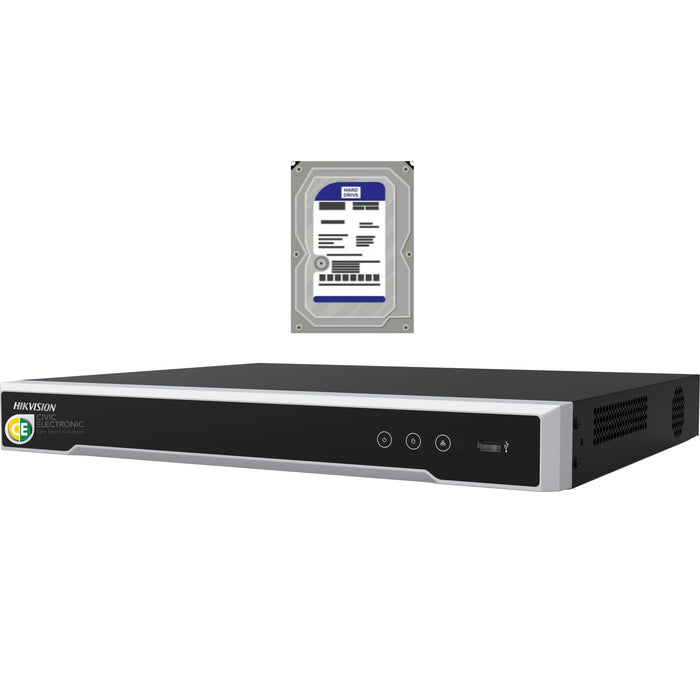

Hikvision DS-7608NI-M2/8P 8-Channel 8K NVR with 8 PoE Ports & 4TB HDD
The Hikvision DS-7608NI-M2/8P is a professional 8-channel 8K Network Video Recorder (NVR) featuring 8 built-in PoE camera ports, high-resolution IP camera recording, H.265+ video compression and an included 4TB surveillance hard drive.
Part of Hikvision's high-performance M Series, this recorder is designed for residential, commercial and industrial CCTV installations requiring reliable multi-camera recording, high-resolution video output and flexible storage expansion.
The recorder supports up to 8 compatible IP security cameras, with eight integrated PoE interfaces allowing cameras to connect directly to the NVR without a separate PoE switch, provided their power requirements remain within the recorder's available budget.
Each PoE port supports compatible IEEE 802.3af/at devices, with a combined 120W PoE power budget.
The DS-7608NI-M2/8P provides up to 128 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth, supporting professional high-definition video recording and network transmission.
It supports compatible IP cameras with recording resolutions up to 32MP, subject to camera compatibility, firmware and system performance limitations.
The recorder features 8K HDMI output at up to 7680 × 4320 resolution at 30Hz, allowing high-resolution video display on a compatible 8K monitor.
It also supports 4K HDMI output at up to 60Hz, making it suitable for professional Ultra HD monitoring installations.
Important: 8K HDMI output describes the recorder's display capability. Actual recording resolution depends on the connected cameras, while simultaneous live-view decoding depends on the recorder's supported decoding configurations.
For efficient video recording, the NVR supports H.265+, H.265, H.264+ and H.264 compression formats.
The included 4TB surveillance HDD provides storage for continuous, scheduled or event-triggered recording. Actual recording retention depends on the number of connected cameras, resolution, frame rate, compression, bitrate and recording schedule.
With two internal SATA interfaces, the recorder supports storage expansion using compatible surveillance hard drives. Hikvision specifies support for up to 16TB per SATA interface.
The recorder supports 8-channel synchronous playback, allowing authorised users to review recordings from multiple cameras.
For local monitoring, the recorder provides independent HDMI and VGA outputs, enabling flexible display configurations.
For remote monitoring and system management, the NVR supports Hik-Connect, compatible network access and supported third-party camera integration through ONVIF and RTSP.
Compatible intelligent cameras can provide additional surveillance capabilities, including motion detection, line crossing detection, intrusion detection, ANPR, people counting and heat mapping, subject to the camera and firmware combination.
Additional professional features include dual-stream recording, alarm input/output connections, USB backup, Gigabit Ethernet networking and supported network security functions.
Combining 8 recording channels, 8 built-in PoE ports, 8K HDMI output, 120W PoE power, 128 Mbps incoming bandwidth, two SATA interfaces and an included 4TB HDD, the Hikvision DS-7608NI-M2/8P provides a versatile recording solution for professional IP CCTV systems.
Three-year recorder warranty applies subject to terms.
The included surveillance HDD carries its applicable separate warranty.
Key Features
-
8-Channel Recording: Supports up to 8 compatible IP cameras.
-
8 Built-In PoE Ports: Direct connection for compatible PoE cameras.
-
4TB HDD Included: Surveillance hard drive supplied with this package.
-
8K HDMI Output: Up to 7680 × 4320 at 30Hz.
-
4K HDMI Output: Up to 3840 × 2160 at 60Hz.
-
High-Resolution Recording: Supports compatible IP cameras up to 32MP.
-
128 Mbps Incoming Bandwidth: Professional IP camera recording capacity.
-
256 Mbps Outgoing Bandwidth: High-capacity network video transmission.
-
120W PoE Budget: Combined power for compatible connected cameras.
-
IEEE 802.3af/at: PoE and PoE+ camera compatibility.
-
H.265+ Compression: Efficient video storage utilisation.
-
H.265 / H.264+ / H.264: Multiple supported video formats.
-
2 SATA Interfaces: Supports two internal surveillance hard drives.
-
Up to 16TB per HDD: Manufacturer-specified maximum capacity.
-
8-Channel Synchronous Playback: Multi-camera recording review.
-
Independent HDMI and VGA: Flexible local monitoring.
-
Hik-Connect: Compatible remote access and monitoring.
-
ONVIF Compatibility: Supports compatible third-party IP cameras.
-
Dual-Stream Recording: Efficient recording and bandwidth management.
-
Smart Camera Integration: Supports compatible camera analytics.
-
Motion Detection: Supported camera event integration.
-
Line Crossing Detection: Compatible intelligent camera functions.
-
Intrusion Detection: Supported camera analytics integration.
-
ANPR Compatibility: Integration with supported number plate cameras.
-
People Counting: Compatible intelligent camera functions.
-
Heat Mapping: Supported camera analytics.
-
POS Integration: Supported point-of-sale functions.
-
4 Alarm Inputs: External alarm integration.
-
1 Alarm Output: External alarm signalling.
-
USB Backup: Front USB 2.0 and rear USB 3.0.
-
Gigabit LAN: 10/100/1000 Mbps network interface.
-
Secure Network Functions: Supported encryption and access controls.
-
3-Year Recorder Warranty: Subject to applicable Australian terms.
Technical Specifications
| Model |
DS-7608NI-M2/8P |
| Manufacturer |
Hikvision |
| Product Series |
M Series 8K NVR |
| Recorder Type |
Network Video Recorder |
| IP Camera Channels |
8 |
| Built-In PoE Ports |
8 |
| PoE Interfaces |
8 × RJ45 10/100 Mbps |
| PoE Standard |
IEEE 802.3af/at |
| Combined PoE Budget |
Up to 120W |
| Included HDD |
1 × 4TB Surveillance Hard Drive |
| Internal SATA Interfaces |
2 |
| Maximum HDD Capacity |
Up to 16TB per SATA Interface |
| Maximum Internal Storage |
Up to 32TB with Two Compatible Drives |
| Incoming Bandwidth |
128 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| Maximum Camera Resolution |
Up to 32MP, Subject to Compatibility |
| High-Resolution Input |
Up to 8 Channels for Supported 16MP/24MP/32MP Inputs |
| Decoding Capability |
Up to 8 × 8MP at 30fps; Other Supported Configurations Vary |
| Synchronous Playback |
8 Channels |
| HDMI Output |
Up to 8K 7680 × 4320 @ 30Hz |
| 4K HDMI Output |
3840 × 2160 @ 60Hz / 30Hz |
| VGA Output |
1920 × 1080 @ 60Hz |
| Display Mode |
Independent HDMI and VGA |
| CVBS Output |
1 × BNC |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Dual-Stream Recording |
Supported |
| Stream Type |
Video / Video and Audio |
| Audio Output |
1 × RCA |
| Two-Way Audio Interface |
1 Channel, RCA |
| Camera Access |
Hikvision / ONVIF / RTSP |
| Network Interface |
1 × RJ45 Gigabit Ethernet |
| Network Speed |
10/100/1000 Mbps |
| Remote Monitoring |
Hik-Connect / Compatible Web Access |
| Alarm Inputs |
4 |
| Alarm Outputs |
1 |
| Front USB |
1 × USB 2.0 |
| Rear USB |
1 × USB 3.0 |
| Smart Camera Events |
Compatible Motion / Line Crossing / Intrusion Events |
| Additional Analytics |
Compatible ANPR / Heat Map / People Counting |
| POS Functions |
Supported with Compatible Configuration |
| Power Supply |
100–240V AC, 50/60Hz |
| Recorder Consumption |
Up to 15W, Excluding HDD and PoE Loads |
| Operating Temperature |
−10°C to +55°C |
| Operating Humidity |
10%–90% |
| Dimensions |
385 × 315 × 52mm |
| Weight |
Up to 3kg, Excluding HDD |
| Recorder Warranty |
3 Years, Subject to Applicable Terms |
| Included HDD Warranty |
1 Year, Subject to Applicable Terms |
Detailed Features & Benefits
8-Channel Professional CCTV Recording
Connect and record up to eight compatible IP cameras through a centralised Hikvision network video recorder.
Eight Built-In PoE Ports
All eight recording channels can be connected using the recorder's eight integrated PoE interfaces, subject to camera compatibility and power requirements.
120W Combined PoE Budget
Supports compatible IEEE 802.3af/at cameras with a combined PoE power capacity of up to 120W.
4TB Surveillance HDD Included
This Civic Electronic package includes a 4TB surveillance hard drive for continuous, scheduled or event-based CCTV recording.
8K HDMI Video Output
Supports video output up to 7680 × 4320 at 30Hz through a compatible 8K display.
4K Ultra HD Monitoring
Supports 3840 × 2160 HDMI output at up to 60Hz for compatible 4K displays.
High-Resolution Camera Support
Supports compatible IP cameras with resolutions up to 32MP, subject to input and decoding limitations.
128 Mbps Incoming Bandwidth
Provides incoming network bandwidth for recording video from multiple high-definition IP cameras.
256 Mbps Outgoing Bandwidth
Supports network video transmission and remote viewing within the recorder's specified operating limits.
H.265+ Video Compression
Helps reduce storage and bandwidth requirements when compatible recording configurations are used.
Two Internal SATA Interfaces
Allows installers to configure two compatible internal surveillance hard drives for additional storage.
Up to 16TB per Hard Drive
Supports compatible drives with manufacturer-specified capacities up to 16TB per SATA interface.
Eight-Channel Synchronous Playback
Allows authorised users to review recordings from up to eight channels using supported playback interfaces.
Independent HDMI and VGA Outputs
Provides flexible local display connections for compatible surveillance monitors.
Hik-Connect Remote Monitoring
Supports compatible remote live viewing and recording playback through Hik-Connect after appropriate configuration.
ONVIF Camera Compatibility
Allows integration with compatible third-party IP cameras using supported ONVIF and RTSP protocols.
Intelligent Camera Event Integration
Supports compatible camera-generated analytics, including motion detection, line crossing and intrusion detection.
ANPR Camera Integration
Supports selected automatic number plate recognition functions when compatible cameras and firmware are used.
People Counting and Heat Mapping
Supports selected intelligent camera functions for compatible commercial surveillance applications.
POS Integration
Supports selected point-of-sale information overlay and event functions.
Dual-Stream Recording
Helps optimise network bandwidth and recording performance using supported camera streams.
Alarm Input and Output Connections
Four alarm inputs and one alarm output support compatible external alarm integration.
USB Backup
Includes front USB 2.0 and rear USB 3.0 interfaces for supported backup and maintenance functions.
Professional Network Security
Supports selected secure access and network encryption functions, depending on firmware and configuration.
Ideal Applications
-
Residential CCTV: Up to eight compatible security cameras.
-
Retail Stores: Entrances, counters and stockrooms.
-
Offices: Reception areas and building security.
-
Warehouses: Internal and external surveillance.
-
Small Businesses: Professional multi-camera recording.
-
Commercial Buildings: Entrances, corridors and car parks.
-
Workshops: Equipment and perimeter monitoring.
-
Medical and Professional Premises: Compatible security camera systems.
-
Residential Complexes: Common-area surveillance.
-
CCTV System Upgrades: Replacing older 8-channel recorders.
Compatibility & Installation
The Hikvision DS-7608NI-M2/8P is designed for professional CCTV installations using compatible Hikvision and supported third-party IP cameras.
Eight Channels and Eight PoE Ports: The recorder supports eight camera channels and includes eight built-in PoE interfaces. Compatible PoE cameras can connect directly to the recorder.
PoE Power: The combined PoE budget is 120W. Installers must calculate the total power requirements of connected cameras and ensure they remain within the recorder's supported limits.
Camera Resolution: Compatible cameras up to 32MP are supported, subject to input-channel restrictions, decoding capacity and firmware compatibility.
Included Storage: This package includes one 4TB surveillance hard drive. Actual recording retention depends on camera resolution, frame rate, bitrate, compression and recording schedule.
Storage Expansion: Two SATA interfaces are available, supporting compatible hard drives up to 16TB each.
8K Display: A compatible 8K monitor and appropriate HDMI connection are required to use the maximum supported HDMI output resolution.
Remote Monitoring: Hik-Connect requires suitable network connectivity and account configuration.
Intelligent Analytics: Advanced events such as ANPR, people counting and line crossing depend on compatible cameras and supported firmware.
PTZ Cameras: Compatible IP PTZ cameras can be connected. Confirm their power requirements, PTZ control support and available PoE capacity before installation.
Professional Installation: Installation by a qualified security professional is recommended for correct camera configuration, storage management, network security and recording performance.
Package Contents
- 1 × Hikvision DS-7608NI-M2/8P 8-Channel 8K Network Video Recorder with 8 PoE Ports.
- 1 × 4TB Surveillance Hard Drive.
- Manufacturer-supplied standard accessories, as applicable to the Australian package.
Please note: Cameras, network cables, monitor,
additional hard drives and installation services are not included
unless specifically stated. The 4TB surveillance HDD is included
in this advertised Civic Electronic package.
Frequently Asked Questions
How many cameras can the DS-7608NI-M2/8P support?
It supports up to eight compatible IP security cameras.
Does this NVR have eight built-in PoE ports?
Yes. It includes eight integrated PoE camera interfaces.
Can I connect eight cameras directly to the NVR?
Yes, provided the cameras are compatible and their combined power requirements remain within the recorder's 120W PoE budget.
Does the NVR include a 4TB hard drive?
Yes. This Civic Electronic package includes one 4TB surveillance HDD.
Does the recorder support 8K output?
Yes. HDMI output supports up to 7680 × 4320 at 30Hz with a compatible display.
Does 8K output mean all connected cameras record in 8K?
No. 8K refers to the HDMI display capability. Actual camera recording resolutions depend on the connected cameras and supported system configuration.
Does the recorder support 4K cameras?
Yes. It supports compatible 4K IP cameras.
What is the maximum supported camera resolution?
Up to 32MP for compatible camera inputs, subject to system and firmware limitations.
What is the maximum incoming bandwidth?
128 Mbps.
What is the maximum outgoing bandwidth?
256 Mbps.
What is the total PoE power budget?
120W across the built-in PoE interfaces.
Does this NVR support PoE+ cameras?
Yes. It supports compatible IEEE 802.3at PoE+ cameras within the available power budget.
How many hard drives can be installed?
Two compatible SATA hard drives.
What is the maximum supported HDD capacity?
Up to 16TB per SATA interface, according to Hikvision's published specifications.
Can I install another hard drive?
Yes. The recorder provides two SATA interfaces, and this package includes one 4TB HDD.
How long will the included 4TB HDD record?
Recording retention depends on camera count, resolution, bitrate, frame rate, compression and recording schedule.
Does the NVR support H.265+?
Yes. H.265+, H.265, H.264+ and H.264 video compression are supported.
Can I view the cameras remotely?
Yes. Compatible remote viewing is supported through Hik-Connect after appropriate configuration.
Does the recorder support ONVIF cameras?
Yes. Compatible ONVIF IP cameras are supported, although individual features may vary.
Does the NVR support motion detection?
Yes. It supports compatible camera motion detection events.
Does this NVR support AcuSense cameras?
Compatible Hikvision AcuSense cameras can be connected. Intelligent classification features depend on the camera and supported integration.
Can I connect ColorVu cameras?
Yes. Compatible Hikvision ColorVu IP cameras can be connected, subject to resolution, bandwidth and power requirements.
Can I connect PTZ cameras?
Yes. Compatible IP PTZ cameras are supported. Confirm PTZ functions and power requirements before installation.
Can I connect an 8K monitor?
Yes. The HDMI interface supports compatible 8K monitors at up to 30Hz.
Does the NVR support USB backup?
Yes. It includes USB interfaces for supported video backup operations.
Is this recorder suitable for business security systems?
Yes. It is suitable for compatible professional eight-camera CCTV installations.
What warranty applies?
Civic Electronic supplies eligible Hikvision NVRs with a three-year Australian warranty. The included surveillance HDD carries its applicable separate warranty, subject to warranty terms.
Why Buy from Civic Electronic?
Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.
We supply genuine Australian Hikvision security products to professional security installers, electricians and system integrators.
- Genuine Australian Hikvision Stock
- Official Australian Warranty Support
- Competitive Wholesale and Trade Pricing
- Professional CCTV Product Selection Assistance
- Fast Australia-Wide Delivery
- Free Standard Shipping on Eligible Orders Over $300
- 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
- Professional Security Installer Support
For Hikvision NVR selection, trade pricing, hard drive upgrades or camera compatibility assistance, contact Civic Electronic on 1300 024 842.
Official Hikvision Manufacturer Documentation
Review the official Hikvision technical datasheet for complete
information about 8-channel recording, 8K HDMI output, 8 PoE
camera ports, 120W PoE budget, decoding performance,
storage expansion and network compatibility.
Download Official Hikvision Technical Datasheet (PDF)
View Official Hikvision Product Specifications
Note: Supported decoding configurations and selected features
may vary by hardware and firmware revision. The 4TB HDD is
included as part of the advertised Civic Electronic package.
