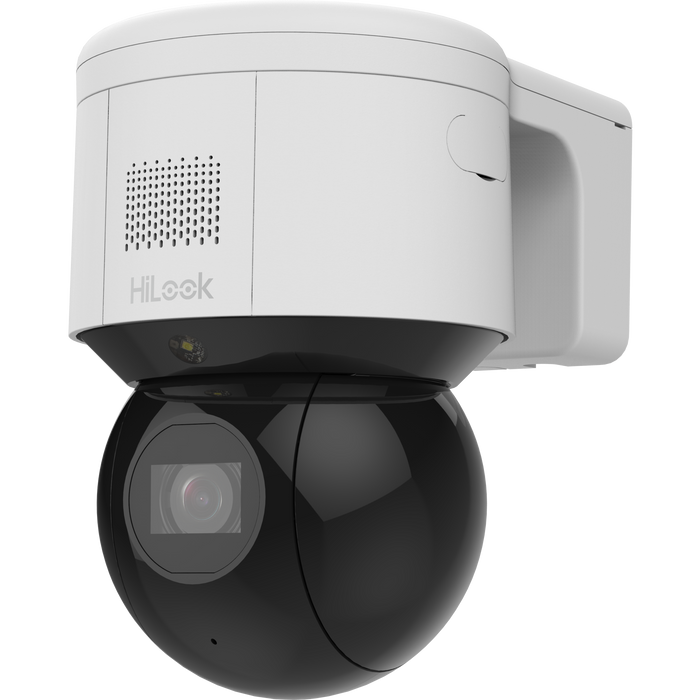

HiLook PTZ-N3404LIU/SL 4MP 4X Optical Zoom Intelligent PTZ Camera with Active Deterrence
The HiLook PTZ-N3404LIU/SL is a professional 4MP intelligent network PTZ camera manufactured by Hikvision, combining 4X optical zoom, intelligent human and vehicle detection, automatic tracking, two-way audio and active deterrence.
Designed for professional residential, commercial and industrial CCTV installations, this compact PTZ camera provides flexible surveillance coverage with motorised pan, tilt and zoom functionality.
The camera captures detailed 2560 × 1440 resolution video using a 1/2.8-inch Progressive Scan CMOS sensor.
Its 2.8–12mm motorised zoom lens provides 4X optical zoom, allowing operators to monitor wide areas and zoom in on selected subjects.
Additional 16X digital zoom is available through compatible viewing applications.
The camera supports a 350-degree horizontal pan range and 90-degree tilt range, allowing remote adjustment of the surveillance direction.
Built-in intelligent human and vehicle detection helps identify relevant security activity while reducing unnecessary alerts caused by other movement.
The camera also supports automatic tracking, allowing the PTZ mechanism to follow supported moving targets within its operating range.
For night-time surveillance, the PTZ-N3404LIU/SL includes infrared illumination up to 50 metres.
Its low-light imaging capability includes a manufacturer-specified minimum colour illumination of 0.005 lux at F1.5.
The camera features 120dB Wide Dynamic Range, helping preserve useful image detail in scenes containing strong sunlight, shadows and backlighting.
Additional image enhancement functions include Backlight Compensation, Highlight Compensation, 3D Digital Noise Reduction and digital defog.
One of the camera's major security advantages is its integrated active deterrence system.

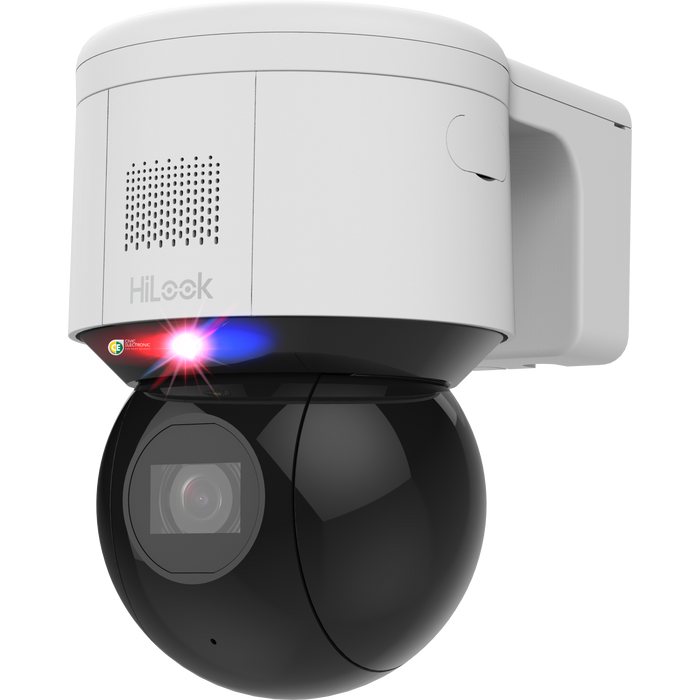

The camera includes red-and-blue flashing warning lights and a built-in speaker that can provide audible warnings when supported security events are triggered.
A built-in microphone and speaker also support two-way audio, allowing authorised users to listen and communicate through compatible monitoring applications.
Supported intelligent security functions include motion detection, line crossing detection and intrusion detection, with event availability depending on the selected configuration.
The camera supports 300 programmable presets and eight patrol routes, allowing installers to configure frequently monitored positions and automated surveillance sequences.
Its H.265+ video compression helps reduce bandwidth and recording storage requirements when used with compatible network video recorders.
A built-in memory card slot supports compatible microSD cards up to 256GB for local recording.
Power can be supplied through 12V DC or IEEE 802.3at PoE+, with maximum power consumption of approximately 14W.
The camera features an IP66-rated outdoor housing and an integrated wall-mount design, making it suitable for professional outdoor surveillance installations when correctly installed.
Combining 4MP resolution, 4X optical zoom, 50m infrared night vision, intelligent auto-tracking, two-way audio and red-and-blue active deterrence, the HiLook PTZ-N3404LIU/SL provides a versatile surveillance solution for protecting entrances, driveways, commercial premises and outdoor areas.
Key Features
-
4MP Resolution: 2560 × 1440 high-definition imaging.
-
4X Optical Zoom: Motorised zoom for closer surveillance.
-
16X Digital Zoom: Additional electronic magnification.
-
2.8–12mm Lens: Adjustable wide-to-telephoto viewing.
-
1/2.8" CMOS Sensor: Progressive scan imaging.
-
0.005 Lux Colour Sensitivity: Enhanced low-light performance.
-
50m Infrared Night Vision: Integrated IR illumination.
-
120dB WDR: Improved imaging in challenging lighting.
-
350° Pan: Motorised horizontal camera movement.
-
90° Tilt: Motorised vertical positioning.
-
Auto-Tracking: Automatically follows supported moving targets.
-
Human Detection: Intelligent person classification.
-
Vehicle Detection: Intelligent vehicle classification.
-
Line Crossing Detection: Configurable virtual boundary monitoring.
-
Intrusion Detection: Protected-area monitoring.
-
Motion Detection: Standard surveillance events.
-
Active Deterrence: Red-and-blue flashing warning lights.
-
Audio Siren: Audible warning through the integrated speaker.
-
Two-Way Audio: Built-in microphone and speaker.
-
300 Presets: Programmable PTZ positions.
-
8 Patrol Routes: Automated monitoring sequences.
-
Park Action: Configurable automatic PTZ action.
-
Power-Off Memory: Restores supported PTZ settings.
-
H.265+ Compression: Efficient video recording.
-
3D DNR: Digital noise reduction.
-
BLC / HLC: Image enhancement functions.
-
Digital Defog: Improved visibility in suitable conditions.
-
Privacy Masking: Configurable privacy regions.
-
microSD Recording: Supports compatible cards up to 256GB.
-
PoE+: IEEE 802.3at network power.
-
12V DC: Alternative power connection.
-
IP66: Outdoor weather protection.
-
Integrated Wall Mount: Compact installation design.
-
3-Year Warranty: Subject to applicable Australian warranty terms.
Technical Specifications
| Model |
PTZ-N3404LIU/SL |
| Brand |
HiLook |
| Manufacturer |
Hikvision |
| Camera Type |
Intelligent Network PTZ Camera |
| Maximum Resolution |
2560 × 1440 — 4MP |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Minimum Colour Illumination |
0.005 Lux @ F1.5, AGC ON |
| Minimum B/W Illumination |
0.001 Lux @ F1.5, AGC ON |
| With Infrared |
0 Lux |
| Shutter Speed |
1 to 1/30,000s |
| Day/Night |
IR Cut Filter |
| Lens |
2.8–12mm Motorised Zoom |
| Optical Zoom |
4X |
| Digital Zoom |
16X |
| Horizontal FOV |
96.7° to 31.6° |
| Vertical FOV |
51.1° to 17.7° |
| Diagonal FOV |
115.1° to 36.3° |
| Maximum Aperture |
F1.5 |
| Focus |
Auto / Semi-Auto / Manual |
| Zoom Speed |
Approximately 2 Seconds, Wide to Telephoto |
| Infrared Range |
Up to 50m |
| Wide Dynamic Range |
120dB WDR |
| Image Enhancement |
BLC / HLC / 3D DNR / Digital Defog |
| Pan Range |
0° to 350° |
| Tilt Range |
0° to 90° |
| Pan Speed |
0.1°/s to 60°/s |
| Tilt Speed |
0.1°/s to 50°/s |
| Preset Speed |
60°/s |
| Presets |
300 |
| Patrol Routes |
8 |
| Presets per Patrol |
Up to 32 |
| Auto-Tracking |
Supported |
| Proportional Pan |
Supported |
| Park Action |
Preset / Patrol Scan |
| Power-Off Memory |
Supported |
| Main Stream — 50Hz |
25fps at 2560 × 1440 |
| Main Stream — 60Hz |
30fps at 2560 × 1440 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Motion Detection |
Supported |
| Line Crossing Detection |
Supported |
| Intrusion Detection |
Supported |
| Active Deterrence |
Red-and-Blue Flashing Lights + Audible Warning |
| Built-In Microphone |
Yes |
| Built-In Speaker |
Yes — 2W |
| Two-Way Audio |
Supported |
| Local Storage |
microSD / microSDHC / microSDXC up to 256GB |
| Network Interface |
RJ45 10/100Mbps Ethernet |
| Power Supply |
12V DC / IEEE 802.3at PoE+ |
| Maximum Power Consumption |
14W |
| Weather Protection |
IP66 |
| Operating Temperature |
−30°C to +65°C |
| Dimensions |
179.3 × 120.5 × 182mm |
| Weight |
Approximately 1.125kg |
| Warranty |
3 Years — Subject to Australian Warranty Terms |
Detailed Features & Benefits
4MP High-Resolution Surveillance
The camera captures detailed 2560 × 1440 video, providing high-definition imaging for professional security monitoring.
4X Optical Zoom
The 2.8–12mm motorised lens allows operators to adjust the field of view and inspect selected subjects while retaining optical image detail.
16X Digital Zoom
Additional electronic magnification is available through compatible viewing interfaces. Digital zoom does not increase native optical resolution.
Motorised Pan and Tilt
The camera supports 350-degree horizontal pan movement and 90-degree vertical tilt movement for flexible surveillance coverage.
Intelligent Auto-Tracking
Automatic tracking allows the camera to follow supported moving targets within its operating range, subject to configuration and environmental conditions.
Human and Vehicle Detection
Intelligent classification helps distinguish relevant security activity from other movement, improving the usefulness of event notifications.
50-Metre Infrared Night Vision
Integrated infrared illumination supports night-time surveillance at manufacturer-specified distances of up to 50 metres.
120dB Wide Dynamic Range
Helps maintain useful image detail in scenes containing bright sunlight, shadows and strong backlighting.
Red-and-Blue Flashing Active Deterrence
Integrated red-and-blue warning lights provide a visible deterrent when supported security events are triggered.
Built-In Audible Warning
The integrated speaker supports configurable audible warnings to help discourage unwanted activity.
Two-Way Audio Communication
A built-in microphone and speaker allow authorised users to listen and communicate through compatible monitoring applications.
Line Crossing Detection
Provides configurable virtual boundary monitoring for entrances, driveways and perimeter security applications.
Intrusion Detection
Supports monitoring of selected surveillance areas and can be used with compatible event notifications.
300 Programmable Presets
Installers can configure frequently monitored camera positions for quick access.
Eight Patrol Routes
Supports automated surveillance sequences using configured preset positions.
Park Action
Allows the camera to return to a configured preset or patrol action after a selected period of inactivity.
H.265+ Video Compression
Helps reduce network bandwidth and recording storage requirements when used with compatible systems.
3D Digital Noise Reduction
Helps reduce visible image noise in low-light and challenging surveillance environments.
Digital Defog
Provides image processing adjustments for suitable hazy or low-contrast conditions.
Local microSD Recording
The camera supports compatible microSD cards up to 256GB for local recording.
PoE+ Power
Compatible IEEE 802.3at PoE+ equipment can provide network connectivity and power through an Ethernet connection.
IP66 Outdoor Protection
The IP66-rated housing is designed for outdoor surveillance when correctly installed and weather-sealed.
Ideal Applications
-
Residential Properties: Driveways, entrances and large yards.
-
Commercial Premises: Building entrances and outdoor areas.
-
Warehouses: Loading areas and external security.
-
Industrial Facilities: Perimeter and access monitoring.
-
Car Parks: Intelligent detection and PTZ surveillance.
-
Construction Sites: Outdoor monitoring and active deterrence.
-
Storage Yards: Remote monitoring and automatic tracking.
-
Business Entrances: Two-way communication and audible warnings.
-
Large Outdoor Areas: Flexible PTZ coverage.
-
Professional CCTV Upgrades: Adding intelligent PTZ and active deterrence capabilities.
Compatibility & Installation
The HiLook PTZ-N3404LIU/SL is designed for professional installation with compatible HiLook, Hikvision and supported third-party network surveillance equipment.
Confirm that the selected NVR supports 4MP recording, PTZ control, intelligent events, automatic tracking and audio functions where required.
The camera supports IEEE 802.3at PoE+ or 12V DC power, with maximum power consumption of approximately 14W.
Important: Standard IEEE 802.3af PoE should not be assumed sufficient. Use a compatible PoE+ switch or NVR port with adequate available power.
The integrated infrared illuminator provides a manufacturer-specified range of up to 50 metres. Actual night-vision performance depends on the environment, target reflectivity and installation conditions.
Automatic tracking should be configured and tested on-site to ensure suitable operation within the camera's 350-degree pan and 90-degree tilt ranges.
Red-and-blue flashing lights and audible warning functions should be configured appropriately for the installation environment.
Audio recording and warning functions must comply with applicable Australian surveillance, privacy and local requirements.
The camera features IP66 weather protection, but external cable connections and mounting arrangements must also be correctly weather-sealed.
Professional installation is recommended to ensure correct positioning, network security, PTZ configuration, recording and intelligent event performance.
Package Contents
- 1 × HiLook PTZ-N3404LIU/SL 4MP Intelligent 4X Optical Zoom Network PTZ Camera with Active Deterrence.
Please note: NVR, hard drive, microSD card,
network cabling, external power supply, optional mounting accessories
and installation services are not included unless specifically stated.
Confirm package accessories for the supplied Australian model.
Frequently Asked Questions
What resolution does the HiLook PTZ-N3404LIU/SL provide?
It captures video at up to 2560 × 1440 resolution, providing 4MP surveillance imaging.
Does the camera have optical zoom?
Yes. It features a 2.8–12mm motorised lens with 4X optical zoom.
Does it support digital zoom?
Yes. It supports 16X digital zoom.
Can the camera pan and tilt?
Yes. It supports motorised pan and tilt movement.
Does the camera rotate continuously through 360 degrees?
No. The manufacturer specifies a horizontal pan range of 0° to 350°.
Does this camera support automatic tracking?
Yes. Intelligent auto-tracking is supported, subject to configuration and operating conditions.
Does the camera detect humans and vehicles?
Yes. It supports intelligent human and vehicle detection.
How far can the camera see at night?
Its integrated infrared illumination has a manufacturer-specified range of up to 50 metres.
Does the camera have a flashing warning light?
Yes. It includes red-and-blue flashing lights for active deterrence.
Does the camera have an audible siren?
Yes. The built-in speaker supports audible warning functions.
Does it support two-way audio?
Yes. It includes a built-in microphone and speaker for compatible two-way audio communication.
Does the camera support line crossing detection?
Yes. Line crossing detection is supported.
Does it support intrusion detection?
Yes. Intrusion detection is supported.
How many preset positions can be configured?
Up to 300 programmable PTZ presets are supported.
Does the camera support patrol routes?
Yes. It supports eight patrol routes.
Does this camera support H.265+?
Yes. H.265+ video compression is supported.
Can the camera record to a microSD card?
Yes. Compatible microSD cards up to 256GB are supported.
Does the camera support PoE?
Yes. It supports IEEE 802.3at PoE+.
What is the maximum power consumption?
Approximately 14W.
Is the camera suitable for outdoor installation?
Yes. It features an IP66-rated housing, subject to correct installation.
Can this camera work with HiLook or Hikvision NVRs?
Yes, with compatible recorders supporting the required video, PTZ and intelligent functions.
Does the camera have a three-year warranty?
Civic Electronic supplies eligible HiLook cameras with a three-year Australian warranty, subject to applicable warranty terms.
Why Buy from Civic Electronic?
Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.
We supply genuine Australian HiLook and Hikvision security products to professional security installers, electricians and system integrators.
- Genuine Australian HiLook Stock
- Australian Warranty Support
- Competitive Wholesale and Trade Pricing
- Professional Product Selection Assistance
- Fast Australia-Wide Delivery
- Free Standard Shipping on Eligible Orders Over $300
- 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
- Professional Security Installer Support
For HiLook PTZ camera selection, trade pricing or NVR compatibility assistance, contact Civic Electronic on 1300 024 842.
