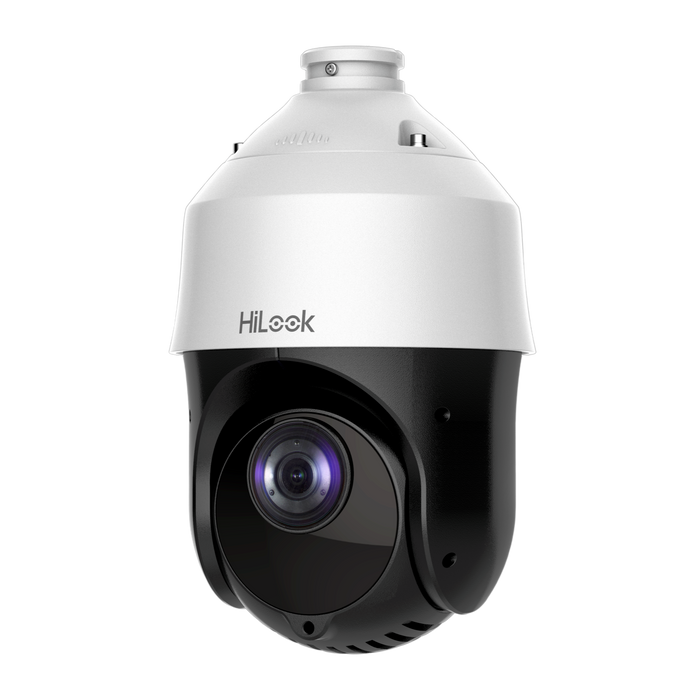

Hilook PTZ-N4215I-DE 2MP 15X DarkFighter IR 4-inch PTZ Network Camera

HiLook PTZ-N4215I-DE 2MP 15X Optical Zoom DarkFighter IR PTZ Network Speed Dome Camera

The HiLook PTZ-N4215I-DE is a professional 2MP Full HD 15X optical zoom PTZ network speed dome camera manufactured by Hikvision. Designed for wide-area security surveillance, this 4-inch PTZ camera combines powerful optical zoom, motorised pan and tilt movement, Powered-by-DarkFighter low-light imaging and long-range infrared night vision.

Featuring a 1/2.8-inch Progressive Scan CMOS sensor, the camera captures detailed 1920 × 1080 Full HD video for residential, commercial and industrial security applications.

The integrated 5–75mm motorised lens delivers 15X optical zoom, allowing operators to monitor large areas and obtain closer views of distant subjects without physically repositioning the camera.

Additional 16X digital zoom is available through compatible viewing interfaces.

With 360-degree endless pan movement and a −15° to +90° tilt range with auto-flip, the camera provides flexible surveillance coverage across large properties, car parks, warehouses and industrial facilities.

Powered-by-DarkFighter technology improves image performance in challenging low-light conditions. The camera has a manufacturer-specified minimum colour illumination of 0.005 lux at F1.6.

Integrated Smart IR illumination supports night-time surveillance at distances of up to 100 metres, helping monitor areas where conventional lighting is limited.

The camera features 120dB true Wide Dynamic Range, helping preserve image details in scenes containing bright sunlight, shadows and strong backlighting.

Additional image enhancement technologies include 3D Digital Noise Reduction, Backlight Compensation, Highlight Compensation and digital defog.

For automated security monitoring, the PTZ-N4215I-DE supports 300 programmable presets, eight patrol routes and four pattern scans.

These functions allow installers to configure automatic camera movements between important surveillance locations.

Supported intelligent security events include line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection and object removal detection.

The camera supports H.265+ video compression, helping reduce recording bandwidth and storage requirements when connected to compatible network video recorders.

For professional installations, the camera supports IEEE 802.3at PoE+ or 12V DC power, with maximum power consumption of approximately 18W.

The outdoor-rated housing is designed for demanding security environments. Ingress protection should be confirmed against the supplied hardware revision, as manufacturer documentation includes both IP66 and IP67 versions.

Combining 15X optical zoom, 100m infrared night vision, DarkFighter low-light imaging, 120dB WDR, 360° PTZ movement and programmable patrol functions, the HiLook PTZ-N4215I-DE provides reliable and flexible surveillance for professional CCTV installations.

Key Features

• 2MP Full HD: 1920 × 1080 resolution.
• Powered by DarkFighter: Enhanced low-light imaging.
• 15X Optical Zoom: Motorised optical magnification.
• 16X Digital Zoom: Additional electronic magnification.
• 5–75mm Lens: Wide-to-telephoto surveillance.
• 1/2.8" CMOS Sensor: Progressive scan imaging.
• 0.005 Lux Colour Sensitivity: Low-light surveillance.
• 100m Infrared Night Vision: Long-range IR illumination.
• Smart IR: Intelligent infrared illumination adjustment.
• 120dB True WDR: Improved imaging in high-contrast scenes.
• 360° Endless Pan: Continuous horizontal rotation.
• −15° to +90° Tilt: Flexible vertical positioning.
• Auto-Flip: Extended PTZ movement.
• 300 Presets: Programmable surveillance positions.
• 8 Patrol Routes: Automated monitoring sequences.
• 4 Pattern Scans: Recorded PTZ movement sequences.
• Park Action: Configurable automatic PTZ actions.
• Power-Off Memory: Restores supported PTZ settings.
• Line Crossing Detection: Intelligent boundary monitoring.
• Intrusion Detection: Configurable area monitoring.
• Region Entrance Detection: Monitoring of entry events.
• Region Exiting Detection: Monitoring of exit events.
• Unattended Baggage Detection: Intelligent object monitoring.
• Object Removal Detection: Monitoring of selected objects.
• Motion Detection: Standard movement events.
• Video Tampering Detection: Camera interference alerts.
• H.265+ Compression: Efficient video recording.
• 3D DNR: Digital noise reduction.
• BLC / HLC: Image enhancement functions.
• Digital Defog: Improved visibility in suitable conditions.
• 24 Privacy Masks: Configurable privacy regions.
• microSD Recording: Local storage capability; verify card capacity for the supplied revision.
• PoE+: IEEE 802.3at Class 4.
• 12V DC: Alternative power connection.
• Outdoor Protection: IP66/IP67 depending on hardware revision.
• 3-Year Warranty: Subject to applicable Australian warranty terms.

Detailed Features & Benefits

2MP Full HD Surveillance

Captures detailed 1920 × 1080 video for professional live monitoring, playback and security recording.

15X Optical Zoom

The 5–75mm motorised lens allows operators to move from wider surveillance coverage to a narrower field of view while maintaining optical image detail.

16X Digital Zoom

Provides additional electronic magnification through compatible viewing interfaces. Digital zoom does not increase the camera's native optical resolution.

Powered-by-DarkFighter Imaging

Advanced low-light imaging technology helps deliver useful surveillance footage when ambient lighting is limited.

100-Metre Infrared Night Vision

Integrated infrared illumination supports night-time monitoring at manufacturer-specified distances of up to 100 metres.

Smart IR Technology

Smart IR helps manage infrared illumination to improve image usability at different viewing distances.

120dB True Wide Dynamic Range

Helps preserve image details in scenes containing strong sunlight, deep shadows and challenging backlighting.

360-Degree Endless Pan

Continuous horizontal rotation allows the camera to monitor multiple directions without a mechanical pan stop.

Motorised Tilt with Auto-Flip

Provides a tilt range of −15° to +90° with auto-flip for flexible surveillance coverage.

300 Programmable Presets

Installers can save frequently monitored camera positions for quick access.

Eight Patrol Routes

Supports automated surveillance sequences using configured preset positions.

Four Pattern Scans

Allows operators to record and replay supported PTZ movement sequences.

Park Action

Automatically performs a configured PTZ action after a selected period of inactivity.

Power-Off Memory

Helps restore supported PTZ settings following a power interruption.

Line Crossing Detection

Provides configurable virtual boundary monitoring for supported security applications.

Intrusion Detection

Detects relevant activity within configured surveillance areas.

Region Entrance and Exiting Detection

Supports event detection when objects enter or leave selected monitoring regions.

Unattended Baggage Detection

Supports monitoring for objects left unattended within configured areas.

Object Removal Detection

Supports monitoring for the removal of selected objects from a scene.

H.265+ Video Compression

Helps reduce bandwidth and storage requirements when recording with compatible systems.

3D Digital Noise Reduction

Helps reduce visible image noise in low-light and challenging surveillance scenes.

Digital Defog

Provides image processing adjustments for suitable hazy or low-contrast conditions.

24 Privacy Masks

Allows installers to configure privacy masking for areas that should not be monitored.

PoE+ Power

Supports IEEE 802.3at PoE+ Class 4, allowing compatible network equipment to supply power and data through an Ethernet connection.

Outdoor Weather Protection

The camera is designed for outdoor security installations. Confirm the supplied hardware revision to determine whether IP66 or IP67 protection applies.

Ideal Applications

• Industrial Facilities: Large-area security monitoring.
• Warehouses: External yards and loading areas.
• Commercial Buildings: Perimeter surveillance.
• Car Parks: Motorised PTZ monitoring and optical zoom.
• Storage Yards: Long-range surveillance.
• Construction Sites: Monitoring of large outdoor areas.
• Large Residential Properties: Driveways and property boundaries.
• Business Premises: Entrances and external security.
• Distribution Centres: Vehicle access and loading areas.
• Professional CCTV Systems: PTZ camera expansion and upgrades.

Compatibility & Installation

The HiLook PTZ-N4215I-DE is designed for professional installation with compatible HiLook, Hikvision and supported third-party network surveillance equipment.

Confirm that the selected NVR supports 2MP Full HD recording, PTZ control, compatible video compression and the required intelligent security events.

The camera supports IEEE 802.3at PoE+ Class 4 or 12V DC power.

Important: Standard IEEE 802.3af PoE should not be assumed sufficient. The camera has a maximum power consumption of approximately 18W.

The integrated infrared illuminator provides a manufacturer-specified range of up to 100 metres. Actual night-vision performance depends on installation conditions, target reflectivity and environmental lighting.

Installers can configure up to 300 presets, eight patrol routes and four pattern scans for automated surveillance.

This model should not be advertised as having AcuSense human and vehicle classification, a built-in microphone, a built-in speaker or integrated strobe-light active deterrence without confirmation from the exact supplied revision.

Confirm the camera's hardware revision and applicable IP rating before installation.

Use appropriate mounting accessories suitable for the camera and installation surface.

Professional installation is recommended to ensure correct camera positioning, PTZ operation, network security, recording and intelligent event configuration.

Package Contents

• 1 × HiLook PTZ-N4215I-DE 2MP 15X Optical Zoom DarkFighter IR PTZ Network Speed Dome Camera.

Please note: NVR, hard drive, network cabling, external power supply, optional mounting brackets and installation services are not included unless specifically stated. Confirm supplied accessories and hardware revision before ordering.

Frequently Asked Questions

What resolution does the HiLook PTZ-N4215I-DE provide?

It captures video at up to 1920 × 1080 resolution, providing 2MP Full HD surveillance.

Does this camera have 15X optical zoom?

Yes. It features a 5–75mm motorised lens with 15X optical zoom.

Does it support digital zoom?

Yes. It supports 16X digital zoom.

What is DarkFighter technology?

DarkFighter is Hikvision's low-light imaging technology, designed to improve surveillance performance in challenging lighting conditions.

How far can the camera see at night?

Its integrated infrared illumination has a manufacturer-specified range of up to 100 metres.

Can the camera rotate 360 degrees?

Yes. It supports 360-degree endless horizontal pan movement.

What is the tilt range?

The camera supports −15° to +90° tilt with auto-flip.

How many preset positions can be configured?

Up to 300 programmable presets are supported.

Does the camera support patrol routes?

Yes. It supports eight patrol routes.

Does the camera support pattern scans?

Yes. Four pattern scans are supported.

Does this camera support line crossing detection?

Yes. Line crossing detection is supported.

Does it support intrusion detection?

Yes. Intrusion detection is supported.

Does this camera support human and vehicle classification?

AcuSense-style human and vehicle classification is not established for this model and should not be assumed.

Does the camera support H.265+?

Yes. H.265+ video compression is supported.

Does the camera have a built-in microphone?

A built-in microphone is not established for this model.

Does the camera have active deterrence?

Integrated flashing warning lights and audible active deterrence are not specified for this model.

Does the camera support PoE?

Yes. It supports IEEE 802.3at PoE+ Class 4.

What is the maximum power consumption?

Approximately 18W.

Is the camera suitable for outdoor installation?

Yes. It is designed for outdoor surveillance. Confirm the supplied hardware revision to establish the applicable IP66 or IP67 rating.

Can this camera work with HiLook or Hikvision NVRs?

Yes, with compatible recorders supporting the required video and PTZ functions.

Does the camera have a three-year warranty?

Civic Electronic supplies eligible HiLook cameras with a three-year Australian warranty, subject to applicable warranty terms.
