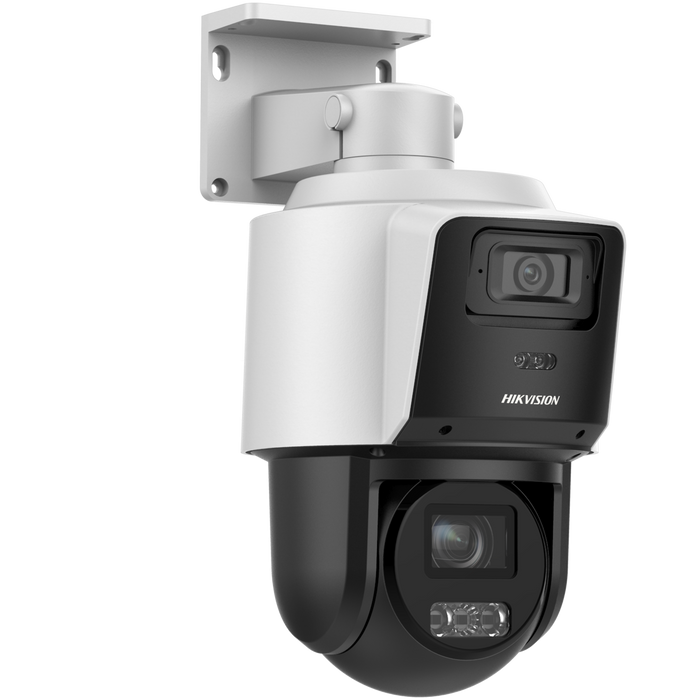

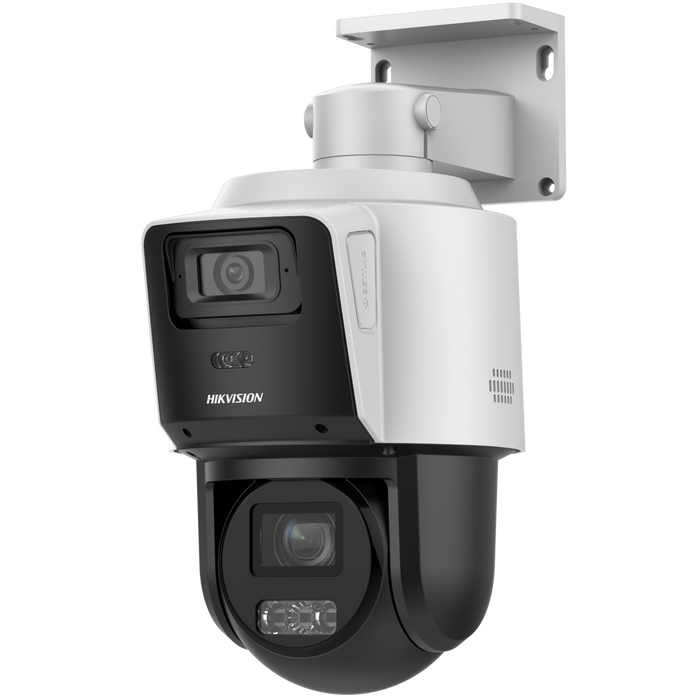

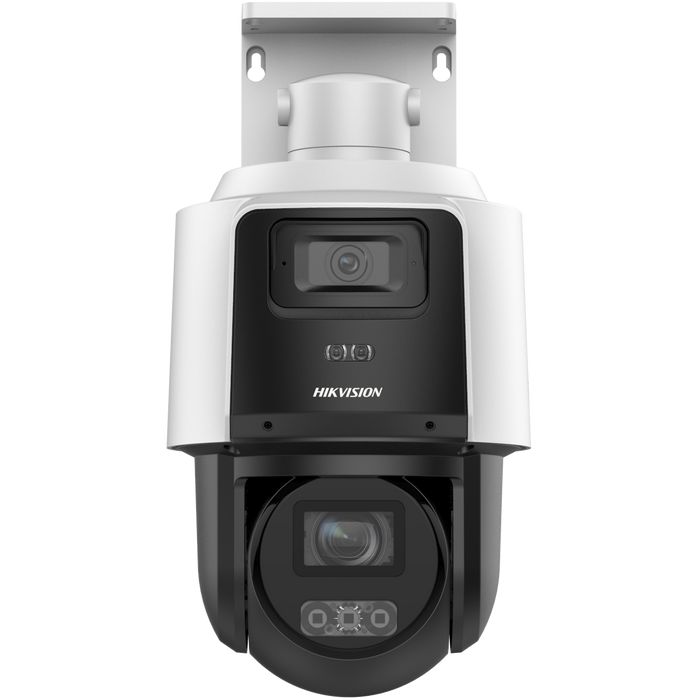

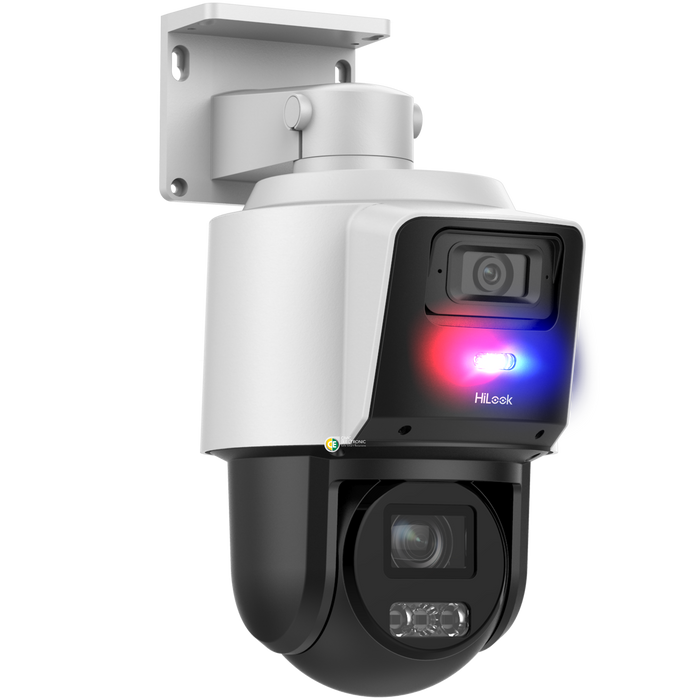

HiLook PTZ-ND4404-SL 4MP+4MP Dual-Lens 4X Optical Zoom PoE Camera with Smart Hybrid Light

HiLook PTZ-ND4404/SL 4MP+4MP Dual-Lens 4X Optical Zoom PoE+ PTZ Network Camera

The HiLook PTZ-ND4404/SL is a professional 4MP+4MP dual-lens PTZ network camera manufactured by Hikvision, combining wide-area surveillance, motorised pan and tilt, 4X optical zoom, intelligent human and vehicle detection, and active deterrence.

Designed for professional residential, commercial and industrial CCTV installations, this advanced camera combines a fixed 4MP overview camera with a separate 4MP motorised PTZ camera.

This dual-lens arrangement allows installers to maintain a wide overview of the monitored area while using the PTZ camera to inspect selected locations in greater detail.

Both camera channels provide up to 2560 × 1440 resolution, delivering detailed 4MP surveillance imaging.

Unlike conventional single-lens PTZ cameras, the fixed overview channel helps maintain visibility of the wider scene while the motorised PTZ channel changes direction or zoom level.

The fixed overview camera uses a 2.8mm lens with a horizontal field of view of approximately 114.9 degrees.

The PTZ camera incorporates a 2.8–12mm motorised zoom lens, providing 4X optical zoom for closer inspection of selected areas.

Additional 16X digital zoom is available through compatible viewing applications.

The camera features Powered-by-DarkFighter technology, helping deliver useful images in challenging low-light conditions.

Its dual 1/2.8-inch Progressive Scan CMOS sensors provide detailed imaging across both surveillance channels.

The PTZ channel includes infrared illumination with a manufacturer-specified range of up to 40 metres.

The fixed overview channel provides infrared and white-light illumination up to 30 metres, offering flexible monitoring in low-light environments.

The camera supports 120dB Wide Dynamic Range, helping preserve image detail in scenes containing strong sunlight, shadows and backlighting.

Additional image enhancement functions include Backlight Compensation, Highlight Compensation, 3D Digital Noise Reduction and digital defog.

Intelligent human and vehicle detection helps distinguish relevant security targets from other movement, improving the usefulness of surveillance notifications.

Supported security events include motion detection, line crossing detection and intrusion detection, subject to the selected operating mode and configuration.

The HiLook PTZ-ND4404/SL also incorporates active deterrence with red-and-blue flashing warning lights and an audible alarm.

These warning functions can be configured for supported security events to help discourage unwanted activity around protected areas.

A built-in microphone and speaker provide audio monitoring and audible warning functionality.

The camera supports H.265 video compression, helping reduce bandwidth and storage requirements compared with less efficient recording formats.

A built-in memory card slot supports compatible microSD cards up to 512GB for local recording.

The camera can also connect to compatible network video recorders for centralised surveillance recording and monitoring.

Power is supplied through 12V DC or compatible IEEE 802.3at PoE+, with maximum power consumption of approximately 13.5W.

The weather-resistant housing features IP66 protection, making it suitable for outdoor security installations when correctly mounted and weather-sealed.

With its combination of dual 4MP imaging, 4X optical zoom, motorised PTZ movement, DarkFighter low-light technology, intelligent detection and red-and-blue active deterrence, the HiLook PTZ-ND4404/SL is an excellent choice for professional surveillance applications requiring both wide-area monitoring and adjustable detail.

Key Features

• Dual-Lens Camera: Fixed overview camera plus motorised PTZ camera.
• 4MP + 4MP Resolution: Two independent high-resolution imaging channels.
• 2560 × 1440: Maximum resolution per channel.
• 4X Optical Zoom: Adjustable PTZ lens for closer surveillance.
• 16X Digital Zoom: Additional digital image magnification.
• 2.8mm Fixed Overview Lens: Wide-area monitoring.
• 2.8–12mm PTZ Lens: Motorised optical zoom.
• Powered by DarkFighter: Enhanced low-light performance.
• Dual CMOS Sensors: Two 1/2.8-inch image sensors.
• Motorised Pan and Tilt: Remote camera positioning.
• 40m PTZ Infrared: Night monitoring through the PTZ channel.
• 30m Overview Infrared: Night surveillance through the fixed channel.
• 30m Overview White Light: Supplementary visible illumination.
• 120dB WDR: Improved imaging in difficult lighting.
• Human Detection: Intelligent person classification.
• Vehicle Detection: Intelligent vehicle classification.
• Motion Detection: Configurable surveillance events.
• Line Crossing: Intelligent boundary monitoring.
• Intrusion Detection: Protected-area monitoring.
• Active Deterrence: Red-and-blue flashing warning lights.
• Audible Alarm: Built-in speaker for warning sounds.
• Built-In Microphone: Integrated audio monitoring.
• H.265 Compression: Efficient video recording.
• 3D DNR: Digital noise reduction.
• BLC and HLC: Additional image enhancement.
• Digital Defog: Improved image visibility in suitable conditions.
• Regional Exposure: Configurable exposure adjustment.
• Regional Focus: Configurable focus optimisation.
• microSD Storage: Supports compatible cards up to 512GB.
• PoE+: Power and network data through compatible Ethernet equipment.
• 12V DC: Alternative power connection.
• IP66: Outdoor weather protection.
• Professional PTZ Design: Suitable for wide-area surveillance.
• 3-Year Warranty: Subject to applicable Australian warranty terms.

Detailed Features & Benefits

Dual-Lens 4MP+4MP Surveillance

The camera combines two independent 4MP imaging channels, providing wide-area monitoring and adjustable PTZ surveillance from a single camera assembly.

Fixed Overview and PTZ Coverage

The fixed overview channel maintains a wide view of the monitored area while the PTZ camera can be directed towards selected locations.

4X Optical Zoom

The PTZ camera incorporates a 2.8–12mm motorised zoom lens, allowing installers and operators to obtain a closer view of distant subjects.

16X Digital Zoom

Additional digital zoom is available through compatible viewing interfaces. Digital zoom magnifies the image electronically and does not add optical detail.

Motorised Pan and Tilt

Remote pan and tilt controls allow the PTZ channel to monitor different directions without manually repositioning the camera housing.

Powered-by-DarkFighter Technology

DarkFighter low-light imaging technology helps improve image quality when available lighting is limited.

Dual 1/2.8-Inch CMOS Sensors

Separate progressive scan CMOS sensors support the fixed overview and motorised PTZ channels.

Wide-Angle Overview Camera

The fixed 2.8mm overview lens provides approximately 114.9 degrees of horizontal coverage, helping maintain awareness of the wider monitored area.

40-Metre PTZ Infrared Night Vision

The PTZ channel provides infrared illumination up to 40 metres for night-time surveillance.

30-Metre Overview Illumination

The fixed overview camera supports infrared and white-light illumination up to 30 metres.

120dB Wide Dynamic Range

WDR helps maintain useful image detail in scenes containing bright sunlight and darker areas.

Intelligent Human Detection

Human classification helps identify relevant activity and reduce unwanted alerts caused by other movement.

Intelligent Vehicle Detection

Vehicle classification supports surveillance of driveways, car parks, loading areas and access roads.

Line Crossing Detection

Configurable line crossing events support virtual boundary monitoring where enabled in the camera configuration.

Intrusion Detection

Intrusion detection helps identify activity within selected surveillance areas. Supported event modes and combinations should be confirmed during configuration.

Red-and-Blue Strobe Active Deterrence

Integrated red-and-blue flashing lights provide a visible warning when supported security events are triggered.

Audible Alarm Warning

The built-in speaker supports audible warning functions to help discourage unwanted activity.

Built-In Audio Monitoring

The integrated microphone supports compatible audio monitoring and recording.

H.265 Video Compression

H.265 compression helps reduce bandwidth and storage requirements when used with compatible recording systems.

3D Digital Noise Reduction

3D DNR helps reduce visible image noise in challenging lighting conditions.

Backlight and Highlight Compensation

BLC and HLC provide additional adjustment options for difficult lighting environments.

Digital Defog

Digital defog processing helps improve image visibility in suitable hazy or low-contrast conditions.

Local microSD Recording

The camera supports compatible microSD cards up to 512GB for local recording.

PoE+ Power

Compatible IEEE 802.3at PoE+ equipment can provide power and network connectivity through an Ethernet connection.

IP66 Outdoor Protection

The IP66-rated housing provides protection against dust and powerful water jets when correctly installed.

Ideal Applications

• Residential Properties: Large yards, driveways and entrances.
• Commercial Premises: Wide-area security monitoring.
• Warehouses: Loading areas and access points.
• Industrial Facilities: Perimeter and yard surveillance.
• Car Parks: Overview monitoring with adjustable PTZ inspection.
• Construction Sites: Monitoring of large outdoor areas.
• Business Entrances: Intelligent human and vehicle detection.
• Storage Yards: Wide coverage and optical zoom.
• Large Outdoor Areas: Flexible PTZ surveillance.
• Security System Upgrades: Adding dual-view monitoring and active deterrence.

Compatibility & Installation

The HiLook PTZ-ND4404/SL is designed for professional installation with compatible HiLook and Hikvision surveillance equipment.

Important: The camera provides two separate 4MP imaging channels. Confirm that the selected NVR supports both channels and has sufficient recording capacity.

The fixed overview camera provides wide-area coverage while the motorised PTZ camera can be remotely repositioned and optically zoomed.

Confirm compatibility with the selected NVR for PTZ control, smart events, recording and audio functions.

The camera supports 12V DC and PoE+ power, with maximum consumption of approximately 13.5W.

Use a compatible PoE+ switch or NVR port with sufficient available power.

The PTZ infrared range is up to 40 metres, while the fixed overview channel supports infrared and white-light illumination up to 30 metres.

Configure the red-and-blue flashing lights and audible alarm appropriately for the installation environment.

Audio recording and active warning functions must comply with applicable Australian surveillance, privacy and local requirements.

The camera features IP66 weather protection, but external cable connections and mounting arrangements must also be correctly weather-sealed.

Professional installation is recommended to ensure correct positioning, network security, PTZ configuration, recording and intelligent event performance.

Package Contents

• 1 × HiLook PTZ-ND4404/SL Dual-Lens 4MP+4MP 4X Optical Zoom PoE+ PTZ Network Camera.

Please note: NVR, hard drive, microSD card, network cabling, external power supply, optional mounting accessories and installation services are not included unless specifically stated. Package accessories may vary by the supplied Australian model.

Frequently Asked Questions

What resolution does the HiLook PTZ-ND4404/SL provide?

It provides two separate 4MP imaging channels, each supporting up to 2560 × 1440 resolution.

Is this an 8MP camera?

It is a dual-channel 4MP+4MP camera. The two channels do not combine into a single 8MP image.

What is the advantage of the dual-lens design?

The fixed overview channel maintains wide-area visibility while the PTZ channel provides adjustable viewing direction and optical zoom.

Does the camera have optical zoom?

Yes. The PTZ channel provides 4X optical zoom.

Does it support digital zoom?

Yes. The camera supports up to 16X digital zoom.

Can the camera pan and tilt?

Yes. The PTZ channel supports motorised pan and tilt movement.

Does this camera support DarkFighter technology?

Yes. HiLook specifies Powered-by-DarkFighter low-light technology.

What is the infrared range?

The PTZ channel supports infrared illumination up to 40 metres. The fixed overview channel supports infrared illumination up to 30 metres.

Does the camera have white-light illumination?

Yes. The fixed overview channel supports white-light illumination up to 30 metres.

Does it support human detection?

Yes. Intelligent human detection is supported.

Does it support vehicle detection?

Yes. Intelligent vehicle detection is supported.

Does the camera have a flashing warning light?

Yes. It includes red-and-blue flashing lights for active deterrence.

Does the camera have an audible alarm?

Yes. It includes a built-in speaker for compatible audible warning functions.

Does the camera have a built-in microphone?

Yes. It includes an integrated microphone.

Does the camera support line crossing detection?

Yes. Line crossing detection is supported, subject to the selected event configuration.

Does it support intrusion detection?

Yes. Intrusion detection is supported, subject to the selected event configuration.

Does the camera support H.265 compression?

Yes. H.265 video compression is supported.

Can it record to a microSD card?

Yes. Compatible microSD cards up to 512GB are supported.

Does this camera support PoE?

Yes. It supports compatible PoE+ power equipment.

What is the maximum power consumption?

Maximum power consumption is approximately 13.5W.

Is the camera suitable for outdoor installation?

Yes. It has an IP66-rated housing, subject to correct installation.

Can it work with HiLook or Hikvision NVRs?

Yes, with compatible recorders. Confirm support for both 4MP channels, PTZ control and the required intelligent events.

Does the camera have a three-year warranty?

Civic Electronic supplies eligible HiLook cameras with a three-year Australian warranty, subject to applicable warranty terms.
