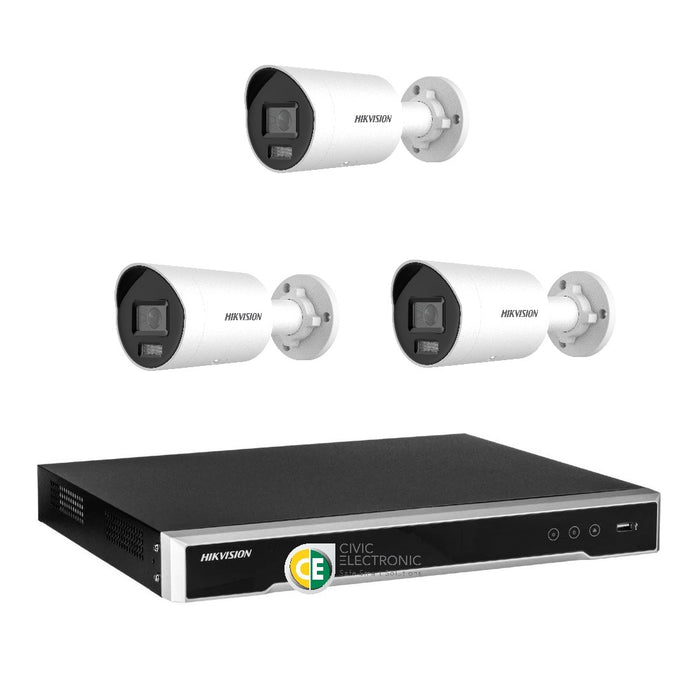

Hikvision 8MP DarkFighter AcuSense CCTV Kit ā 3 Cameras + 4CH PoE NVR
Protect your home or business with this professional Hikvision 8MP DarkFighter CCTV Kit, featuring 3 Ć Hikvision DS-2CD2086G2H-IU 8MP fixed mini bullet IP cameras and 1 Ć Hikvision DS-7604NI-M1/4P 4-channel PoE network video recorder.
Designed for professional residential and commercial security installations, this CCTV package combines 4K Ultra HD surveillance, Hikvision Powered-by-DarkFighter low-light technology, AcuSense human and vehicle classification, intelligent motion detection and built-in microphones.
Each Hikvision DS-2CD2086G2H-IU camera captures up to 3840 Ć 2160 resolution, delivering detailed footage for monitoring entrances, driveways, garages, retail premises and commercial properties.
The cameras feature Hikvision Powered-by-DarkFighter technology, improving image performance in low-light conditions. Integrated infrared illumination supports night surveillance when ambient lighting is insufficient.
Hikvision AcuSense deep-learning technology identifies human and vehicle targets, helping reduce unnecessary motion alerts caused by unrelated movement.
Each camera also includes a built-in microphone, supporting audio capture when recording is appropriately configured and permitted by applicable laws.
The included Hikvision DS-7604NI-M1/4P NVR provides four IP camera channels and four integrated PoE ports, allowing compatible cameras to receive power and network connectivity through suitable Ethernet cabling.
With three cameras supplied, the system leaves one spare NVR channel and one unused PoE port, allowing future expansion to four compatible IP cameras within the recorder's bandwidth and PoE power limits.
The NVR supports H.265+ video compression, up to 8K HDMI output, 40 Mbps incoming bandwidth, one SATA HDD interface and Hik-Connect remote viewing.
All three cameras are supplied in white only and feature IP67-rated housings suitable for properly installed outdoor surveillance applications.
This CCTV kit is backed by Civic Electronic's 3-year Australian warranty on cameras and recorder.
Supplied by Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.
Important: Surveillance HDDs, network cables, monitors and installation services are not included. Confirm the supplied camera lens option before installation.
3-Year Australian Warranty ā Cameras & NVR
What's Included in This CCTV Kit?
3 Ć Hikvision DS-2CD2086G2H-IU 8MP DarkFighter Mini Bullet Cameras
- 8MP / 4K Ultra HD resolution
- Powered-by-DarkFighter low-light technology
- AcuSense human and vehicle classification
- Built-in microphone
- 120dB wide dynamic range
- Infrared night vision
- H.265+ video compression
- IP67 weather-resistant housing
- White camera housing only
View Hikvision DS-2CD2086G2H-IU Camera
1 Ć Hikvision DS-7604NI-M1/4P 4CH 4 PoE NVR
- 4 IP camera channels
- 4 integrated PoE network ports
- 40 Mbps incoming bandwidth
- Up to 8K HDMI output
- H.265+ video compression
- 1 SATA HDD interface
- Up to 16TB supported HDD capacity
- 4-channel synchronous playback
- Hik-Connect remote access support
- 1 spare camera channel for future expansion
View Hikvision DS-7604NI-M1/4P NVR
Package Exclusions: Surveillance HDDs, network cables, monitor, router and professional installation are not included.
Key Features
- 3 Ć 8MP Cameras: Professional 4K Ultra HD surveillance coverage.
- 4-Channel NVR: Supports up to four compatible IP cameras.
- 4 Built-In PoE Ports: Simplified camera power and network connectivity.
- 1 Spare Camera Channel: Expand your CCTV system without replacing the recorder.
- 1 Spare PoE Port: Available for a compatible additional camera.
- DarkFighter Technology: Enhanced low-light imaging performance.
- AcuSense AI: Intelligent human and vehicle classification.
- Built-In Microphones: Audio capture capability on all three cameras.
- 120dB WDR: Improved visibility in challenging lighting conditions.
- Infrared Night Vision: Surveillance in dark environments.
- H.265+ Compression: Efficient recording and storage utilisation.
- IP67 Cameras: Suitable for properly installed outdoor applications.
- 40 Mbps Incoming Bandwidth: Supports compatible multi-camera recording configurations.
- Up to 8K HDMI Output: High-resolution local NVR display capability.
- One SATA HDD Interface: Flexible surveillance storage options.
- Hik-Connect: Remote viewing and playback support.
- 3-Year Australian Warranty: Cameras and NVR covered under Civic Electronic warranty terms.
Technical Specifications
Detailed Features & Benefits
Professional 8MP / 4K Ultra HD Surveillance
Three Hikvision DS-2CD2086G2H-IU cameras deliver detailed 3840 Ć 2160 surveillance footage, supporting security monitoring across multiple areas of a property.
DarkFighter Low-Light Imaging
Hikvision Powered-by-DarkFighter technology improves image capture in low-light environments, supporting effective surveillance as ambient lighting conditions change.
Infrared Night Vision
Integrated infrared illumination supports surveillance in dark conditions. Cameras may switch to monochrome infrared imaging when operating in IR mode.
AcuSense Human and Vehicle Classification
Hikvision AcuSense deep-learning technology distinguishes human and vehicle targets from unrelated movement, helping reduce unwanted motion alerts.
Built-In Microphone on Every Camera
Each camera includes a built-in microphone for audio capture when recording is enabled and configured appropriately.
120dB Wide Dynamic Range
Wide dynamic range helps maintain visibility in scenes containing both bright and dark areas, including entrances, driveways and shopfronts.
Four-Channel NVR with Four PoE Ports
The DS-7604NI-M1/4P provides four IP camera channels and four integrated PoE ports, supporting compatible camera power and network connectivity.
One Spare Camera Channel for Expansion
With three cameras supplied, the NVR retains one unused camera channel and one spare PoE port. One additional compatible camera can be connected later, subject to available PoE power and recorder bandwidth.
40 Mbps Incoming Bandwidth
The NVR supports 40 Mbps incoming bandwidth. Camera bitrates and recording settings should be configured within this limit to maintain reliable recording performance.
H.265+ Efficient Video Compression
Hikvision H.265+ compression helps reduce recording storage and bandwidth requirements compared with less efficient encoding methods, depending on scene content and recording configuration.
One SATA HDD Interface
The NVR supports one compatible surveillance HDD, with a manufacturer-specified maximum capacity of up to 16TB.
Up to 8K HDMI Output
The DS-7604NI-M1/4P supports up to 8K HDMI output for compatible displays. The supplied cameras capture 8MP / 4K video.
Hik-Connect Remote Viewing
Compatible Hik-Connect functionality allows authorised users to view live footage and playback remotely when the recorder is connected and configured correctly.
IP67 Weather-Resistant Cameras
The mini bullet cameras feature IP67-rated housings for suitable indoor and outdoor security installations.
3-Year Australian Warranty
The cameras and NVR are backed by Civic Electronic's three-year Australian warranty, subject to applicable warranty terms and Australian Consumer Law.
Ideal Applications
- Residential Homes: Driveways, entrances and garages.
- Townhouses: Three-camera surveillance with expansion capacity.
- Retail Stores: Entrances, sales areas and stockrooms.
- Commercial Offices: Building access points and shared spaces.
- Small Warehouses: Entry points and storage areas.
- Workshops: Equipment and property surveillance.
- Small Businesses: Professional three-camera IP CCTV systems.
- Expandable Installations: Add one compatible camera later.
Compatibility & Installation
This Hikvision DarkFighter CCTV Kit is designed for professional IP camera installation using the supplied DS-7604NI-M1/4P network video recorder.
Recommended Installation Procedure
- Confirm the supplied camera lens option.
- Plan all three camera locations and viewing angles.
- Check mounting surfaces and environmental conditions.
- Select a compatible surveillance HDD.
- Install the HDD in the NVR before commissioning.
- Run suitable Ethernet cables to each camera.
- Connect the three cameras to the NVR's PoE ports.
- Confirm total PoE demand is within the recorder's power budget.
- Connect the NVR to a compatible display.
- Connect the recorder to the network where required.
- Activate and securely configure the cameras and NVR.
- Set camera recording bitrates within the 40 Mbps incoming bandwidth.
- Configure recording schedules and H.265+ compression.
- Configure AcuSense human and vehicle classification.
- Set supported event detection and notifications.
- Enable audio recording only where lawful.
- Configure Hik-Connect for authorised remote viewing.
- Test live video, recording and playback.
- Verify low-light and infrared image performance.
- Check all camera streams and recording stability.
- Confirm bandwidth before adding another camera.
- Complete professional commissioning and handover.
Expansion Notice: One NVR camera channel and one PoE port remain available for a compatible additional camera. The recorder supports a maximum of four IP cameras.
Bandwidth Notice: The NVR supports 40 Mbps incoming bandwidth. Camera bitrates must remain within this limit.
Storage Notice: No HDD is included. Recording retention depends on installed HDD capacity, bitrate, compression, recording schedule and scene activity.
Lens Notice: The DS-2CD2086G2H-IU is available in different fixed lens options. Confirm the supplied variant before installation.
Audio Notice: Audio recording must comply with applicable privacy and surveillance laws.
Professional Installation Notice: Installation by a suitably licensed security technician is recommended.
Package Contents
- 3 Ć Hikvision DS-2CD2086G2H-IU 8MP DarkFighter Fixed Mini Bullet Network Cameras ā White
- 1 Ć Hikvision DS-7604NI-M1/4P 4CH 4 PoE Network Video Recorder
Not Included: Surveillance HDD, network cables, monitor, router and installation services. Standard manufacturer accessories are subject to the supplied product packaging.
Frequently Asked Questions
How many cameras are included?
Three Hikvision DS-2CD2086G2H-IU 8MP fixed mini bullet cameras.
What NVR is included?
The Hikvision DS-7604NI-M1/4P four-channel, four PoE network video recorder.
How many cameras can the NVR support?
Up to four compatible IP cameras.
How many spare camera channels are available?
One.
How many spare PoE ports are available?
One unused PoE port remains when the three supplied cameras are connected.
Can I add another camera later?
Yes, subject to camera compatibility, available PoE power and NVR bandwidth.
Are the cameras 4K?
Yes. Each camera captures up to 3840 Ć 2160 resolution.
Do the cameras support DarkFighter technology?
Yes. They feature Hikvision Powered-by-DarkFighter low-light imaging.
Do the cameras support infrared night vision?
Yes.
Does the kit support AcuSense?
Yes. The cameras support human and vehicle classification.
Do the cameras have built-in microphones?
Yes. All three cameras include microphones.
Can the cameras record audio?
Yes, when configured correctly and used in accordance with applicable laws.
Are the cameras suitable for outdoor use?
Yes. They feature IP67-rated housings.
Are the cameras white or black?
This kit includes white cameras only.
Does the kit include a hard drive?
No. Surveillance HDDs are sold separately.
How many HDDs does the NVR support?
One compatible SATA HDD, up to 16TB according to the manufacturer's specifications.
Are network cables included?
No.
Does the NVR support H.265+?
Yes.
What is the NVR's incoming bandwidth?
40 Mbps.
Does the NVR support 8K HDMI output?
Yes. The supplied cameras capture 4K video.
What is the NVR's PoE power budget?
Up to 60W total.
Can I view the cameras remotely?
Yes, using compatible Hik-Connect functionality when configured correctly.
Does local recording require internet access?
No. Local recording can operate without internet access. Remote services require suitable network connectivity.
Does the kit require professional installation?
Professional installation is recommended for correct camera positioning, cabling, configuration and commissioning.
What warranty is included?
Civic Electronic provides a three-year Australian warranty on the cameras and NVR, subject to applicable warranty terms and Australian Consumer Law.
Where can I buy this Hikvision CCTV kit in Australia?
Civic Electronic supplies genuine Australian Hikvision CCTV systems with professional installer and trade support.
Why Buy from Civic Electronic?
Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.
- Genuine Australian Stock: Hikvision security equipment supplied through authorised Australian channels.
- 3-Year Australian Warranty: Cameras and NVR warranty support.
- Hikvision Training Centre: Professional product knowledge and installer training.
- Trade Pricing: Competitive pricing for eligible security installers.
- Technical Support: Assistance selecting compatible CCTV equipment.
- Australia-Wide Delivery: Shipping throughout Australia.
- Free Standard Shipping: Available on eligible orders of $300 or more.
- 2-Hour Click & Collect: Available from Rouse Hill, subject to stock confirmation.
For professional Hikvision CCTV equipment and installer support, contact Civic Electronic on 1300 024 842.
Showroom: Unit 16, 2 Money Close, Rouse Hill NSW 2155.
Official Hikvision Manufacturer Documentation
Review the official Hikvision specifications for the camera and recorder included in this kit.
Download Hikvision DS-2CD2086G2H-IU Camera Datasheet (PDF)
Download Hikvision DS-7604NI-M1/4P NVR Datasheet (PDF)
Important: This kit includes three 8MP cameras and one four-channel NVR with four PoE ports. One camera channel remains available for future expansion. The NVR supports one SATA HDD and has 40 Mbps incoming bandwidth. HDDs and network cables are excluded.
Genuine Product Assurance, We are officially an authorized reseller of Hikvision
Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.
Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.
1. Free and Express Shipping
- Free Standard ShippingĀ applies to all orders valued atĀ $300 or more.
- Express ShippingĀ is available for an additionalĀ $65 per order.
Please note thatĀ Express ShippingĀ is not available for all postcodes. Customers are advised to confirm eligibility through theĀ Australia Post CoverageĀ link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we areĀ unable to refund shipping costsĀ for postcodes not covered by the express delivery network:
2. Order Processing
- Orders placedĀ before 8:00 AM (Sydney time)Ā on a business day mayĀ packed and dispatched the same day base on stock availability.
- Orders are processedĀ Monday to Friday, excluding weekends and public holidays.
- Tracking information will be provided via email afterĀ 11:00 AMĀ on the day the order is shipped.
All orders are dispatched using the most efficient postage method available to ensure timely delivery.
3. Delivery Timeframes
- Express Shipping:Ā Next business day delivery within theĀ Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post AreasĀ (capital cities and major metropolitan areas, including Perth CBD only).
- Regional Areas Express/Priority Shipping:Ā Delivery may take betweenĀ 2 to 5 business days, depending on location and courier service coverage.
- Standard Shipping:Ā Please allow up toĀ 10 business daysĀ from dispatch.
If you have not received your order withinĀ 5 business daysĀ (express) orĀ 10 business daysĀ (standard) after receiving your shipment tracking details, please contact us with yourĀ full nameĀ andĀ order numberĀ so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check yourĀ email spam or junk folderĀ for any courier notification emails.
4. Delivery Requirements and Limitations
- All deliveriesĀ require a signature upon receipt.
- Parcels will not be left unattendedĀ or with a āsafe dropā unless specifically authorised in writing by the customer before dispatch.
- If no authorised person is available to sign for the parcel at the time of delivery, aĀ delivery cardĀ will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
- WeĀ do not deliver to PO Boxes. Orders must be addressed to a validĀ physical delivery addressĀ within Australia.
Delivery times areĀ estimates onlyĀ and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.
We areĀ not liable for delays, loss, or damageĀ that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.
If anĀ incorrect, incomplete, or undeliverable addressĀ (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.
5. Tracking Your Order
Once your order has been dispatched, you will receive an email containing aĀ tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.
To ensure secure delivery, aĀ signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, aĀ collection noticeĀ will be issued.
6. Additional Information
We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, weĀ cannot guarantee delivery timesĀ and areĀ unable to intervene in courier operationsĀ once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.
Price Beat Guarantee
At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.
How It Works
If you find a cheaper price, simply:
- Provide a link to the competitor's advertised product
- Confirm the seller is an authorised Australian reseller
- Submit your request before placing your order
Our team will verify the details and respond promptly.
Eligibility Requirements
To qualify for our Price Beat Guarantee, the following conditions must be met:
- The competitor must be an authorised Australian reseller
- The seller must operate as a legitimate Australian retail business
- The item must be identical (same brand, model number and specifications)
- The product must be brand new and currently in stock
- The price must be publicly advertised (not a private quote or member-only offer)
- The advertised price must include GST
- Shipping costs must be included in the total comparison
- The competitor must supply Australian warranty support
Exclusions
Our Price Beat Guarantee does not apply to:
- Dropshippers or intermediary sellers who do not physically stock the product
- Sellers operating without a verifiable Australian retail presence
- Businesses with no registered retail location or identifiable trading address
- Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
- Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
- Refurbished, used or open-box items
- Pricing errors or misprints
- Bundle deals, bonus offers or cashback promotions
- Trade, bulk or special contract pricing
Important Conditions
- Price Beat requests must be approved prior to purchase
- Approved offers are valid for 24 hours only
- Civic Electronic reserves the right to verify reseller authorisation status
- We reserve the right to decline requests that do not meet the above criteria
- This policy may be modified or withdrawn at any time without notice
Why Buy From Civic Electronic?
- 100% Genuine Products
- Authorised Australian Reseller
- Local Australian Warranty
- Real Stock, Not Dropshipped
- Expert Technical Support
- Fast & Secure Dispatch
Our Range of Accessories
4TB Surveillance Hard Drive for CCTV DVR/NVR ā WD Purple, Seagate SkyHawk or Toshiba
Western Digital4TB Surveillance Hard Drive for CCTV DVR/NVR ā WD Purple, Seagate SkyHawk or Toshiba Expand your CCTV security system's recording capacity wi...
View full details2TB Surveillance Hard Drive for CCTV DVR/NVR ā WD Purple, Seagate SkyHawk or Toshiba
Western Digital2TB Surveillance Hard Drive for CCTV DVR/NVR ā WD Purple, Seagate SkyHawk or Toshiba Expand your CCTV system's recording storage with a 2TB S...
View full detailsCAT6 Patch Lead Network Cable 20m
Cable AUCAT6 Patch Lead Network Cable Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmissio...
View full detailsCAT6 Patch Lead Network Cable 30m
Cable AUCAT6 Patch Lead Network Cable 30m Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmi...
View full detailsCAT6 Patch Lead Network Cable 15m
Cable AUCAT6 Patch Lead Network Cable 15m Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmi...
View full details
