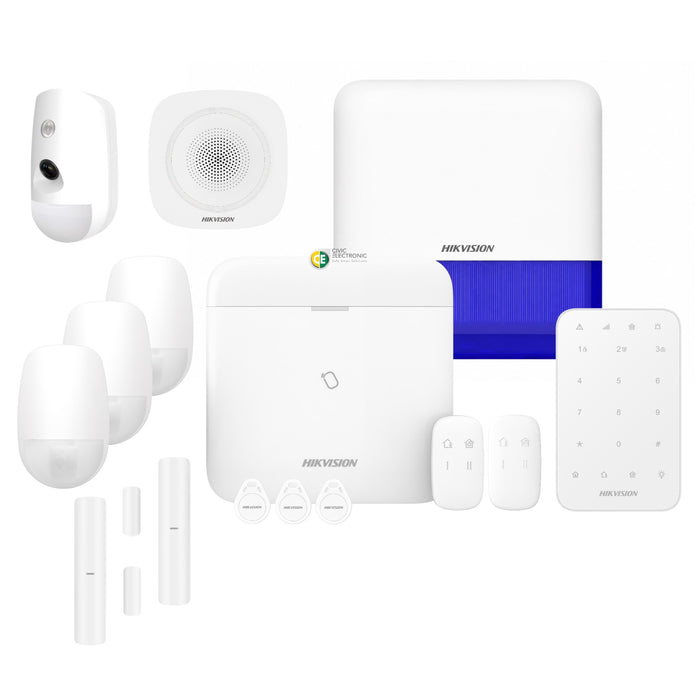

Hikvision AX PRO Wireless Alarm Kit – 3 PIRs, 1 PIRCAM, 2 Reed Contacts, 2 Remotes, Keypad & Dual Sirens
The Hikvision AX PRO Wireless Alarm Kit is a comprehensive professional wireless security solution for homes, offices, retail stores and commercial properties. Built around the powerful AX PRO 96-zone wireless alarm platform, this package combines 3 wireless PIR motion detectors, 1 PIRCAM detector with visual alarm verification, 2 wireless magnetic reed contacts, 2 remote keyfobs, a wireless keypad, indoor siren, outdoor sounder and 3 MIFARE RFID tags.
Using Hikvision's secure 433MHz Tri-X and Cam-X wireless technologies, the AX PRO provides reliable two-way wireless communication with AES-128 encryption. The control panel supports Ethernet, Wi-Fi and onboard 3G/4G communication, while Hik-Connect provides remote system operation and alarm notifications. The hub supports up to 96 wireless zones/outputs, including up to 48 PIRCAMs.
A major advantage of this kit is the included wireless PIRCAM detector, which combines PIR motion detection with image capture for visual alarm verification. When an alarm event occurs, the PIRCAM can capture images to help users verify what triggered the alarm rather than relying solely on a standard motion alert.
Kit Includes
Key Features
- Complete Hikvision AX PRO Wireless Alarm System
- 3 × Wireless PIR Motion Detectors
- 1 × Wireless PIRCAM for Visual Alarm Verification
- 2 × Wireless Magnetic Reed Contacts
- 2 × Wireless Keyfob Remotes
- Wireless Keypad
- Indoor Wireless Siren
- Outdoor Wireless Sounder
- 3 × MIFARE RFID Tags
- 433MHz Tri-X / Cam-X Wireless Technology
- Secure Two-Way Wireless Communication
- AES-128 Encryption
- Up to 96 Wireless Zones / Outputs
- Supports Up to 48 PIRCAMs
- Built-in 3G / 4G Mobile Communication
- Dual SIM Support
- Built-in Wi-Fi
- Ethernet Connectivity
- Hik-Connect Mobile App
- Remote Arm & Disarm
- Alarm Push Notifications
- Visual Alarm Verification
- Multiple Areas / Partition Support
- Long-Range Wireless Communication
- Backup Battery
- Expandable AX PRO Platform
- Professional Alarm Monitoring Support
96-Zone AX PRO Alarm Hub
At the heart of the system is the DS-PWA96-M-WB AX PRO Wireless Control Panel, supporting up to 96 wireless zones or outputs, including up to 48 PIRCAM detectors. It also supports up to 48 wireless keyfobs, 4 repeaters, 6 sounders and 8 tag readers/keypads.
With Ethernet, Wi-Fi and 3G/4G connectivity, the hub provides multiple communication options. Hik-Connect allows authorised users to operate the system remotely, while alarm events can be delivered through app messages or phone calls.
The AX PRO platform can be expanded with additional motion detectors, magnetic contacts, PIRCAMs, smoke detectors, sirens, keypads, repeaters and other compatible AX PRO wireless devices.
3 × Wireless PIR Motion Detectors
The kit includes three DS-PDP15P-EG2-WB wireless PIR motion detectors, providing reliable intrusion detection across multiple areas of the property.
Each detector provides up to a 15m detection range, 85.9° detection angle and pet immunity up to 30kg. They communicate using 433MHz Tri-X two-way wireless technology with AES-128 encryption.
They are ideal for protecting:
- Entrances
- Hallways
- Living Areas
- Offices
- Retail Areas
- Showrooms
- Storage Areas
- Garages
1 × Wireless PIRCAM with Visual Verification
The included DS-PDPC12P-EG2-WB Wireless PIRCAM Detector adds an important visual verification capability to the alarm system.
Unlike a conventional PIR detector, the PIRCAM combines passive infrared motion detection with image capture. It provides a 12m detection range, 85.9° detection angle, infrared fill light and JPEG image capture at resolutions up to 640 × 480.
When a relevant alarm event occurs, visual information can help determine whether the activation was caused by an actual intrusion or another event. The AX PRO hub supports alarm video clips through the app and email.
This makes the PIRCAM particularly useful for important areas such as:
- Main Entrances
- Living Rooms
- Offices
- Retail Areas
- Warehouses
- High-Value Storage Areas
- Reception Areas
2 × Wireless Magnetic Reed Contacts
Two DS-PDMC-EG2-WB wireless magnetic reed contacts provide perimeter protection for doors and windows.
The contacts detect when a protected opening is accessed, allowing the alarm system to identify potential intrusion at the property's perimeter before an intruder reaches areas protected by internal PIR detectors.
Ideal for:
- Front & Rear Doors
- Garage Entry Doors
- Shop Entrances
- Office Doors
- Windows
- Storage Areas
Combining PIR motion detection, PIRCAM visual verification and magnetic door/window protection provides multiple layers of security throughout the property.
2 × Wireless Remote Keyfobs
Two DS-PKF1-WB wireless keyfob remotes provide convenient portable operation of the alarm system.
They allow authorised users to quickly operate common alarm functions without needing to use the keypad or mobile app, making them convenient for family members, employees and other regular users.

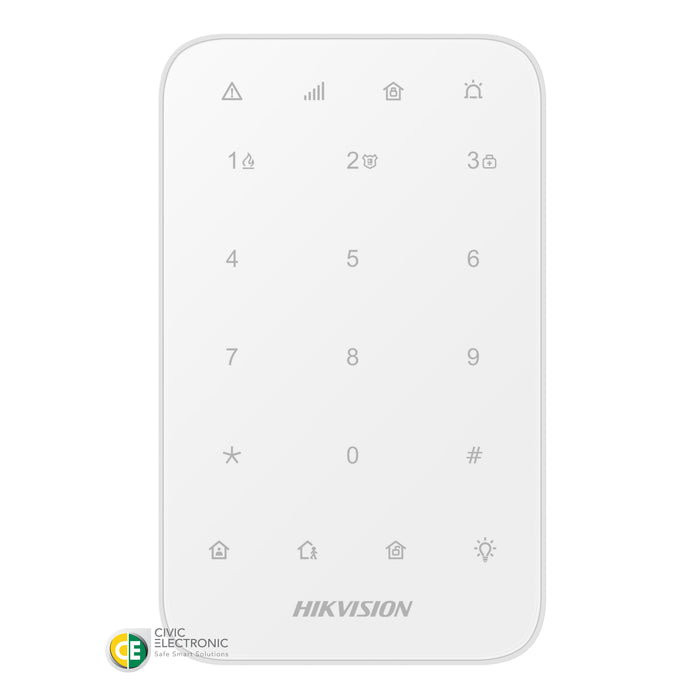

Wireless Keypad
The included DS-PK1-E-WB wireless keypad provides convenient local operation of the AX PRO system.
Combined with the included 3 MIFARE RFID tags, it gives users an easy everyday method of operating the alarm without relying solely on the Hik-Connect app.

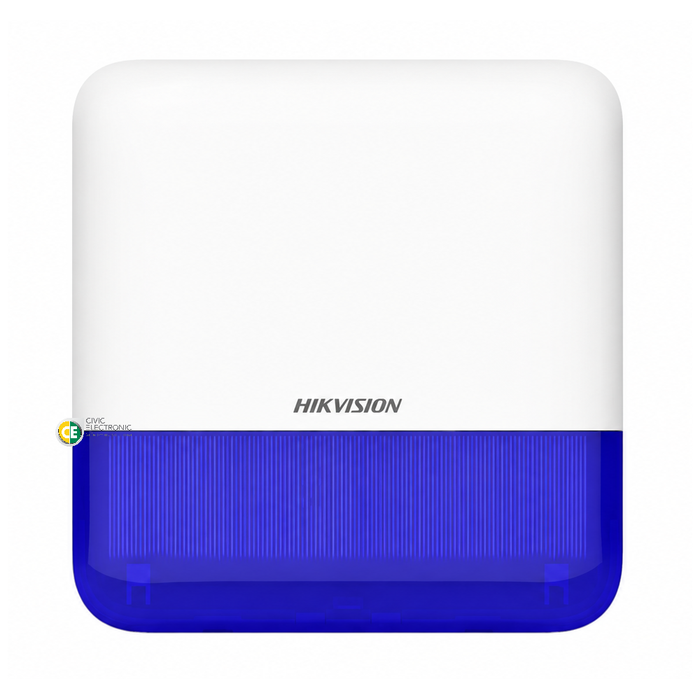

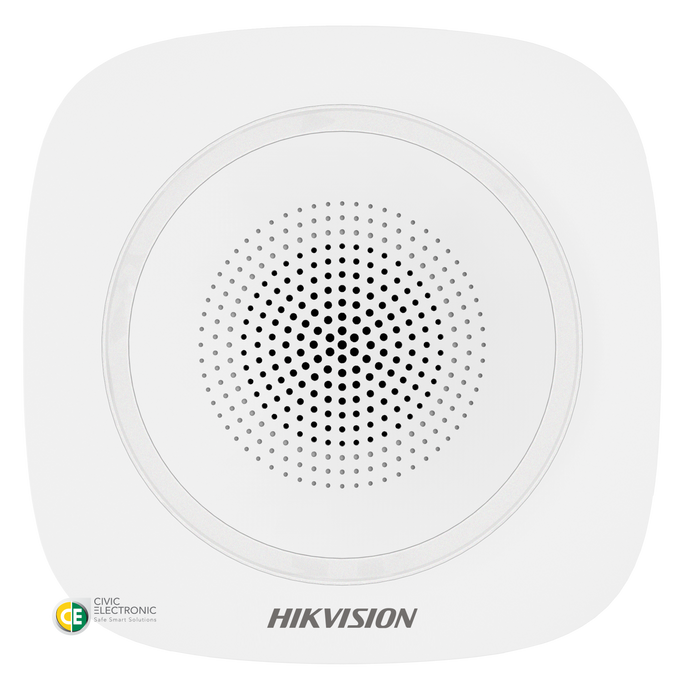

Indoor & Outdoor Sirens
The kit includes both an indoor wireless siren and an outdoor wireless sounder, providing alarm notification inside and outside the protected property.
The indoor siren provides immediate audible warning to occupants, while the outdoor sounder provides an external alarm indication and visible security presence.
Hik-Connect Remote Access
Through the Hik-Connect App, authorised users can remotely:
- Arm the Alarm
- Disarm the Alarm
- Check System Status
- Receive Alarm Notifications
- Review Alarm Events
- Access Supported Visual Verification
- Manage Compatible AX PRO Devices
Expandable AX PRO Platform
Additional compatible devices can be added as security requirements grow, including:
- Wireless PIR Detectors
- PIRCAM Detectors
- Door & Window Contacts
- Outdoor Motion Detectors
- Glass Break Detectors
- Smoke Detectors
- Water Leak Detectors
- Wireless Sirens
- Keypads
- Keyfobs
- Wireless Repeaters
Ideal For
- Homes
- Townhouses
- Apartments
- Offices
- Retail Stores
- Showrooms
- Medical Centres
- Warehouses
- Small Businesses
- Commercial Properties
Benefits
- Complete professional wireless alarm package
- Three PIR detectors for multi-area motion protection
- PIRCAM provides visual verification of alarm events
- Two magnetic reed contacts protect doors or windows
- Two remote keyfobs for convenient everyday operation
- Indoor and outdoor alarm sirens included
- Multiple control options via keypad, remote, RFID and smartphone
- 4G, Wi-Fi and Ethernet connectivity
- Hik-Connect remote monitoring and alarm notifications
- Secure encrypted two-way wireless communication
- Expandable up to 96 wireless zones / outputs
- Supports up to 48 PIRCAM detectors
- Minimal cabling compared with traditional wired alarm systems
- Suitable for residential and commercial security installations
The Hikvision AX PRO Wireless Alarm Kit – 3 PIRs, 1 PIRCAM, 2 Reed Contacts, 2 Remotes, Keypad & Dual Sirens provides multiple layers of security by combining motion detection, visual alarm verification, door/window perimeter protection and indoor/outdoor alarm notification. The expandable AX PRO platform, 4G connectivity and Hik-Connect integration make it an excellent solution for modern residential and commercial security systems.
