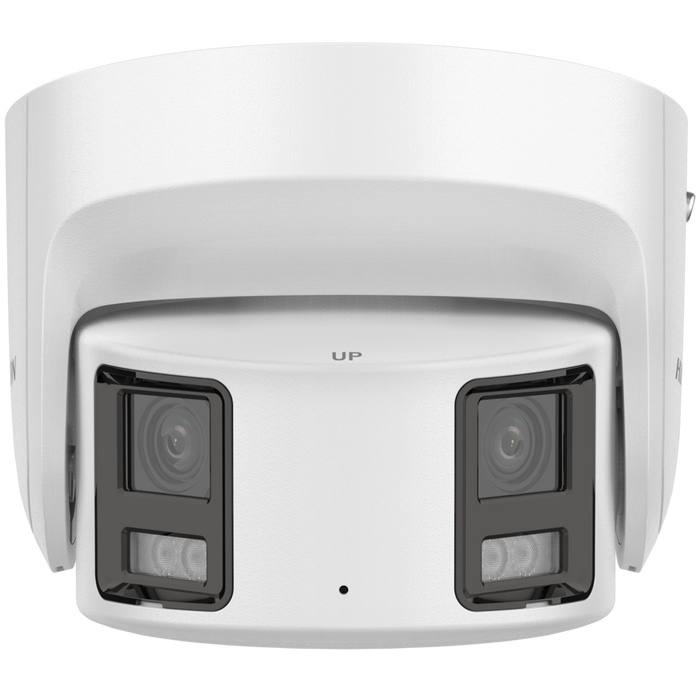

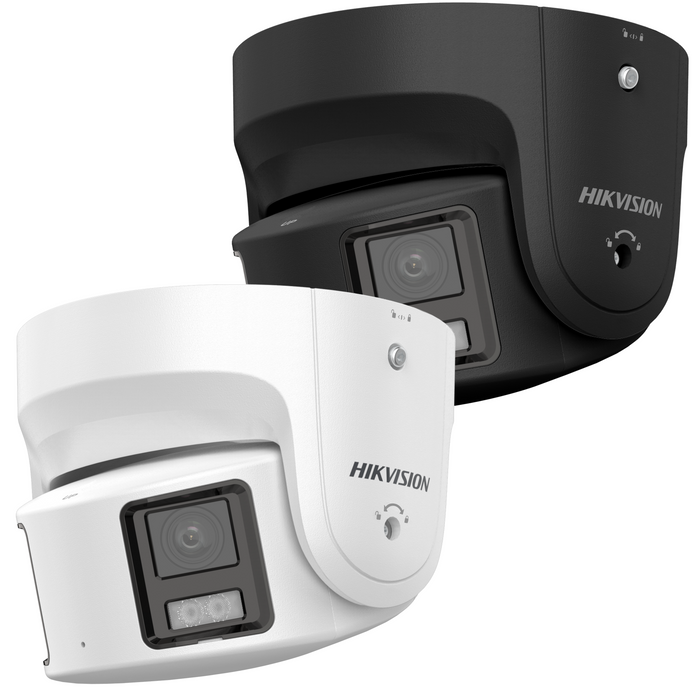

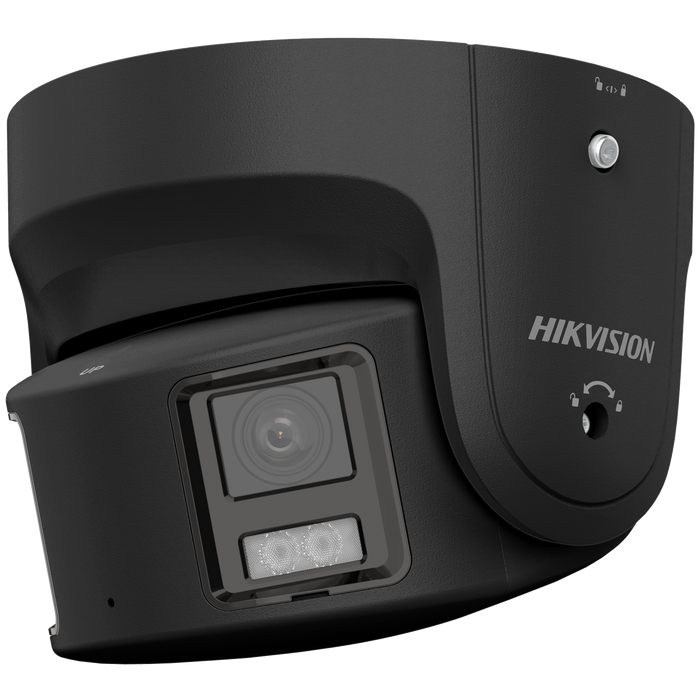

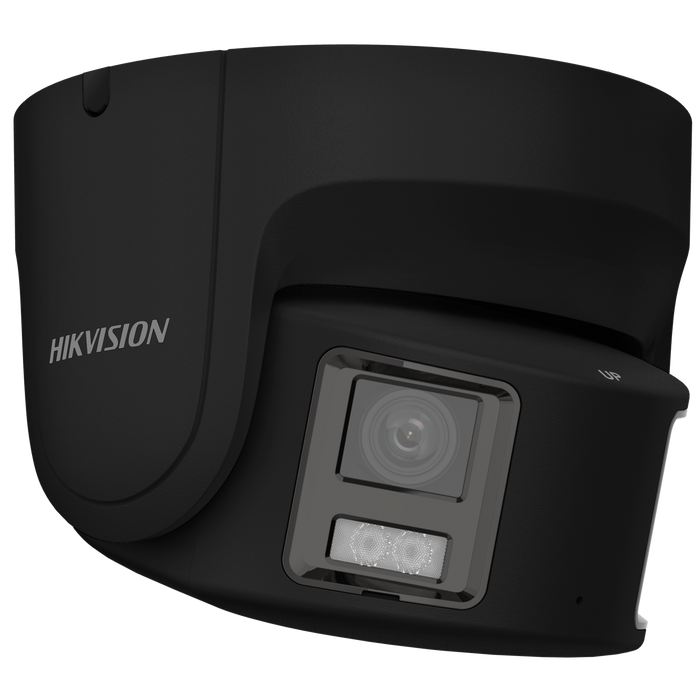

Hikvision DS-2CD2387G2P-LSU/SL 8MP Panoramic ColorVu Fixed Turret Network Camera
The Hikvision DS-2CD2387G2P-LSU/SL is a professional 8MP panoramic ColorVu fixed turret network camera designed to deliver ultra-wide 180-degree surveillance, full-colour security imaging and intelligent active deterrence.
Featuring dual 4mm fixed lenses and two 1/1.8-inch Progressive Scan CMOS sensors, this advanced camera combines two viewing areas into a single panoramic security image.
With a maximum resolution of 5120 × 1440 pixels, the camera provides exceptional horizontal coverage for monitoring large residential, commercial and industrial security areas.
Hikvision's advanced ColorVu technology combines F1.0 super-aperture lenses with high-performance image sensors to deliver detailed full-colour images in challenging low-light environments.
Integrated white-light illumination supports colour surveillance at night, with a manufacturer-specified supplementary lighting range of up to 30 metres.
Advanced deep-learning algorithms support human and vehicle classification, helping distinguish important security events from other moving objects.
The /SL active deterrence version also features an integrated flashing strobe light and audible warning system to help discourage unwanted activity.
Additional features include 130dB Wide Dynamic Range, efficient H.265+ compression, intelligent perimeter protection, IP67 weather protection and IEEE 802.3af PoE connectivity.
The DS-2CD2387G2P-LSU/SL is particularly suitable for professional installations requiring wide-area coverage without installing multiple conventional fixed cameras.
Key Features
- 8MP Panoramic Resolution: High-resolution 5120 × 1440 security imaging.
- 180° Panoramic Coverage: Ultra-wide horizontal surveillance through one camera.
- Dual 4mm Lenses: Two fixed lenses combine their views into one panoramic image.
- Dual CMOS Sensors: Two 1/1.8-inch Progressive Scan CMOS sensors.
- ColorVu Technology: Advanced full-colour imaging in low-light environments.
- F1.0 Super Aperture: Enhanced light collection for colour surveillance.
- 30m White-Light Illumination: Supplementary lighting for night-time monitoring.
- 130dB WDR: Improved visibility in high-contrast lighting conditions.
- Human and Vehicle Classification: Intelligent deep-learning target detection.
- Active Strobe-Light Deterrence: Integrated flashing visual warning.
- Audible Warning: Integrated audio alarm for supported security events.
- Intelligent Perimeter Protection: Line crossing, intrusion and region-based detection.
- H.265+ Compression: Efficient video recording and bandwidth management.
- Panoramic Video Stream: Combined wide-angle image for compatible recording systems.
- IEEE 802.3af PoE: Network communication and power through compatible Ethernet equipment.
- 12V DC Support: Alternative power connection where required.
- IP67 Weather Protection: Suitable for properly installed outdoor applications.
- Metal Construction: Durable metal base and cover.
- Fixed Turret Design: Manual camera positioning during installation.
- 3-Year Warranty: Australian camera warranty support, subject to applicable terms.
Technical Specifications
Detailed Features & Benefits
8MP High-Resolution Panoramic Surveillance
The Hikvision DS-2CD2387G2P-LSU/SL captures high-resolution panoramic video at up to 5120 × 1440 pixels.
Its wide-format imaging system is designed to provide detailed surveillance across large horizontal areas.
This makes the camera particularly useful for monitoring building frontages, car parks, warehouses, driveways and large commercial premises.
180-Degree Panoramic Field of View
The camera provides a 180-degree horizontal field of view, allowing one camera to monitor a wide surveillance area.
This helps reduce blind spots and can reduce the number of conventional fixed cameras required for some installations.
Actual coverage depends on camera positioning, mounting height and site conditions.
Dual 4mm Fixed-Lens Technology
The DS-2CD2387G2P-LSU/SL incorporates two fixed 4mm lenses and two independent imaging sensors.
The camera combines both views into a single panoramic image for compatible viewing and recording systems.
Unlike conventional turret cameras, this model does not offer interchangeable 2.8mm and 4mm lens options.
Hikvision ColorVu Full-Colour Imaging
Hikvision ColorVu technology is designed to deliver detailed colour surveillance in challenging low-light environments.
The camera combines advanced image sensors with F1.0 super-aperture lenses to capture more available light.
Colour imaging can help preserve important visual information, including clothing colours, vehicle colours and environmental details.
30m White-Light Illumination
The camera incorporates supplementary white-light illumination with a range of up to 30 metres.
White-light illumination supports full-colour security imaging when ambient lighting is insufficient.
Unlike conventional infrared cameras, this ColorVu model uses visible white-light illumination for night-time colour surveillance.
130dB Wide Dynamic Range
The DS-2CD2387G2P-LSU/SL features 130dB WDR to help balance bright and dark areas within the same surveillance image.
This is particularly useful for entrances, shopfronts, building frontages and locations exposed to strong backlighting.
Maximum frame rate varies depending on whether WDR is enabled.
Intelligent Human and Vehicle Classification
Advanced deep-learning algorithms help distinguish humans and vehicles from other moving objects.
This helps reduce unnecessary security notifications caused by environmental movement.
Human and vehicle classification is particularly useful for driveways, car parks, building entrances and perimeter monitoring.
Active Strobe-Light Deterrence
The camera includes an integrated flashing strobe light for active security deterrence.
When configured with supported security events, the camera can activate its visual warning to help discourage unwanted activity.
This provides an additional security response beyond conventional CCTV recording.
Built-In Audible Warning
The DS-2CD2387G2P-LSU/SL supports audible warnings through its integrated audio alarm functionality.
Audio alerts can be linked to compatible intelligent security detection events.
This allows the camera to provide a local warning when suspicious activity is detected.
Intelligent Perimeter Protection
The camera supports intelligent perimeter protection functions, including line crossing, intrusion detection, region entrance and region exiting.
Human and vehicle classification helps improve the relevance of supported security events.
H.265+ Video Compression
Hikvision H.265+ compression helps reduce video storage requirements and network bandwidth consumption when used with compatible equipment.
This supports efficient recording of high-resolution panoramic surveillance footage.
Panoramic NVR Recording Compatibility
The camera produces a wide-format 5120 × 1440 panoramic video stream.
Installers should confirm that the selected Hikvision NVR supports the camera's panoramic resolution, frame rate and required intelligent security functions.
Not all conventional NVR models support every panoramic camera function or recording mode.
IEEE 802.3af Power over Ethernet
The DS-2CD2387G2P-LSU/SL supports IEEE 802.3af PoE Class 3.
PoE allows network communication and electrical power through compatible Ethernet infrastructure.
The camera has a maximum specified PoE consumption of 12.5W.
IP67 Weather Protection
The camera features IP67-rated protection against dust and water ingress.
This makes it suitable for properly installed indoor and outdoor CCTV applications.
Durable Metal Turret Housing
The camera features a durable metal base and cover designed for professional surveillance installations.
Its fixed turret design allows manual adjustment during installation to achieve the required panoramic coverage.
Ideal Applications
- Residential Properties: Wide-angle monitoring of driveways and building frontages.
- Commercial Buildings: Entrances, external walls and common areas.
- Retail Premises: Shopfronts and customer access areas.
- Warehouses: Loading bays, storage entrances and large surveillance zones.
- Apartment Buildings: Shared entrances, common areas and car parks.
- Car Parks: Panoramic monitoring of vehicles and pedestrian activity.
- Industrial Facilities: Building perimeters and external access points.
- Active Deterrence Installations: Locations requiring visual and audible security warnings.
Compatibility & Installation
The Hikvision DS-2CD2387G2P-LSU/SL is designed for integration with compatible Hikvision network video recorders and professional IP surveillance systems.
The camera supports Ethernet networking and IEEE 802.3af PoE Class 3 through compatible network equipment.
Its dual fixed-lens design provides panoramic surveillance without requiring a motorised pan-and-tilt mechanism.
Important: The camera does not support remote motorised pan, tilt or optical zoom.
The panoramic image is produced through the camera's dual-lens imaging system.
Installers should confirm that the selected NVR supports 5120 × 1440 panoramic recording and the required intelligent security functions.
The camera supports compatible Hikvision software and professional recording platforms.
Professional installation is recommended to ensure optimal panoramic positioning, network configuration, intelligent detection and active deterrence performance.
Package Contents
- 1 × Hikvision DS-2CD2387G2P-LSU/SL 8MP Panoramic ColorVu Fixed Turret Network Camera.
Please note: NVR, hard drive, network cabling, external power supply, optional mounting accessories and installation services are not included unless specifically stated.
Frequently Asked Questions
What resolution does this camera provide?
The camera provides up to 5120 × 1440 panoramic resolution, classified by Hikvision as an 8MP panoramic network camera.
Does this camera provide 180-degree coverage?
Yes. Its dual fixed-lens design provides a 180-degree horizontal panoramic field of view.
Does this camera use two lenses?
Yes. It uses two fixed 4mm lenses and two 1/1.8-inch CMOS sensors to produce one panoramic image.
Does this camera support full-colour night vision?
Yes. Hikvision ColorVu technology supports full-colour imaging in low-light environments.
Supplementary white-light illumination can provide additional lighting when required.
Does this camera have infrared night vision?
No. This ColorVu model uses white-light illumination rather than conventional infrared night vision.
How far does the white-light illumination reach?
The manufacturer specifies a supplementary white-light range of up to 30 metres.
Does it support human and vehicle detection?
Yes. The camera supports intelligent human and vehicle classification.
Does this camera have active deterrence?
Yes. The camera includes a flashing strobe light and audible warning functionality.
Does this camera support intelligent perimeter protection?
Yes. It supports intelligent line crossing, intrusion, region entrance and region exiting detection.
Does the camera support PoE?
Yes. The camera supports IEEE 802.3af PoE Class 3 through compatible network equipment.
Is this camera suitable for outdoor installation?
Yes. The camera features IP67-rated weather protection.
Is this a motorised PTZ camera?
No. It is a fixed panoramic turret camera with dual lenses.
Its 180-degree coverage is achieved without motorised pan, tilt or optical zoom.
Is this camera compatible with Hikvision NVRs?
Yes. It is designed for use with compatible Hikvision network video recorders.
The selected NVR must support the camera's panoramic resolution and required security functions.
Does this camera record at 25fps?
At its maximum 5120 × 1440 resolution in 50Hz mode, the camera supports up to 20fps with WDR disabled or 12.5fps with WDR enabled.
