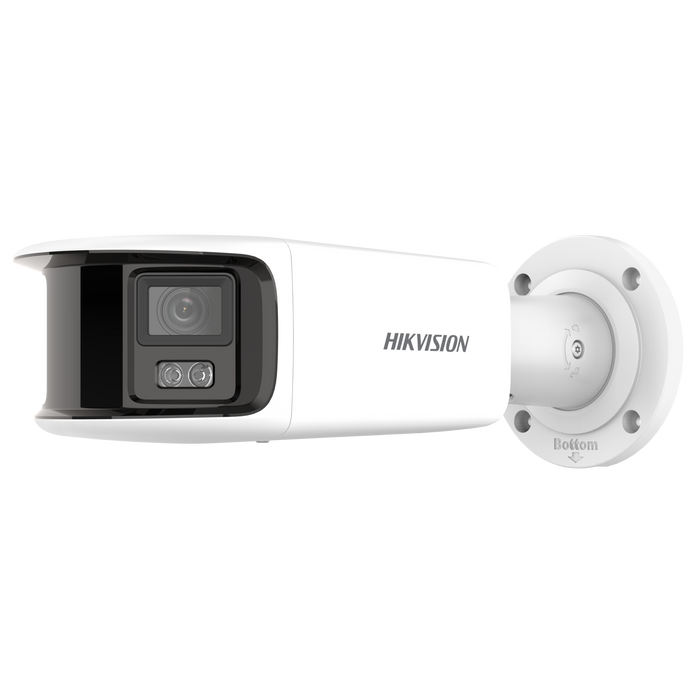

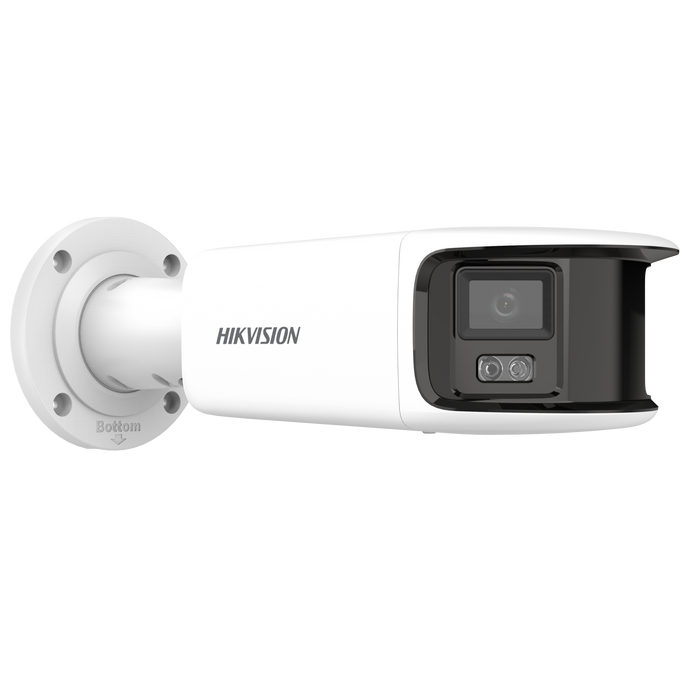

Hikvision DS-2CD2T87G2P-LSU/SL 8MP 180° Panoramic ColorVu Fixed Bullet Network Camera
The Hikvision DS-2CD2T87G2P-LSU/SL is a professional 8MP panoramic ColorVu fixed bullet network camera designed to deliver ultra-wide security coverage with a 180-degree horizontal field of view.
Unlike conventional single-lens CCTV cameras, this Hikvision panoramic camera uses two 1/1.8-inch Progressive Scan CMOS sensors and dual fixed lenses to create one continuous panoramic surveillance image.
With a maximum resolution of 5120 × 1440 pixels, the camera provides detailed panoramic video for monitoring building frontages, car parks, commercial premises, warehouses, driveways and large outdoor areas.
Featuring Hikvision ColorVu technology, dual F1.0 large-aperture lenses and integrated white-light illumination, the camera is designed to provide detailed colour surveillance footage in challenging low-light conditions.
Advanced deep-learning technology supports human and vehicle classification for compatible motion and perimeter protection events, helping reduce unnecessary security notifications.
The DS-2CD2T87G2P-LSU/SL also incorporates an active strobe light and audible warning system, providing additional security deterrence when supported events are triggered.
A built-in microphone and speaker support audio monitoring, audible warnings and two-way communication through compatible Hikvision systems.
Additional features include 130dB Wide Dynamic Range, H.265+ video compression, microSD recording up to 512GB, IEEE 802.3af PoE and IP67 weather protection.
The DS-2CD2T87G2P-LSU/SL is an excellent choice for professional CCTV installations requiring wide-area surveillance, full-colour imaging and intelligent active deterrence without using multiple conventional fixed bullet cameras.
Key Features
- 8MP Panoramic Resolution: Detailed 5120 × 1440 surveillance imaging.
- 180° Panoramic Coverage: Ultra-wide horizontal viewing angle.
- Dual CMOS Sensors: Two 1/1.8-inch Progressive Scan CMOS image sensors.
- Dual Fixed Lenses: Two 4mm lenses combine to create a panoramic image.
- Hikvision ColorVu: Advanced full-colour imaging technology.
- F1.0 Large Aperture: Enhanced available-light collection.
- 40m White-Light Illumination: Integrated supplementary lighting for colour surveillance.
- 130dB WDR: Improved image detail in high-contrast lighting.
- Human and Vehicle Classification: Intelligent deep-learning target identification.
- Intelligent Perimeter Protection: Line crossing, intrusion, region entrance and region exiting detection.
- Active Strobe Light: Flashing visual warning for supported security events.
- Audible Warning: Built-in speaker for configurable security alerts.
- Built-In Microphone: Audio capture through compatible systems.
- Two-Way Audio: Microphone and speaker for supported communication functions.
- 20fps Panoramic Video: Up to 20fps at 5120 × 1440 with WDR disabled.
- 130dB WDR Recording: Up to 12.5fps at 50Hz with WDR enabled.
- H.265+ Compression: Efficient video storage and bandwidth management.
- Local Recording: Compatible microSD cards up to 512GB.
- External Audio Interfaces: One audio input and one audio output.
- Alarm Interfaces: One alarm input and one alarm output.
- PoE Support: IEEE 802.3af Power over Ethernet.
- IP67 Weather Protection: Suitable for properly installed outdoor CCTV systems.
- Metal Housing: Durable professional bullet camera construction.
- 3-Year Warranty: Australian camera warranty support, subject to applicable terms.
Technical Specifications
Detailed Features & Benefits
8MP Ultra-Wide Panoramic Surveillance
The Hikvision DS-2CD2T87G2P-LSU/SL captures panoramic video at up to 5120 × 1440 pixels.
This ultra-wide image format is designed to monitor large horizontal areas through a single camera.
It is particularly suitable for building frontages, car parks, warehouses and commercial premises requiring wide-area security coverage.
180-Degree Horizontal Coverage
The camera provides a 180-degree horizontal field of view.
This allows a wide scene to be monitored without the narrower viewing angle of conventional bullet cameras.
The camera provides a manufacturer-specified 44-degree vertical field of view.

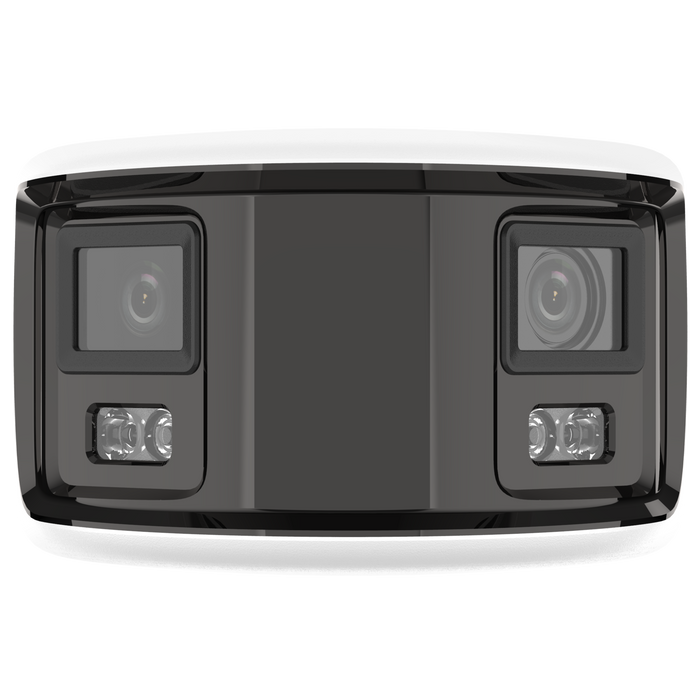

Dual-Sensor Panoramic Imaging
The DS-2CD2T87G2P-LSU/SL uses two 1/1.8-inch Progressive Scan CMOS sensors.
Combined with dual fixed 4mm lenses, the camera produces one panoramic image covering the monitored scene.
This design provides a different surveillance perspective from standard single-sensor CCTV cameras.
Hikvision ColorVu Technology
Hikvision ColorVu technology is designed to provide detailed colour imaging in challenging low-light environments.
The camera combines large-aperture lenses, high-performance image sensors and integrated white-light illumination.
Dual F1.0 Large-Aperture Lenses
The camera features two fixed 4mm lenses with F1.0 apertures.
The large apertures help collect available light to support low-light colour surveillance.
These are fixed lenses and do not provide motorised optical zoom.
40m White-Light Illumination
The DS-2CD2T87G2P-LSU/SL includes integrated white-light illumination with a specified range of up to 40 metres.
White-light illumination supports colour imaging when ambient lighting is insufficient.
The camera does not include an integrated infrared illuminator.
130dB Wide Dynamic Range
The camera features 130dB Wide Dynamic Range to help balance bright and dark areas within the same panoramic image.
This is particularly useful for entrances, shopfronts, car parks and locations exposed to strong backlighting.
Panoramic Frame Rate and WDR
At its maximum 5120 × 1440 resolution, the camera supports up to 20fps with WDR disabled.
When WDR is enabled, the maximum frame rate in Australian 50Hz mode is 12.5fps.
Installers should select the appropriate configuration based on image quality and recording requirements.
Intelligent Human and Vehicle Classification
The camera uses deep-learning technology to classify human and vehicle targets.
This helps reduce irrelevant security notifications caused by unrelated movement.
Intelligent Perimeter Protection
The camera supports line crossing, intrusion, region entrance and region exiting detection.
Human and vehicle classification can be applied to supported perimeter protection events.
Active Strobe Light Deterrence
The camera includes an integrated flashing strobe light.
The strobe can be linked to supported intelligent security events to provide a visible warning at the monitored location.
Built-In Audible Warning
The DS-2CD2T87G2P-LSU/SL includes an integrated speaker for audible security warnings.
Supported events can activate configured warning functions.
Built-In Microphone and Two-Way Audio
The camera includes a built-in microphone and speaker.
These components support audio monitoring and two-way communication through compatible Hikvision systems.
Audio recording and communication must comply with applicable Australian privacy and surveillance laws.
External Audio and Alarm Interfaces
The camera provides one external audio input and one audio output.
It also includes one alarm input and one alarm output for compatible security system integrations.
H.265+ Video Compression
Hikvision H.265+ compression helps reduce video storage requirements and network bandwidth consumption when used with compatible recording equipment.
This supports efficient recording of high-resolution panoramic surveillance footage.
Local microSD Recording
The camera includes a built-in memory card slot supporting compatible microSD cards up to 512GB.
Local recording provides an additional storage option alongside compatible Hikvision NVR systems.
IEEE 802.3af Power over Ethernet
The camera supports IEEE 802.3af PoE Class 3.
Power over Ethernet allows network communication and electrical power through compatible Ethernet infrastructure.
The manufacturer specifies maximum PoE consumption of 12.5W.
IP67 Weather Protection
The camera features IP67-rated protection against dust and water ingress.
This makes it suitable for properly installed indoor and outdoor security applications.
Durable Metal Bullet Housing
The DS-2CD2T87G2P-LSU/SL features a metal front cover, body and mounting bracket.
Its professional bullet camera construction is designed for demanding security installations.
Wide-Area CCTV System Integration
The panoramic camera is designed for use with compatible Hikvision network video recorders.
Installers should confirm that the selected NVR supports the camera's 5120 × 1440 panoramic video resolution.
Compatibility with specific intelligent events and audio features depends on the selected recording equipment.
Ideal Applications
- Commercial Buildings: Wide-area surveillance of entrances and building frontages.
- Car Parks: Monitoring large horizontal areas with a single panoramic camera.
- Warehouses: Loading areas, storage entrances and building perimeters.
- Retail Premises: Shopfronts and wide external security areas.
- Industrial Facilities: Large entrances and perimeter monitoring.
- Apartment Buildings: Driveways, common areas and external entrances.
- Residential Properties: Wide driveways and large property frontages.
- Active Deterrence Installations: Locations requiring visual and audible security warnings.
- Professional CCTV Projects: Installations requiring 180° coverage and full-colour surveillance.
Compatibility & Installation
The Hikvision DS-2CD2T87G2P-LSU/SL is designed for integration with compatible Hikvision network video recorders and professional IP surveillance systems.
The camera supports IEEE 802.3af PoE Class 3 and compatible 12V DC power supplies.
Installers should confirm that the selected PoE switch or NVR provides sufficient power for the camera.
The camera produces a panoramic video image at up to 5120 × 1440.
The selected NVR must support this resolution and the required video compression format.
Important: This camera features two fixed 4mm lenses. It does not provide motorised optical zoom.
The camera's pan, tilt and rotation adjustments are manual installation adjustments. It is not a PTZ camera.
The camera uses white-light illumination for night-time colour surveillance and does not include integrated infrared illumination.
The built-in strobe and audible warning functions should be configured according to site requirements.
Two-way audio requires compatible recording or remote-access software.
Audio recording and warning functions must comply with applicable Australian regulations.
Professional installation is recommended to ensure appropriate panoramic camera positioning, network configuration, night-time illumination and intelligent detection.
Package Contents
- 1 × Hikvision DS-2CD2T87G2P-LSU/SL 8MP Panoramic ColorVu Fixed Bullet Network Camera.
Please note: NVR, hard drive, microSD card, network cabling, external power supply, optional mounting accessories and installation services are not included unless specifically stated.
Frequently Asked Questions
What resolution does this camera provide?
The camera provides panoramic resolution up to 5120 × 1440 pixels.
Does this camera provide a 180-degree view?
Yes. It provides 180° horizontal coverage and approximately 44° vertical coverage.
How many lenses does this camera have?
The camera features two fixed 4mm lenses and two image sensors.
Does this camera produce one panoramic image?
Yes. The dual-sensor system creates one panoramic surveillance image.
Does this camera support ColorVu?
Yes. It uses Hikvision ColorVu technology for enhanced low-light colour surveillance.
Does this camera have infrared night vision?
No. This model uses integrated white-light illumination rather than infrared.
What is the white-light range?
The manufacturer specifies white-light illumination up to 40 metres.
Does this camera support human and vehicle detection?
Yes. It supports deep-learning-based human and vehicle classification.
Does this camera have active deterrence?
Yes. It includes an integrated strobe light and audible warning system.
Does this camera support two-way audio?
Yes. It includes a built-in microphone and speaker for compatible two-way audio functions.
Does this camera support 130dB WDR?
Yes. It features 130dB Wide Dynamic Range.
What is the maximum frame rate?
At 5120 × 1440 resolution, the camera supports up to 20fps with WDR disabled.
With WDR enabled, the maximum is 12.5fps in 50Hz mode.
Is this camera a PTZ camera?
No. It is a fixed panoramic bullet camera.
Can the camera record to a memory card?
Yes. It supports compatible microSD cards up to 512GB.
Does this camera support PoE?
Yes. It supports IEEE 802.3af PoE.
Is this camera suitable for outdoor installation?
Yes. It features IP67 weather protection.
Is this camera compatible with Hikvision NVRs?
Yes, with compatible Hikvision NVRs that support its panoramic resolution and required functions.
Why Buy from Civic Electronic?
Civic Electronic is an Authorised Hikvision Sales Partner and Hikvision Training Centre in Australia.
We supply genuine Australian security equipment to professional security installers, electricians and system integrators.
- Genuine Australian Hikvision Stock
- Australian Manufacturer Warranty Support
- Competitive Wholesale & Trade Pricing
- Professional Product Selection Assistance
- Fast Australia-Wide Delivery
- Free Standard Shipping on Eligible Orders Over $300
- 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
- Professional Security Installer Support
For Hikvision camera selection, trade pricing or CCTV compatibility assistance, contact Civic Electronic on 1300 024 842.
Official Hikvision Manufacturer Documentation
View the official manufacturer specifications for the DS-2CD2T87G2P-LSU/SL:
Genuine Product Assurance, We are officially an authorized reseller of Hikvision
Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.
Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.
1. Free and Express Shipping
- Free Standard Shipping applies to all orders valued at $300 or more.
- Express Shipping is available for an additional $65 per order.
Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:
2. Order Processing
- Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
- Orders are processed Monday to Friday, excluding weekends and public holidays.
- Tracking information will be provided via email after 11:00 AM on the day the order is shipped.
All orders are dispatched using the most efficient postage method available to ensure timely delivery.
3. Delivery Timeframes
- Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
- Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
- Standard Shipping: Please allow up to 10 business days from dispatch.
If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.
4. Delivery Requirements and Limitations
- All deliveries require a signature upon receipt.
- Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
- If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
- We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.
Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.
We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.
If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.
5. Tracking Your Order
Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.
To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.
6. Additional Information
We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.
Price Beat Guarantee
At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.
How It Works
If you find a cheaper price, simply:
- Provide a link to the competitor's advertised product
- Confirm the seller is an authorised Australian reseller
- Submit your request before placing your order
Our team will verify the details and respond promptly.
Eligibility Requirements
To qualify for our Price Beat Guarantee, the following conditions must be met:
- The competitor must be an authorised Australian reseller
- The seller must operate as a legitimate Australian retail business
- The item must be identical (same brand, model number and specifications)
- The product must be brand new and currently in stock
- The price must be publicly advertised (not a private quote or member-only offer)
- The advertised price must include GST
- Shipping costs must be included in the total comparison
- The competitor must supply Australian warranty support
Exclusions
Our Price Beat Guarantee does not apply to:
- Dropshippers or intermediary sellers who do not physically stock the product
- Sellers operating without a verifiable Australian retail presence
- Businesses with no registered retail location or identifiable trading address
- Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
- Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
- Refurbished, used or open-box items
- Pricing errors or misprints
- Bundle deals, bonus offers or cashback promotions
- Trade, bulk or special contract pricing
Important Conditions
- Price Beat requests must be approved prior to purchase
- Approved offers are valid for 24 hours only
- Civic Electronic reserves the right to verify reseller authorisation status
- We reserve the right to decline requests that do not meet the above criteria
- This policy may be modified or withdrawn at any time without notice
Why Buy From Civic Electronic?
- 100% Genuine Products
- Authorised Australian Reseller
- Local Australian Warranty
- Real Stock, Not Dropshipped
- Expert Technical Support
- Fast & Secure Dispatch
Our Range of Accessories
4TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba
Western Digital4TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba Expand your CCTV security system's recording capacity wi...
View full details2TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba
Western Digital2TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba Expand your CCTV system's recording storage with a 2TB S...
View full detailsCAT6 Patch Lead Network Cable 20m
Cable AUCAT6 Patch Lead Network Cable Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmissio...
View full detailsCAT6 Patch Lead Network Cable 30m
Cable AUCAT6 Patch Lead Network Cable 30m Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmi...
View full detailsCAT6 Patch Lead Network Cable 15m
Cable AUCAT6 Patch Lead Network Cable 15m Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmi...
View full details
