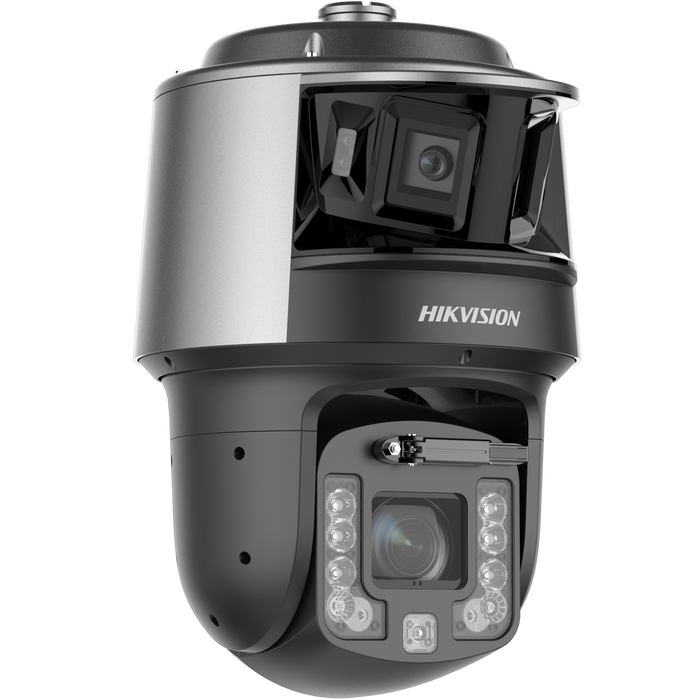

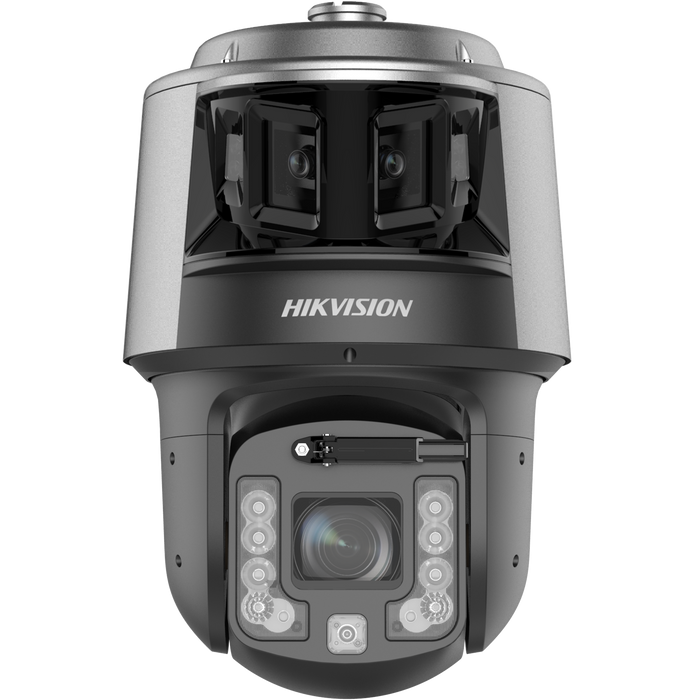

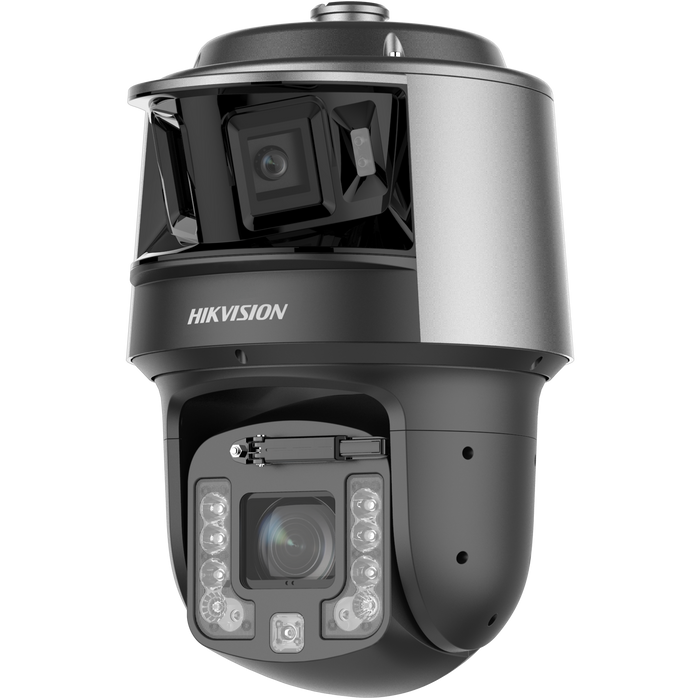

Hikvision DS-2SF7C442MXG2/LM-EL/26 AcuSeek TandemVu 6MP+4MP 42× DarkFighter PTZ Camera
The Hikvision DS-2SF7C442MXG2/LM-EL/26 is a premium
DeepinViewX TandemVu panoramic PTZ network camera
designed for professional wide-area and long-range surveillance.
Combining a 6MP panoramic camera with an independent
4MP DarkFighter PTZ camera, it provides continuous
situational awareness while allowing operators to investigate
distant activity using powerful 42× optical zoom.
The panoramic channel offers approximately
190° horizontal coverage, while the PTZ channel
features a 6–252mm motorised lens and
up to 400 metres of infrared illumination.
Advanced AcuSeek AI, intelligent perimeter protection,
human and vehicle detection, target tracking and
Smart Pan-Tilt Correction make this camera suitable for
industrial facilities, transport infrastructure,
large commercial properties and critical security applications.
The camera also features DarkFighter 2.0 technology,
Smart Hybrid Light, IP67 weather protection and
IK10 impact resistance, excluding the glass window.
Key Features
-
Dual-Channel TandemVu: Simultaneous panoramic and PTZ surveillance.
-
6MP Panoramic Camera: Wide-area imaging at 3680 × 1656 resolution.
-
4MP PTZ Camera: Detailed imaging at 2688 × 1520 resolution.
-
190° Panoramic Coverage: Extensive horizontal viewing angle.
-
42× Optical Zoom: Powerful long-range monitoring with a 6–252mm lens.
-
16× Digital Zoom: Additional image magnification.
-
DarkFighter 2.0: Advanced low-light surveillance technology.
-
400m PTZ Infrared: Long-range night-time illumination.
-
Smart Hybrid Light: Up to 40m white light and 60m IR on the panoramic channel.
-
AcuSeek AI: Advanced intelligent perimeter protection.
-
Human and Vehicle Classification: More targeted security event detection.
-
Intelligent Target Tracking: Supports configured tracking functions.
-
Smart Pan-Tilt Correction: Improved PTZ positioning accuracy.
-
300 PTZ Presets: Programmable surveillance positions.
-
H.265+ Compression: Efficient video storage and bandwidth management.
-
IP67 and IK10: Outdoor protection, with IK10 excluding the glass window.
Technical Specifications
| Model |
DS-2SF7C442MXG2/LM-EL/26 |
| Camera Type |
DeepinViewX TandemVu Dual-Channel PTZ |
| Panoramic Resolution |
6MP / 3680 × 1656 |
| PTZ Resolution |
4MP / 2688 × 1520 |
| Image Sensors |
Panoramic: 1/2.5" CMOS / PTZ: 1/1.8" CMOS |
| Panoramic Field of View |
190° ± 10° Horizontal |
| Lens |
Panoramic: 2.8mm F1.0 / PTZ: 6–252mm F1.2 |
| Optical Zoom |
42× Optical / 16× Digital (PTZ) |
| Night Illumination |
Panoramic: 40m White Light / 60m IR; PTZ: 400m IR |
| Low-Light Technology |
DarkFighter 2.0 / Smart Hybrid Light |
| Intelligent Analytics |
AI Perimeter Protection, Human/Vehicle Detection, Face Capture and Object Tracking |
| PTZ Movement |
360° Pan / -20° to 90° Tilt |
| PTZ Functions |
300 Presets / 8 Patrols / 4 Patterns |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Environmental Protection |
IP67 / IK10 (excluding glass window) |
| Power Requirements |
Use the power supply specified in the official datasheet for the exact model. |
Detailed Features & Benefits
TandemVu Dual-Channel Surveillance
Hikvision TandemVu technology combines a fixed
panoramic camera with an independent motorised
PTZ camera in one integrated surveillance system.
The 6MP panoramic channel maintains
visibility across a broad area while the
4MP PTZ channel can zoom towards
distant subjects for closer inspection.
The two channels provide separate video streams,
not a single combined 10MP image.
190° Panoramic Monitoring
The panoramic camera provides approximately
190° horizontal coverage, helping
security operators monitor large open spaces
with fewer blind spots.
Its 2.8mm F1.0 lens supports low-light imaging,
while the panoramic module offers adjustable
tilt from 12° to 24°.
4MP DarkFighter PTZ with 42× Optical Zoom
The PTZ channel delivers
2688 × 1520 resolution
using a 1/1.8-inch progressive scan CMOS sensor.
Its 6–252mm motorised lens
provides 42× optical zoom, allowing operators
to inspect distant gates, roads, industrial
equipment and perimeter areas.
The PTZ camera provides a horizontal
field of view from approximately
59.1° to 2°.
DarkFighter 2.0 Low-Light Technology
DarkFighter 2.0 technology helps deliver
detailed surveillance images in challenging
low-light conditions.
The panoramic channel is designed for
full-colour monitoring, while the PTZ
channel supports infrared-assisted
night-time surveillance.
400m Infrared Night Vision
The PTZ channel features
infrared illumination up to 400 metres,
supporting long-range monitoring in darkness.
The specified distance refers to the
manufacturer's illumination range.
Actual identification performance depends
on zoom, lighting, weather and target size.
Smart Hybrid Light Panoramic Camera
The panoramic channel combines white-light
and infrared illumination for flexible
night-time monitoring.
It provides up to 40m white-light
illumination and 60m IR,
supporting different lighting requirements
across the monitored area.
AcuSeek AI Perimeter Protection
The camera incorporates Hikvision's
DeepinViewX intelligent surveillance
technology with a dedicated large-scale
AI model for perimeter protection.
Supported functions include line-crossing,
intrusion, region entrance and region
exiting detection with human and
vehicle classification.
These functions help security teams
focus on relevant events and reduce
unwanted alarms compared with
conventional motion detection.
Intelligent Target Tracking
The camera supports intelligent object
tracking for configured persons and vehicles.
In supported operating modes, the system
can track selected targets and capture
related surveillance information.
Available tracking functions depend on
firmware, analytics configuration and
compatible management equipment.
Face Capture and Multi-Target Detection
The PTZ channel supports intelligent
face capture and multi-target detection,
including human bodies, faces and vehicles.
These capabilities can assist with
security investigations and
event-based surveillance.
Face capture does not automatically
establish a person's identity.
Smart Pan-Tilt Correction
Smart Pan-Tilt Correction helps maintain
accurate PTZ positioning during
motorised surveillance.
The camera also supports continuous
360° pan movement, a -20° to 90°
PTZ tilt range and automatic flip.
Automated Patrol Functions
Up to 300 presets, eight patrol routes
and four pattern scans allow installers
to configure routine surveillance
of multiple locations.
These functions are useful for monitoring
gates, loading areas, access roads
and industrial perimeters.
H.265+ Video Compression
Hikvision H.265+ compression helps
reduce recording bandwidth and
storage requirements when used
with compatible recording equipment.
Storage requirements depend on
resolution, frame rate, bitrate,
scene activity and recording settings.
IP67 Weather Protection and IK10 Impact Resistance
The camera features an IP67-rated
enclosure for outdoor protection
against dust and water ingress
under specified test conditions.
Its IK10 impact rating provides
additional mechanical protection,
excluding the glass window.
Professional installation with
suitable mounting equipment and
weatherproof connections is essential.
Ideal Applications
-
Industrial Facilities: Monitoring large yards and restricted areas.
-
Distribution Centres: Surveillance of loading docks and vehicle movement.
-
Airports: Wide-area monitoring with long-range PTZ capability.
-
Ports: Monitoring operational areas and perimeter access points.
-
Transport Infrastructure: Surveillance of roads and railway facilities.
-
Commercial Properties: Advanced perimeter security.
-
Large Car Parks: Panoramic monitoring and detailed PTZ observation.
-
Critical Infrastructure: Intelligent monitoring of high-security locations.
Compatibility & Installation
The Hikvision DS-2SF7C442MXG2/LM-EL/26
is designed for professional integration
with compatible Hikvision NVRs
and video management platforms.
The recording system should support
both panoramic and PTZ channels,
including their respective resolutions,
bandwidth requirements and intelligent
surveillance functions.
Installers must verify the correct
power supply, mounting accessories,
network configuration and recording
compatibility before installation.
Standard PoE compatibility should
not be assumed without checking
the manufacturer's power requirements.
This listing refers to the
DS-2SF7C442MXG2/LM-EL/26
standard model. Automatic-wiper
and anti-corrosion features are
associated with separate variants
and should not be assumed included.
Package Includes
- 1 × Hikvision DS-2SF7C442MXG2/LM-EL/26 TandemVu 6MP+4MP 42× PTZ Network Camera.
Please note:
NVR, hard drive, memory card,
network cabling, additional mounting
brackets, external power equipment
and installation services are not
included unless specifically stated.
Confirm supplied accessories
against the exact product packaging.
Frequently Asked Questions
What is Hikvision TandemVu technology?
TandemVu combines a panoramic camera
with an independent motorised PTZ camera,
allowing simultaneous wide-area monitoring
and detailed surveillance.
Does this camera provide 6MP and 4MP video?
Yes. The panoramic channel delivers
6MP resolution, while the PTZ channel
provides 4MP video. They operate as
separate surveillance channels.
How wide is the panoramic viewing angle?
The panoramic camera provides approximately
190° horizontal coverage, subject to
the manufacturer's stated tolerance.
Does this camera have 42× optical zoom?
Yes. The PTZ channel features
a 6–252mm motorised lens
with 42× optical zoom.
How far does the infrared night vision reach?
The PTZ channel provides infrared
illumination up to 400 metres.
The panoramic channel provides
up to 60m IR and 40m white light.
Does this camera support AI perimeter protection?
Yes. It supports intelligent
perimeter detection with
human and vehicle classification.
Can the camera track moving targets?
Yes. Intelligent object tracking
is supported in applicable
operating modes and configurations.
Is the camera suitable for outdoor installation?
Yes. It features IP67 weather
protection and IK10 impact
resistance, excluding the glass window.
