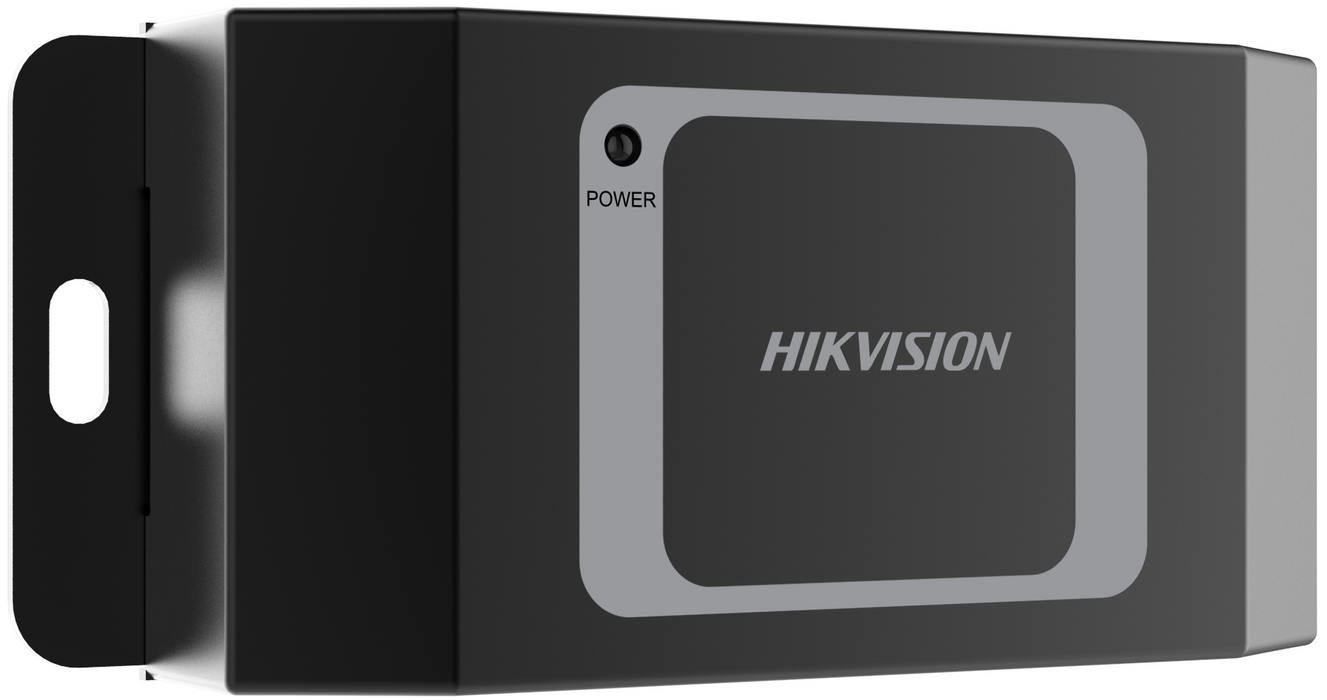

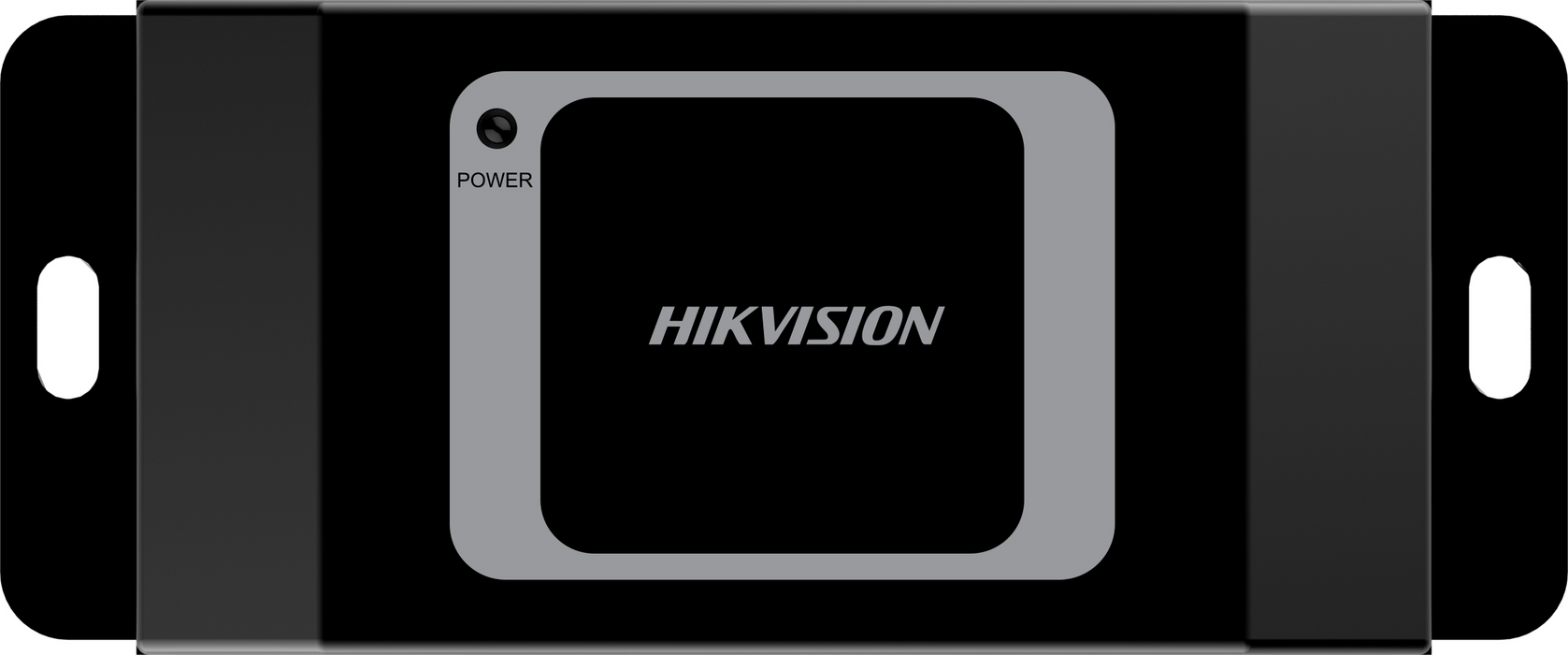

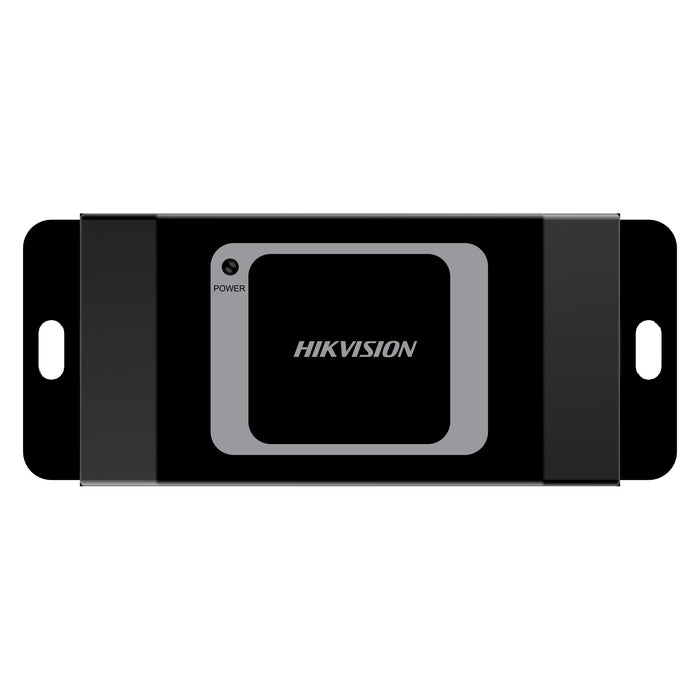

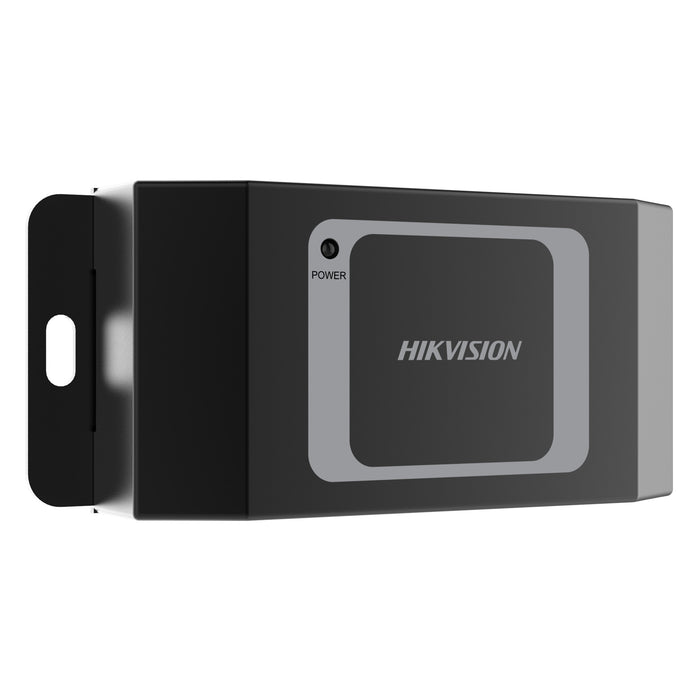

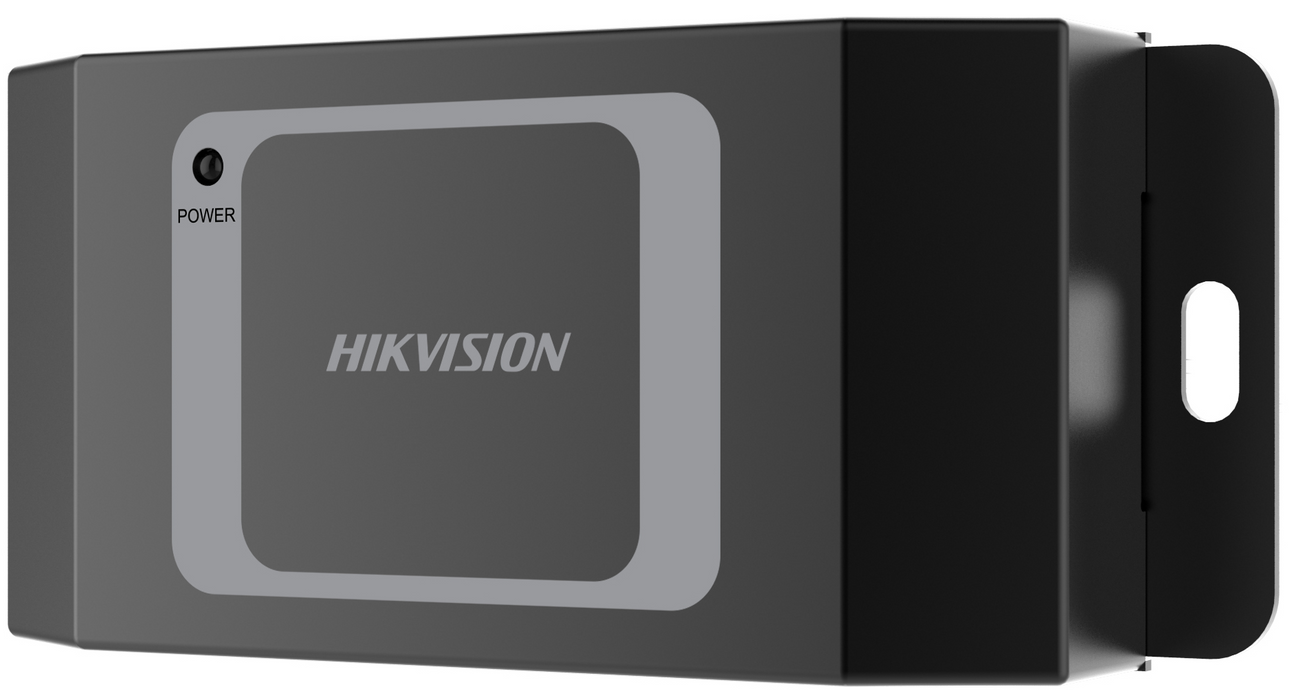

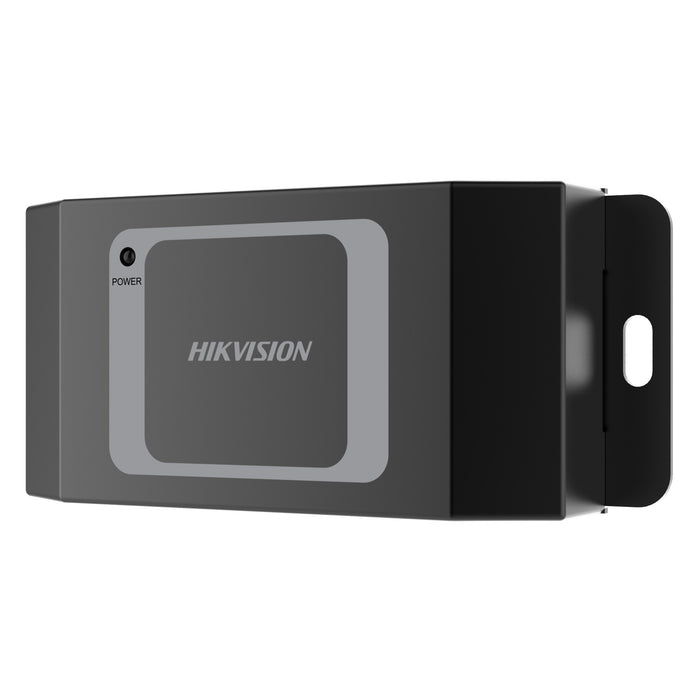

The Hikvision DS-K2M061 Secure Door Control Module is a secure relay module designed to improve the security of Hikvision access control and video intercom systems. Installed on the secure side of a door, it communicates with a compatible Hikvision access control terminal or video door station via RS-485, allowing the electric lock to be controlled without exposing lock wiring at the outdoor device. This significantly reduces the risk of unauthorised entry if the door station or access terminal is tampered with.
The DS-K2M061 acts as the secure interface between the access control terminal and connected devices such as electric strikes, magnetic locks, door contacts and exit buttons. It receives commands from the access control terminal, controls the door lock relay and reports door status, exit button activity and tamper events back to the controller. It also supports Wiegand connectivity for compatible card readers and includes a fire interface for emergency door release integration.
Designed for professional installations, the secure door control module is ideal for applications where enhanced door security is required. By relocating the lock relay to the protected side of the door, installers can prevent intruders from bypassing the lock by accessing wiring behind the outdoor reader or intercom station. The compact wall-mounted design makes it suitable for residential, commercial and industrial access control systems.
Key Features
Secure Door Control Module for Hikvision Access Control Systems
Compatible with Hikvision Video Intercom and Access Control Terminals
Secure RS-485 Communication
Controls Electric Strikes and Magnetic Locks
Installed on the Secure Side of the Door
Protects Lock Wiring Against Tampering
Built-in Tamper Alarm
Supports Door Contact Input
Supports Exit Button Input
Supports Fire Alarm Interface
Supports Wiegand Card Reader Connection
RS-485 Communication Status Indicators
4-Position DIP Switch for Device Address Configuration
Compact Wall-Mount Design
Professional Security Enhancement
Specifications
Model: DS-K2M061
Product Type: Secure Door Control Module
Communication: RS-485
Power Supply: 12V DC
Lock Control Output: 1
Door Contact Input: 1
Exit Button Input: 1
Alarm Inputs: 2
Alarm Output: 1
Wiegand Interface: 1
Fire Alarm Interface: Supported
Tamper Alarm: Supported
LED Status Indicators: Power and Communication
Address Configuration: 4-Position DIP Switch
Installation: Wall Mount
Operating Temperature: -40°C to +70°C
Operating Humidity: 0% to 90% (Non-Condensing)
Dimensions: 115 × 48 × 26 mm
Applications
Perfect for:
Video Intercom Systems
Access Control Systems
Residential Homes
Apartments
Office Buildings
Commercial Properties
Schools
Medical Facilities
Industrial Sites
High-Security Installations
Benefits
Improves the security of electric door locks
Prevents lock bypass by tampering with the outdoor station
Secure RS-485 communication with Hikvision controllers
Supports multiple door control peripherals
Simple wall-mounted installation
Compact and reliable design
Ideal for professional access control installations
Compatible with a wide range of Hikvision access control devices
The Hikvision DS-K2M061 Secure Door Control Module provides an additional layer of protection for access control and video intercom systems by relocating lock control to the secure side of the door. With RS-485 communication, tamper protection, Wiegand support and flexible input/output interfaces, it is an essential accessory for professional installations where door security and system integrity are critical.
DS-K2M061
Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
Supports tampering alarm
Supports RS-485 communication indicators to show the communication status
4-ch DIP switch supporting ID No. configuration
Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
