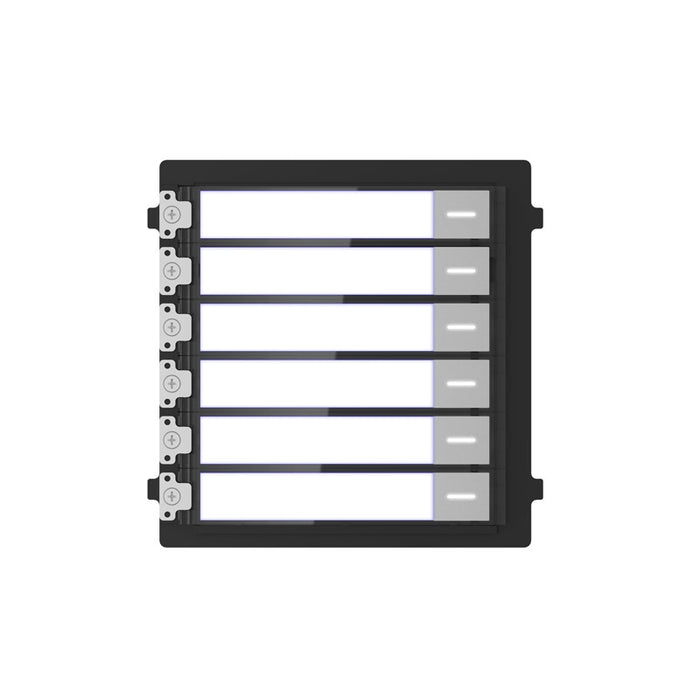

Hikvision DS-KD-KK KD8 Series Pro 6-Button Nametag Module for IP Video Intercom

Original price $58.00 - Original price $58.00
Original price
$58.00
$58.00 - $58.00
Current price $58.00
Availability:
in stock, ready to be shipped

Hikvision DS-KD-KK KD8 Series Pro 6-Button Nametag Module for IP Video Intercom

The Hikvision DS-KD-KK is a professional six-button nametag module designed for compatible Hikvision KD8 Series Pro modular IP video intercom door stations.

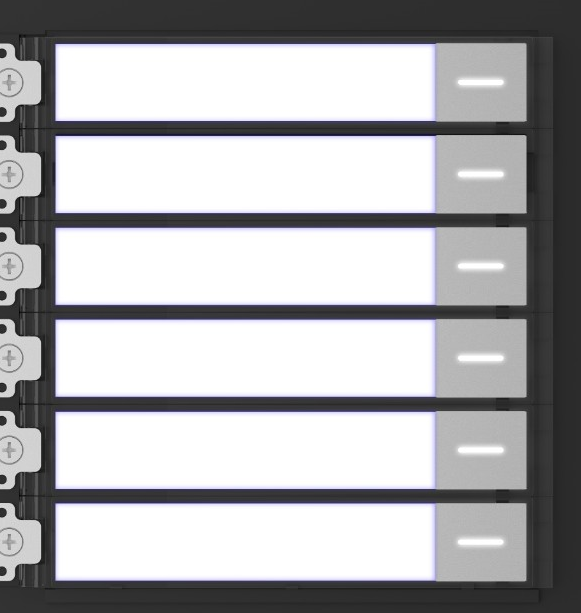

Featuring six physical call buttons, illuminated nametag areas and a compact modular design, the DS-KD-KK provides convenient visitor calling for apartment buildings, townhouse developments, commercial offices and multi-tenant properties.

Each button can be assigned to a corresponding residence, office or calling destination through a compatible Hikvision modular video intercom system.

Visitors can identify the appropriate occupant using the corresponding nametag and press the associated button to initiate a call.

The integrated nametag backlighting improves visibility in low-light entrance environments, helping visitors locate the correct call button.

The DS-KD-KK is particularly useful for small apartment buildings and commercial properties requiring clearly labelled visitor calling buttons instead of a numerical keypad.

Designed as part of the Hikvision KD8 modular intercom platform, the module can be incorporated into compatible multi-module entrance assemblies.

Professional installers can combine compatible modular components to provide visitor video, two-way audio, individual calling buttons and additional access control functionality.

The DS-KD-KK communicates through the connected modular door station system and requires a compatible Hikvision main unit for operation.

It is not a standalone video intercom door station and does not include an independent camera, microphone, loudspeaker, card reader or electric lock-control relay.

The manufacturer's specified maximum power consumption is 2W.

With an IP65 protection rating, the module is designed for suitable outdoor entrance installations when correctly mounted and sealed.

The manufacturer's specified operating temperature range of -40°C to +55°C supports use in a wide range of environmental conditions.

The compact housing measures 98.2 × 100.2 × 33.7mm, allowing integration into compatible Hikvision modular mounting assemblies.

Both surface and flush mounting are supported using appropriate Hikvision modular mounting accessories.

The Hikvision DS-KD-KK is an ideal accessory for professional security installers seeking a practical six-button calling solution for compatible Hikvision modular video intercom systems.

Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.

Important: This listing is for the standard DS-KD-KK six-button nametag module only. It is not the DS-KD-KK/S stainless-steel variant. A compatible modular door station main unit and mounting accessories are required.

Hikvision DS-KD-KK Six Button Nametag Module 2 Year Australian Warranty Civic Electronic

2-Year Australian Intercom Warranty, subject to applicable terms.

Key Features

  • Hikvision KD8 Series Pro: Professional modular video intercom accessory.
  • Six Physical Call Buttons: Convenient visitor calling for multiple destinations.
  • Six Nametag Positions: Identify individual residences, offices or occupants.
  • Illuminated Nametags: Backlighting improves visibility in low-light conditions.
  • Direct Visitor Calling: Call compatible indoor stations using assigned buttons.
  • Modular Expansion: Designed for compatible Hikvision KD8 modular door stations.
  • Multi-Residence Applications: Suitable for apartment and townhouse intercom systems.
  • Commercial Applications: Convenient calling for offices and multi-tenant premises.
  • RS-485 Interface: Manufacturer-specified modular communication interface.
  • Maximum 2W Consumption: Low-power accessory for compatible systems.
  • IP65 Protection: Dust and water resistance.
  • Outdoor Applications: Suitable for correctly installed building entrances.
  • Surface Mounting: Supported with compatible Hikvision accessories.
  • Flush Mounting: Supported with compatible Hikvision accessories.
  • Compact Dimensions: 98.2 × 100.2 × 33.7mm.
  • Operating Temperature: -40°C to +55°C.
  • Professional Installation: Designed for compatible modular intercom systems.
  • 2-Year Australian Warranty: Subject to applicable terms.

Technical Specifications

Model DS-KD-KK
Manufacturer Hikvision
Product Series KD8 Series Pro
Product Type Modular Video Intercom Nametag Module
Primary Function Six-Button Visitor Calling
Variant Standard DS-KD-KK
Physical Call Buttons 6
Nametag Positions 6
Nametag Backlighting Supported
Visitor Calling Through Compatible Door Station Main Unit
Button Assignment Configured Through Compatible Intercom System
Standalone Operation Not Supported
Compatible Main Unit Required
Camera Not Provided
Display Not Provided
Microphone Not Provided
Loudspeaker Not Provided
Numerical Keypad Not Provided
Built-In Card Reader Not Provided
PIN-Code Unlocking Not Provided by This Module
Facial Recognition Not Provided
RS-485 1 Interface
Independent Ethernet Not Provided
Independent Wi-Fi Not Provided
Independent Lock Relay Not Provided
Power Arrangement Through Compatible Hikvision Modular System
Power Consumption ≤ 2W
Protection Rating IP65
IK Impact Rating Not Specified for DS-KD-KK
Installation Surface / Flush Mounting
Mounting Accessories Compatible Hikvision Modular Mounting Frame Required
Operating Temperature -40°C to +55°C
Operating Humidity 10% to 95%
Dimensions (W × H × D) 98.2 × 100.2 × 33.7mm
Net Weight Approximately 190g
Gross Weight Approximately 438g
Australian Warranty 2 Years, Subject to Applicable Terms

Detailed Features & Benefits

Six Dedicated Visitor Call Buttons

The Hikvision DS-KD-KK provides six physical buttons for convenient visitor calling through compatible modular video intercom systems.

Individual Nametag Areas

Each button has a corresponding nametag position, allowing visitors to identify the appropriate residence, office or occupant.

Illuminated Nametags

Integrated backlighting helps visitors locate the correct calling destination in low-light conditions.

Hikvision KD8 Modular Integration

The module is designed to operate with compatible Hikvision KD8 Series Pro modular door station main units.

Convenient Apartment Calling

Visitors can select a labelled button to contact the appropriate apartment without entering a numerical room code.

Multi-Tenant Entrance Applications

The six-button configuration is useful for small apartment buildings, townhouse developments and shared commercial entrances.

Flexible Modular System Design

Professional installers can incorporate the DS-KD-KK into compatible multi-module door station assemblies.

Compatible Video Intercom Communication

Visitor calls are processed through the connected Hikvision door station main unit and compatible indoor stations.

Low-Power Modular Operation

Maximum power consumption of 2W supports efficient operation within compatible modular systems.

IP65 Weather Protection

The IP65 protection rating provides resistance to dust and water exposure when installed according to manufacturer requirements.

Wide Operating Temperature Range

The DS-KD-KK is specified for operation between -40°C and +55°C.

Surface and Flush Mounting

Compatible Hikvision modular mounting accessories support professional surface-mounted and flush-mounted entrance configurations.

Compact Modular Dimensions

The 98.2 × 100.2 × 33.7mm housing supports integration into compatible Hikvision modular mounting assemblies.

Professional Installer Configuration

Button assignments and calling destinations are configured through the compatible Hikvision intercom system.

Ideal Applications

  • Apartment Buildings: Individual visitor calling buttons.
  • Townhouse Developments: Clearly labelled calling destinations.
  • Multi-Unit Residential Properties: Convenient visitor communication.
  • Duplex Properties: Flexible calling arrangements.
  • Commercial Offices: Individual tenant or office calling.
  • Business Entrances: Clearly identified visitor destinations.
  • Managed Buildings: Professional modular intercom installations.
  • Residential Complexes: Multi-residence calling systems.
  • Hikvision KD8 Installations: Compatible modular expansion.
  • Intercom System Upgrades: Additional visitor calling buttons.
  • Professional Security Projects: Installer-configured video intercom systems.

Compatibility & Installation

System Type: Hikvision KD8 Series Pro modular IP video intercom.

Main Unit: Requires a compatible Hikvision modular door station main unit.

DS-KD8003-IME1: Compatible configurations may support this module. Confirm hardware revision and firmware compatibility.

Call Buttons: Six.

Nametag Positions: Six.

Nametag Backlighting: Supported.

Visitor Calling: Configured through the compatible door station main unit.

Indoor Stations: Calls are routed to compatible Hikvision indoor stations.

Modular Connection: Requires compatible Hikvision modular connections.

RS-485: One interface.

Power: Supplied through the compatible modular system. Follow the manufacturer's installation requirements.

Power Consumption: Maximum 2W.

Camera: Not included.

Audio: Not included.

Card Reader: Not included.

Numerical Keypad: Not included. Select a compatible keypad module where PIN-code entry is required.

Independent Lock Control: Not included.

Mounting: Surface or flush mounting using compatible Hikvision modular accessories.

Weather Protection: IP65 when correctly installed.

Operating Temperature: -40°C to +55°C.

Model Difference: The DS-KD-KK is the standard six-button nametag module. The DS-KD-KK/S is a separately specified stainless-steel variant with different dimensions, weight and protection specifications.

Professional Installation: Installation and commissioning by an experienced Hikvision security installer are recommended.

Package Contents

  • 1 × Hikvision DS-KD-KK KD8 Series Pro 6-Button Nametag Module.
  • Manufacturer-supplied standard accessories and documentation applicable to the selected Australian package.

Important: Door station main unit, indoor monitors, mounting frames, electric locks, additional access control modules, power supplies, cabling and installation services are not included unless specifically stated.

Frequently Asked Questions

What is the Hikvision DS-KD-KK?

It is a six-button nametag expansion module for compatible Hikvision KD8 Series Pro modular video intercom door stations.

Is this a complete video door station?

No. It is an accessory module that requires a compatible Hikvision door station main unit.

How many call buttons does it have?

Six.

Does each button have a nametag?

Yes. The module provides six corresponding nametag positions.

Are the nametags illuminated?

Yes. Backlighting is provided behind the nametag buttons.

Can each button call a different apartment?

Yes, when configured through a compatible Hikvision modular door station and indoor station system.

Is it suitable for six apartments?

Yes. It is suitable for compatible installations requiring six individually labelled calling destinations.

Can it be used for offices?

Yes. Buttons can be assigned to compatible office or tenant calling destinations.

Does it include a camera?

No. Visitor video is provided by the compatible door station main unit.

Does it include a microphone?

No. Audio functions are provided by the compatible main unit.

Does it include a loudspeaker?

No. It provides physical calling buttons and nametags.

Does it have a display?

No. It does not include an LCD or touchscreen display.

Does it include a numerical keypad?

No. It has six dedicated call buttons rather than a numerical keypad.

Does it support PIN-code unlocking?

No. PIN entry is not provided by this module. A compatible keypad module is required.

Does it include a card reader?

No. A separate compatible card reader module is required for card authentication.

Does it support facial recognition?

No. Facial recognition is not provided.

Can it operate independently?

No. A compatible Hikvision modular door station main unit is required.

Is it compatible with Hikvision KD8 systems?

Yes. It is designed for compatible Hikvision KD8 Series Pro modular door station systems.

Can it work with DS-KD8003-IME1?

Supported DS-KD8003-IME1 configurations may use this module. Confirm the exact hardware revision and firmware before ordering.

Can it be combined with a keypad module?

Yes, where the selected Hikvision main unit and mounting configuration support both modules.

Can it be combined with a card reader module?

Yes, subject to compatibility with the selected Hikvision modular system.

How is it powered?

Through the compatible Hikvision modular system according to the manufacturer's installation requirements.

What is the maximum power consumption?

2W.

Does it support PoE directly?

It is a modular accessory and does not provide an independent PoE network interface.

Does it have Wi-Fi?

No. Built-in Wi-Fi is not provided.

Does it have an RS-485 interface?

Yes. Hikvision specifies one RS-485 interface.

Can it control an electric lock directly?

No. Lock control is handled by the compatible door station system and associated equipment.

Can it be installed outdoors?

Yes. It is suitable for correctly installed outdoor entrance applications.

What is the IP protection rating?

IP65.

Does it have an IK07 impact rating?

Hikvision does not specify an IK07 rating for the standard DS-KD-KK. The stainless-steel DS-KD-KK/S has separate protection specifications.

Can it be surface mounted?

Yes. Compatible Hikvision surface mounting accessories are required.

Can it be flush mounted?

Yes. Compatible Hikvision flush mounting accessories are required.

Are mounting accessories included?

Mounting accessories should be selected separately unless specifically included in the package.

What are the dimensions?

98.2 × 100.2 × 33.7mm.

What is the net weight?

Approximately 190g.

What is the operating temperature range?

-40°C to +55°C.

What is the difference between DS-KD-KK and DS-KD-KK/S?

The DS-KD-KK is the standard six-button nametag module. The DS-KD-KK/S is the stainless-steel variant. Their manufacturer-specified dimensions, weights, power consumption and protection ratings differ.

What is the difference between DS-KD-KK and DS-KD-KP?

The DS-KD-KK provides six labelled visitor call buttons, while the DS-KD-KP provides a numerical keypad for PIN-code unlocking and room-number calling.

What warranty applies in Australia?

Eligible Hikvision intercom products supplied by Civic Electronic include a two-year Australian warranty, subject to applicable terms.

Where can I buy genuine Hikvision KD8 nametag modules in Australia?

Civic Electronic supplies genuine Australian Hikvision video intercom accessories with professional installer and trade support.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We specialise in genuine Australian Hikvision video intercom systems, CCTV equipment, access control products and professional security solutions.

  • Authorised Hikvision Sales Partner.
  • Hikvision Training Centre in Sydney, Australia.
  • Genuine Australian Hikvision stock.
  • Official Australian warranty support.
  • Competitive wholesale and trade pricing.
  • Professional video intercom and access control advice.
  • Installer and system integrator support.
  • Fast Australia-wide delivery.
  • Free standard shipping on eligible orders of $300 or more.
  • 2-hour Click & Collect from Rouse Hill, subject to stock confirmation.

For Hikvision KD8 modular intercom compatibility, system design or trade pricing assistance, contact Civic Electronic on 1300 024 842.

Official Hikvision Manufacturer Documentation

Review the official Hikvision DS-KD-KK documentation for six-button nametag specifications, modular compatibility, protection ratings, power consumption, dimensions and installation requirements.

Download Official Hikvision DS-KD-KK Datasheet (PDF)

View Official Hikvision DS-KD-KK Product Page

Important: This description applies specifically to the standard DS-KD-KK six-button nametag module, not the DS-KD-KK/S stainless-steel version. The DS-KD-KK requires a compatible Hikvision modular door station main unit and mounting accessories. Confirm hardware, firmware and installation compatibility before ordering.

Genuine Product Assurance, We are officially an authorized reseller of Hikvision

Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.

Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.

1. Free and Express Shipping

  • Free Standard Shipping applies to all orders valued at $300 or more.
  • Express Shipping is available for an additional $65 per order.

Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:

Australia Post Coverage

2. Order Processing

  • Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
  • Orders are processed Monday to Friday, excluding weekends and public holidays.
  • Tracking information will be provided via email after 11:00 AM on the day the order is shipped.

All orders are dispatched using the most efficient postage method available to ensure timely delivery.

3. Delivery Timeframes

  • Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
  • Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
  • Standard Shipping: Please allow up to 10 business days from dispatch.

If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.

4. Delivery Requirements and Limitations

  • All deliveries require a signature upon receipt.
  • Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
  • If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
  • We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.

Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.

We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.

If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.

5. Tracking Your Order

Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.

To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.

6. Additional Information

We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.

Price Beat Guarantee

At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.

How It Works

If you find a cheaper price, simply:

  1. Provide a link to the competitor's advertised product
  2. Confirm the seller is an authorised Australian reseller
  3. Submit your request before placing your order

Our team will verify the details and respond promptly.

Eligibility Requirements

To qualify for our Price Beat Guarantee, the following conditions must be met:

  • The competitor must be an authorised Australian reseller
  • The seller must operate as a legitimate Australian retail business
  • The item must be identical (same brand, model number and specifications)
  • The product must be brand new and currently in stock
  • The price must be publicly advertised (not a private quote or member-only offer)
  • The advertised price must include GST
  • Shipping costs must be included in the total comparison
  • The competitor must supply Australian warranty support

Exclusions

Our Price Beat Guarantee does not apply to:

  • Dropshippers or intermediary sellers who do not physically stock the product
  • Sellers operating without a verifiable Australian retail presence
  • Businesses with no registered retail location or identifiable trading address
  • Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
  • Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
  • Refurbished, used or open-box items
  • Pricing errors or misprints
  • Bundle deals, bonus offers or cashback promotions
  • Trade, bulk or special contract pricing

Important Conditions

  • Price Beat requests must be approved prior to purchase
  • Approved offers are valid for 24 hours only
  • Civic Electronic reserves the right to verify reseller authorisation status
  • We reserve the right to decline requests that do not meet the above criteria
  • This policy may be modified or withdrawn at any time without notice

Why Buy From Civic Electronic?

  • 100% Genuine Products
  • Authorised Australian Reseller
  • Local Australian Warranty
  • Real Stock, Not Dropshipped
  • Expert Technical Support
  • Fast & Secure Dispatch
