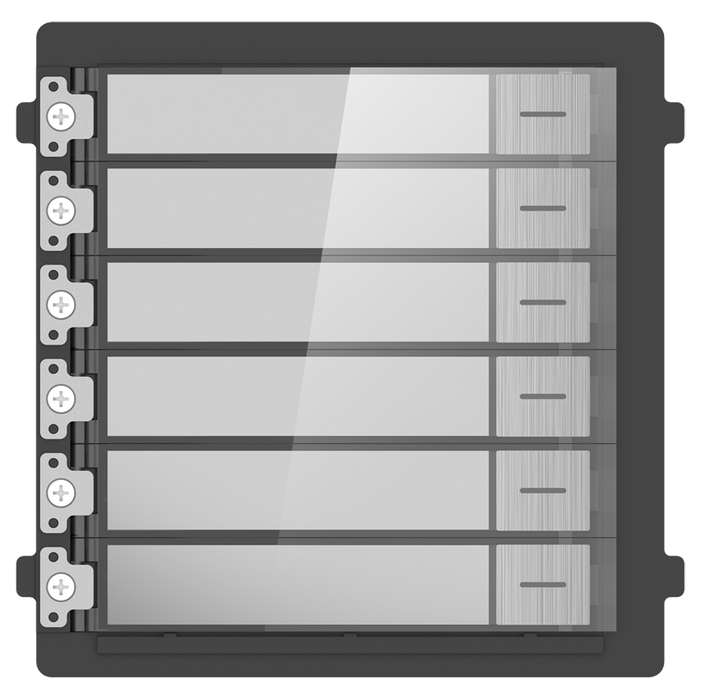

Hikvision DS-KD-KK/S KD8 Pro Stainless Steel 6-Button Nametag Module
The Hikvision DS-KD-KK/S is a professional stainless-steel 6-button nametag module designed for compatible Hikvision KD8 Series Pro modular IP video intercom door stations.
Featuring six dedicated physical call buttons, illuminated nametag areas and durable stainless-steel construction, this Hikvision modular accessory provides a convenient visitor calling solution for apartments, townhouses, commercial offices and multi-tenant properties.
The DS-KD-KK/S allows visitors to identify the relevant residence, office or occupant using the corresponding nametag and press the associated button to initiate a call through a compatible Hikvision video intercom system.
Each of the six call buttons can be assigned to an appropriate destination within the supported intercom configuration.
The integrated nametag backlighting improves visibility in low-light entrance environments, making it easier for visitors to locate the correct call button after dark.
The module's stainless-steel front panel provides a premium architectural finish that complements compatible Hikvision stainless-steel modular door station components.
Designed as part of Hikvision's flexible KD8 modular intercom platform, the DS-KD-KK/S can be incorporated into suitable multi-module entrance assemblies.
Professional installers can combine compatible modular components to create entrance systems incorporating visitor video, two-way audio, call buttons and additional access control functions.
The DS-KD-KK/S is particularly useful for properties requiring multiple clearly labelled visitor calling buttons rather than a numerical keypad.
Its six-button arrangement makes it suitable for small apartment buildings, duplex and townhouse developments, commercial premises and shared building entrances.
The module is designed to operate through a compatible Hikvision modular door station main unit.
It does not operate independently and does not include a camera, microphone, loudspeaker, card reader or standalone lock-control relay.
The manufacturer's specified power arrangement is 12V DC supplied through compatible modular equipment.
With a low power consumption of approximately 0.8W, the DS-KD-KK/S is an efficient expansion accessory for supported Hikvision intercom installations.
The module features an IP65 protection rating, providing resistance to dust and water exposure when correctly installed.
An IK07 impact resistance rating provides additional protection against mechanical impact.
The manufacturer's specified operating temperature range of -40°C to +55°C supports outdoor entrance installations across a wide range of environmental conditions.
The compact housing measures 98.5 × 100 × 34.2mm, allowing integration into compatible Hikvision modular mounting assemblies.
Both surface and flush mounting configurations are supported using suitable Hikvision modular mounting accessories.
The DS-KD-KK/S is an excellent choice for professional security installers requiring a durable, easy-to-use and visually attractive six-button calling module for compatible Hikvision KD8 video intercom systems.
Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.
Important: This listing is for the DS-KD-KK/S six-button nametag expansion module only. A compatible Hikvision modular door station main unit, mounting accessories and other required system components are supplied separately unless specifically stated.
2-Year Australian Intercom Warranty, subject to applicable terms.
Key Features
- Hikvision KD8 Series Pro: Professional modular video intercom accessory.
- Six Physical Call Buttons: Convenient visitor calling for multiple destinations.
- Six Nametag Positions: Clearly identify residences, offices or occupants.
- Illuminated Nametags: Backlighting improves visibility in low-light conditions.
- Stainless-Steel Construction: Premium and durable entrance appearance.
- Direct Visitor Calling: Press the assigned button to call a compatible indoor station.
- Modular Expansion: Designed for compatible Hikvision KD8 door station systems.
- Multi-Residence Applications: Suitable for compatible apartment and townhouse installations.
- Commercial Applications: Convenient calling for offices and multi-tenant premises.
- 12V DC Modular Power: Powered through compatible connected equipment.
- Low Power Consumption: Approximately 0.8W.
- IP65 Protection: Dust and water resistance.
- IK07 Impact Resistance: Additional physical protection.
- Outdoor Installation: Suitable for correctly installed building entrances.
- Surface Mounting: Supported with compatible Hikvision accessories.
- Flush Mounting: Supported with compatible Hikvision accessories.
- Compact Modular Dimensions: 98.5 × 100 × 34.2mm.
- Operating Temperature: -40°C to +55°C.
- Professional Installer Accessory: Designed for compatible modular intercom systems.
- 2-Year Australian Warranty: Subject to applicable terms.
Technical Specifications
Detailed Features & Benefits
Six Dedicated Visitor Call Buttons
The DS-KD-KK/S provides six physical call buttons that can be assigned to compatible residences, offices or other calling destinations.
Individual Nametag Areas
Each call button has an associated nametag position, allowing visitors to identify the appropriate destination before initiating a call.
Illuminated Nametags
Integrated backlighting improves nametag visibility and helps visitors locate the correct call button in low-light conditions.
Premium Stainless-Steel Construction
The stainless-steel front panel provides a durable and professional finish suitable for modern residential and commercial entrances.
Hikvision KD8 Modular Integration
The module is designed for compatible Hikvision KD8 Series Pro modular video intercom door station systems.
Convenient Apartment Calling
Visitors can select a labelled call button rather than entering a room number through a numerical keypad.
Multi-Tenant Entrance Applications
The six-button configuration is suitable for compatible small apartment buildings, townhouse complexes and shared commercial entrances.
Flexible Modular Entrance Design
Professional installers can incorporate the nametag module into suitable multi-module door station assemblies.
Compatible Video Intercom Operation
Visitor calls are processed through the connected Hikvision door station main unit and compatible indoor stations.
Low-Power Operation
The manufacturer's specified power consumption of 0.8W supports efficient operation within compatible modular systems.
12V DC Modular Power
The module receives power through compatible connected Hikvision equipment.
IP65 Weather Protection
The IP65 rating provides resistance to dust and water exposure when installed according to manufacturer requirements.
IK07 Impact Resistance
The IK07 rating provides additional protection against mechanical impact.
Wide Operating Temperature Range
The module is designed to operate between -40°C and +55°C.
Surface and Flush Mounting
Compatible Hikvision modular mounting accessories support both surface-mounted and flush-mounted entrance configurations.
Compact Modular Dimensions
The 98.5 × 100 × 34.2mm housing supports integration into compatible Hikvision modular mounting assemblies.
Professional Installer Configuration
Call-button assignments and associated indoor station destinations are configured through the compatible Hikvision video intercom system.
Ideal Applications
- Apartment Buildings: Six labelled visitor calling buttons.
- Townhouse Developments: Individual calling for compatible residences.
- Multi-Unit Residential Properties: Convenient visitor communication.
- Duplex Properties: Flexible calling configurations.
- Commercial Offices: Individual office or tenant calling.
- Business Entrances: Clearly labelled visitor destinations.
- Managed Buildings: Professional modular entrance systems.
- Residential Complexes: Multi-residence visitor calling.
- Stainless-Steel Entrance Systems: Premium architectural appearance.
- Hikvision KD8 Installations: Compatible modular expansion.
- Intercom System Upgrades: Additional physical calling buttons.
- Professional Security Projects: Installer-configured video intercom systems.
Compatibility & Installation
System Type: Hikvision KD8 Series Pro modular IP video intercom.
Main Unit: Requires a compatible Hikvision modular door station main unit.
DS-KD8003-IME1: Compatible configurations may support this module. Confirm the exact hardware revision and firmware.
Call Buttons: Six physical buttons.
Nametag Positions: Six.
Nametag Backlighting: Supported.
Visitor Calling: Configured through the compatible door station main unit.
Indoor Stations: Calls are routed to compatible Hikvision indoor stations.
Modular Connection: Requires compatible Hikvision modular connections.
Power: 12V DC supplied through compatible modular equipment.
Power Consumption: 0.8W.
Network: Communication depends on the supported modular intercom architecture. Follow the installation documentation for the selected main unit.
Camera: Not provided by this module.
Audio: Not provided by this module.
Card Reader: Not provided by this module.
Numerical Keypad: Not provided. Use a compatible keypad module where PIN access is required.
Independent Lock Control: Not provided.
Mounting: Surface or flush mounting using compatible Hikvision modular mounting accessories.
Weather Protection: IP65 when correctly installed.
Impact Protection: IK07.
Operating Temperature: -40°C to +55°C.
Model Difference: The DS-KD-KK/S is the stainless-steel six-button nametag module. The DS-KD-KK is a separate standard variant.
Professional Installation: Installation and commissioning by an experienced Hikvision security installer are recommended.
Package Contents
- 1 × Hikvision DS-KD-KK/S Stainless Steel 6-Button Nametag Module.
- Manufacturer-supplied standard accessories and documentation applicable to the selected Australian package.
Important: Door station main unit, indoor monitors, mounting frames, electric locks, additional access control modules, power supplies, cabling and installation services are not included unless specifically stated.
Frequently Asked Questions
What is the Hikvision DS-KD-KK/S?
It is a stainless-steel six-button nametag expansion module designed for compatible Hikvision KD8 Series Pro modular video intercom systems.
Is this a complete video door station?
No. It is an expansion module requiring a compatible Hikvision door station main unit.
What does the /S suffix indicate?
The /S variant features stainless-steel construction.
How many call buttons does it have?
Six.
Does each button have a nametag?
Yes. The module provides six corresponding nametag positions.
Are the nametags illuminated?
Yes. Backlighting is provided behind the nametag buttons.
Can each button call a different apartment?
Yes, when configured with a compatible Hikvision modular door station and indoor station system.
Is it suitable for six apartments?
Yes. The six-button design is suitable for compatible installations requiring up to six individually labelled calling destinations.
Can it be used for offices?
Yes. The buttons can be assigned to compatible office or tenant calling destinations.
Does it have a built-in camera?
No. Visitor video is provided by the compatible door station main unit.
Does it have a microphone?
No. Audio functions are provided by the compatible main unit.
Does it include a loudspeaker?
No. The module provides physical calling buttons and nametags.
Does it include a display?
No. It does not have an LCD or touchscreen display.
Does it include a numerical keypad?
No. It has six dedicated call buttons rather than a numerical keypad.
Does it support PIN-code unlocking?
No. PIN entry is not a function of this module. A compatible keypad module is required for that feature.
Does it include a card reader?
No. A compatible separate card reader module is required where card authentication is needed.
Does it support facial recognition?
No. Facial recognition is not provided by this module.
Can it operate independently?
No. It requires a compatible Hikvision modular door station main unit.
Is it compatible with Hikvision KD8 systems?
Yes. It is designed for compatible Hikvision KD8 Series Pro modular door station systems.
Can it work with DS-KD8003-IME1?
Supported DS-KD8003-IME1 configurations may use this module. Confirm the exact hardware revision and firmware before ordering.
Can it be combined with a keypad module?
Yes, where the selected Hikvision main unit and modular mounting configuration support both accessories.
Can it be combined with a card reader module?
Yes, subject to the compatibility and capacity of the selected Hikvision modular system.
How is it powered?
Through compatible Hikvision modular equipment using a 12V DC power arrangement.
What is the power consumption?
0.8W according to Hikvision's specifications.
Does it support standard PoE directly?
The module is designed to receive power through compatible modular equipment rather than being used as an independent PoE device.
Does it have Wi-Fi?
No. Built-in Wi-Fi is not provided.
Can it control an electric lock directly?
No. Lock control is handled through the compatible door station system and associated equipment.
Can it be installed outdoors?
Yes. It is designed for suitable outdoor entrance installations.
What is the IP protection rating?
IP65.
What is the impact resistance rating?
IK07.
Can it be surface mounted?
Yes. Compatible Hikvision surface mounting accessories are available.
Can it be flush mounted?
Yes. Compatible Hikvision flush mounting accessories are available.
Is a mounting bracket included?
Mounting accessories should be selected separately unless specifically included in the package.
What are the dimensions?
98.5 × 100 × 34.2mm.
What is the net weight?
Approximately 265g.
What is the operating temperature range?
-40°C to +55°C.
What is the difference between DS-KD-KK and DS-KD-KK/S?
The DS-KD-KK/S is the stainless-steel variant. The DS-KD-KK is a separate standard model.
What is the difference between DS-KD-KK/S and DS-KD-KP/S?
The DS-KD-KK/S provides six dedicated nametag call buttons, while the DS-KD-KP/S provides a numerical keypad for PIN unlocking and room-number calling.
What warranty applies in Australia?
Eligible Hikvision intercom products supplied by Civic Electronic include a two-year Australian warranty, subject to applicable terms.
Where can I buy genuine Hikvision stainless-steel nametag modules in Australia?
Civic Electronic supplies genuine Australian Hikvision video intercom accessories with professional installer and trade support.
Why Buy from Civic Electronic?
Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.
We specialise in genuine Australian Hikvision video intercom systems, CCTV equipment, access control products and professional security solutions.
- Authorised Hikvision Sales Partner.
- Hikvision Training Centre in Sydney, Australia.
- Genuine Australian Hikvision stock.
- Official Australian warranty support.
- Competitive wholesale and trade pricing.
- Professional video intercom and access control advice.
- Installer and system integrator support.
- Fast Australia-wide delivery.
- Free standard shipping on eligible orders of $300 or more.
- 2-hour Click & Collect from Rouse Hill, subject to stock confirmation.
For Hikvision KD8 modular intercom compatibility, system design or trade pricing assistance, contact Civic Electronic on 1300 024 842.
Official Hikvision Manufacturer Documentation
Review the official Hikvision DS-KD-KK/S documentation for six-button nametag specifications, stainless-steel construction, modular compatibility, power requirements, dimensions and installation information.
Download Official Hikvision DS-KD-KK/S Datasheet (PDF)
View Official Hikvision Australia DS-KD-KK/S Product Page
Important: The DS-KD-KK/S is a stainless-steel six-button nametag expansion module, not a complete video intercom door station. It requires a compatible Hikvision KD8 modular main unit. Confirm the exact main unit, firmware, mounting accessories and calling configuration before ordering.
Genuine Product Assurance, We are officially an authorized reseller of Hikvision
Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.
Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.
1. Free and Express Shipping
- Free Standard Shipping applies to all orders valued at $300 or more.
- Express Shipping is available for an additional $65 per order.
Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:
2. Order Processing
- Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
- Orders are processed Monday to Friday, excluding weekends and public holidays.
- Tracking information will be provided via email after 11:00 AM on the day the order is shipped.
All orders are dispatched using the most efficient postage method available to ensure timely delivery.
3. Delivery Timeframes
- Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
- Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
- Standard Shipping: Please allow up to 10 business days from dispatch.
If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.
4. Delivery Requirements and Limitations
- All deliveries require a signature upon receipt.
- Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
- If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
- We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.
Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.
We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.
If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.
5. Tracking Your Order
Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.
To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.
6. Additional Information
We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.
Price Beat Guarantee
At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.
How It Works
If you find a cheaper price, simply:
- Provide a link to the competitor's advertised product
- Confirm the seller is an authorised Australian reseller
- Submit your request before placing your order
Our team will verify the details and respond promptly.
Eligibility Requirements
To qualify for our Price Beat Guarantee, the following conditions must be met:
- The competitor must be an authorised Australian reseller
- The seller must operate as a legitimate Australian retail business
- The item must be identical (same brand, model number and specifications)
- The product must be brand new and currently in stock
- The price must be publicly advertised (not a private quote or member-only offer)
- The advertised price must include GST
- Shipping costs must be included in the total comparison
- The competitor must supply Australian warranty support
Exclusions
Our Price Beat Guarantee does not apply to:
- Dropshippers or intermediary sellers who do not physically stock the product
- Sellers operating without a verifiable Australian retail presence
- Businesses with no registered retail location or identifiable trading address
- Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
- Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
- Refurbished, used or open-box items
- Pricing errors or misprints
- Bundle deals, bonus offers or cashback promotions
- Trade, bulk or special contract pricing
Important Conditions
- Price Beat requests must be approved prior to purchase
- Approved offers are valid for 24 hours only
- Civic Electronic reserves the right to verify reseller authorisation status
- We reserve the right to decline requests that do not meet the above criteria
- This policy may be modified or withdrawn at any time without notice
Why Buy From Civic Electronic?
- 100% Genuine Products
- Authorised Australian Reseller
- Local Australian Warranty
- Real Stock, Not Dropshipped
- Expert Technical Support
- Fast & Secure Dispatch
Our Range of Accessories
4TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba
Western Digital4TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba Expand your CCTV security system's recording capacity wi...
View full details2TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba
Western Digital2TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba Expand your CCTV system's recording storage with a 2TB S...
View full detailsCAT6 Patch Lead Network Cable 20m
Cable AUCAT6 Patch Lead Network Cable Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmissio...
View full detailsCAT6 Patch Lead Network Cable 30m
Cable AUCAT6 Patch Lead Network Cable 30m Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmi...
View full detailsCAT6 Patch Lead Network Cable 15m
Cable AUCAT6 Patch Lead Network Cable 15m Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmi...
View full details
