Hikvision DS-KH9510-WTE1 10.1" Android IP Video Intercom Indoor Station with WiFi & PoE

Save 24% Save 24%
Original price $577.00
Original price $577.00 - Original price $577.00
Original price $577.00
Current price $440.00
$440.00 - $440.00
Current price $440.00
Availability:
in stock, ready to be shipped

Hikvision DS-KH9510-WTE1 10.1" Android IP Video Intercom Indoor Station with WiFi & PoE

The Hikvision DS-KH9510-WTE1 is a professional second-generation all-in-one Android IP video intercom indoor station designed for residential, commercial and integrated security applications.

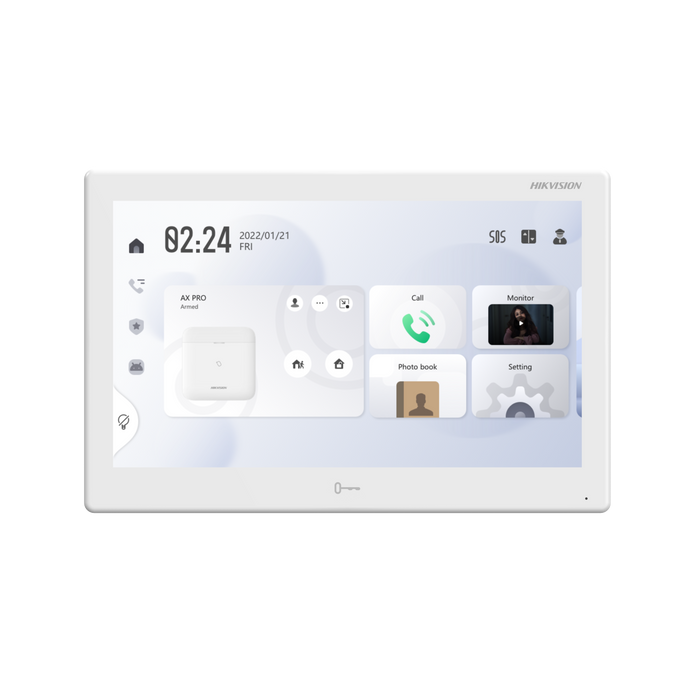

Featuring a large 10.1-inch colour IPS capacitive touchscreen, embedded Android operating system, built-in Hik-Connect, WiFi connectivity and standard Power over Ethernet (PoE), this advanced indoor monitor provides a convenient central interface for compatible Hikvision security systems.

The DS-KH9510-WTE1 combines traditional video intercom functions with Android-based security management, making it suitable for projects requiring more than a standard indoor intercom monitor.

Its large 10.1-inch IPS display features a resolution of 1024 × 600 pixels, providing an intuitive interface for visitor communication, camera monitoring and compatible security system control.

The embedded Android platform supports installation of compatible third-party applications, allowing additional integration possibilities for professional security installations.

The Hik-Connect application is built into the monitor, supporting centralised management of compatible Hikvision devices, including video intercom equipment, CCTV cameras, recording systems, intrusion alarms and access control devices.

Users can access supported camera live views, communicate with visitors, manage compatible alarm functions and operate supported door access controls directly from the touchscreen.

The DS-KH9510-WTE1 features an embedded processor with 1GB RAM and 8GB eMMC storage, providing the hardware platform for its Android-based intercom and security applications.

Built-in 2.4GHz WiFi supports IEEE 802.11b/g/n wireless networking, while the integrated 10/100Mbps Ethernet port provides reliable wired IP connectivity.

The monitor supports IEEE 802.3af standard PoE, allowing compatible network equipment to supply power and network connectivity through a single Ethernet cable.

Alternatively, the indoor station can be powered using a suitable 12V DC, 1A power supply.

A built-in omnidirectional microphone and loudspeaker provide two-way audio communication with compatible Hikvision IP video intercom door stations.

Integrated noise suppression and echo cancellation help improve voice clarity during visitor conversations.

The monitor supports linking up to 16 compatible IP cameras, allowing users to view supported surveillance cameras directly from the indoor touchscreen.

For larger compatible intercom configurations, the device supports up to 5 linked indoor extensions and 8 linked doorphones, subject to system design and firmware compatibility.

The DS-KH9510-WTE1 also supports compatible Hikvision intrusion alarm integration, including on-site alarm management and supported video verification functions.

Where configured with compatible Hikvision alarm equipment, the system can receive supported short video verification clips associated with alarm events.

The indoor station includes 8 alarm inputs, 2 alarm outputs and an RS-485 interface for supported security system integration.

Its integrated network functionality supports TCP/IP, SIP and RTSP protocols, providing communication options for compatible Hikvision IP intercom systems.

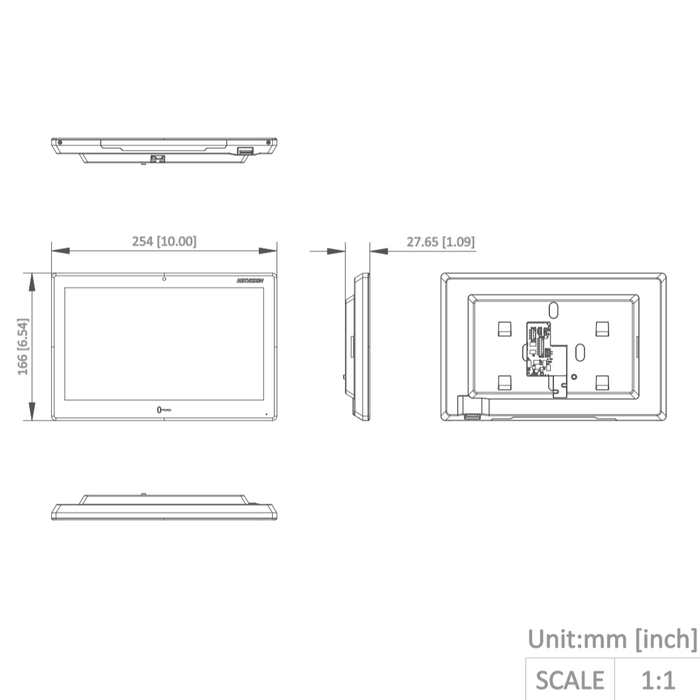

The device is designed for indoor surface mounting and measures 254 × 166 × 26.65mm.

With a maximum power consumption of 8W, the DS-KH9510-WTE1 provides a practical touchscreen control point for homes, villas, offices and compatible commercial security installations.

The large display makes it particularly suitable for users who prefer a more spacious touchscreen interface than conventional 7-inch indoor monitors.

Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.

Important: This listing is for the indoor station only. It does not include an outdoor door station, PoE switch, electric lock or complete intercom kit. Compatibility with existing equipment and third-party Android applications must be confirmed before ordering.

Hikvision DS-KH9510-WTE1 10.1 Inch Android IP Video Intercom Indoor Station 2 Year Australian Warranty

2-Year Australian Intercom Warranty, subject to applicable terms.

Key Features

  • 10.1-Inch IPS Touchscreen: Large colour display for convenient intercom and security management.
  • 1024 × 600 Resolution: Clear touchscreen interface.
  • Embedded Android Operating System: Android-based intercom and security functionality.
  • Third-Party Application Support: Compatible Android application integration.
  • Built-In Hik-Connect: Integrated Hikvision security management.
  • All-in-One Security Interface: Compatible video intercom, CCTV, alarm and access control functions.
  • 1GB RAM: Embedded system memory.
  • 8GB eMMC Storage: Internal application and system storage.
  • 2.4GHz WiFi: IEEE 802.11b/g/n wireless networking.
  • Wired Ethernet: 10/100Mbps network connectivity.
  • Standard PoE: IEEE 802.3af power support.
  • 12V DC Power: Alternative power option.
  • Two-Way Audio: Built-in microphone and loudspeaker.
  • Noise Suppression: Improved audio clarity.
  • Echo Cancellation: Reduced unwanted audio feedback.
  • 16 Linked IP Cameras: Compatible video monitoring integration.
  • 5 Indoor Extensions: Supported intercom expansion capacity.
  • 8 Linked Doorphones: Compatible entrance station integration.
  • Intrusion Alarm Integration: Supported Hikvision alarm management.
  • Video Verification: Compatible alarm video verification functions.
  • 8 Alarm Inputs: Supported sensor integration.
  • 2 Alarm Outputs: Compatible alarm control interfaces.
  • RS-485 Interface: Additional system integration.
  • TCP/IP, SIP and RTSP: Supported communication protocols.
  • Surface Mounting: Suitable for indoor wall installation.
  • Compact Housing: 254 × 166 × 26.65mm.
  • Maximum 8W Power Consumption: Efficient indoor operation.
  • 2-Year Australian Warranty: Subject to applicable terms.

Technical Specifications

Model DS-KH9510-WTE1
Brand Hikvision
Product Type All-in-One IP Video Intercom Indoor Station
Product Series KH9 Series
Intercom Technology IP Video Intercom
Operating System Embedded Android Operating System
Processor Embedded Processor
RAM 1GB
Internal Storage 8GB eMMC
Screen Size 10.1 Inches
Display Type Colour IPS LCD
Display Resolution 1024 × 600 Pixels
Operation Capacitive Touchscreen
Built-In Application Hik-Connect
Third-Party Applications Supported, Subject to Compatibility
Audio Input Built-In Omnidirectional Microphone
Audio Output Built-In Loudspeaker
Audio Compression G.711U / G.711A
Audio Compression Bitrate 64Kbps
Noise Suppression Supported
Echo Cancellation Supported
Volume Adjustment Adjustable
Linked IP Cameras Up to 16
Linked Indoor Extensions Up to 5
Linked Doorphones Up to 8
Notice Capacity 200
Network Protocols TCP/IP, SIP, RTSP
WiFi IEEE 802.11b/g/n
WiFi Band 2.4GHz
Network Interface 1 × RJ45 Ethernet
Ethernet Speed 10/100Mbps Self-Adaptive
Bluetooth Not Specified / Not Supported
Cellular Connectivity Not Supported
Alarm Inputs 8
Alarm Outputs 2
RS-485 1 Interface
Power Supply 12V DC, 1A / IEEE 802.3af Standard PoE
Maximum Power Consumption 8W
Installation Surface Mounting
Application Environment Indoor
Operating Temperature -10°C to +50°C
Operating Humidity 10% to 90%, Non-Condensing
Dimensions 254 × 166 × 26.65mm
Net Weight 875g
Gross Weight 1060g
Australian Warranty 2 Years, Subject to Applicable Terms

Detailed Features & Benefits

Large 10.1-Inch IPS Touchscreen

The DS-KH9510-WTE1 features a large 10.1-inch colour IPS display with a 1024 × 600 resolution, providing a spacious interface for visitor communication and compatible security system management.

All-in-One Android Security Platform

The embedded Android operating system combines traditional IP video intercom functionality with compatible security management applications.

Built-In Hik-Connect

Hik-Connect is integrated into the indoor station, providing a convenient interface for supported Hikvision security devices without requiring users to switch between multiple dedicated control panels.

Compatible Third-Party Android Applications

The monitor supports compatible third-party Android application installation for additional security integration possibilities.

Important: This is a dedicated security indoor station, not an unrestricted Android tablet. Application installation depends on firmware, hardware resources and software compatibility.

Integrated CCTV Monitoring

Support for up to 16 linked compatible IP cameras allows users to view supported surveillance video directly from the touchscreen.

Compatible Intrusion Alarm Management

The built-in Hik-Connect platform supports compatible Hikvision intrusion alarm management, allowing users to access supported alarm functions through the indoor station.

Alarm Video Verification

When integrated with supported Hikvision alarm equipment, the monitor can receive short video verification clips associated with compatible alarm events.

Two-Way Visitor Communication

The built-in omnidirectional microphone and loudspeaker support two-way communication with compatible Hikvision IP outdoor door stations.

Noise Suppression and Echo Cancellation

Integrated audio processing helps reduce unwanted background noise and echo during visitor conversations.

2.4GHz WiFi Networking

The indoor station supports IEEE 802.11b/g/n WiFi, providing a wireless network option for suitable installations.

Wired Ethernet Connectivity

A 10/100Mbps RJ45 Ethernet port provides a reliable wired network connection for professional IP intercom installations.

Standard Power over Ethernet

IEEE 802.3af PoE allows compatible network equipment to provide power and network connectivity through a single Ethernet cable.

Alternative 12V DC Power

The monitor can alternatively operate from a suitable 12V DC, 1A power supply.

Expandable IP Intercom System

The DS-KH9510-WTE1 supports up to five compatible linked indoor extensions and eight linked doorphones, subject to supported system configuration.

Alarm Input and Output Interfaces

Eight alarm inputs and two alarm outputs provide integration options for compatible security systems.

RS-485 Communication Interface

An RS-485 interface provides additional integration possibilities for supported Hikvision equipment.

Professional Indoor Surface Mounting

The compact housing measures 254 × 166 × 26.65mm and is designed for surface mounting in protected indoor locations.

Efficient Power Consumption

The monitor has a maximum power consumption of 8W, making it suitable for compatible PoE-powered installations.

Ideal Applications

  • Residential Homes: Large-screen IP video intercom communication.
  • Luxury Homes: Integrated Hikvision security management.
  • Villas: Visitor monitoring and entrance communication.
  • Townhouses: Android-based indoor intercom control.
  • Multi-Level Properties: Compatible additional indoor station configurations.
  • Apartments: Supported Hikvision IP intercom installations.
  • Commercial Offices: Visitor communication and access management.
  • Reception Areas: Central touchscreen visitor monitoring.
  • Security Control Points: Compatible CCTV and alarm system management.
  • Professional System Integrators: Projects requiring compatible Android application integration.
  • Hikvision IP Intercom Upgrades: Compatible replacement or expansion installations.

Compatibility & Installation

System Type: Hikvision IP video intercom.

Model: DS-KH9510-WTE1.

Display: 10.1-inch colour IPS capacitive touchscreen.

Resolution: 1024 × 600 pixels.

Operating System: Embedded Android.

Memory: 1GB RAM.

Internal Storage: 8GB eMMC.

WiFi: 2.4GHz IEEE 802.11b/g/n.

Ethernet: 10/100Mbps RJ45.

Power: IEEE 802.3af standard PoE or 12V DC, 1A.

Maximum Consumption: 8W.

Hik-Connect: Built-in application.

Android Applications: Compatible third-party applications supported.

Linked IP Cameras: Up to 16.

Linked Indoor Extensions: Up to 5.

Linked Doorphones: Up to 8.

Alarm Inputs: 8.

Alarm Outputs: 2.

RS-485: 1 interface.

Installation: Indoor surface mounting.

Important Compatibility Notice: The DS-KH9510-WTE1 is an IP video intercom indoor station. It is not a direct replacement for analogue, four-wire Hybrid HD or dedicated two-wire intercom devices.

Hardware Revision Notice: The DS-KH9510-WTE1 and DS-KH9510-WTE1(B) have different manufacturer specifications. Confirm the exact model revision before ordering or configuring a replacement.

Professional Installation: Installation and commissioning by an experienced security installer are recommended.

Network and PoE Installation

  • Confirm compatibility with the existing Hikvision IP video intercom equipment.
  • Select a suitable protected indoor mounting location.
  • Install the indoor monitor using the appropriate mounting arrangement.
  • Connect the device to compatible IEEE 802.3af PoE network equipment where PoE is selected.
  • Alternatively, provide a suitable 12V DC, 1A power supply.
  • Configure Ethernet or supported 2.4GHz WiFi networking.
  • Configure the indoor monitor within the compatible Hikvision IP intercom system.
  • Pair compatible outdoor door stations and additional indoor extensions.
  • Configure the built-in Hik-Connect application.
  • Add supported Hikvision network cameras and alarm equipment where required.
  • Confirm compatibility before installing third-party Android applications.
  • Test visitor calling, video, audio, network connectivity and supported door unlocking functions.

Installation Note: WiFi provides network communication only. When using WiFi without wired PoE, a suitable separate power supply is required.

Application Compatibility: Third-party Android applications may require services or resources unavailable on this device. Confirm compatibility before installation.

Package Contents

  • 1 × Hikvision DS-KH9510-WTE1 10.1-Inch Android IP Video Intercom Indoor Station.
  • Manufacturer-supplied standard mounting accessories and documentation applicable to the Australian retail package.

Important: Outdoor door stations, complete intercom kits, PoE switches, electric locks, network cabling, optional power adapters and installation services are not included unless specifically stated.

Frequently Asked Questions

What is the Hikvision DS-KH9510-WTE1?

It is a 10.1-inch Android IP video intercom indoor station designed for compatible Hikvision intercom and integrated security systems.

What size is the touchscreen?

10.1 inches.

What type of display does it use?

A colour IPS capacitive touchscreen.

What is the display resolution?

1024 × 600 pixels.

Does it use Android?

Yes. It uses an embedded Android operating system.

How much RAM does the original model have?

1GB RAM.

How much internal storage does it have?

8GB eMMC storage.

Does it support Android applications?

Yes. Compatible third-party Android applications can be installed, subject to system requirements.

Can I install any Android application?

No. Compatibility depends on the application's requirements and the device's firmware and hardware capabilities.

Does it include Hik-Connect?

Yes. Hik-Connect is built into the indoor station.

Can I monitor Hikvision cameras?

Yes. The device supports linking up to 16 compatible IP cameras.

Can I manage compatible Hikvision alarm systems?

Yes. Supported intrusion alarm management functions are available through compatible Hikvision equipment.

Does it support alarm video verification?

Yes. Supported short video verification functions are available with compatible Hikvision alarm equipment.

Does it support WiFi?

Yes. IEEE 802.11b/g/n WiFi is supported.

Does it support 5GHz WiFi?

The manufacturer specifies 2.4GHz WiFi. 5GHz support is not listed.

Does it have an Ethernet port?

Yes. It includes a 10/100Mbps RJ45 Ethernet interface.

Does it support PoE?

Yes. IEEE 802.3af standard PoE is supported.

Can it operate using 12V DC?

Yes. A suitable 12V DC, 1A power supply can be used.

What is the maximum power consumption?

8W.

Does it support two-way audio?

Yes. It includes a built-in microphone and loudspeaker.

Does it support noise suppression?

Yes. Noise suppression and echo cancellation are supported.

How many IP cameras can be linked?

Up to 16 compatible IP cameras.

How many indoor extensions are supported?

Up to 5 compatible linked indoor extensions.

How many doorphones can be linked?

Up to 8 compatible linked doorphones.

Does it support alarm inputs?

Yes. Eight alarm inputs are provided.

Does it have alarm outputs?

Yes. Two alarm outputs are specified.

Does it support RS-485?

Yes. One RS-485 interface is provided.

Does it support SIP?

Yes. SIP is included among the supported communication protocols.

Does it support RTSP?

Yes. RTSP is included among the supported communication protocols.

Does it include an outdoor door station?

No. This product is the indoor station only.

Can it operate as a complete video intercom system by itself?

No. A compatible outdoor door station is required for normal visitor calling.

Can I use it with Hikvision IP door stations?

Yes, with compatible Hikvision IP video intercom door stations and supported system configurations.

Is it compatible with Hikvision two-wire systems?

Direct compatibility should not be assumed. This is an IP indoor station requiring compatible Hikvision IP intercom equipment.

Is it compatible with HiLook Hybrid HD intercom systems?

No. HiLook Hybrid HD equipment uses a different intercom architecture.

What is the difference between DS-KH9510-WTE1 and DS-KH9510-WTE1(B)?

They are different hardware revisions with different manufacturer specifications. Confirm the exact model before ordering replacement equipment or additional components.

Can it be installed outdoors?

No. It is designed for indoor installation.

Can it be wall mounted?

Yes. It supports surface mounting.

What are the dimensions?

254 × 166 × 26.65mm.

What is the operating temperature?

-10°C to +50°C.

Does it include a PoE switch?

No. A PoE switch is not included unless specifically stated.

Does it include installation?

No. Installation services are not included unless separately quoted.

What warranty applies in Australia?

Eligible Hikvision intercom products supplied by Civic Electronic include a two-year Australian warranty, subject to applicable terms.

Where can I buy genuine Hikvision Android intercom monitors in Australia?

Civic Electronic supplies genuine Australian Hikvision IP video intercom equipment with professional installer and trade support.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We specialise in genuine Australian Hikvision and HiLook video intercom systems, CCTV equipment, access control products and professional security solutions.

  • Authorised Hikvision Sales Partner: Genuine Australian Hikvision products.
  • Hikvision Training Centre: Professional product knowledge and installer support.
  • Australian Warranty: Warranty support for eligible products.
  • Competitive Pricing: Wholesale and trade pricing opportunities.
  • Technical Support: Assistance with compatible intercom equipment and system selection.
  • Professional Installer Support: Support for security installers and system integrators.
  • Australia-Wide Delivery: Fast shipping on eligible orders.
  • Free Standard Shipping: Available on eligible orders of $300 or more.
  • 2-Hour Click & Collect: Available from Rouse Hill, subject to stock confirmation.

For Hikvision DS-KH9510-WTE1 compatibility, Android application integration or trade pricing assistance, contact Civic Electronic on 1300 024 842.

Official Hikvision Manufacturer Documentation

Review the official Hikvision DS-KH9510-WTE1 manufacturer datasheet for touchscreen specifications, Android functionality, networking, PoE requirements, linked device capacity and installation details.

Download Official Hikvision DS-KH9510-WTE1 Datasheet (PDF)

View Official Hikvision All-in-One Indoor Station Information

Important: Specifications shown are for the original DS-KH9510-WTE1. The later DS-KH9510-WTE1(B) revision has different hardware specifications. Confirm the supplied revision, compatible intercom equipment and third-party application requirements before ordering.

Genuine Product Assurance, We are officially an authorized reseller of Hikvision

Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.

Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.

1. Free and Express Shipping

  • Free Standard Shipping applies to all orders valued at $300 or more.
  • Express Shipping is available for an additional $65 per order.

Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:

Australia Post Coverage

2. Order Processing

  • Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
  • Orders are processed Monday to Friday, excluding weekends and public holidays.
  • Tracking information will be provided via email after 11:00 AM on the day the order is shipped.

All orders are dispatched using the most efficient postage method available to ensure timely delivery.

3. Delivery Timeframes

  • Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
  • Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
  • Standard Shipping: Please allow up to 10 business days from dispatch.

If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.

4. Delivery Requirements and Limitations

  • All deliveries require a signature upon receipt.
  • Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
  • If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
  • We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.

Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.

We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.

If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.

5. Tracking Your Order

Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.

To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.

6. Additional Information

We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.

Price Beat Guarantee

At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.

How It Works

If you find a cheaper price, simply:

  1. Provide a link to the competitor's advertised product
  2. Confirm the seller is an authorised Australian reseller
  3. Submit your request before placing your order

Our team will verify the details and respond promptly.

Eligibility Requirements

To qualify for our Price Beat Guarantee, the following conditions must be met:

  • The competitor must be an authorised Australian reseller
  • The seller must operate as a legitimate Australian retail business
  • The item must be identical (same brand, model number and specifications)
  • The product must be brand new and currently in stock
  • The price must be publicly advertised (not a private quote or member-only offer)
  • The advertised price must include GST
  • Shipping costs must be included in the total comparison
  • The competitor must supply Australian warranty support

Exclusions

Our Price Beat Guarantee does not apply to:

  • Dropshippers or intermediary sellers who do not physically stock the product
  • Sellers operating without a verifiable Australian retail presence
  • Businesses with no registered retail location or identifiable trading address
  • Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
  • Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
  • Refurbished, used or open-box items
  • Pricing errors or misprints
  • Bundle deals, bonus offers or cashback promotions
  • Trade, bulk or special contract pricing

Important Conditions

  • Price Beat requests must be approved prior to purchase
  • Approved offers are valid for 24 hours only
  • Civic Electronic reserves the right to verify reseller authorisation status
  • We reserve the right to decline requests that do not meet the above criteria
  • This policy may be modified or withdrawn at any time without notice

Why Buy From Civic Electronic?

  • 100% Genuine Products
  • Authorised Australian Reseller
  • Local Australian Warranty
  • Real Stock, Not Dropshipped
  • Expert Technical Support
  • Fast & Secure Dispatch
