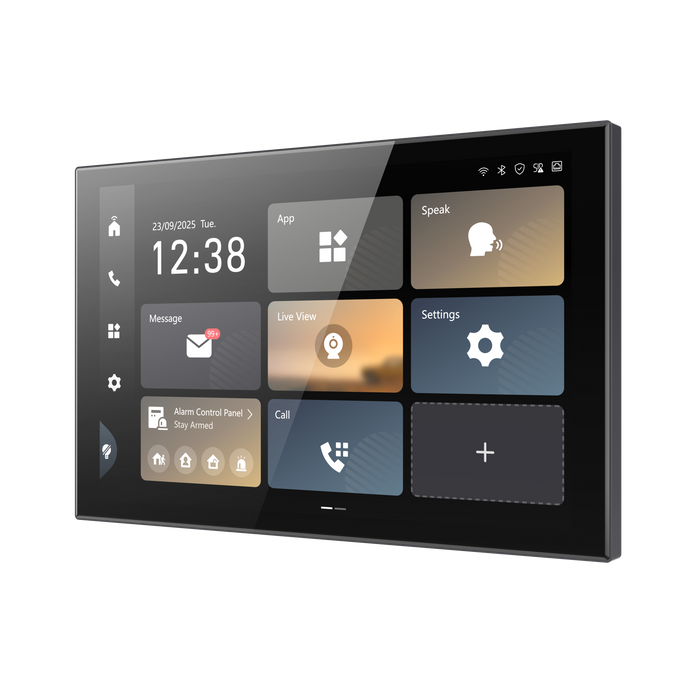

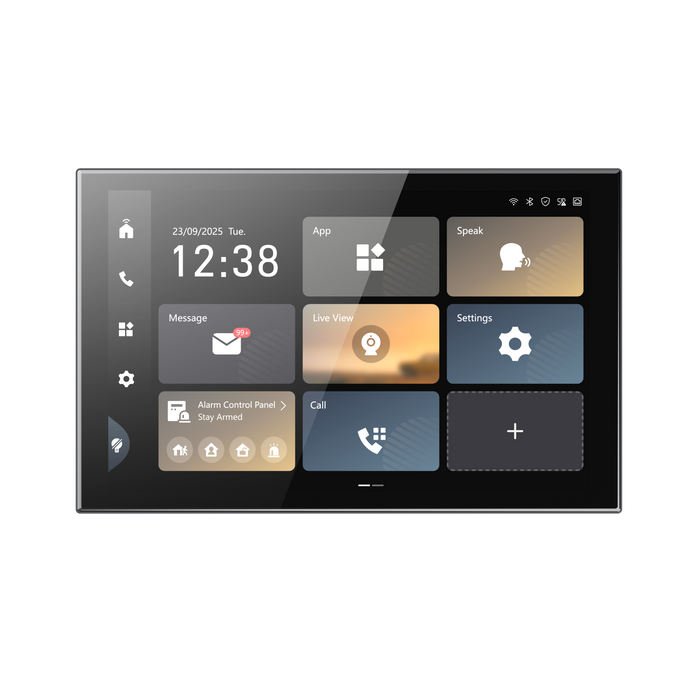

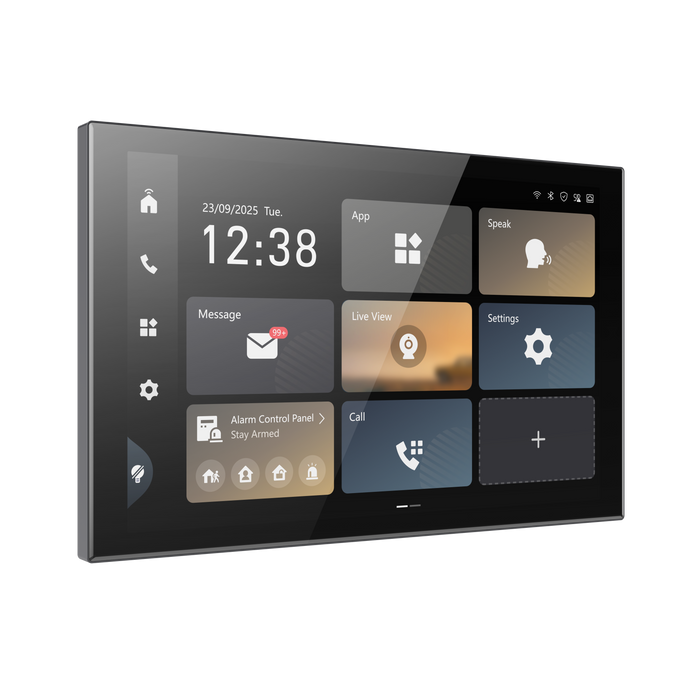

Hikvision DS-KH9570-WTE1 10.1-Inch Android 14 IP Video Intercom Indoor Station – 9 Series
The Hikvision DS-KH9570-WTE1 is a premium 9 Series IP video intercom indoor station featuring a large 10.1-inch high-resolution IPS touchscreen, Android 14 operating system and integrated smart security management.
Designed for professional residential and commercial security installations, this advanced indoor monitor combines video intercom communication, compatible CCTV camera viewing and supported security system controls through one convenient touchscreen interface.
The impressive 1920 × 1200 display resolution delivers sharp images and detailed video intercom monitoring, making it suitable for modern homes, apartments, offices and premium commercial environments.
Powered by Android 14 and a high-performance four-core processor, the DS-KH9570-WTE1 provides responsive touchscreen operation and an advanced platform for compatible security applications.
With 4GB RAM and 8GB ROM, the indoor station supports its integrated management interface and compatible application functionality.
The station features two built-in omnidirectional microphones and two integrated loudspeakers, providing convenient two-way communication with visitors through compatible Hikvision IP door stations.
Advanced noise suppression and echo cancellation improve communication clarity in supported intercom environments.
The large colour IPS capacitive touchscreen provides an intuitive interface for answering visitor calls, viewing connected entrances and accessing supported security functions.
The DS-KH9570-WTE1 supports integration with compatible Hikvision IP video intercom systems, making it suitable for professionally designed residential and commercial installations.
With support for up to 17 linked doorphones, the station offers flexibility for installations requiring multiple compatible entrance stations.
The system also supports up to 15 linked indoor extensions, providing additional flexibility for compatible multi-room or multi-station installations.
For CCTV integration, the indoor station supports linking up to 16 compatible network cameras, subject to the system's supported video decoding capacity.
Its simultaneous camera decoding capacity is limited to up to four compatible 1080p streams, depending on system configuration.
Integrated Wi-Fi 6 connectivity supports both 2.4GHz and 5GHz wireless networks, providing flexible networking options.
The station also features a dedicated 10/100Mbps Ethernet interface for reliable wired network integration.
Support for IEEE 802.3at PoE allows the indoor station to receive power through a compatible PoE network connection, helping simplify installation.
Alternatively, the station supports a compatible 12V DC power supply.
Bluetooth Low Energy 5.0 support provides additional connectivity options for supported functions and integrations.
A built-in TF card slot supports compatible memory cards up to 256GB, providing additional local storage capabilities for supported applications.
The indoor station also provides professional integration interfaces, including reserved alarm inputs, a reserved relay output and an RS-485 connection.
A proximity sensor supports convenient touchscreen interaction when someone approaches the station.
For compatible integrated security installations, the Android-based interface can provide a central control point for supported video intercom, surveillance and other Hikvision security functions.
The DS-KH9570-WTE1 is particularly suitable for customers seeking a premium indoor video intercom monitor with a large touchscreen, modern operating system and flexible integration capabilities.
Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.
Important: This listing is for the indoor station only. Compatible door stations, PoE switches, power supplies, electric locks, network cameras and installation accessories are not included unless specifically stated.
2-Year Australian Warranty on eligible Hikvision intercom products, subject to applicable warranty terms.
Key Features
-
Hikvision 9 Series: Premium IP video intercom indoor station.
-
10.1-Inch Touchscreen: Large colour IPS display.
-
1920 × 1200 Resolution: High-resolution visual clarity.
-
Android 14: Modern Android operating system.
-
Four-Core Processor: Responsive system operation.
-
4GB RAM: Supports the integrated management interface.
-
8GB ROM: Internal system storage.
-
Integrated Security Management: Centralised access to compatible functions.
-
Video Intercom Communication: Communicate with compatible Hikvision door stations.
-
Dual Microphones: Two built-in omnidirectional microphones.
-
Dual Loudspeakers: Two integrated speakers.
-
Noise Suppression: Improved voice communication clarity.
-
Echo Cancellation: Enhanced two-way intercom audio.
-
Wi-Fi 6: Modern wireless network connectivity.
-
Dual-Band Wi-Fi: Supports 2.4GHz and 5GHz networks.
-
BLE 5.0: Bluetooth Low Energy support.
-
Ethernet Interface: 10/100Mbps wired network connection.
-
IEEE 802.3at PoE: Power through compatible PoE infrastructure.
-
12V DC Support: Alternative compatible power connection.
-
Up to 17 Linked Doorphones: Multiple compatible entrance connections.
-
Up to 15 Indoor Extensions: Flexible supported station configuration.
-
Up to 16 Linked Network Cameras: Compatible CCTV integration.
-
Camera Live View: View supported linked network cameras.
-
Up to Four 1080p Decoding Streams: Simultaneous compatible camera viewing.
-
TF Card Support: Compatible memory cards up to 256GB.
-
Proximity Sensor: Convenient approach detection.
-
8 Reserved Alarm Inputs: Professional integration interfaces.
-
1 Reserved Relay Output: Additional supported system interface.
-
RS-485 Interface: Professional system connectivity.
-
Compatible Android Applications: Supported application installation and integration.
-
Surface-Mount Design: Suitable for compatible indoor wall installation.
-
Professional Security Integration: Designed for compatible Hikvision systems.
-
Genuine Australian Stock: Supplied by Civic Electronic.
-
2-Year Intercom Warranty: Subject to applicable terms.
Technical Specifications
| Model |
DS-KH9570-WTE1 |
| Manufacturer |
Hikvision |
| Product Series |
9 Series |
| Product Category |
IP Video Intercom Indoor Station |
| Operating System |
Android 14 |
| Processor |
Embedded High-Performance Four-Core Processor |
| RAM |
4GB |
| ROM |
8GB |
| Display Size |
10.1 Inches |
| Display Type |
Colour IPS |
| Touchscreen |
Capacitive Touchscreen |
| Display Resolution |
1920 × 1200 |
| Audio Input |
2 Built-In Omnidirectional Microphones |
| Audio Output |
2 Built-In Loudspeakers |
| Audio Processing |
Noise Suppression and Echo Cancellation |
| Audio Compression |
G.711A / G.711U / G.722.1 / G.726 / Opus / AAC / AAC-LD |
| Audio Volume |
Adjustable |
| Linked Doorphone Capacity |
Up to 17 |
| Linked Indoor Extensions |
Up to 15 |
| Linked Network Cameras |
Up to 16 |
| Simultaneous Camera Decoding |
Up to 4 × 1080p Streams |
| Supported Camera Video Compression |
H.264 / H.265 |
| Wi-Fi |
Wi-Fi 6 |
| Wi-Fi Frequency |
2.4GHz / 5GHz |
| Bluetooth |
BLE 5.0 |
| Network Interface |
1 × RJ45 10/100Mbps |
| Network Protocols |
IPv4 / SIP / HTTP / HTTPS / DNS / RTSP / RTP / TCP / UDP / ICMP / DHCP / ARP |
| Additional Protocol Support |
SADP / ISAPI / ONVIF |
| TF Card Slot |
Supported |
| Maximum TF Card Capacity |
256GB |
| Alarm Inputs |
8 Reserved Inputs |
| Relay Output |
1 Reserved Relay |
| RS-485 Interface |
1 × Half Duplex |
| Power Input |
12V DC / IEEE 802.3at PoE |
| DC Power Specification |
12V DC, 2.5A |
| Power Output |
12V DC, 200mA |
| Maximum Power Consumption |
24W |
| Proximity Sensor |
Supported |
| Proximity Detection Distance |
Approximately 50cm |
| Installation |
Surface Mounting – Confirm Exact Variant |
| Application Environment |
Indoor |
| Operating Temperature |
-10°C to +50°C |
| Operating Humidity |
10% to 90%, Non-Condensing |
| Dimensions |
246.58 × 155.76 × 23.62mm – Surface Variant |
| Australian Warranty |
2 Years, Subject to Applicable Terms |
Detailed Features & Benefits
Premium Hikvision 9 Series Indoor Station
The DS-KH9570-WTE1 belongs to Hikvision's advanced 9 Series indoor station range, designed for integrated IP video intercom and compatible smart security management applications.
Large 10.1-Inch Touchscreen
The spacious touchscreen provides convenient access to visitor communication, supported camera viewing and integrated security functions.
High-Resolution 1920 × 1200 IPS Display
The high-resolution IPS screen provides clear image reproduction and an intuitive visual interface for compatible video intercom applications.
Android 14 Operating System
Android 14 provides a modern operating environment for the station's integrated management functions and supported applications.
Four-Core Processing Performance
The embedded four-core processor supports responsive operation of the indoor station's touchscreen interface and compatible security functions.
4GB RAM and 8GB ROM
The station features 4GB RAM and 8GB internal ROM for its operating system, management interface and supported application requirements.
Integrated Smart Security Management
The indoor station can provide a central interface for compatible Hikvision video intercom, network camera and other supported security integrations.
Two-Way Video Intercom Communication
When connected to a compatible Hikvision IP door station, the monitor allows users to answer visitor calls and communicate through its integrated audio system.
Dual Omnidirectional Microphones
Two built-in microphones support clear voice pickup during compatible intercom conversations.
Dual Integrated Loudspeakers
Two built-in loudspeakers provide convenient audio communication without requiring a separate speaker.
Noise Suppression and Echo Cancellation
Integrated audio processing helps improve voice clarity and reduce unwanted noise during supported two-way conversations.
Wi-Fi 6 Wireless Connectivity
Wi-Fi 6 support provides modern wireless networking capabilities on compatible 2.4GHz and 5GHz networks.
Wired Ethernet Connectivity
The 10/100Mbps Ethernet interface provides a dedicated wired connection for compatible network installations.
IEEE 802.3at PoE Power
Power over Ethernet support allows the station to receive power through a compatible PoE connection, helping reduce separate power cabling requirements.
Alternative 12V DC Power
A compatible 12V DC power supply may be used where PoE infrastructure is not available.
Bluetooth Low Energy 5.0
BLE 5.0 support provides connectivity for supported Bluetooth-based functions and compatible integrations.
Multiple Door Station Support
The indoor station supports up to 17 linked doorphones, making it suitable for professionally designed systems with multiple compatible entrances.
Indoor Extension Support
Support for up to 15 linked indoor extensions provides flexibility for compatible multi-room and multi-station configurations.
Compatible CCTV Camera Integration
Up to 16 compatible network cameras can be linked to the station, allowing supported camera viewing through the touchscreen interface.
Four-Stream Camera Decoding
The station supports decoding up to four compatible 1080p camera streams simultaneously. This decoding limit is separate from the maximum number of linked cameras.
TF Card Expansion
A TF card slot supports compatible memory cards up to 256GB for supported local storage functions.
Security Event Records
The station supports local records for captured pictures, alarms, unlocking activity and tamper events, subject to the system's available functions and configuration.
Proximity Sensor
The integrated proximity sensor can detect an approaching person at approximately 50cm, supporting convenient touchscreen interaction.
Professional Integration Interfaces
Reserved alarm inputs, a reserved relay output and an RS-485 interface provide additional connectivity options for supported professional installations.
Compatible Android Application Integration
The Android platform supports selected compatible third-party application installation through manufacturer-supported methods. Application compatibility and permissions must be checked before deployment.
Professional Indoor Installation
The station is intended for indoor use. Confirm the supplied mounting variant and installation accessories before installation.
Ideal Applications
-
Premium Residential Intercom: Large touchscreen visitor communication.
-
Luxury Homes: Centralised access to compatible entrance and security functions.
-
Apartment Installations: Compatible IP video intercom indoor monitoring.
-
Townhouses: Modern touchscreen entrance communication.
-
Commercial Offices: Visitor communication and entrance monitoring.
-
Reception Areas: Convenient indoor video intercom access.
-
Multi-Entrance Properties: Systems with compatible linked door stations.
-
Professional Security Projects: Integrated Hikvision intercom installations.
-
CCTV Integration: Viewing compatible linked network cameras.
-
Multi-Room Installations: Supported indoor extension configurations.
-
Smart Security Management: Centralised compatible system controls.
-
Modern Building Upgrades: Replacement or expansion of compatible IP intercom systems.
Compatibility & Installation
The Hikvision DS-KH9570-WTE1 is designed for compatible Hikvision IP video intercom systems and professionally configured integrated security installations.
Door Station Compatibility: Requires a compatible Hikvision IP door station for visitor video intercom functionality.
Network Cameras: Supports linking up to 16 compatible network cameras.
Camera Decoding: Supports up to four simultaneous compatible 1080p camera streams.
Indoor Extensions: Supports up to 15 linked indoor extensions in compatible configurations.
Linked Doorphones: Supports up to 17 compatible doorphones.
Wired Networking: Includes a 10/100Mbps RJ45 Ethernet interface.
Wireless Networking: Supports Wi-Fi 6 on 2.4GHz and 5GHz networks.
PoE: Requires a compatible IEEE 802.3at PoE power source when using network power.
DC Power: Supports a compatible 12V DC, 2.5A power supply.
Audio: Two integrated microphones and two speakers support compatible intercom communication.
Memory Card: Supports a compatible TF card up to 256GB.
Alarm Interfaces: Includes eight reserved alarm inputs. Supported functionality depends on system configuration.
Relay: Includes one reserved relay output. Verify the intended function and electrical ratings before use.
RS-485: Provides a half-duplex RS-485 interface for supported integrations.
Android Applications: Third-party application support depends on Hikvision's installation methods, software compatibility and deployment requirements.
Mounting: Surface mounting is applicable to the corresponding surface-mount variant. Confirm the exact model suffix and accessories supplied.
Environment: Intended for indoor use only.
Professional Installation: Installation and commissioning by an experienced Hikvision security installer are recommended.
Important: The DS-KH9570-WTE1 is an indoor station, not a complete video intercom kit. A compatible outdoor door station and any required door-release hardware must be supplied separately.
Package Contents
- 1 × Hikvision DS-KH9570-WTE1 10.1-Inch Android 14 IP Indoor Station.
- Manufacturer-supplied standard accessories and documentation applicable to the selected Australian variant.
Important: Outdoor door stations, electric locks, PoE switches, separate power supplies, network cables, TF cards, CCTV cameras and installation services are not included unless specifically stated. Mounting hardware and accessories may differ between model variants.
Frequently Asked Questions
What is the Hikvision DS-KH9570-WTE1?
It is a premium Hikvision 9 Series IP video intercom indoor station with a 10.1-inch touchscreen and Android 14 operating system.
What size is the touchscreen?
The indoor station features a 10.1-inch colour IPS touchscreen.
What is the display resolution?
The display resolution is 1920 × 1200 pixels.
Is this a Full HD indoor monitor?
It provides a 1920 × 1200 high-resolution display, offering more vertical pixels than standard 1920 × 1080 Full HD.
Which Android version does it use?
The DS-KH9570-WTE1 uses Android 14.
What processor does it use?
It features an embedded high-performance four-core processor.
How much RAM does it have?
The station includes 4GB RAM.
How much internal storage does it have?
The station includes 8GB ROM.
Does it support Wi-Fi?
Yes. It supports Wi-Fi 6 on 2.4GHz and 5GHz networks.
Does it support Bluetooth?
Yes. Bluetooth Low Energy 5.0 is supported.
Does it have an Ethernet port?
Yes. It includes one 10/100Mbps RJ45 network interface.
Does it support PoE?
Yes. The indoor station supports IEEE 802.3at PoE.
Can I use a 12V power supply?
Yes. It supports a compatible 12V DC, 2.5A power supply.
Does the indoor station include microphones?
Yes. It includes two built-in omnidirectional microphones.
Does it include speakers?
Yes. It includes two built-in loudspeakers.
Does it support two-way audio?
Yes. It supports two-way communication through compatible Hikvision video intercom systems.
Does it have noise cancellation?
Yes. It supports noise suppression and echo cancellation.
Can I connect multiple door stations?
Yes. The station supports up to 17 linked compatible doorphones.
Can I install additional indoor monitors?
Yes. Compatible configurations support up to 15 linked indoor extensions.
Can I view Hikvision CCTV cameras?
Yes. Up to 16 compatible network cameras can be linked.
Can it display 16 cameras simultaneously?
No. The linked camera capacity is 16, while simultaneous decoding supports up to four compatible 1080p streams.
Does it support H.265 cameras?
Compatible H.264 and H.265 network camera streams are supported.
Does it have a memory card slot?
Yes. It includes a TF card slot.
What is the maximum memory card capacity?
The station supports compatible TF cards up to 256GB.
Does it have a proximity sensor?
Yes. The built-in sensor supports approach detection at approximately 50cm.
Does it support alarm inputs?
It includes eight reserved alarm inputs. Available functions depend on the system configuration.
Does it include a relay?
Yes. It includes one reserved relay output.
Does it support RS-485?
Yes. One half-duplex RS-485 interface is provided.
Can I install Android applications?
Selected compatible Android applications may be installed through manufacturer-supported methods. Compatibility and functionality must be verified.
Does it work with Hikvision IP door stations?
Yes. It is designed for compatible Hikvision IP video intercom systems.
Can I use it without an outdoor door station?
Some supported management functions may be available, but a compatible door station is required for normal visitor intercom operation.
Does this product include an outdoor door station?
No. This listing is for the indoor station only.
Does it include an electric door lock?
No. Electric locks and associated door-release hardware are sold separately unless specifically stated.
Can it unlock a connected entrance?
Door-release functions are available in compatible, correctly configured intercom and access-control installations.
Can it integrate with other Hikvision security products?
Yes. The station supports selected Hikvision security integrations. Compatibility depends on the connected equipment and software.
Is it suitable for commercial installations?
Yes. It is suitable for compatible commercial IP video intercom and integrated security applications.
Is it suitable for luxury homes?
Yes. Its large touchscreen and integrated management functions make it suitable for premium residential installations.
Can it be installed outdoors?
No. It is designed for indoor installation.
Is it surface mounted?
The surface-mount variant supports surface installation. Confirm the exact model suffix before selecting mounting hardware.
What warranty applies in Australia?
Civic Electronic supplies eligible Hikvision intercom products with a two-year Australian warranty, subject to applicable terms.
Where can I buy genuine Australian Hikvision products?
Civic Electronic supplies genuine Australian Hikvision security products and supports professional installers and system integrators.
Why Buy from Civic Electronic?
Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.
We specialise in genuine Australian Hikvision video intercom systems, CCTV equipment, access control and professional security solutions.
- Authorised Hikvision Sales Partner
- Hikvision Training Centre in Sydney, Australia
- Genuine Australian Hikvision Stock
- Official Australian Warranty Support
- Competitive Wholesale and Trade Pricing
- Professional Video Intercom Product Advice
- Installer and System Integrator Support
- Fast Australia-Wide Delivery
- Free Standard Shipping on Eligible Orders of $300 or More
- 2-Hour Click & Collect from Rouse Hill, NSW, Subject to Stock Confirmation
For Hikvision video intercom compatibility, system design, trade pricing or product selection assistance, contact Civic Electronic on 1300 024 842.
Official Hikvision Manufacturer Documentation
Review Hikvision's official Australian product documentation for the DS-KH9570-WTE1 9 Series Android indoor station, including its touchscreen, Android 14 operating system, communication features and professional security integration capabilities.
Download Official Hikvision DS-KH9570-WTE1 Product Brochure (PDF)
View Official Hikvision Australia IP Video Intercom Product Guide (PDF)
Important: The DS-KH9570-WTE1 is an indoor IP video intercom station. Door stations, power accessories, network infrastructure, electric locks and other system components are supplied separately unless specifically stated. Confirm the exact model suffix for mounting requirements and accessories.
