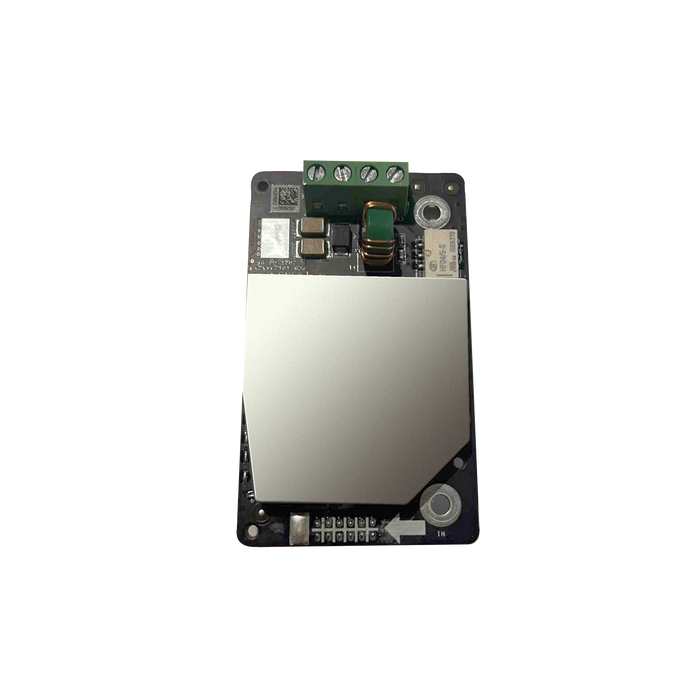

Hikvision DS-PM2-P AX HYBRID PSTN Communication Module

Original price $55.00 - Original price $55.00
Original price
$55.00
$55.00 - $55.00
Current price $55.00
Availability:
in stock, ready to be shipped

Hikvision DS-PM2-P AX HYBRID PRO PSTN Communication Module

The Hikvision DS-PM2-P PSTN Communication Module is a professional telephone-line communication accessory designed for compatible Hikvision AX HYBRID PRO wired intrusion alarm control panels.

Designed to provide a PSTN communication interface, the DS-PM2-P allows supported Hikvision alarm control panels to transmit alarm events using a compatible analogue telephone service and alarm receiving arrangement.

The module supports the Contact ID alarm reporting protocol (SIA DC-05-1999.09), making it suitable for appropriately configured alarm signalling applications.

As part of the Hikvision AX HYBRID PRO alarm system range, the DS-PM2-P provides an additional communication option for compatible control panels requiring telephone-line alarm reporting.

Its compact electronic board design allows integration into supported alarm control panel installations without requiring a separate standalone communication enclosure.

The DS-PM2-P is particularly relevant for maintaining or upgrading compatible existing security installations where a suitable PSTN communication service remains available.

Important: The DS-PM2-P is a PSTN communication module, not a 4G cellular communicator, wireless detector or standalone alarm control panel.

It does not provide an independent alarm monitoring service. Alarm reporting requires a compatible control panel, suitable telephone connection and appropriately configured receiving equipment.

Supplied by Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.

Hikvision DS-PM2-P PSTN Communication Module 2 Year Australian Warranty

2-Year Australian Warranty on Hikvision alarm equipment supplied by Civic Electronic, subject to applicable warranty terms.

Key Features

  • Hikvision AX HYBRID PRO Compatibility: Designed for supported AX HYBRID PRO alarm control panels.
  • PSTN Communication: Provides an interface for compatible telephone-line alarm reporting.
  • Contact ID Protocol: Supports Contact ID (SIA DC-05-1999.09).
  • Alarm Event Reporting: Enables supported alarm signalling through an appropriately configured telephone connection.
  • Compact Module: Small electronic board designed for integration into compatible alarm control panels.
  • Low Power Consumption: Manufacturer-specified total power consumption of 0.36W.
  • Professional Alarm Integration: Suitable for compatible wired intrusion alarm installations.
  • Existing System Applications: Useful where supported AX HYBRID PRO systems require PSTN communication.
  • Indoor Installation: Intended for installation within suitable protected equipment locations.
  • Contact ID Alarm Receiver Support: Requires compatible receiving equipment and configuration.
  • Manufacturer-Documented Compatibility: Listed in Hikvision's AX HYBRID PRO product documentation.
  • Professional Installation: Intended for installation and configuration by qualified security technicians.
  • Genuine Hikvision Product: Supplied through Civic Electronic's Australian security equipment distribution business.
  • Australian Warranty: 2-year warranty, subject to applicable terms.

Technical Specifications

Brand Hikvision
Model DS-PM2-P
Product Type PSTN Communication Module
Product Series AX HYBRID PRO
Compatible System Supported Hikvision AX HYBRID PRO Control Panels
Communication Type PSTN
Communication Interface Compatible Analogue Telephone Service
Alarm Reporting Protocol Contact ID (SIA DC-05-1999.09)
Power Consumption 0.36W Total
5V Power Consumption 0.21W
3.3V Power Consumption 0.15W
Operating Temperature -10°C to +40°C
Operating Humidity 10% to 90%
Board Dimensions 44.10 × 74.06mm
Weight 43.5g
Installation Environment Indoor / Suitable Control Panel Enclosure
4G Cellular Communication Not Supported by This Module
Wi-Fi Communication Not Provided by This Module
Standalone Operation No – Compatible Alarm Control Panel Required
Alarm Monitoring Service Not Included
Installation Professional Installation Recommended
Australian Warranty 2 Years, Subject to Applicable Terms

Detailed Features & Benefits

Designed for Hikvision AX HYBRID PRO Alarm Systems

The DS-PM2-P is designed for compatible Hikvision AX HYBRID PRO wired alarm control panels.

It provides a dedicated PSTN communication interface for supported intrusion alarm installations.

Compatibility should be confirmed against the exact control panel model and firmware version before installation.

PSTN Telephone-Line Alarm Communication

The module enables compatible alarm panels to use a suitable analogue telephone service for supported alarm event reporting.

This can be useful in existing security installations where telephone-line alarm communication is required and an appropriate service remains available.

Contact ID Alarm Reporting

The DS-PM2-P supports the Contact ID protocol (SIA DC-05-1999.09).

Contact ID is an established alarm reporting format used by compatible alarm receiving equipment.

Successful reporting depends on the control panel configuration, telephone service and receiving equipment.

Compact Electronic Board Design

With manufacturer-specified board dimensions of 44.10 × 74.06mm, the DS-PM2-P is designed for integration into compatible alarm control panel installations.

Its compact format makes it suitable for supported AX HYBRID PRO equipment configurations.

Low Power Consumption

The module has a specified total power consumption of 0.36W.

This includes manufacturer-listed consumption of 0.21W at 5V and 0.15W at 3.3V.

Suitable for Existing Alarm System Maintenance

The DS-PM2-P can be used in supported AX HYBRID PRO installations requiring a compatible PSTN communication module.

Installers should verify the existing alarm control panel, communication requirements and telephone service before ordering.

Professional Alarm Signalling Applications

When correctly installed and configured, the module provides a communication path for supported alarm event reporting.

A compatible receiving arrangement is required. The module does not independently provide monitoring, emergency response or alarm dispatch services.

Important Australian Telephone Network Considerations

Traditional PSTN telephone services have been progressively replaced by newer telecommunications infrastructure across Australia.

Not all modern telephone services, NBN voice connections or analogue telephone adapters support reliable alarm dialler communication.

Before selecting the DS-PM2-P, confirm that the available telephone service supports the intended alarm reporting method.

Where appropriate, consider a compatible alternative communication module recommended by Hikvision and the system installer.

Professional Installation and Testing

Correct installation is essential for reliable alarm reporting.

Installers should verify control panel compatibility, communication configuration and successful test reporting to the intended alarm receiver.

2-Year Australian Warranty

Hikvision alarm equipment supplied by Civic Electronic includes a 2-year Australian warranty, subject to applicable warranty terms.

Ideal Applications

  • AX HYBRID PRO Alarm Systems: Compatible PSTN communication installations.
  • Existing Security Systems: Maintenance of supported telephone-line alarm communication equipment.
  • Commercial Security: Compatible wired intrusion alarm installations.
  • Office Alarm Systems: Supported telephone-line alarm reporting requirements.
  • Retail Security: Compatible alarm signalling installations.
  • Residential Alarm Systems: Supported AX HYBRID PRO installations.
  • Security System Upgrades: Compatible communication module replacements.
  • Professional Alarm Installations: Projects requiring supported Contact ID reporting.

Compatibility & Installation

Manufacturer: Hikvision.

Module: DS-PM2-P.

Compatible Platform: Hikvision AX HYBRID PRO.

Communication: PSTN telephone-line communication.

Reporting Protocol: Contact ID (SIA DC-05-1999.09).

Compatible Panels: Supported AX HYBRID PRO control panels, subject to manufacturer compatibility requirements.

AX PRO Wireless Hub Compatibility: This module is not intended for AX PRO wireless control panels.

Telephone Service: A suitable compatible analogue telephone service is required.

Alarm Receiving Equipment: Must support the configured alarm reporting method.

Installation: Professional installation and commissioning recommended.

Recommended Installation Procedure

  • Confirm the exact Hikvision AX HYBRID PRO control panel model.
  • Check the manufacturer's compatibility documentation.
  • Verify that the existing telephone service supports the required alarm communication.
  • Confirm compatibility with the intended alarm receiving equipment.
  • Isolate power from the alarm control panel according to manufacturer instructions.
  • Install the DS-PM2-P in the supported control panel location.
  • Connect the module according to Hikvision's installation documentation.
  • Configure the supported PSTN communication settings.
  • Configure the required Contact ID reporting parameters.
  • Restore power and confirm that the control panel recognises the module.
  • Perform alarm communication tests with the intended receiver.
  • Confirm successful alarm event reporting.
  • Document the installation and communication test results.

Important: Do not assume that an NBN voice service or telephone adapter will support alarm signalling without testing and confirmation from the relevant service provider.

Package Contents

  • 1 × Hikvision DS-PM2-P AX HYBRID PRO PSTN Communication Module

Note: The alarm control panel, telephone service, installation and alarm receiving services are not included. Refer to the manufacturer's packaging information for any supplied installation accessories.

Frequently Asked Questions

What is the Hikvision DS-PM2-P?

The Hikvision DS-PM2-P is a PSTN communication module designed for compatible AX HYBRID PRO alarm control panels.

What does PSTN mean?

PSTN stands for Public Switched Telephone Network, referring to traditional telephone-line communication.

Which Hikvision alarm systems support this module?

The module is intended for supported Hikvision AX HYBRID PRO control panels.

Does the DS-PM2-P work with Hikvision AX PRO wireless hubs?

No. It is intended for the AX HYBRID PRO platform rather than AX PRO wireless control panels.

Does the module support Contact ID?

Yes. It supports Contact ID (SIA DC-05-1999.09).

Can it transmit alarm events over a telephone line?

Yes, when installed in a compatible control panel and connected to a suitable telephone service and alarm receiving arrangement.

Does the module provide 4G communication?

No. The DS-PM2-P is a PSTN communication module, not a cellular communicator.

Does it provide Wi-Fi connectivity?

No. Wi-Fi communication is not provided by this module.

Does it require an alarm control panel?

Yes. The DS-PM2-P is an accessory for compatible AX HYBRID PRO control panels and cannot operate as a standalone alarm system.

Can the module work with an NBN telephone connection?

Compatibility depends on the telephone service, equipment and alarm signalling requirements. Confirm support and perform communication testing before relying on an NBN-based voice connection.

Is a telephone service included?

No. A suitable telephone service must be arranged separately.

Does the module include professional alarm monitoring?

No. Professional monitoring and alarm response services are not included.

Does Civic Electronic provide alarm monitoring?

No. Civic Electronic does not provide alarm monitoring services.

What is the module's power consumption?

The manufacturer specifies a total power consumption of 0.36W.

What are the module dimensions?

44.10 × 74.06mm.

How much does the module weigh?

Approximately 43.5g.

What is the operating temperature range?

-10°C to +40°C.

Is the module suitable for outdoor installation?

The module is intended for installation in a suitable protected environment within compatible alarm equipment.

Can it be used to replace an existing PSTN module?

Yes, where the replacement is compatible with the exact control panel and communication requirements.

Is professional installation recommended?

Yes. Installation and alarm communication testing should be completed by a qualified security technician.

What should I check before purchasing?

Confirm the alarm panel model, module compatibility, available telephone service and required alarm receiving protocol.

Does the DS-PM2-P include a control panel?

No. This listing is for the PSTN communication module only.

Can it automatically contact emergency services?

No such capability should be assumed. Alarm reporting depends on the configured receiving arrangement and does not automatically provide emergency service dispatch.

What warranty applies?

Hikvision alarm equipment supplied by Civic Electronic includes a 2-year Australian warranty, subject to applicable warranty terms.

Where can I buy the Hikvision DS-PM2-P in Australia?

Civic Electronic supplies genuine Australian Hikvision security equipment and supports professional security installers nationwide.

Why Buy from Civic Electronic?

Civic Electronic is an Australian security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We specialise in genuine Australian Hikvision and HiLook security products, including alarm systems, CCTV equipment, video intercoms and professional security accessories.

  • Authorised Hikvision Sales Partner: Genuine Australian Hikvision equipment.
  • Hikvision Training Centre: Professional product knowledge and installer training.
  • 2-Year Australian Alarm Warranty: Warranty support for eligible Hikvision alarm equipment.
  • Competitive Trade Pricing: Wholesale opportunities for eligible security installers.
  • Technical Support: Assistance with compatible Hikvision alarm equipment selection.
  • Professional Installer Support: Support for security technicians and system integrators.
  • Australia-Wide Delivery: Shipping available throughout Australia.
  • Free Standard Shipping: Available on eligible orders of $300 or more.
  • 2-Hour Click & Collect: Available from Rouse Hill, subject to stock confirmation.

For Hikvision AX HYBRID PRO alarm modules and compatible security equipment, contact Civic Electronic on 1300 024 842.

Official Hikvision Manufacturer Documentation

Review Hikvision's official documentation for the DS-PM2-P PSTN communication module and AX HYBRID PRO alarm system compatibility.

Download Official Hikvision DS-PM2-P Datasheet (PDF)

View Official Hikvision Australia AX HYBRID PRO Brochure (PDF)

Important: Confirm control panel compatibility, telephone service availability and alarm receiver requirements before installation. The DS-PM2-P does not include an alarm monitoring service.

Genuine Product Assurance, We are officially an authorized reseller of Hikvision

Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.

Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.

1. Free and Express Shipping

  • Free Standard Shipping applies to all orders valued at $300 or more.
  • Express Shipping is available for an additional $65 per order.

Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:

Australia Post Coverage

2. Order Processing

  • Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
  • Orders are processed Monday to Friday, excluding weekends and public holidays.
  • Tracking information will be provided via email after 11:00 AM on the day the order is shipped.

All orders are dispatched using the most efficient postage method available to ensure timely delivery.

3. Delivery Timeframes

  • Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
  • Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
  • Standard Shipping: Please allow up to 10 business days from dispatch.

If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.

4. Delivery Requirements and Limitations

  • All deliveries require a signature upon receipt.
  • Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
  • If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
  • We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.

Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.

We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.

If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.

5. Tracking Your Order

Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.

To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.

6. Additional Information

We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.

Price Beat Guarantee

At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.

How It Works

If you find a cheaper price, simply:

  1. Provide a link to the competitor's advertised product
  2. Confirm the seller is an authorised Australian reseller
  3. Submit your request before placing your order

Our team will verify the details and respond promptly.

Eligibility Requirements

To qualify for our Price Beat Guarantee, the following conditions must be met:

  • The competitor must be an authorised Australian reseller
  • The seller must operate as a legitimate Australian retail business
  • The item must be identical (same brand, model number and specifications)
  • The product must be brand new and currently in stock
  • The price must be publicly advertised (not a private quote or member-only offer)
  • The advertised price must include GST
  • Shipping costs must be included in the total comparison
  • The competitor must supply Australian warranty support

Exclusions

Our Price Beat Guarantee does not apply to:

  • Dropshippers or intermediary sellers who do not physically stock the product
  • Sellers operating without a verifiable Australian retail presence
  • Businesses with no registered retail location or identifiable trading address
  • Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
  • Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
  • Refurbished, used or open-box items
  • Pricing errors or misprints
  • Bundle deals, bonus offers or cashback promotions
  • Trade, bulk or special contract pricing

Important Conditions

  • Price Beat requests must be approved prior to purchase
  • Approved offers are valid for 24 hours only
  • Civic Electronic reserves the right to verify reseller authorisation status
  • We reserve the right to decline requests that do not meet the above criteria
  • This policy may be modified or withdrawn at any time without notice

Why Buy From Civic Electronic?

  • 100% Genuine Products
  • Authorised Australian Reseller
  • Local Australian Warranty
  • Real Stock, Not Dropshipped
  • Expert Technical Support
  • Fast & Secure Dispatch
