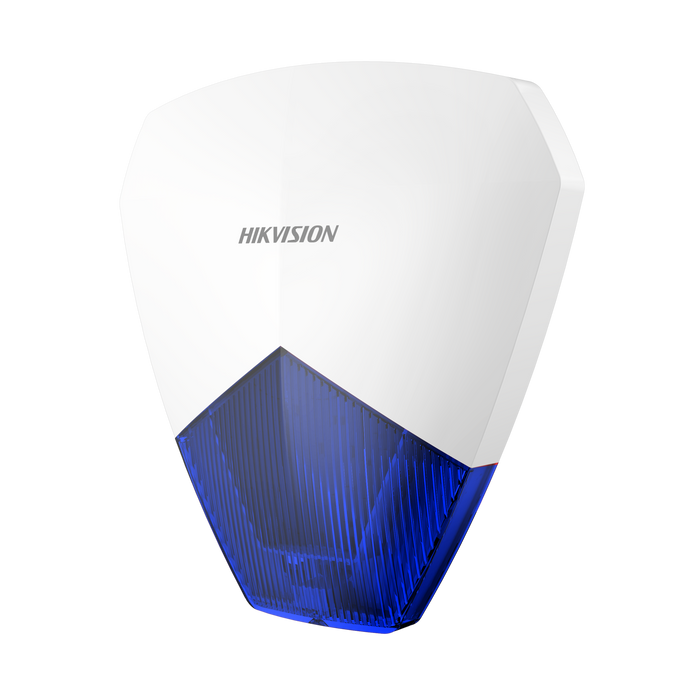

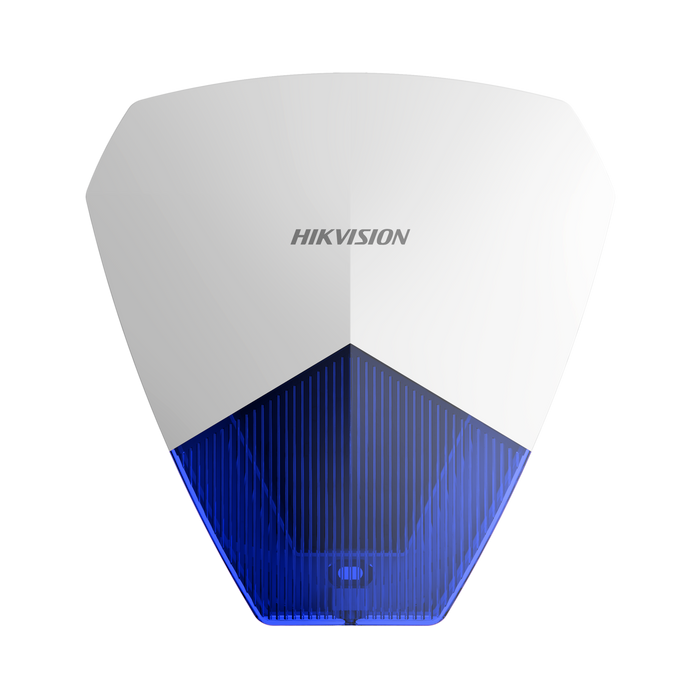

Hikvision DS-PS1-B AX HYBRID PRO 105dB Wired Indoor Alarm Sounder with LED Indicator

Original price $34.00 - Original price $34.00
Original price
$34.00
$34.00 - $34.00
Current price $34.00
Availability:
in stock, ready to be shipped

Hikvision DS-PS1-B AX HYBRID PRO 105dB Wired Alarm Sounder with LED Indicator

The Hikvision DS-PS1-B AX HYBRID PRO Wired Sounder is a compact, high-performance audible and visual alarm signalling device designed for compatible Hikvision wired and hybrid intrusion alarm systems.

Featuring a powerful 105dB sound output measured at 30cm, integrated LED flashing indication and an IP54-rated protective housing, the DS-PS1-B provides an effective alarm warning solution for residential and commercial security installations.

Designed for professional security installers, this wired alarm sounder connects to a compatible alarm control panel and operates from an 8–16V DC power supply, with 12V DC being the typical operating voltage.

Unlike wireless alarm sirens, the DS-PS1-B does not require wireless pairing, radio communication or independent battery maintenance. Instead, it uses a wired connection to a suitable alarm control panel or compatible power and output arrangement.

The Hikvision DS-PS1-B combines audible alarm signalling and LED flashing indication in a compact enclosure, allowing both functions to be configured separately through an appropriate wired installation.

This flexibility makes it suitable for security installations requiring an audible alarm, visual warning or both functions together.

Its IP54 protection rating provides resistance to limited dust ingress and water splashes, allowing installation indoors or in appropriately sheltered outdoor locations.

For outdoor installations, professional installers should select a suitable protected mounting location and avoid areas exposed to direct heavy rain, pressure washing or prolonged water exposure.

The sounder features a durable PC+ABS plastic housing, measuring just 140 × 134 × 33mm and weighing approximately 185g.

Its compact design makes it suitable for installation in homes, offices, retail premises, warehouses, commercial buildings and other properties requiring wired intrusion alarm notification.

The DS-PS1-B is particularly suitable for compatible Hikvision AX HYBRID PRO alarm systems, including professionally installed wired and hybrid security applications.

It can also be considered for other compatible wired alarm control panels, provided the required operating voltage, output configuration and current capacity are supported.

Important: The DS-PS1-B is a wired alarm sounder, not a wireless AX PRO siren. It requires suitable electrical connections and cannot communicate directly with a wireless alarm hub.

Supplied by Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.

Product Notice: This listing is for the Hikvision DS-PS1-B wired sounder only. Alarm control panels, cabling, external power supplies and monitoring services are not included.

Hikvision DS-PS1-B AX HYBRID PRO Wired Sounder 2-Year Australian Warranty

2-Year Australian Warranty on eligible Hikvision alarm equipment supplied by Civic Electronic, subject to applicable warranty terms.

Key Features

  • Genuine Hikvision Wired Sounder: Designed for compatible wired and hybrid intrusion alarm systems.
  • AX HYBRID PRO Applications: Suitable for compatible Hikvision AX HYBRID PRO installations.
  • Powerful 105dB Alarm Output: Audible sound pressure measured at 30cm.
  • Integrated LED Indicator: Provides visual flashing alarm notification.
  • Independent Sound and LED Control: Audible and visual indications can be configured separately with suitable wiring and outputs.
  • Wired Alarm Connection: Connects to a compatible wired alarm control panel.
  • 8–16V DC Operation: Supports a suitable low-voltage DC power supply.
  • 12V DC Typical Supply: Designed for standard compatible alarm panel power arrangements.
  • IP54 Protection: Protection against limited dust ingress and water splashes.
  • Indoor Installation: Suitable for internal alarm warning applications.
  • Sheltered Outdoor Installation: Suitable for appropriately protected external mounting locations.
  • Compact Housing: Measures 140 × 134 × 33mm.
  • Lightweight Construction: Approximately 185g.
  • Durable PC+ABS Housing: Designed for professional security applications.
  • Blue Housing: Manufacturer-specified blue enclosure.
  • Wide Operating Temperature: Supports -20°C to +60°C.
  • Professional Installation: Designed for installation by qualified security technicians.
  • No Wireless Pairing: Uses wired electrical connections rather than wireless communication.
  • No Internal Battery Requirement: Operates from a suitable wired DC supply.
  • Residential and Commercial Applications: Suitable for compatible home and business alarm systems.
  • Genuine Australian Stock: Supplied by Civic Electronic.
  • 2-Year Australian Warranty: Subject to applicable warranty terms.

Technical Specifications

Brand Hikvision
Model DS-PS1-B
Product Series AX HYBRID / AX HYBRID PRO Applications
Product Type Wired Alarm Sounder with LED Indicator
Connection Type Wired
Compatible Equipment Suitable Wired Alarm Control Panels
Sound Pressure 105dB at 30cm
Visual Indication LED Flashing Indicator
Sound and LED Control Separately Configurable
Power Supply 8–16V DC
Typical Operating Voltage 12V DC
Maximum Supply Current 0.22A, According to Manufacturer Datasheet
Quiescent Power Consumption 0.96W, According to Manufacturer Datasheet
IP Protection Rating IP54
Operating Temperature -20°C to +60°C
Operating Humidity 10% to 90%
Housing Material PC+ABS Plastic
Housing Colour Blue
Dimensions (W × H × D) 140 × 134 × 33mm
Weight 185g
Installation Environment Indoor or Appropriately Sheltered Outdoor
Wireless Communication Not Applicable
Battery Operation No Internal Battery Required
Installation Professional Wired Alarm Installation
Alarm Control Panel Included No
Australian Warranty 2 Years, Subject to Applicable Terms

Detailed Features & Benefits

Powerful 105dB Audible Alarm Warning

The Hikvision DS-PS1-B delivers an audible alarm sound pressure of 105dB measured at a distance of 30cm.

This powerful output helps alert occupants and nearby personnel when the connected intrusion alarm system activates.

The sounder can also provide an audible deterrent as part of a professionally designed security installation.

Integrated LED Flashing Indicator

In addition to its audible alarm output, the DS-PS1-B incorporates an LED flashing indicator.

This provides a visual warning when activated through the appropriate alarm panel output.

Visual indication can help draw attention to an alarm event and complement the audible sounder.

Independent Sound and LED Operation

A key feature of the DS-PS1-B is its ability to support separate configuration of the audible sounder and LED flashing indication.

With suitable wiring and compatible alarm outputs, installers can configure the sound and LED functions according to the security system requirements.

This flexibility makes the sounder suitable for a variety of professional alarm signalling applications.

Designed for Wired and Hybrid Alarm Systems

The DS-PS1-B is designed to connect to a compatible wired alarm control panel.

It is suitable for selected Hikvision AX HYBRID and AX HYBRID PRO alarm installations where the panel supports the required sounder power and output arrangement.

Compatibility must be confirmed against the exact control panel model and its electrical specifications.

Reliable Wired Connection

Unlike wireless alarm sirens, the DS-PS1-B uses a physical electrical connection to the alarm control panel.

This eliminates the need for wireless device enrolment and radio communication.

Correct cabling, polarity, power supply capacity and output configuration are essential for reliable operation.

8–16V DC Power Supply

The sounder operates from an 8–16V DC supply, with 12V DC being the typical operating voltage.

This makes it suitable for compatible low-voltage alarm systems.

Installers must ensure the selected control panel or power supply can provide the required current without exceeding its rated output capacity.

IP54 Protective Housing

The DS-PS1-B features an IP54-rated enclosure.

This provides protection against limited dust ingress and water splashes, making it suitable for indoor installations and appropriately sheltered outdoor applications.

The sounder should not be treated as fully waterproof or installed in locations exposed to direct high-pressure water or prolonged heavy rain.

Wide Operating Temperature Range

The sounder supports operating temperatures from -20°C to +60°C.

This provides flexibility for suitable residential and commercial alarm installations across different environmental conditions.

Durable PC+ABS Construction

The housing is manufactured from PC+ABS plastic, providing a lightweight and durable enclosure.

The compact construction is suitable for professional security installations requiring a discreet alarm warning device.

Compact 140 × 134 × 33mm Design

The DS-PS1-B measures 140 × 134 × 33mm and weighs approximately 185g.

Its compact profile makes it suitable for mounting in a variety of protected residential and commercial locations.

Residential Security Applications

The sounder can be used in compatible residential alarm systems to provide audible and visual notification of intrusion events.

Typical applications include homes, apartments, garages and other protected areas.

Commercial Security Applications

The DS-PS1-B is also suitable for compatible commercial alarm installations.

It can be used in offices, retail premises, warehouses and other business environments requiring wired alarm signalling.

Professional Alarm System Expansion

The sounder can be used when installing or upgrading compatible wired intrusion alarm systems.

Additional sounders may be supported depending on the available alarm outputs, power supply capacity and installation design.

2-Year Australian Warranty

The Hikvision DS-PS1-B supplied by Civic Electronic includes a 2-year Australian alarm equipment warranty, subject to applicable warranty terms.

Ideal Applications

  • Residential Homes: Audible and visual intrusion alarm notification.
  • Apartments: Compact wired alarm sounder installation.
  • Offices: Internal or suitably sheltered external alarm warning.
  • Retail Stores: Audible alarm signalling with LED indication.
  • Commercial Buildings: Wired intrusion alarm notification.
  • Warehouses: Additional alarm warning devices.
  • Garages: Compatible wired alarm applications.
  • AX HYBRID PRO Systems: Sounder integration with compatible Hikvision hybrid alarm panels.
  • Alarm System Upgrades: Replacement or additional wired sounder installations.
  • Professional Security Installers: Wired intrusion alarm projects.

Compatibility & Installation

Manufacturer: Hikvision.

Model: DS-PS1-B.

Product Type: Wired alarm sounder with LED flashing indicator.

Compatible Systems: Suitable wired and hybrid intrusion alarm control panels.

AX HYBRID PRO Compatibility: Requires a compatible wired output and sufficient power supply capacity.

Power Supply: 8–16V DC.

Typical Voltage: 12V DC.

Maximum Supply Current: 0.22A according to the manufacturer datasheet.

Sound Pressure: 105dB at 30cm.

Visual Indication: LED flashing indicator.

Installation Environment: Indoor or appropriately sheltered outdoor.

Protection Rating: IP54.

Installation: Professional installation recommended.

Recommended Installation Procedure

  • Confirm compatibility with the exact wired or hybrid alarm control panel.
  • Review the Hikvision DS-PS1-B manufacturer documentation.
  • Verify that the control panel supports the required 8–16V DC supply.
  • Confirm sufficient power supply and alarm output current capacity.
  • Determine whether the sound and LED indications will operate together or separately.
  • Select a suitable indoor or sheltered outdoor mounting location.
  • Ensure the mounting location provides appropriate audible and visual coverage.
  • Confirm that the installation surface is suitable for secure mounting.
  • Check for concealed electrical wiring and other services before drilling.
  • Isolate the alarm system power supply before making electrical connections.
  • Install the sounder according to the manufacturer's mounting instructions.
  • Route suitable low-voltage alarm cabling to the sounder.
  • Connect the sounder to the appropriate compatible alarm outputs.
  • Observe the manufacturer's wiring and polarity requirements.
  • Configure the sound and LED functions as required.
  • Restore power to the alarm system.
  • Verify that the sounder operates correctly.
  • Test the audible alarm output.
  • Test the LED flashing indication.
  • Verify the intended alarm activation and reset behaviour.
  • Complete final system commissioning.

Important: Do not connect the DS-PS1-B directly to mains electricity. It is a low-voltage DC device and must be connected according to the manufacturer's wiring instructions.

Power Supply Notice: The alarm panel's output and power supply capacity must be checked before installation. Incorrect wiring or insufficient power may cause malfunction or damage.

Package Contents

  • 1 × Hikvision DS-PS1-B AX HYBRID PRO Wired Alarm Sounder with LED Indicator

Package Contents Notice: This listing is for the wired sounder only. Alarm control panels, external power supplies, cabling and monitoring services are not included. Confirm supplied mounting accessories against the manufacturer's packaging.

Frequently Asked Questions

What is the Hikvision DS-PS1-B?

The DS-PS1-B is a wired alarm sounder with an integrated LED flashing indicator designed for compatible intrusion alarm systems.

Is the DS-PS1-B compatible with Hikvision AX HYBRID PRO?

It is suitable for compatible AX HYBRID PRO installations that support the required wired sounder outputs and power supply specifications.

Is this a wired or wireless alarm sounder?

The DS-PS1-B is a wired alarm sounder.

Does it work with a wireless AX PRO hub?

Not directly. It requires a compatible wired alarm output and suitable DC power supply.

How loud is the DS-PS1-B?

It provides a sound pressure level of 105dB measured at 30cm.

Is the sound pressure measured at one metre?

No. The manufacturer specifies 105dB at 30cm.

Does the sounder include an LED indicator?

Yes. It includes an LED flashing indicator.

Can the LED and sounder operate separately?

Yes. The manufacturer specifies that sound and LED indications can be configured separately with suitable wiring and outputs.

Can the sounder be used indoors?

Yes. It is suitable for indoor alarm applications.

Can the DS-PS1-B be installed outdoors?

Yes, in appropriately sheltered outdoor locations consistent with its IP54 protection rating.

Is the sounder waterproof?

No. IP54 provides limited dust protection and resistance to water splashes, but the sounder is not fully waterproof.

What power supply does the DS-PS1-B require?

It requires an 8–16V DC power supply, with 12V DC being the typical operating voltage.

Can it operate from a 12V alarm panel?

Yes, provided the panel supports the required output configuration and current capacity.

Does the sounder require batteries?

No. It operates from a compatible wired DC supply.

Does it require wireless pairing?

No. It uses a wired connection rather than wireless communication.

Can it be used with third-party alarm panels?

Potentially, where the panel provides compatible electrical outputs and power. Compatibility must be confirmed before installation.

What is the maximum supply current?

The manufacturer datasheet specifies a maximum supply current of 0.22A.

What is the IP protection rating?

IP54.

What material is the housing made from?

PC+ABS plastic.

What colour is the DS-PS1-B?

The manufacturer specifies a blue housing.

What are the dimensions?

140 × 134 × 33mm.

How much does the sounder weigh?

Approximately 185g.

What is the operating temperature range?

-20°C to +60°C.

Can multiple DS-PS1-B sounders be installed?

Multiple sounders may be possible depending on the alarm panel's output capacity, available power and system design.

Does the sounder include an alarm control panel?

No. The alarm control panel must be purchased separately.

Does the sounder include cabling?

Cabling is not included unless separately specified.

Does this sounder provide alarm monitoring?

No. It provides local audible and visual alarm notification. Monitoring requires a separate compatible alarm system and monitoring service.

Is professional installation recommended?

Yes. Professional installation is recommended to ensure correct wiring, power supply compatibility and alarm operation.

Can the DS-PS1-B replace an existing wired alarm siren?

Yes, where the existing alarm panel provides compatible voltage, current capacity and output configuration.

What warranty applies to the DS-PS1-B?

The product includes a 2-year Australian alarm equipment warranty through Civic Electronic, subject to applicable terms.

Where can I buy the Hikvision DS-PS1-B in Australia?

Civic Electronic supplies genuine Australian Hikvision alarm equipment with professional installer and trade support.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We specialise in genuine Australian Hikvision and HiLook security products, including intrusion alarm systems, CCTV equipment, video intercoms, access control products and professional security accessories.

  • Authorised Hikvision Sales Partner: Genuine Australian Hikvision equipment.
  • Hikvision Training Centre: Professional product knowledge and installer training.
  • 2-Year Australian Alarm Warranty: Warranty support for eligible Hikvision alarm equipment.
  • Competitive Trade Pricing: Wholesale opportunities for eligible professional security installers.
  • Technical Support: Assistance with compatible Hikvision equipment selection.
  • Professional Installer Support: Support for security technicians and system integrators.
  • Australia-Wide Delivery: Shipping available throughout Australia.
  • Free Standard Shipping: Available on eligible orders of $300 or more.
  • 2-Hour Click & Collect: Available from Rouse Hill, subject to stock confirmation.

For Hikvision AX HYBRID PRO alarm systems, wired sounders and professional installer support, contact Civic Electronic on 1300 024 842.

Official Hikvision Manufacturer Documentation

Review the official Hikvision DS-PS1-B manufacturer datasheet for complete technical specifications, electrical requirements, sound output, dimensions and installation considerations.

Download Official Hikvision DS-PS1-B Datasheet (PDF)

Important: The DS-PS1-B is a wired 8–16V DC alarm sounder. Verify panel output compatibility, current capacity and wiring requirements before installation. Its 105dB sound pressure specification is measured at 30cm. IP54 protection does not mean the device is fully waterproof.

Genuine Product Assurance, We are officially an authorized reseller of Hikvision

Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.

Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.

1. Free and Express Shipping

  • Free Standard Shipping applies to all orders valued at $300 or more.
  • Express Shipping is available for an additional $65 per order.

Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:

Australia Post Coverage

2. Order Processing

  • Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
  • Orders are processed Monday to Friday, excluding weekends and public holidays.
  • Tracking information will be provided via email after 11:00 AM on the day the order is shipped.

All orders are dispatched using the most efficient postage method available to ensure timely delivery.

3. Delivery Timeframes

  • Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
  • Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
  • Standard Shipping: Please allow up to 10 business days from dispatch.

If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.

4. Delivery Requirements and Limitations

  • All deliveries require a signature upon receipt.
  • Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
  • If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
  • We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.

Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.

We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.

If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.

5. Tracking Your Order

Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.

To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.

6. Additional Information

We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.

Price Beat Guarantee

At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.

How It Works

If you find a cheaper price, simply:

  1. Provide a link to the competitor's advertised product
  2. Confirm the seller is an authorised Australian reseller
  3. Submit your request before placing your order

Our team will verify the details and respond promptly.

Eligibility Requirements

To qualify for our Price Beat Guarantee, the following conditions must be met:

  • The competitor must be an authorised Australian reseller
  • The seller must operate as a legitimate Australian retail business
  • The item must be identical (same brand, model number and specifications)
  • The product must be brand new and currently in stock
  • The price must be publicly advertised (not a private quote or member-only offer)
  • The advertised price must include GST
  • Shipping costs must be included in the total comparison
  • The competitor must supply Australian warranty support

Exclusions

Our Price Beat Guarantee does not apply to:

  • Dropshippers or intermediary sellers who do not physically stock the product
  • Sellers operating without a verifiable Australian retail presence
  • Businesses with no registered retail location or identifiable trading address
  • Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
  • Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
  • Refurbished, used or open-box items
  • Pricing errors or misprints
  • Bundle deals, bonus offers or cashback promotions
  • Trade, bulk or special contract pricing

Important Conditions

  • Price Beat requests must be approved prior to purchase
  • Approved offers are valid for 24 hours only
  • Civic Electronic reserves the right to verify reseller authorisation status
  • We reserve the right to decline requests that do not meet the above criteria
  • This policy may be modified or withdrawn at any time without notice

Why Buy From Civic Electronic?

  • 100% Genuine Products
  • Authorised Australian Reseller
  • Local Australian Warranty
  • Real Stock, Not Dropshipped
  • Expert Technical Support
  • Fast & Secure Dispatch
