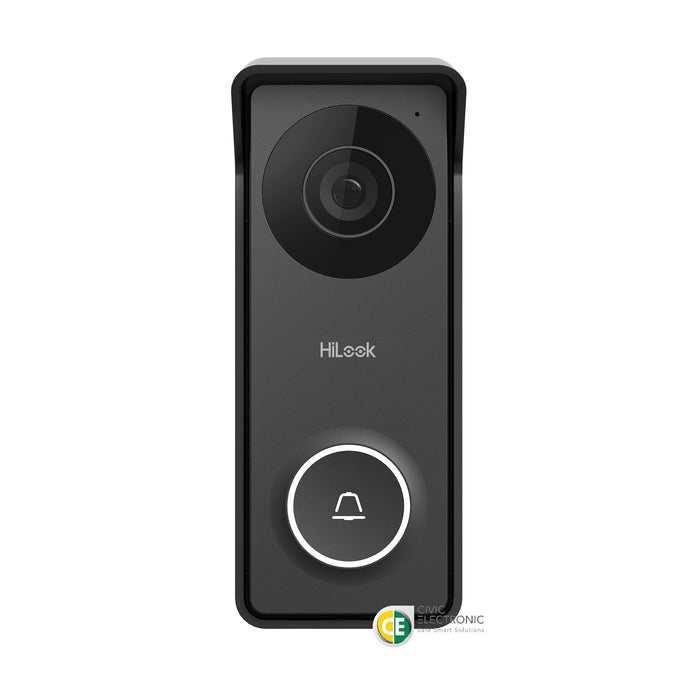

Hikvision HiLook HA-DS-H1 AU Hybrid HD Video Intercom Outdoor Door Station
IMPORTANT – SYSTEM COMPATIBILITY REQUIREMENT
This item cannot be installed or operated as a standalone device and must be used with a compatible HiLook Hybrid HD Intercom System.
A compatible HiLook indoor monitor is required for power, video communication and normal intercom operation. This outdoor station does not provide independent Wi-Fi connectivity.
The Hikvision HiLook HA-DS-H1 AU is a professional Hybrid HD video intercom outdoor door station designed for compatible HiLook Hybrid HD intercom systems.
Featuring an integrated HD camera, wide-angle viewing, infrared night illumination, two-way audio communication and electric lock-control capability, the HA-DS-H1 provides a practical solution for visitor identification and entrance management.
The outdoor station is designed to operate with compatible HiLook Hybrid HD indoor monitors, including the HiLook HA-IN-H1, as used in the HiLook HA-KIT-H1 Hybrid HD Video Intercom Kit.
The HA-DS-H1 uses a four-wire connection to communicate with and receive power from the compatible indoor station.
Its integrated camera delivers HD video with a manufacturer-specified streaming resolution of 1280 × 720 at 60fps.
The wide-angle lens provides a 117° horizontal, 70° vertical and 141° diagonal field of view, helping occupants view visitors and surrounding entrance areas.
Built-in infrared illumination supports low-light visitor identification at distances of up to 3 metres.
When connected to a compatible HiLook indoor monitor, the HA-DS-H1 supports two-way audio communication between visitors and occupants.
The system can also support remote visitor communication through the Hik-Connect mobile application when the compatible Wi-Fi-enabled indoor monitor is correctly connected and configured.
Important: Wi-Fi connectivity is provided by the compatible indoor monitor. The HA-DS-H1 outdoor station itself does not have independent Wi-Fi networking.
The outdoor station includes an electric lock-control relay with a maximum rating of 30V, 1A, allowing integration with suitable door release equipment.
Its durable aluminium alloy housing provides a professional appearance for residential and small commercial entrances.
The device features an IP65 weather protection rating and IK08 impact resistance rating, supporting outdoor installations when correctly mounted.
With compact dimensions of 55 × 145 × 24mm, the HA-DS-H1 offers a slim design suitable for front doors, entrance walls and gate pillars.
The HiLook Hybrid HD platform supports compatible multi-station configurations, allowing professional installers to incorporate additional indoor or outdoor stations within the system's supported capacity.
The HA-DS-H1 is particularly useful as a replacement or additional outdoor station for compatible HiLook Hybrid HD intercom installations.
It is not an IP network door station and should not be confused with the HiLook HA-DS-IP2 IP video intercom model.
Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.
Compatibility notice: This product cannot operate independently. A compatible HiLook Hybrid HD intercom system, including the required indoor station, must be installed.
2-Year Australian Intercom Warranty, subject to applicable terms.
Key Features
-
HiLook Hybrid HD Intercom: Designed for compatible Hybrid HD video intercom systems.
-
HD Video Camera: 1280 × 720 video streaming resolution.
-
60fps Video Stream: Manufacturer-specified HD video streaming capability.
-
117° Horizontal Viewing Angle: Wide coverage of entrance areas.
-
70° Vertical Viewing Angle: Additional vertical coverage.
-
141° Diagonal Viewing Angle: Wide overall field of view.
-
Infrared Night Illumination: Up to 3m.
-
Two-Way Audio: Visitor communication through a compatible indoor station.
-
Visitor Call Button: Convenient entrance calling.
-
Four-Wire Connection: Video, audio, power and ground connections.
-
Indoor Station Power: Receives power from compatible HiLook indoor equipment.
-
Hik-Connect Integration: Supported through a compatible Wi-Fi-enabled indoor monitor.
-
Electric Lock Control: One relay, maximum 30V, 1A.
-
IP65 Protection: Weather-resistant outdoor housing.
-
IK08 Impact Resistance: Durable entrance protection.
-
Aluminium Alloy Housing: Strong and professional construction.
-
Slim Design: 55 × 145 × 24mm.
-
HA-IN-H1 Compatibility: Designed for the compatible HiLook Hybrid HD indoor monitor.
-
HA-KIT-H1 System: Suitable for supported kit configurations.
-
System Expansion: Supports compatible additional outdoor station configurations.
-
Professional Installation: Designed for compatible HiLook Hybrid HD systems.
-
2-Year Australian Warranty: Subject to applicable terms.
-
Not Standalone: Requires a compatible HiLook Hybrid HD intercom system.
Technical Specifications
| Model |
HA-DS-H1 AU |
| Brand |
HiLook by Hikvision |
| Product Type |
Hybrid HD Video Intercom Outdoor Door Station |
| System Type |
HiLook Hybrid HD Four-Wire Video Intercom |
| Standalone Operation |
Not Supported |
| Compatible Indoor Monitor |
HiLook HA-IN-H1 |
| Compatible Kit |
HiLook HA-KIT-H1 |
| Camera |
Integrated HD Camera |
| Video Stream Resolution |
1280 × 720 |
| Video Frame Rate |
Up to 60fps |
| Horizontal Field of View |
117° |
| Vertical Field of View |
70° |
| Diagonal Field of View |
141° |
| Night Illumination |
Infrared, Up to 3m |
| Audio Communication |
Two-Way Audio Through Compatible Indoor Station |
| Visitor Call Button |
1 |
| Door Station Connection |
Four-Wire |
| Four-Wire Functions |
Video, Audio, Power, Ground |
| Independent Wi-Fi |
Not Provided |
| Wi-Fi Connectivity |
Via Compatible HA-IN-H1 Indoor Monitor |
| Mobile App |
Hik-Connect Through Compatible System |
| Independent Ethernet |
Not Provided |
| Standard PoE |
Not Supported |
| Power Supply Input |
From Compatible Indoor Station |
| Lock Control |
1 Relay |
| Lock Relay Rating |
Maximum 30V, 1A |
| Housing Material |
Aluminium Alloy |
| Protection Rating |
IP65 |
| Impact Protection |
IK08 |
| Application Environment |
Outdoor |
| Dimensions (W × H × D) |
55 × 145 × 24mm |
| Supported Door Stations |
Main Door Station + 1 Additional Door Station, Subject to System Configuration |
| Supported Indoor Stations |
Main Indoor Station + 2 Additional Indoor Stations, Subject to System Configuration |
| Australian Warranty |
2 Years, Subject to Applicable Terms |
Detailed Features & Benefits
HD Video Visitor Identification
The integrated HD camera provides 1280 × 720 video streaming to help occupants identify visitors at their entrance.
Wide-Angle Camera Coverage
The 117° horizontal, 70° vertical and 141° diagonal viewing angles provide broad entrance coverage.
Infrared Night Illumination
Built-in infrared illumination supports low-light viewing at distances of up to 3 metres.
Two-Way Audio Communication
When connected to a compatible HiLook Hybrid HD indoor monitor, the outdoor station supports visitor communication between the entrance and indoor station.
Four-Wire Hybrid HD Connection
The HA-DS-H1 uses four-wire cabling to connect with compatible HiLook Hybrid HD indoor equipment.
Indoor Station Power Supply
The outdoor station receives power from the compatible indoor monitor rather than operating from an independent PoE connection.
Hik-Connect Mobile Integration
Compatible Wi-Fi-enabled indoor monitors support Hik-Connect functionality, allowing remote visitor communication when correctly configured.
Electric Lock Control
The built-in relay supports compatible electric lock applications with a maximum rating of 30V, 1A.
IP65 Weather Protection
The IP65-rated housing provides resistance to dust and water exposure when correctly installed.
IK08 Impact Resistance
The IK08 rating provides additional protection against mechanical impact.
Durable Aluminium Alloy Housing
The aluminium alloy construction provides a strong and professional finish for residential and commercial entrances.
Slim Entrance Design
The compact 55 × 145 × 24mm housing is suitable for narrow entrance walls and gate pillars.
Compatible Multi-Station Expansion
The HiLook Hybrid HD system supports additional indoor and outdoor stations within the manufacturer's specified configuration limits.
Professional Installer Configuration
Correct four-wire connections, calling destinations, lock control and mobile application settings require suitable system configuration.
Ideal Applications
- Additional outdoor stations for compatible HiLook HA-KIT-H1 systems.
- Replacement door stations for compatible HiLook Hybrid HD installations.
- Residential front entrances.
- Secondary home entrances.
- Front gate visitor communication.
- Townhouses and villas.
- Residential properties with multiple entry points.
- Small commercial office entrances.
- Business reception access points.
- Professional Hybrid HD intercom system upgrades.
Compatibility & Installation
System Requirement: This item cannot be installed or operated as a standalone device and must be used with a compatible HiLook Hybrid HD Intercom System.
Compatible Indoor Monitor: HiLook HA-IN-H1.
Compatible Kit: HiLook HA-KIT-H1.
Connection Type: Four-wire Hybrid HD intercom connection.
Wiring: Video, audio, power and ground.
Power Supply: Supplied from the compatible indoor station.
Wi-Fi: Provided through the compatible indoor monitor, not the outdoor station.
Hik-Connect: Available through supported indoor monitor and system configurations.
Camera: Integrated HD camera.
Night Illumination: Infrared, up to 3 metres.
Audio: Two-way communication through compatible equipment.
Lock Control: One relay, maximum 30V, 1A.
Outdoor Protection: IP65 and IK08.
Installation: Mount according to the manufacturer's requirements.
System Expansion: Confirm the supported number of door stations and indoor monitors before installation.
Professional Installation: Installation and commissioning by an experienced security installer are recommended.
Four-Wire Cable Connection
The manufacturer identifies the following cable functions:
-
Blue: Video.
-
Black: Ground.
-
Yellow: Audio.
-
Red: Power.
When using suitable twisted pairs or parallel cable groups, Hikvision recommends grouping the blue video wire with the black ground wire and the yellow audio wire with the red power wire.
Recommended Cable Distance
Manufacturer guidance specifies the following approximate maximum transmission distances based on conductor size:
-
AWG24: Up to 10 metres.
-
AWG20: 10–30 metres.
-
AWG18: 30–50 metres.
-
AWG16: 50–100 metres.
Actual cable suitability depends on installation conditions, conductor material, cable quality and manufacturer requirements.
Package Contents
- 1 × HiLook HA-DS-H1 AU Hybrid HD Video Intercom Outdoor Door Station.
- Manufacturer-supplied standard accessories applicable to the selected Australian package.
Important: This listing is for the outdoor station only. A compatible HiLook Hybrid HD indoor monitor, complete intercom kit, power supply, electric lock, cabling and installation services are not included unless specifically stated.
Compatibility Requirement: This outdoor station cannot operate independently. It must be connected to a compatible HiLook Hybrid HD intercom system.
Frequently Asked Questions
What is the HiLook HA-DS-H1 AU?
It is a Hybrid HD video intercom outdoor door station designed for compatible HiLook four-wire intercom systems.
Can the HA-DS-H1 operate as a standalone device?
No. This item cannot be installed or operated as a standalone device and must be used with a compatible HiLook Hybrid HD Intercom System.
Does it require an indoor monitor?
Yes. A compatible HiLook Hybrid HD indoor monitor is required.
Which indoor monitor is compatible?
The HiLook HA-IN-H1 is the indoor monitor used with the HA-DS-H1 in the HA-KIT-H1 system.
Which intercom kit uses this outdoor station?
The HiLook HA-KIT-H1 Hybrid HD Video Intercom Kit.
Does the outdoor station have Wi-Fi?
No. The outdoor station uses a four-wire connection. Wi-Fi connectivity is provided by the compatible indoor monitor.
Can I use Hik-Connect with this system?
Yes, when the HA-DS-H1 is connected to a compatible Wi-Fi-enabled HiLook indoor monitor and the system is correctly configured.
Does it include an HD camera?
Yes. The outdoor station includes an integrated HD camera.
What is the video resolution?
1280 × 720 at up to 60fps according to the manufacturer's specifications.
What is the viewing angle?
117° horizontally, 70° vertically and 141° diagonally.
Does it support night vision?
Yes. Infrared illumination supports low-light viewing up to 3 metres.
Does it support two-way audio?
Yes. Two-way communication is supported through compatible HiLook Hybrid HD intercom equipment.
Does it have a visitor call button?
Yes. It includes a physical call button for visitor communication.
Does it support electric lock control?
Yes. It includes one relay with a maximum rating of 30V, 1A.
How is the outdoor station powered?
It receives power from the compatible HiLook indoor station through the four-wire connection.
Does it support PoE?
No. The HA-DS-H1 is a four-wire Hybrid HD outdoor station, not a PoE IP door station.
Does it support Ethernet networking?
No. The outdoor station communicates through the four-wire Hybrid HD connection.
What do the four wires do?
They carry video, audio, power and ground connections between compatible system components.
What are the cable colours?
Blue for video, black for ground, yellow for audio and red for power.
Can it be installed outdoors?
Yes. It features IP65 weather protection and IK08 impact resistance.
What is the IP protection rating?
IP65.
What is the impact protection rating?
IK08.
What material is the housing made from?
Aluminium alloy.
What are the dimensions?
55 × 145 × 24mm.
Can it be used as a second outdoor station?
Yes, in supported HiLook Hybrid HD configurations that allow an additional outdoor station.
How many outdoor stations can the system support?
The manufacturer's Hybrid HD system overview indicates support for a main outdoor station and one additional outdoor station, subject to system configuration.
How many indoor stations can the system support?
The manufacturer's Hybrid HD system overview indicates support for a main indoor station and two additional indoor stations, subject to system configuration.
Can it be used with the HiLook HA-IN-IP2?
No. The HA-IN-IP2 belongs to the HiLook IP intercom platform. The HA-DS-H1 requires compatible Hybrid HD equipment such as the HA-IN-H1.
Is it the same as the HiLook HA-DS-IP2?
No. The HA-DS-H1 is a four-wire Hybrid HD outdoor station, while the HA-DS-IP2 is an IP network video intercom outdoor station.
Does it include an indoor monitor?
No. This listing is for the outdoor station only.
Does it include a complete intercom kit?
No. A complete compatible system must be purchased separately unless already installed.
Does it include installation?
No. Installation services are not included unless specifically quoted.
What warranty applies in Australia?
Eligible HiLook intercom products supplied by Civic Electronic include a two-year Australian warranty, subject to applicable terms.
Where can I buy genuine HiLook Hybrid HD intercom equipment in Australia?
Civic Electronic supplies genuine Australian HiLook intercom systems and accessories with professional installer and trade support.
Why Buy from Civic Electronic?
Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.
We supply genuine Australian Hikvision and HiLook video intercom systems, CCTV equipment, access control products and professional security solutions.
- Authorised Hikvision Sales Partner.
- Hikvision Training Centre in Sydney, Australia.
- Genuine Australian Hikvision and HiLook stock.
- Official Australian warranty support.
- Competitive wholesale and trade pricing.
- Professional intercom and access control product advice.
- Installer and system integrator support.
- Fast Australia-wide delivery.
- Free standard shipping on eligible orders of $300 or more.
- 2-hour Click & Collect from Rouse Hill, subject to stock confirmation.
For HiLook HA-DS-H1 AU compatibility, system design or trade pricing assistance, contact Civic Electronic on 1300 024 842.
Official Hikvision Manufacturer Documentation
Review the official Hikvision HiLook Hybrid HD intercom documentation for HA-DS-H1 specifications, camera resolution, viewing angles, four-wire connections, lock control, protection ratings and compatible system configurations.
Download Official Hikvision HiLook Intercom Brochure (PDF) – Includes HA-DS-H1 Specifications
Important: The HA-DS-H1 is a four-wire Hybrid HD outdoor station and cannot operate independently. It requires a compatible HiLook Hybrid HD indoor monitor. Wi-Fi and Hik-Connect connectivity are provided through the compatible indoor station, not directly by the outdoor unit.
