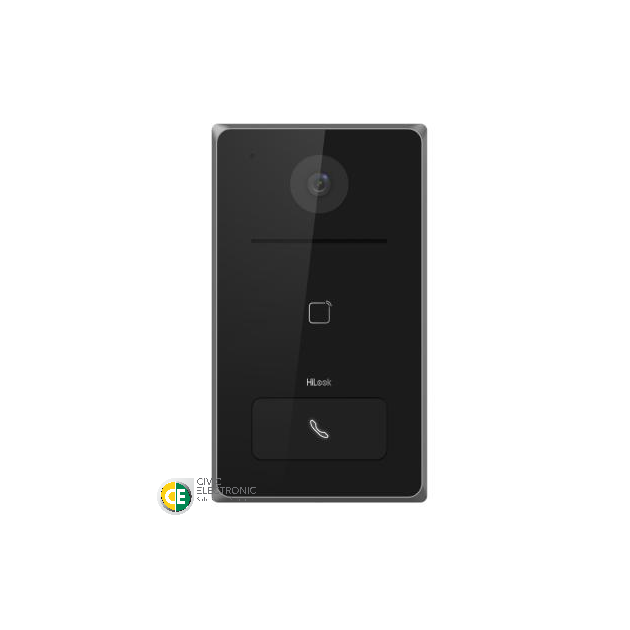

Hikvision HiLook HA-DS-IP2 IP Video Intercom Outdoor Door Station
IMPORTANT – ADD-ON ITEM ONLY
This item cannot be sold individually and is available as an add-on item only.
The HA-DS-IP2 is supplied only as an approved additional component for a compatible HiLook IP video intercom system. Please contact Civic Electronic to confirm eligibility and compatibility before ordering.
The Hikvision HiLook HA-DS-IP2 is a professional 2MP IP video intercom outdoor door station designed for secure visitor communication and entrance access control in compatible HiLook IP intercom systems.
Featuring a high-definition camera, wide-angle viewing, infrared night illumination, two-way audio and electric lock control, the HA-DS-IP2 provides a convenient solution for monitoring visitors at residential and commercial entrances.
The outdoor station is designed for use with compatible HiLook IP video intercom equipment, including supported configurations of the HiLook HA-KIT-IP2 system.
Its integrated 2MP HD camera captures detailed video of visitors, helping occupants identify people at their entrance before responding.
The wide-angle lens provides a 129° horizontal and 75° vertical field of view, allowing the camera to cover a broad entrance area.
Built-in infrared illumination supports low-light viewing at distances of approximately 2.5 metres.
The camera also supports true wide dynamic range (WDR), backlight compensation and digital noise reduction to improve image visibility under challenging lighting conditions.
The HA-DS-IP2 supports two-way audio communication, allowing occupants to speak with visitors through a compatible indoor station or supported mobile application configuration.
When configured as part of a compatible HiLook intercom system, the outdoor station supports remote visitor communication and entrance management through the Hik-Connect application.
The device supports both wired IP networking and 2.4GHz Wi-Fi, providing installation flexibility where supported by the selected system configuration.
For power, the HA-DS-IP2 supports IEEE 802.3af standard PoE or 12V DC, allowing installers to select a suitable power arrangement.
An integrated electric lock-control relay supports compatible door release equipment, with a maximum relay rating of 30V DC, 2A.
The outdoor station features an IP65 protection rating, making it suitable for properly installed outdoor entrances.
Its compact housing measures 181.6 × 103.6 × 29.5mm, making it suitable for residential doorways, gates and small commercial entrances.
The HA-DS-IP2 is particularly useful when extending a compatible HiLook IP video intercom installation with an additional outdoor calling point.
Professional installers can use the station in supported multi-door configurations, subject to the compatibility and capacity of the connected intercom system.
Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.
Sales restriction: This outdoor station is available exclusively as an add-on component. Civic Electronic does not sell the HA-DS-IP2 individually.
2-Year Australian Intercom Warranty, subject to applicable terms.
Key Features
-
2MP HD Camera: High-definition visitor video monitoring.
-
129° Horizontal Viewing Angle: Wide coverage of entrance areas.
-
75° Vertical Viewing Angle: Additional vertical coverage.
-
True WDR: Improved visibility in challenging lighting conditions.
-
Infrared Night Illumination: Approximately 2.5m illumination range.
-
Backlight Compensation: Supports clearer images in backlit environments.
-
Digital Noise Reduction: Helps improve image quality.
-
Motion Detection: Supported by the outdoor station.
-
Two-Way Audio: Communicate with visitors through compatible intercom equipment.
-
Single Call Button: Convenient visitor calling.
-
Hik-Connect Integration: Remote communication through supported system configurations.
-
2.4GHz Wi-Fi: IEEE 802.11b/g/n wireless networking.
-
Wired IP Networking: Supports compatible Ethernet network installations.
-
Standard PoE: IEEE 802.3af power support.
-
12V DC Power: Alternative power supply option.
-
Electric Lock Relay: Maximum 30V DC, 2A.
-
RS-485 Interface: One interface.
-
IP65 Protection: Weather-resistant outdoor housing.
-
Compact Dimensions: 181.6 × 103.6 × 29.5mm.
-
System Expansion: Suitable for supported additional door station configurations.
-
Professional Installation: Designed for compatible HiLook IP intercom systems.
-
2-Year Australian Warranty: Subject to applicable terms.
-
Add-On Item Only: Cannot be purchased individually.
Technical Specifications
| Model |
HA-DS-IP2 |
| Brand |
HiLook by Hikvision |
| Product Type |
IP Video Intercom Outdoor Door Station |
| Sales Availability |
Add-On Item Only – Not Sold Individually |
| Compatible System |
Supported HiLook IP Video Intercom Systems |
| Camera Resolution |
2MP HD |
| Horizontal Field of View |
129° |
| Vertical Field of View |
75° |
| Night Illumination |
Infrared, Approximately 2.5m |
| Wide Dynamic Range |
True WDR |
| Backlight Compensation |
Supported |
| Digital Noise Reduction |
Supported |
| Motion Detection |
Supported |
| Video Compression |
H.264 |
| Audio Communication |
Two-Way Audio |
| Audio Processing |
Noise Suppression and Echo Cancellation |
| Call Button |
1 |
| Mobile Application |
Hik-Connect, Subject to Compatible System Configuration |
| Wireless Network |
2.4GHz Wi-Fi, IEEE 802.11b/g/n |
| Wired Network |
Ethernet IP Network |
| Network Protocols |
TCP/IP, SIP, RTSP |
| RS-485 |
1 Interface |
| Lock Control |
1 Relay |
| Relay Rating |
Maximum 30V DC, 2A |
| PoE Standard |
IEEE 802.3af |
| Alternative Power |
12V DC |
| Protection Rating |
IP65 |
| Application Environment |
Outdoor |
| Dimensions |
181.6 × 103.6 × 29.5mm |
| Australian Warranty |
2 Years, Subject to Applicable Terms |
Detailed Features & Benefits
2MP HD Visitor Camera
The integrated 2MP camera captures high-definition video to help occupants identify visitors before responding to an entrance call.
Wide-Angle Entrance Coverage
A 129° horizontal and 75° vertical field of view provides broad coverage of the entrance area.
True Wide Dynamic Range
True WDR helps improve image visibility in scenes containing bright and dark areas.
Infrared Night Illumination
Integrated infrared illumination supports visitor identification in low-light conditions at distances of approximately 2.5 metres.
Two-Way Audio Communication
Occupants can communicate with visitors through compatible HiLook indoor stations and supported system configurations.
Single-Button Visitor Calling
A dedicated physical call button allows visitors to initiate a call to the configured indoor station or calling destination.
Hik-Connect Mobile Integration
When supported and correctly configured, the HiLook IP intercom system can provide remote visitor communication through Hik-Connect.
2.4GHz Wi-Fi Connectivity
The outdoor station supports 2.4GHz wireless networking for compatible installation configurations.
Wired IP Network Support
Ethernet connectivity supports reliable network communication in professionally installed intercom systems.
Standard PoE Power
IEEE 802.3af PoE support allows power to be supplied through compatible network equipment.
12V DC Power Option
Installers can alternatively use a suitable 12V DC power supply according to the manufacturer's requirements.
Electric Lock Integration
The built-in relay supports compatible electric lock-control applications, subject to the relay's maximum 30V DC, 2A rating.
IP65 Outdoor Protection
The IP65-rated housing provides resistance to dust and water exposure when correctly installed.
Compatible Multi-Door Expansion
The HA-DS-IP2 can be used as an additional outdoor station in supported HiLook IP intercom configurations.
Compact Entrance Design
The 181.6 × 103.6 × 29.5mm housing provides a compact installation option for residential and commercial entrances.
Professional Installer Configuration
Network connectivity, calling destinations, mobile application functions and lock-control settings require appropriate system configuration.
Ideal Applications
- Additional entrance stations for compatible HiLook IP intercom kits.
- Secondary residential entrances.
- Front gate video intercom expansion.
- Side entrance visitor communication.
- Residential properties with multiple entry points.
- Townhouse and villa intercom systems.
- Small commercial office entrances.
- Business reception access points.
- Compatible multi-door IP intercom installations.
- Professional HiLook intercom system upgrades.
Compatibility & Installation
Sales Restriction: This item cannot be sold individually and is available as an add-on item only.
System Type: HiLook IP video intercom.
Compatible Kit: Supported HiLook HA-KIT-IP2 configurations.
Indoor Station: Requires compatible HiLook IP intercom equipment for normal visitor calling and communication.
Additional Door Stations: Supported within the capacity of the selected HiLook IP intercom system.
Camera: Integrated 2MP HD camera.
Audio: Two-way communication through compatible intercom equipment.
Networking: Wired Ethernet or supported 2.4GHz Wi-Fi configuration.
Power: IEEE 802.3af standard PoE or 12V DC.
Lock Control: One relay, maximum 30V DC, 2A.
Outdoor Protection: IP65 when correctly installed.
Mounting: Install according to Hikvision HiLook manufacturer instructions.
Professional Installation: Installation and commissioning by an experienced security installer are recommended.
Ordering Requirement: Contact Civic Electronic before purchasing to confirm that the HA-DS-IP2 is being ordered as an approved add-on component for a compatible intercom system.
Package Contents
- 1 × HiLook HA-DS-IP2 IP Video Intercom Outdoor Door Station.
- Manufacturer-supplied standard accessories applicable to the selected Australian package.
Important: This is an add-on outdoor station only. Indoor monitors, complete intercom kits, PoE switches, separate power supplies, electric locks, network cabling and installation services are not included unless specifically stated.
Purchase Condition: This item cannot be sold individually and is available as an add-on item only. Orders must meet Civic Electronic's add-on purchase requirements.
Frequently Asked Questions
What is the HiLook HA-DS-IP2?
It is a 2MP IP video intercom outdoor door station designed for compatible HiLook IP intercom systems.
Can I purchase the HA-DS-IP2 individually?
No. This item cannot be sold individually and is available as an add-on item only.
What does add-on item only mean?
The HA-DS-IP2 can only be purchased as an approved additional component for a compatible HiLook IP video intercom system, subject to Civic Electronic's sales conditions.
Can I order it without a compatible intercom system?
No. Civic Electronic does not offer this product for individual purchase.
Is it compatible with the HiLook HA-KIT-IP2?
Yes. The HA-DS-IP2 is the outdoor station model associated with the HA-KIT-IP2 system. Confirm the exact expansion configuration before ordering.
Does it include an indoor monitor?
No. The indoor monitor is not included with this add-on outdoor station.
Does it have a built-in camera?
Yes. It includes a 2MP HD camera.
What is the camera's viewing angle?
129° horizontally and 75° vertically.
Does it support night vision?
Yes. Infrared illumination supports low-light viewing at approximately 2.5 metres.
Does it support true WDR?
Yes. The camera supports true wide dynamic range.
Does it support motion detection?
Yes. Motion detection is supported.
Can visitors speak to occupants?
Yes. Two-way audio is supported through compatible HiLook intercom equipment.
Does it have a call button?
Yes. It includes one physical visitor call button.
Can it work with Hik-Connect?
Hik-Connect integration is supported through compatible and correctly configured HiLook IP intercom systems.
Does it support Wi-Fi?
Yes. It supports 2.4GHz IEEE 802.11b/g/n Wi-Fi.
Does it support wired networking?
Yes. The outdoor station supports Ethernet IP networking.
Does it support PoE?
Yes. It supports IEEE 802.3af standard PoE.
Can it use a 12V DC power supply?
Yes. A suitable 12V DC power supply can be used according to manufacturer requirements.
Does it support electric lock control?
Yes. It includes one relay rated at a maximum of 30V DC, 2A.
Can it be installed outdoors?
Yes. It features an IP65 protection rating.
What is the IP rating?
IP65.
What are the dimensions?
181.6 × 103.6 × 29.5mm.
Can it be used as a second door station?
Yes, in compatible HiLook IP intercom configurations that support additional door stations.
How many additional door stations can a compatible system support?
The HiLook IP intercom brochure illustrates configurations with a main door station and up to 16 sub door stations. Confirm the applicable system and firmware limits before installation.
Can it operate as a complete intercom system by itself?
No. Normal visitor calling and indoor communication require compatible intercom equipment and appropriate configuration.
Does it include a PoE switch?
No. A PoE switch is not included unless specifically stated.
Does it include an electric lock?
No. Compatible electric lock hardware must be supplied separately.
Does it include installation?
No. Installation services are not included unless specifically quoted.
What warranty applies in Australia?
Eligible HiLook intercom products supplied by Civic Electronic include a two-year Australian warranty, subject to applicable terms.
Where can I buy the HiLook HA-DS-IP2 in Australia?
Civic Electronic supplies genuine Australian HiLook intercom equipment. The HA-DS-IP2 is available exclusively as an approved add-on item and cannot be purchased individually.
