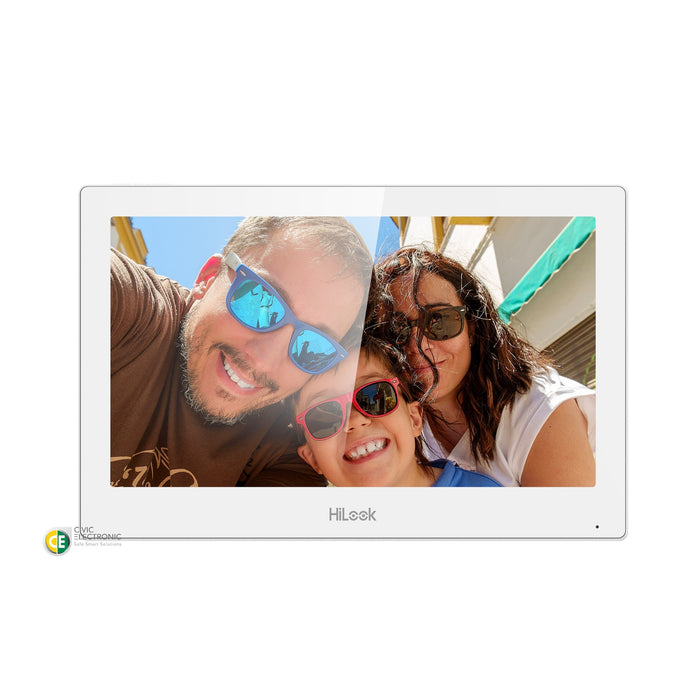

Hikvision HiLook HA-IN-H1 AU 7" Hybrid HD WiFi Video Intercom Indoor Monitor

Hikvision HiLook HA-IN-H1 AU 7" Hybrid HD WiFi Video Intercom Indoor Monitor

The Hikvision HiLook HA-IN-H1 AU is a professional 7-inch Hybrid HD WiFi video intercom indoor monitor designed for compatible HiLook four-wire Hybrid HD video intercom systems.

Featuring a high-resolution colour touchscreen, built-in WiFi connectivity, two-way audio communication and Hik-Connect mobile integration, the HA-IN-H1 provides convenient visitor monitoring and entrance management for residential and small commercial properties.

The monitor features a 7-inch colour TFT display with a resolution of 1024 × 600 pixels, delivering a clear viewing interface for visitor video and intercom operation.

Its responsive capacitive touchscreen allows users to answer incoming calls, view compatible outdoor stations, communicate with visitors and operate supported entrance functions.

Designed for the HiLook Hybrid HD intercom platform, the HA-IN-H1 works with compatible outdoor door stations, including the HiLook HA-DS-H1.

The HA-IN-H1 is also the indoor monitor used in the HiLook HA-KIT-H1 Hybrid HD Video Intercom Kit.

Unlike the outdoor station, the HA-IN-H1 features integrated 2.4GHz WiFi connectivity, supporting connection to a compatible wireless network.

When correctly connected and configured, the system supports Hik-Connect mobile application integration, allowing users to receive visitor calls and manage supported intercom functions remotely.

The monitor incorporates a built-in microphone and loudspeaker for convenient hands-free two-way audio communication.

Integrated noise suppression and echo cancellation help improve voice clarity during conversations with visitors.

The HA-IN-H1 supports four-wire Hybrid HD intercom connections, providing communication with compatible outdoor stations and additional indoor monitors.

The manufacturer's system specifications support a main indoor monitor with up to two additional indoor extensions, subject to the selected system configuration.

The compatible Hybrid HD system also supports up to two outdoor door stations, providing flexibility for properties with multiple entrances.

When connected to compatible outdoor equipment, occupants can view visitors, answer calls and activate supported electric door release functions directly from the touchscreen.

The monitor also supports connection to one compatible analogue camera, allowing additional video monitoring within the supported system configuration.

A built-in memory card interface supports microSD cards up to 128GB, providing local storage capability for supported intercom functions.

The HA-IN-H1 features two alarm input interfaces for compatible external alarm devices.

With a 12V DC power input and maximum power consumption of 5W, the monitor is designed for efficient operation in residential and commercial intercom installations.

Its slim housing measures 175 × 113.5 × 18.1mm, providing a modern appearance for indoor wall-mounted installations.

The monitor is designed for indoor use and should be installed in a suitable protected environment.

The HA-IN-H1 is an ideal choice for expanding or replacing an indoor monitor within a compatible HiLook Hybrid HD intercom system.

Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.

Important: The HA-IN-H1 is an indoor monitor component, not a complete video intercom kit. A compatible HiLook Hybrid HD outdoor station is required for visitor video and entrance calling. It is not compatible with every HiLook IP or four-wire intercom product.

2-Year Australian Intercom Warranty, subject to applicable terms.

Key Features

• 7-Inch Colour TFT Display: Clear visitor video and intercom interface.
• 1024 × 600 Resolution: High-resolution indoor monitoring.
• Capacitive Touchscreen: Convenient touch operation.
• Built-In WiFi: 2.4GHz IEEE 802.11b/g/n connectivity.
• Hik-Connect Integration: Supported mobile visitor communication and remote functions.
• Two-Way Audio: Hands-free communication with visitors.
• Built-In Microphone: Integrated audio input.
• Built-In Loudspeaker: Integrated audio output.
• Noise Suppression: Improved communication clarity.
• Echo Cancellation: Reduced audio feedback.
• Four-Wire Hybrid HD: Compatible intercom connection system.
• HA-DS-H1 Compatibility: Designed for compatible HiLook outdoor stations.
• HA-KIT-H1 System: Suitable for supported kit configurations.
• Indoor Monitor Expansion: Supports compatible additional indoor extensions.
• Multiple Entrance Support: Compatible with systems supporting two outdoor stations.
• Door Unlocking: Control compatible electric locks through the connected outdoor station.
• Analogue Camera Support: Supports one compatible analogue camera.
• microSD Storage: Supports cards up to 128GB.
• Two Alarm Inputs: Integration with compatible alarm devices.
• 12V DC Power: Manufacturer-specified power input.
• Maximum 5W Consumption: Efficient indoor operation.
• Slim Wall-Mounted Design: 175 × 113.5 × 18.1mm.
• Indoor Installation: Designed for protected indoor environments.
• 2-Year Australian Warranty: Subject to applicable terms.

Detailed Features & Benefits

7-Inch Colour TFT Touchscreen

The HA-IN-H1 features a 7-inch colour TFT display with capacitive touchscreen operation, providing a convenient interface for visitor communication and intercom management.

1024 × 600 Display Resolution

The high-resolution screen provides clear video and system information for everyday intercom operation.

Integrated 2.4GHz WiFi Connectivity

Built-in IEEE 802.11b/g/n wireless networking allows the monitor to connect to a compatible 2.4GHz WiFi network.

Hik-Connect Mobile Integration

When correctly configured, the compatible Hybrid HD intercom system supports Hik-Connect mobile functionality for remote visitor communication and entrance management.

Hands-Free Two-Way Audio

The integrated microphone and loudspeaker allow occupants to communicate with visitors without using a separate handset.

Noise Suppression and Echo Cancellation

Integrated audio processing helps improve communication clarity and reduce unwanted background noise and echo.

Compatible Outdoor Door Station Monitoring

The monitor displays visitor video from connected compatible HiLook Hybrid HD outdoor stations.

Remote Door Unlocking

When used with compatible outdoor equipment and electric lock hardware, users can operate supported door release functions through the monitor.

Four-Wire Hybrid HD Integration

The HA-IN-H1 communicates with compatible Hybrid HD outdoor stations through the manufacturer's four-wire connection system.

Additional Indoor Monitor Support

Supported configurations allow a main indoor station and up to two additional indoor extensions.

Multiple Entrance Monitoring

Compatible systems support up to two outdoor door stations, allowing occupants to manage more than one entrance.

Analogue Camera Integration

The monitor supports one compatible analogue camera for additional video monitoring.

microSD Card Support

The built-in TF card interface supports microSD cards up to 128GB for supported local storage functions.

Two Alarm Input Interfaces

Two alarm inputs allow connection of compatible external alarm devices.

12V DC Power Supply

The monitor operates from a suitable 12V DC power source according to manufacturer requirements.

Low-Power Indoor Operation

With maximum power consumption of 5W, the monitor provides efficient operation within compatible intercom systems.

Slim Wall-Mounted Design

The 175 × 113.5 × 18.1mm housing provides a compact and modern appearance for indoor installations.

Professional Installer Configuration

WiFi connectivity, calling destinations, door unlocking, indoor extensions and Hik-Connect functions require appropriate installation and system configuration.

Ideal Applications

• Residential Homes: Indoor visitor video monitoring and communication.
• Townhouses: Convenient touchscreen entrance management.
• Villas: WiFi-enabled video intercom operation.
• Duplex Properties: Compatible Hybrid HD intercom installations.
• Small Commercial Offices: Visitor communication and entrance control.
• Business Reception Areas: Indoor video intercom monitoring.
• Multi-Level Homes: Additional indoor monitor locations.
• Properties with Multiple Entrances: Compatible dual-door-station configurations.
• HiLook HA-KIT-H1 Systems: Additional or replacement indoor monitor applications.
• Professional Intercom Upgrades: Compatible Hybrid HD system expansion.

Compatibility & Installation

System Type: HiLook four-wire Hybrid HD video intercom.

Compatible Outdoor Station: HiLook HA-DS-H1.

Compatible Kit: HiLook HA-KIT-H1.

Display: 7-inch colour TFT capacitive touchscreen.

Resolution: 1024 × 600 pixels.

WiFi: Built-in 2.4GHz IEEE 802.11b/g/n.

Hik-Connect: Supported through compatible system configuration and internet connectivity.

Audio: Integrated microphone and loudspeaker for hands-free communication.

Outdoor Station Connection: Four-wire Hybrid HD.

Indoor Extensions: Up to two additional indoor monitors in supported configurations.

Outdoor Stations: Up to two compatible door stations.

Analogue Camera: One compatible camera.

Alarm Inputs: Two.

Memory Card: microSD / TF card, maximum 128GB.

Power: 12V DC.

Power Consumption: Maximum 5W.

Installation: Indoor wall mounting.

Operating Temperature: -10°C to +50°C.

Important: The HA-IN-H1 is not an IP video intercom indoor station and should not be substituted for the HiLook HA-IN-IP2 without confirming system compatibility.

Professional Installation: Installation and commissioning by an experienced security installer are recommended.

Package Contents

• 1 × HiLook HA-IN-H1 AU Hybrid HD WiFi Video Intercom Indoor Monitor.
• Manufacturer-supplied standard accessories applicable to the individual Australian product package.

Important: This listing is for the indoor monitor only. Outdoor door stations, complete intercom kits, electric locks, cabling, memory cards, additional monitors and installation services are not included unless specifically stated. Confirm whether a power adapter and wall-mounting accessories are included with the individual monitor package before ordering.

Frequently Asked Questions

What is the HiLook HA-IN-H1 AU?

It is a 7-inch WiFi-enabled Hybrid HD video intercom indoor monitor designed for compatible HiLook four-wire intercom systems.

What size is the touchscreen?

7 inches.

What is the screen resolution?

1024 × 600 pixels.

Is the display a touchscreen?

Yes. It features a capacitive touchscreen.

Does the HA-IN-H1 have built-in WiFi?

Yes. It supports 2.4GHz IEEE 802.11b/g/n WiFi connectivity.

Does it support 5GHz WiFi?

No. The manufacturer specifies IEEE 802.11b/g/n wireless networking, which operates on 2.4GHz.

Can I use Hik-Connect?

Yes. Supported HiLook Hybrid HD configurations provide Hik-Connect mobile integration when correctly connected and configured.

Can I answer visitor calls on my phone?

Yes, where supported by the connected system and correctly configured Hik-Connect application.

Can I unlock the door from the indoor monitor?

Yes. The monitor can operate compatible electric door release functions through the connected outdoor station and lock-control equipment.

Does it support two-way audio?

Yes. It includes a built-in microphone and loudspeaker.

Does it support hands-free communication?

Yes. Visitors can be answered through the touchscreen without a separate handset.

Does it support noise suppression?

Yes. Noise suppression and echo cancellation are supported.

Which outdoor station is compatible?

The HiLook HA-DS-H1 is the outdoor station used with this monitor in the HA-KIT-H1 system.

Which kit includes the HA-IN-H1?

The HiLook HA-KIT-H1 Hybrid HD Video Intercom Kit.

Can it operate without an outdoor station?

The monitor requires a compatible HiLook Hybrid HD system for normal visitor video calling and entrance communication.

Can I use it as an additional indoor monitor?

Yes. Supported Hybrid HD configurations allow additional indoor monitor extensions.

How many indoor monitors can the system support?

A main indoor station and up to two additional indoor extensions, subject to the system configuration.

How many outdoor stations can it support?

Up to two compatible outdoor door stations in supported configurations.

Does it support an additional analogue camera?

Yes. The manufacturer's system specifications identify support for one compatible analogue camera.

Can I connect standard IP cameras?

The manufacturer's specifications do not identify independent IP camera support for this model.

Does it have a memory card slot?

Yes. It supports a TF / microSD card.

What is the maximum memory card capacity?

128GB.

Is a memory card included?

No memory card is included unless specifically stated in the product package.

Does it support alarm inputs?

Yes. Two alarm input interfaces are provided.

How does it connect to the outdoor station?

Through a compatible four-wire Hybrid HD intercom connection.

Does it use an Ethernet cable for intercom communication?

No. The outdoor station communicates through the four-wire Hybrid HD connection rather than a standard Ethernet IP intercom connection.

Does it support PoE?

No. The monitor requires a suitable 12V DC power supply.

What is the power consumption?

Maximum 5W.

What is the operating temperature?

-10°C to +50°C.

Can it be installed outdoors?

No. The HA-IN-H1 is designed for indoor installation.

What are the dimensions?

175 × 113.5 × 18.1mm.

Can it be wall mounted?

Yes. It is designed for indoor wall mounting.

Is the HA-IN-H1 compatible with HA-DS-IP2?

No. The HA-DS-IP2 belongs to the HiLook IP intercom platform, while the HA-IN-H1 is designed for compatible four-wire Hybrid HD systems.

What is the difference between HA-IN-H1 and HA-IN-IP2?

The HA-IN-H1 is a four-wire Hybrid HD indoor monitor, while the HA-IN-IP2 belongs to the HiLook IP video intercom platform. They are not interchangeable without verified system compatibility.

Does this listing include an outdoor station?

No. This listing is for the indoor monitor only.

Does it include a complete intercom kit?

No. A complete system must be purchased separately unless already installed.

Does it include installation?

No. Installation services are not included unless specifically quoted.

What warranty applies in Australia?

Eligible HiLook intercom products supplied by Civic Electronic include a two-year Australian warranty, subject to applicable terms.

Where can I buy genuine HiLook Hybrid HD intercom monitors in Australia?

Civic Electronic supplies genuine Australian HiLook intercom equipment with professional installer and trade support.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We supply genuine Australian Hikvision and HiLook video intercom systems, CCTV equipment, access control products and professional security solutions.

• Authorised Hikvision Sales Partner.
• Hikvision Training Centre in Sydney, Australia.
• Genuine Australian Hikvision and HiLook stock.
• Official Australian warranty support.
• Competitive wholesale and trade pricing.
• Professional intercom and access control product advice.
• Installer and system integrator support.
• Fast Australia-wide delivery.
• Free standard shipping on eligible orders of $300 or more.
• 2-hour Click & Collect from Rouse Hill, subject to stock confirmation.

For HiLook HA-IN-H1 AU compatibility, system design or trade pricing assistance, contact Civic Electronic on 1300 024 842.
