Hikvision HiLook HA-KIT-H1 AU 7" Hybrid HD WiFi Video Intercom Kit

Hikvision HiLook HA-KIT-H1 AU 7" Hybrid HD WiFi Video Intercom Kit

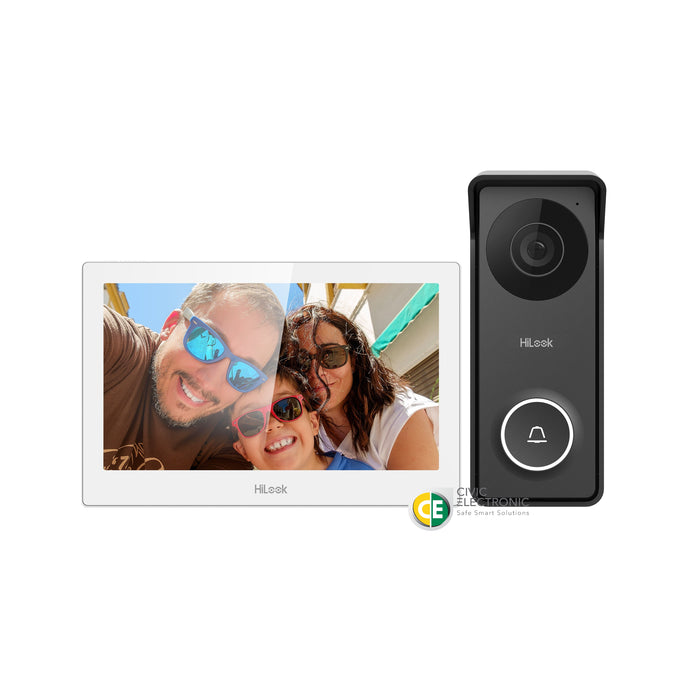

The Hikvision HiLook HA-KIT-H1 AU is a complete Hybrid HD WiFi video intercom kit designed for residential homes, townhouses, villas and small commercial entrances.

Combining a 7-inch colour touchscreen indoor monitor with an HD outdoor video door station, the HA-KIT-H1 provides convenient visitor identification, two-way communication and compatible electric door lock control.

The kit includes the HiLook HA-IN-H1 WiFi indoor monitor and HiLook HA-DS-H1 outdoor door station, providing the essential intercom components for a single-entrance installation.

Unlike conventional IP video intercom systems, the HA-KIT-H1 uses a four-wire Hybrid HD connection between the indoor monitor and outdoor station.

This simplified wiring arrangement makes the system suitable for new installations and selected intercom upgrades where compatible four-core cabling is available.

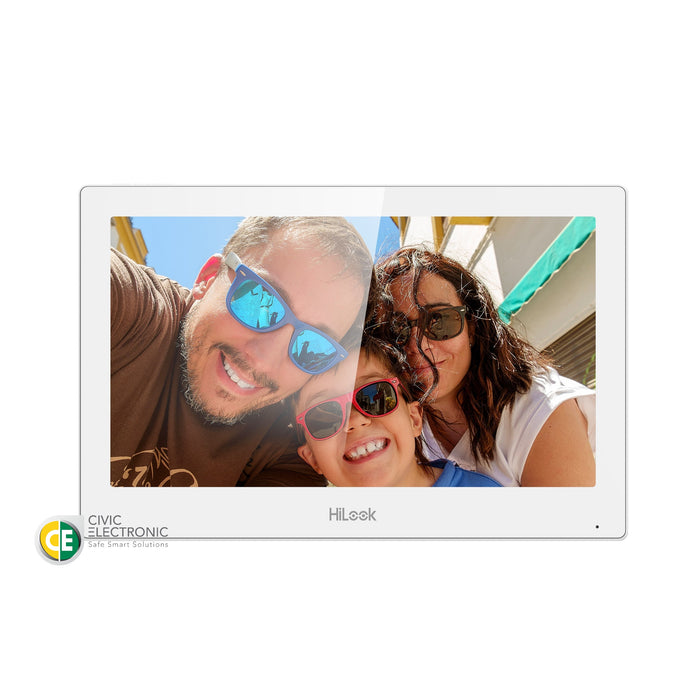

The indoor monitor features a 7-inch colour TFT capacitive touchscreen with a resolution of 1024 × 600 pixels, providing a clear interface for viewing visitors, answering calls and managing supported entrance functions.

The outdoor door station delivers HD video with a manufacturer-specified streaming resolution of 1280 × 720 at up to 60fps.

Its wide-angle camera provides a 117° horizontal, 70° vertical and 141° diagonal field of view, helping occupants identify visitors and view the surrounding entrance area.

Integrated infrared illumination supports low-light visitor identification at distances of up to 3 metres.

The system supports two-way audio communication, allowing occupants to speak with visitors before granting access.

The indoor monitor features built-in 2.4GHz WiFi connectivity, enabling supported remote communication functions through the Hik-Connect mobile application.

When connected to a compatible WiFi network and correctly configured, Hik-Connect allows users to manage supported visitor communication and door release functions remotely.

Important: WiFi connectivity is provided by the indoor monitor. The outdoor door station communicates through the four-wire Hybrid HD connection and does not have independent WiFi connectivity.

The HA-DS-H1 outdoor station includes an electric lock-control relay rated at a maximum of 30V, 1A, allowing integration with compatible door release equipment.

The outdoor station features a durable housing with IP65 weather protection and IK08 impact resistance, making it suitable for properly installed outdoor entrances.

The HiLook Hybrid HD system also supports compatible expansion configurations, allowing additional indoor monitors and an additional outdoor door station within the manufacturer's specified capacity.

The kit includes a 5-metre four-wire connection cable, an indoor monitor wall-mounting bracket and an Australian-standard power adapter.

For installations requiring longer cable runs, suitable cabling must be selected according to the manufacturer's recommended conductor sizes and transmission distances.

The HA-KIT-H1 provides an economical solution for properties requiring HD visitor video, touchscreen indoor communication, mobile connectivity and compatible electric lock control without the complexity of a full IP intercom installation.

Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.

Important: This is a four-wire Hybrid HD video intercom kit. It is not an Ethernet IP or PoE intercom system. Electric locks, additional monitors, additional door stations and installation services are not included unless specifically stated.

2-Year Australian Intercom Warranty, subject to applicable terms.

Key Features

• Complete Video Intercom Kit: Includes one indoor monitor and one outdoor door station.
• 7-Inch Colour Touchscreen: Convenient indoor visitor monitoring.
• 1024 × 600 Display Resolution: Clear indoor viewing interface.
• Capacitive Touchscreen: Responsive touch operation.
• HD Outdoor Camera: 1280 × 720 video streaming.
• Up to 60fps: Manufacturer-specified outdoor video streaming capability.
• 117° Horizontal Viewing Angle: Wide entrance coverage.
• 141° Diagonal Viewing Angle: Broad overall field of view.
• Infrared Night Illumination: Up to 3 metres.
• Two-Way Audio: Communicate with visitors before granting access.
• Built-In Indoor WiFi: 2.4GHz IEEE 802.11b/g/n connectivity.
• Hik-Connect Integration: Supported remote visitor communication.
• Four-Wire Hybrid HD: Simplified indoor-to-outdoor connection.
• Electric Lock Control: Outdoor station relay rated up to 30V, 1A.
• IP65 Outdoor Protection: Dust and water resistance.
• IK08 Impact Resistance: Durable outdoor construction.
• Additional Indoor Monitors: Supports compatible indoor extensions.
• Additional Outdoor Station: Supports compatible dual-entrance configurations.
• 5m Four-Wire Cable: Included in the standard kit.
• Australian Power Adapter: Included.
• Wall-Mounting Bracket: Included for the indoor monitor.
• Professional Installation: Suitable for installer-configured residential and commercial systems.
• 2-Year Australian Warranty: Subject to applicable terms.

Detailed Features & Benefits

Complete Hybrid HD Video Intercom Solution

The HA-KIT-H1 combines the essential components required for a compatible single-entrance Hybrid HD video intercom installation.

7-Inch Colour Touchscreen Indoor Monitor

The HA-IN-H1 features a 7-inch colour TFT capacitive touchscreen, providing convenient access to visitor video, communication and supported entrance controls.

1024 × 600 Indoor Display Resolution

The high-resolution display provides clear visitor images and an easy-to-use intercom interface.

HD Outdoor Video Door Station

The included HA-DS-H1 outdoor station provides HD visitor video with a manufacturer-specified streaming resolution of 1280 × 720.

Wide-Angle Entrance Camera

The outdoor camera offers 117° horizontal, 70° vertical and 141° diagonal viewing angles for broad entrance coverage.

Infrared Night Illumination

Integrated infrared illumination supports visitor identification in low-light environments at distances of up to 3 metres.

Hands-Free Two-Way Audio

Occupants can communicate with visitors through the indoor monitor's built-in microphone and loudspeaker.

Integrated 2.4GHz WiFi

The indoor monitor supports IEEE 802.11b/g/n wireless networking for connection to a compatible 2.4GHz WiFi network.

Hik-Connect Mobile Application

When the system is correctly configured, Hik-Connect provides supported remote visitor communication and entrance management functions.

Four-Wire Hybrid HD Technology

The outdoor station connects to the indoor monitor through four-wire cabling carrying video, audio, power and ground.

Electric Door Lock Control

The outdoor station includes a relay rated at a maximum of 30V, 1A for compatible electric lock-control applications.

IP65 Outdoor Weather Protection

The outdoor station provides IP65 dust and water resistance when installed according to manufacturer requirements.

IK08 Impact Resistance

The outdoor station features IK08-rated impact protection for additional durability at building entrances.

Expandable Indoor Monitoring

Supported configurations allow a main indoor station and up to two additional indoor extensions.

Dual-Entrance System Capability

The Hybrid HD platform supports a main outdoor station and one additional outdoor station in compatible configurations.

Included Four-Wire Connection Cable

The kit includes a 5-metre four-wire cable for connecting the indoor monitor and outdoor station.

Australian Standard Power Adapter

An Australian-standard power adapter is included for the indoor monitor.

Professional Installation Flexibility

Installers can select suitable cable sizes and routing arrangements according to the manufacturer's transmission-distance recommendations.

Ideal Applications

• Residential Homes: Visitor video monitoring and communication.
• Townhouses: Convenient touchscreen entrance management.
• Villas: HD visitor communication with WiFi connectivity.
• Duplex Properties: Compatible Hybrid HD intercom installations.
• Front Door Entrances: Visitor identification and two-way communication.
• Front Gate Entrances: Compatible outdoor station installations.
• Small Commercial Offices: Visitor communication and entrance control.
• Business Reception Areas: Indoor touchscreen visitor monitoring.
• Multi-Level Homes: Expandable indoor monitor configurations.
• Properties with Two Entrances: Supported additional outdoor station configurations.
• Intercom Upgrades: Suitable projects with compatible four-wire cabling.
• Professional Security Installations: Installer-configured Hybrid HD intercom systems.

Compatibility & Installation

System Type: HiLook four-wire Hybrid HD video intercom.

Indoor Monitor: HiLook HA-IN-H1.

Outdoor Door Station: HiLook HA-DS-H1.

Indoor Display: 7-inch colour TFT capacitive touchscreen.

Indoor Resolution: 1024 × 600 pixels.

Outdoor Video: 1280 × 720 at up to 60fps.

Outdoor Night Illumination: Infrared, up to 3 metres.

WiFi: 2.4GHz IEEE 802.11b/g/n through the indoor monitor.

Mobile Application: Hik-Connect, subject to network connectivity and system configuration.

Communication: Two-way audio.

Indoor-to-Outdoor Wiring: Four-wire Hybrid HD.

Indoor Power: 12V DC.

Outdoor Power: Supplied through the compatible indoor monitor.

PoE: Not supported.

Door Lock Control: One relay, maximum 30V, 1A.

Indoor Expansion: Up to two additional indoor monitors in supported configurations.

Outdoor Expansion: One additional outdoor station in supported configurations.

Outdoor Protection: IP65 and IK08.

Indoor Installation: Protected indoor wall mounting.

Outdoor Installation: Surface mounting according to manufacturer instructions.

Important: The HA-KIT-H1 is not compatible with every HiLook IP intercom component. The HA-IN-IP2 and HA-DS-IP2 belong to a different intercom platform.

Professional Installation: Installation and commissioning by an experienced security installer are recommended.

Four-Wire Connection Guide

Hikvision identifies the following four-wire connection functions:

• Blue: Video.
• Black: Ground.
• Yellow: Audio.
• Red: Power.

When using suitable alternative cabling, Hikvision recommends pairing the blue video conductor with the black ground conductor and the yellow audio conductor with the red power conductor.

Recommended Cable Transmission Distances

The manufacturer provides the following conductor-size guidance for the connection between the outdoor station and indoor monitor:

• AWG24: Up to 10 metres.
• AWG20: More than 10 metres and up to 30 metres.
• AWG18: More than 30 metres and up to 50 metres.
• AWG16: More than 50 metres and up to 100 metres.

Actual transmission performance depends on conductor material, cable quality, installation conditions and manufacturer requirements.

Installation Note: The included cable is 5 metres long. Longer cable runs require suitable separately supplied cabling.

Package Contents

• 1 × HiLook HA-IN-H1 7-Inch Hybrid HD WiFi Indoor Monitor.
• 1 × HiLook HA-DS-H1 Hybrid HD Outdoor Door Station.
• 1 × 5-Metre Four-Wire Connection Cable.
• 1 × Indoor Monitor Wall-Mounting Bracket.
• 1 × Australian-Standard Power Adapter.
• Manufacturer-supplied standard accessories and documentation applicable to the Australian package.

Important: Electric locks, additional indoor monitors, additional outdoor stations, extra cabling and installation services are not included unless specifically stated.

Frequently Asked Questions

What is the HiLook HA-KIT-H1 AU?

It is a complete four-wire Hybrid HD WiFi video intercom kit containing a 7-inch indoor monitor and an HD outdoor door station.

What is included in the kit?

The kit includes one HA-IN-H1 indoor monitor, one HA-DS-H1 outdoor station, a 5-metre four-wire cable, an indoor wall-mounting bracket and an Australian-standard power adapter.

What size is the indoor monitor?

7 inches.

What is the indoor display resolution?

1024 × 600 pixels.

Is the indoor monitor a touchscreen?

Yes. It features a capacitive touchscreen.

Does the kit support WiFi?

Yes. The indoor monitor features built-in 2.4GHz WiFi connectivity.

Does the outdoor station have WiFi?

No. The outdoor station communicates with the indoor monitor through the four-wire connection.

Does it support Hik-Connect?

Yes. Hik-Connect integration is supported when the compatible system is correctly connected and configured.

Can I answer visitor calls on my smartphone?

Yes, through supported Hik-Connect functions when the system has suitable network connectivity and configuration.

Can I unlock my door remotely?

Supported door unlocking functions are available when compatible electric lock hardware is installed and the system is correctly configured.

Does the outdoor station include a camera?

Yes. The HA-DS-H1 includes an integrated HD camera.

What is the outdoor camera resolution?

1280 × 720 video streaming resolution.

What is the camera viewing angle?

117° horizontally, 70° vertically and 141° diagonally.

Does the camera support night vision?

Yes. Infrared illumination supports low-light viewing up to 3 metres.

Does the system support two-way audio?

Yes. Occupants can communicate with visitors through the indoor monitor and outdoor door station.

Does it support electric lock control?

Yes. The outdoor station includes one relay rated at a maximum of 30V, 1A.

Is an electric lock included?

No. Compatible electric lock hardware must be purchased separately.

Is this an IP intercom kit?

No. The HA-KIT-H1 uses four-wire Hybrid HD technology rather than Ethernet IP intercom communication.

Does the kit support PoE?

No. The indoor monitor uses 12V DC power and the outdoor station receives power through the four-wire connection.

Does the kit require an internet connection?

Local intercom operation does not require internet access, but Hik-Connect remote functions require suitable network connectivity.

Can it be used without WiFi?

Local visitor communication can operate through the wired Hybrid HD connection. Remote Hik-Connect functions require suitable network connectivity.

How many indoor monitors can the system support?

Up to three compatible indoor monitors in total, subject to system configuration.

How many outdoor stations can the system support?

Up to two compatible outdoor stations in total, subject to system configuration.

Can I add another indoor monitor?

Yes. Compatible HA-IN-H1 indoor monitors can be added within the manufacturer's supported system capacity.

Can I add another outdoor station?

Yes. A compatible HA-DS-H1 outdoor station can be added in supported configurations.

Can I use the HA-IN-IP2 as an additional monitor?

No. The HA-IN-IP2 belongs to the HiLook IP intercom platform rather than the four-wire Hybrid HD platform.

Can I use the HA-DS-IP2 outdoor station?

No. The HA-DS-IP2 is an IP video intercom outdoor station and is not the correct four-wire Hybrid HD expansion model.

What is the difference between HA-KIT-H1 and HA-KIT-IP2?

The HA-KIT-H1 uses four-wire Hybrid HD technology, while the HA-KIT-IP2 uses an IP network architecture with Ethernet and PoE support.

Does the kit include connection cabling?

Yes. A 5-metre four-wire connection cable is included.

Can I use longer cabling?

Yes, subject to the manufacturer's cable specifications and transmission-distance requirements.

What is the maximum recommended cable distance?

The manufacturer provides cable guidance up to 100 metres using suitable AWG16 conductors under specified conditions.

What are the four-wire cable functions?

Video, audio, power and ground.

Does the kit include a power adapter?

Yes. An Australian-standard power adapter is included.

Is the outdoor station weatherproof?

The outdoor station has an IP65 weather protection rating when correctly installed.

What is the outdoor station impact rating?

IK08.

What is the outdoor station made from?

The manufacturer specifies aluminium alloy and plastic construction.

Can the indoor monitor be installed outdoors?

No. The indoor monitor is intended for protected indoor installation.

What are the outdoor station dimensions?

55 × 145 × 24mm.

Can the outdoor station be surface mounted?

Yes. It supports surface mounting according to manufacturer instructions.

Is this kit suitable for a townhouse?

Yes. It is suitable for compatible residential townhouse intercom installations.

Is this kit suitable for a front gate?

Yes, provided the outdoor station is correctly installed and suitable cabling and lock-control equipment are used.

Can it replace an existing intercom?

Potentially. Existing wiring and installation conditions must be checked for compatibility before replacement.

Does the kit include installation?

No. Installation services are not included unless separately quoted.

What warranty applies in Australia?

Eligible HiLook intercom products supplied by Civic Electronic include a two-year Australian warranty, subject to applicable terms.

Where can I buy genuine HiLook Hybrid HD intercom kits in Australia?

Civic Electronic supplies genuine Australian HiLook intercom systems with professional installer and trade support.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We specialise in genuine Australian Hikvision and HiLook video intercom systems, CCTV equipment, access control products and professional security solutions.

• Authorised Hikvision Sales Partner: Genuine Australian Hikvision and HiLook products.
• Hikvision Training Centre: Professional product knowledge and installer support.
• Australian Warranty: Warranty support for eligible products.
• Competitive Pricing: Wholesale and trade pricing opportunities.
• Technical Support: Assistance with compatible intercom equipment and system selection.
• Professional Installer Support: Support for security installers and system integrators.
• Australia-Wide Delivery: Fast shipping on eligible orders.
• Free Standard Shipping: Available on eligible orders of $300 or more.
• 2-Hour Click & Collect: Available from Rouse Hill, subject to stock confirmation.

For HiLook HA-KIT-H1 AU compatibility, additional monitors, outdoor stations or trade pricing assistance, contact Civic Electronic on 1300 024 842.
