Hikvision HiLook HA-KIT-IP2 7" WiFi IP Video Intercom Kit with 2MP Door Station

Hikvision HiLook HA-KIT-IP2 7" WiFi IP Video Intercom Kit with 2MP Door Station

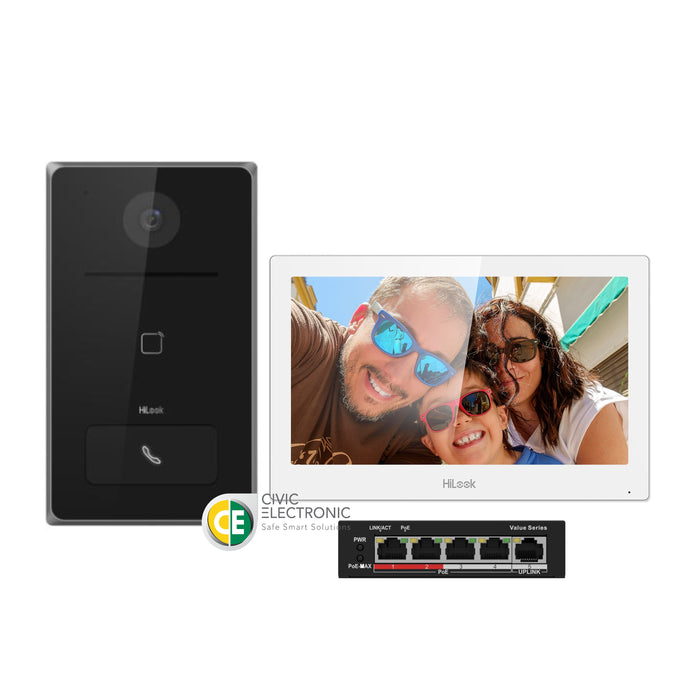

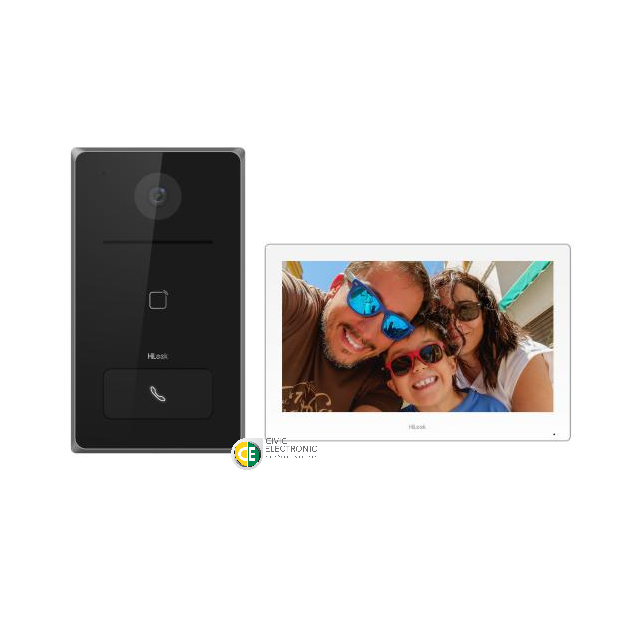

The Hikvision HiLook HA-KIT-IP2 is a professional IP video intercom kit designed to provide convenient visitor identification, two-way communication and entrance access control for Australian homes, townhouses, villas and small commercial properties.

Combining a 7-inch WiFi touchscreen indoor monitor with a 2MP HD outdoor door station, this complete HiLook IP intercom system allows occupants to see and communicate with visitors before granting access.

The kit includes the HiLook HA-IN-IP2 indoor monitor and HiLook HA-DS-IP2 outdoor station, providing the main components required for a compatible single-entrance video intercom installation.

Unlike traditional four-wire Hybrid HD intercom systems, the HA-KIT-IP2 uses an IP network architecture, supporting Ethernet connectivity, standard PoE power and compatible wireless network configurations.

The indoor monitor features a 7-inch colour TFT capacitive touchscreen with a resolution of 1024 × 600 pixels, providing a clear interface for answering visitor calls, viewing entrance video and operating supported door release functions.

The outdoor station incorporates a 2MP HD camera with a wide 129° horizontal and 75° vertical field of view, helping occupants identify visitors and monitor the surrounding entrance area.

Integrated infrared illumination supports visitor identification in low-light conditions at distances of approximately 2.5 metres.

The outdoor camera also supports true wide dynamic range (WDR), backlight compensation, digital noise reduction and motion detection.

The HA-KIT-IP2 supports two-way audio communication, allowing occupants to speak with visitors through the indoor monitor and outdoor station.

Both the indoor monitor and outdoor station support 2.4GHz WiFi, providing installation flexibility in compatible system configurations.

For professional wired installations, the system supports standard PoE, allowing compatible devices to receive power through suitable PoE network equipment.

When connected to a suitable network and correctly configured, the HA-KIT-IP2 supports the Hik-Connect mobile application, allowing users to receive visitor calls and operate supported remote intercom functions.

The outdoor station features a built-in electric lock-control relay rated at a maximum of 30V DC, 2A, supporting compatible door release equipment.

Its IP65-rated outdoor housing provides resistance to dust and water exposure when correctly installed.

The HA-KIT-IP2 supports convenient initial configuration through a setup wizard, helping installers commission compatible equipment without requiring a PC for basic setup.

The HiLook IP intercom platform also supports system expansion, allowing additional indoor monitors and outdoor stations within the manufacturer's specified capacity.

Supported configurations allow a main indoor station with up to 16 additional indoor stations and a main outdoor station with up to 16 additional outdoor stations.

The Australian kit includes a 32GB TF memory card, providing local storage for supported functions.

The manufacturer's Australian documentation also identifies a wall-mounting bracket and Australian-standard power adapter among the supplied kit accessories.

The HA-KIT-IP2 is particularly suitable for new residential installations, multi-level homes and properties requiring a flexible IP-based video intercom solution.

Available from Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia.

Important: The HA-KIT-IP2 is an IP video intercom kit and must be used with compatible HiLook IP intercom equipment. It is not interchangeable with the HiLook HA-KIT-H1 four-wire Hybrid HD platform. Electric locks, network cabling, PoE switches and installation services are not included unless specifically stated.

2-Year Australian Intercom Warranty, subject to applicable terms.

Key Features

• Complete IP Video Intercom Kit: Includes an indoor monitor and outdoor door station.
• 7-Inch Colour Touchscreen: Convenient indoor visitor monitoring and communication.
• 1024 × 600 Display Resolution: Clear touchscreen viewing interface.
• Capacitive Touchscreen: Responsive operation.
• 2MP HD Outdoor Camera: High-definition visitor identification.
• 129° Horizontal Field of View: Wide entrance coverage.
• 75° Vertical Field of View: Additional entrance visibility.
• True WDR: Improved performance in challenging lighting conditions.
• Infrared Night Illumination: Approximately 2.5m range.
• Motion Detection: Supported by the outdoor camera.
• Two-Way Audio: Communicate with visitors before granting access.
• Single Visitor Call Button: Simple entrance calling.
• 2.4GHz WiFi: Supported by the indoor and outdoor stations.
• Ethernet Networking: IP-based communication for compatible wired installations.
• Standard PoE: Supported by both main devices.
• 12V DC Power: Alternative power option.
• Hik-Connect Integration: Remote visitor communication and supported entrance functions.
• Electric Lock Control: Outdoor relay rated up to 30V DC, 2A.
• IP65 Outdoor Protection: Weather-resistant door station.
• Expandable System: Supports compatible additional indoor and outdoor stations.
• Quick Setup Wizard: Simplifies supported system configuration.
• 32GB TF Card: Included in the Australian kit.
• Australian Power Adapter: Included.
• Professional Installation: Suitable for security installers and system integrators.
• 2-Year Australian Warranty: Subject to applicable terms.

Detailed Features & Benefits

Complete IP Video Intercom Solution

The HA-KIT-IP2 combines a compatible indoor monitor and outdoor door station to provide visitor video monitoring, two-way communication and supported entrance access control.

7-Inch Colour Touchscreen

The HA-IN-IP2 indoor monitor features a 7-inch colour TFT capacitive touchscreen with a 1024 × 600 resolution, providing a convenient interface for everyday intercom operation.

2MP HD Outdoor Camera

The HA-DS-IP2 outdoor station incorporates a 2MP HD camera to help occupants identify visitors before answering calls or granting access.

Wide-Angle Entrance Coverage

The outdoor camera provides a 129° horizontal and 75° vertical field of view, helping capture visitors and surrounding entrance areas.

True Wide Dynamic Range

True WDR improves image visibility in entrance scenes containing bright and dark areas, such as doorways exposed to strong sunlight.

Infrared Night Illumination

Integrated infrared illumination supports low-light visitor identification at distances of approximately 2.5 metres.

Two-Way Audio Communication

Occupants can communicate with visitors through the indoor monitor and outdoor station before granting access.

Hik-Connect Mobile Integration

When connected to a suitable network and correctly configured, Hik-Connect provides supported remote visitor communication and entrance management functions.

2.4GHz WiFi Connectivity

Both the indoor monitor and outdoor station support 2.4GHz WiFi, offering flexibility for supported wireless networking configurations.

Ethernet IP Networking

The IP-based architecture supports integration with suitable wired network infrastructure, including compatible Ethernet switches and routers.

Standard PoE Power

Both main devices support standard PoE, allowing installers to supply power through compatible PoE network equipment.

Alternative 12V DC Power

Suitable 12V DC power supplies can be used according to the manufacturer's requirements.

Electric Door Lock Control

The outdoor station includes a relay rated at a maximum of 30V DC, 2A for compatible electric lock applications.

IP65 Outdoor Protection

The outdoor station's IP65-rated housing provides resistance to dust and water exposure when correctly installed.

Expandable Indoor Monitoring

Supported system configurations allow up to 16 additional indoor stations, making the platform suitable for properties requiring multiple monitoring locations.

Expandable Outdoor Stations

The IP intercom platform supports up to 16 additional outdoor door stations in compatible configurations.

Quick Setup Wizard

The manufacturer's guided setup process simplifies initial configuration for supported installations.

Included 32GB TF Memory Card

The Australian kit includes a 32GB TF card for supported local storage functions.

Professional Installer Configuration

Correct network settings, calling destinations, Hik-Connect configuration, power supply selection and lock-control integration are important for reliable system operation.

Ideal Applications

• Residential Homes: Visitor video monitoring and communication.
• Townhouses: Modern touchscreen video intercom operation.
• Villas: IP-based entrance communication.
• Multi-Level Homes: Expandable indoor monitoring locations.
• Duplex Properties: Compatible multi-station intercom installations.
• Front Door Entrances: Visitor identification and two-way audio.
• Front Gates: Compatible outdoor station and lock-control installations.
• Small Commercial Offices: Visitor communication and access management.
• Business Reception Areas: Touchscreen entrance monitoring.
• Properties with Multiple Entrances: Supported additional outdoor station configurations.
• New Network Installations: IP intercom systems using suitable Ethernet infrastructure.
• Professional Security Projects: Installer-configured IP video intercom installations.

Compatibility & Installation

System Type: HiLook IP video intercom.

Indoor Monitor: HiLook HA-IN-IP2.

Outdoor Door Station: HiLook HA-DS-IP2.

Indoor Display: 7-inch colour TFT capacitive touchscreen.

Indoor Resolution: 1024 × 600 pixels.

Outdoor Camera: 2MP HD.

Outdoor Viewing Angle: 129° horizontal and 75° vertical.

Night Illumination: Infrared, approximately 2.5 metres.

Networking: Compatible IP Ethernet and 2.4GHz WiFi configurations.

Indoor Ethernet: RJ45, 10/100Mbps.

WiFi: 2.4GHz IEEE 802.11b/g/n.

Power: Standard PoE or suitable 12V DC power supplies.

Hik-Connect: Supported through suitable internet connectivity and system configuration.

Communication: Two-way audio.

Door Lock Control: Outdoor station relay, maximum 30V DC, 2A.

Indoor Expansion: Up to 16 additional indoor stations in supported configurations.

Outdoor Expansion: Up to 16 additional outdoor stations in supported configurations.

Outdoor Protection: IP65.

Indoor Installation: Protected indoor wall mounting.

Outdoor Installation: Mount according to manufacturer instructions.

Important: The HA-KIT-IP2 is not a four-wire Hybrid HD intercom system. The HA-IN-H1 and HA-DS-H1 belong to the separate HiLook Hybrid HD platform.

Professional Installation: Installation and commissioning by an experienced security installer are recommended.

IP Network Installation

The HA-KIT-IP2 supports a network-based installation using compatible IP networking equipment.

• Connect the indoor monitor and outdoor station through a compatible network configuration.
• Use standard PoE equipment where PoE power is selected.
• Alternatively, provide suitable 12V DC power supplies according to manufacturer requirements.
• Configure the indoor monitor and outdoor station for correct visitor calling.
• Connect the system to a suitable internet-enabled network for supported Hik-Connect functions.
• Configure compatible electric lock equipment according to the outdoor station relay rating.
• Confirm device compatibility before adding extra indoor or outdoor stations.

Installation Note: Standard PoE requires compatible PoE equipment. A conventional non-PoE network switch does not provide PoE power.

Package Contents

• 1 × HiLook HA-IN-IP2 7-Inch WiFi IP Video Intercom Indoor Monitor.
• 1 × HiLook HA-DS-IP2 2MP IP Video Intercom Outdoor Door Station.
• 1 × 32GB TF Memory Card.
• Power Supply Units: Manufacturer datasheet specifies 2 PSU units for the kit.
• Indoor Monitor Wall-Mounting Bracket.
• Manufacturer-supplied Australian-standard power adapter and applicable standard accessories.

Important: The manufacturer's Australian brochure and datasheet describe the included power accessories differently. Confirm the exact number and type of adapters in the supplied Australian kit before publishing a fixed adapter quantity. Network cables, PoE switches, electric locks, additional monitors, additional door stations and installation services are not included unless specifically stated.

Frequently Asked Questions

What is the HiLook HA-KIT-IP2?

It is an IP video intercom kit containing a 7-inch touchscreen indoor monitor and a 2MP outdoor door station.

What components are included?

The kit includes one HA-IN-IP2 indoor monitor, one HA-DS-IP2 outdoor station, a 32GB TF card and manufacturer-supplied power and mounting accessories.

What size is the indoor monitor?

7 inches.

What is the indoor display resolution?

1024 × 600 pixels.

Is the indoor monitor a touchscreen?

Yes. It features a capacitive touchscreen.

What is the outdoor camera resolution?

2MP HD.

What is the outdoor camera viewing angle?

129° horizontally and 75° vertically.

Does the outdoor camera support night vision?

Yes. It features infrared illumination with an approximate range of 2.5 metres.

Does it support true WDR?

Yes. The outdoor camera supports true wide dynamic range.

Does the outdoor camera support motion detection?

Yes. Motion detection is supported.

Does the kit support WiFi?

Yes. Both the indoor monitor and outdoor station support 2.4GHz WiFi.

Does it support 5GHz WiFi?

The manufacturer's specifications identify 2.4GHz WiFi. 5GHz support is not listed.

Can the system use Ethernet networking?

Yes. The HA-KIT-IP2 is an IP video intercom system supporting compatible wired network configurations.

Does the kit support PoE?

Yes. Both the indoor monitor and outdoor station support standard PoE.

Can it operate using 12V DC power?

Yes. Both devices support suitable 12V DC power arrangements according to manufacturer requirements.

Does it support Hik-Connect?

Yes. Hik-Connect integration is supported when the system is correctly connected and configured.

Can I answer visitor calls on my smartphone?

Yes, through supported Hik-Connect functions when the system has suitable network connectivity.

Can I unlock the door remotely?

Supported door unlocking functions are available through compatible lock-control hardware and appropriate system configuration.

Does the system support two-way audio?

Yes. Occupants can communicate with visitors through the indoor monitor and outdoor station.

Does the outdoor station have a call button?

Yes. It includes one physical visitor call button.

Does it support electric lock control?

Yes. The outdoor station includes a relay rated at a maximum of 30V DC, 2A.

Is an electric lock included?

No. Electric lock hardware must be purchased separately.

Is this a four-wire Hybrid HD intercom kit?

No. The HA-KIT-IP2 uses an IP network architecture rather than the four-wire Hybrid HD platform.

What is the difference between HA-KIT-IP2 and HA-KIT-H1?

The HA-KIT-IP2 supports IP networking, Ethernet and standard PoE. The HA-KIT-H1 uses a four-wire Hybrid HD connection between its indoor monitor and outdoor station.

Can I use the HA-IN-H1 monitor with this kit?

No. The HA-IN-H1 belongs to the separate four-wire Hybrid HD platform.

Can I use the HA-DS-H1 outdoor station with this kit?

No. The HA-DS-H1 is a four-wire Hybrid HD outdoor station rather than a compatible IP intercom door station.

Can I add another indoor monitor?

Yes. Supported HiLook IP intercom configurations allow compatible additional indoor monitors.

How many indoor stations can the system support?

The manufacturer's system overview indicates a main indoor station with up to 16 additional indoor stations, subject to configuration.

Can I add another outdoor door station?

Yes. Compatible additional outdoor stations can be installed within the supported system capacity.

How many outdoor stations can the system support?

The manufacturer's system overview indicates a main outdoor station with up to 16 additional outdoor stations, subject to configuration.

Can I purchase the HA-DS-IP2 outdoor station separately?

Civic Electronic supplies the HA-DS-IP2 as an approved add-on item only. It cannot be purchased individually.

Does the kit include a memory card?

Yes. The Australian kit includes a 32GB TF memory card.

Does the kit include a power adapter?

Yes. The manufacturer's Australian kit documentation identifies included power adapters. Confirm the exact supplied adapter quantity for the current package.

Does the kit include a PoE switch?

No. A PoE switch is not included unless specifically stated.

Does the kit include network cabling?

Network cabling is not included unless specifically stated in the product package.

Is the outdoor station suitable for outdoor installation?

Yes. It features an IP65 protection rating when correctly installed.

What are the outdoor station dimensions?

181.6 × 103.6 × 29.5mm.

Can the indoor monitor be installed outdoors?

No. The indoor monitor is intended for protected indoor installation.

Does the system require an internet connection?

Local intercom operation can be configured on a compatible local network. Hik-Connect remote functions require suitable internet connectivity.

Can it be installed in a townhouse?

Yes. The HA-KIT-IP2 is suitable for compatible townhouse video intercom installations.

Can it be installed at a front gate?

Yes, provided the outdoor station is correctly mounted and suitable networking, power and lock-control arrangements are installed.

Can it replace an existing intercom?

Potentially. Existing cabling, power supplies and connected equipment must be assessed for compatibility before replacement.

Does it include installation?

No. Installation services are not included unless separately quoted.

What warranty applies in Australia?

Eligible HiLook intercom products supplied by Civic Electronic include a two-year Australian warranty, subject to applicable terms.

Where can I buy genuine HiLook IP intercom kits in Australia?

Civic Electronic supplies genuine Australian HiLook video intercom systems with professional installer and trade support.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We specialise in genuine Australian Hikvision and HiLook video intercom systems, CCTV equipment, access control products and professional security solutions.

• Authorised Hikvision Sales Partner: Genuine Australian Hikvision and HiLook products.
• Hikvision Training Centre: Professional product knowledge and installer support.
• Australian Warranty: Warranty support for eligible products.
• Competitive Pricing: Wholesale and trade pricing opportunities.
• Technical Support: Assistance with compatible intercom equipment and system selection.
• Professional Installer Support: Support for security installers and system integrators.
• Australia-Wide Delivery: Fast shipping on eligible orders.
• Free Standard Shipping: Available on eligible orders of $300 or more.
• 2-Hour Click & Collect: Available from Rouse Hill, subject to stock confirmation.

For HiLook HA-KIT-IP2 compatibility, additional monitors, outdoor stations or trade pricing assistance, contact Civic Electronic on 1300 024 842.
