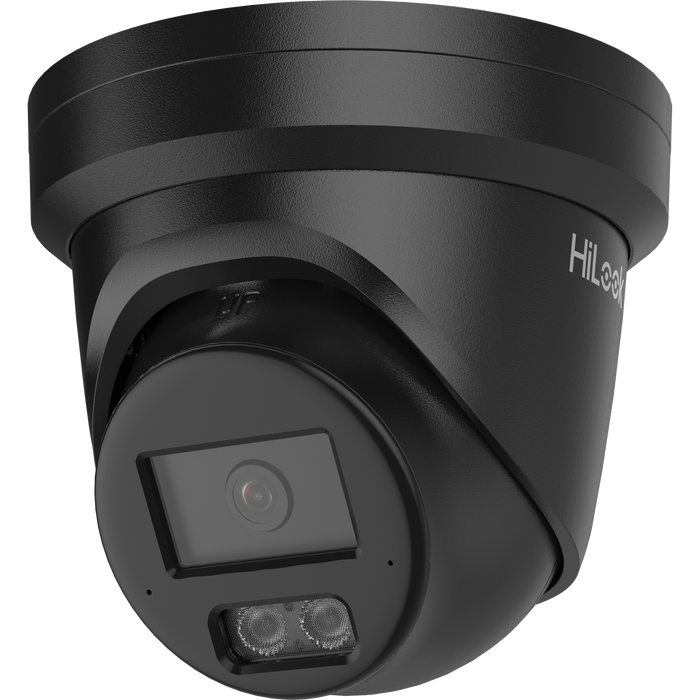

HiLook Pro IPC-T561H-MU 6MP Hi-Color Full-Colour Turret IP Camera with Built-In Microphone

Hikvision HiLook Pro IPC-T561H-MU 6MP Hi-Color Fixed Turret Network Camera

The HiLook Pro IPC-T561H-MU is a professional 6MP Hi-Color fixed turret IP security camera featuring advanced full-colour night imaging, a large 1/1.8-inch CMOS sensor, F1.0 super-aperture lens, 130 dB Wide Dynamic Range, intelligent human and vehicle detection and built-in dual microphones.

Developed by HiLook, a Hikvision security camera brand, the IPC-T561H-MU belongs to the advanced HiLook Pro range, designed for professional residential, commercial and industrial CCTV installations requiring superior low-light surveillance and high-resolution security footage.

Equipped with a 1/1.8-inch progressive scan CMOS image sensor, the camera captures detailed 3200 × 1800 video at up to 25 frames per second, delivering excellent image clarity for professional CCTV applications.

The camera's advanced Hi-Color technology is designed to deliver vivid colour images throughout the day and night, combining a high-sensitivity image sensor, F1.0 super-aperture lens and integrated white supplemental illumination.

With a minimum colour illumination of just 0.0005 lux at F1.0, the IPC-T561H-MU can capture colour images under extremely low ambient lighting conditions.

Its integrated white supplemental light provides illumination up to 30 metres, helping maintain colour surveillance in darkness when additional lighting is required.

The IPC-T561H-MU features 130 dB Wide Dynamic Range, helping improve image visibility in challenging lighting environments such as building entrances, shopfronts and locations exposed to strong backlighting.

The camera supports deep-learning human and vehicle classification, helping distinguish relevant security events from general movement and reduce unwanted motion alerts.

Advanced perimeter protection functions include line-crossing detection, intrusion detection, region entrance detection and region exiting detection, with supported human and vehicle target filtering.

The IPC-T561H-MU also supports face capture, providing additional intelligent surveillance functionality for compatible professional security applications.

Its built-in arrayed dual-microphone system supports high-quality audio capture with environmental noise filtering, providing additional context when reviewing recorded security incidents.

With H.265+ video compression, the camera helps optimise network bandwidth and recording storage requirements when used with compatible network video recorders.

The camera includes a microSD memory card slot supporting up to 512GB, allowing compatible local recording configurations without requiring continuous connection to an NVR.

Its IP67-rated metal housing provides protection against dust and water ingress, making the camera suitable for correctly installed indoor and outdoor CCTV applications.

The IPC-T561H-MU supports IEEE 802.3af Power over Ethernet, allowing compatible network equipment to supply power and data through a single Ethernet cable.

Designed for integration with compatible HiLook and Hikvision network video recorders, the IPC-T561H-MU provides a premium surveillance solution for security installers, electricians and system integrators throughout Australia.

Important: This is a Hi-Color camera with white supplemental illumination. It is not an infrared Smart Hybrid Light model. The camera includes dual microphones but does not have a built-in speaker for two-way conversation.

Three-year Australian camera warranty applies subject to applicable warranty terms.

Key Features

• 6MP High-Resolution Imaging: Records detailed video at 3200 × 1800 resolution.
• 25fps at 6MP: High-resolution video recording at up to 25 frames per second.
• Hi-Color Technology: Designed for vivid 24/7 full-colour surveillance.
• 1/1.8-Inch CMOS Sensor: Large high-sensitivity image sensor.
• F1.0 Super-Aperture Lens: Collects more light for improved low-light imaging.
• 0.0005 Lux Sensitivity: Exceptional colour imaging in very low ambient light.
• 30m White Supplemental Light: Supports colour surveillance in darkness.
• 130 dB WDR: Improved visibility in high-contrast lighting conditions.
• Scene-Adaptive WDR: Helps optimise images under challenging lighting.
• 2.8mm or 4mm Fixed Lens: Available lens options for different surveillance requirements.
• Wide-Angle Coverage: Up to 108.8° horizontal viewing angle.
• AI Human Detection: Deep-learning classification of people.
• AI Vehicle Detection: Deep-learning classification of vehicles.
• Line-Crossing Detection: Intelligent monitoring of configured boundaries.
• Intrusion Detection: Intelligent monitoring of selected security areas.
• Region Entrance Detection: Detects supported entry events.
• Region Exiting Detection: Detects supported exit events.
• Face Capture: Supports intelligent face capture functionality.
• Dual Built-In Microphones: Arrayed microphones for high-quality audio capture.
• Environmental Noise Filtering: Helps improve recorded audio quality.
• H.265+ Compression: Helps reduce bandwidth and storage consumption.
• H.265 / H.264+ / H.264: Additional supported compression formats.
• 512GB MicroSD Support: Built-in memory card slot for compatible local storage.
• Electronic Image Stabilisation: Helps compensate for supported image movement.
• 3D Digital Noise Reduction: Helps improve image clarity.
• Privacy Masking: Supports four configurable privacy masks.
• ONVIF Compatibility: Supports Profiles S, G and T.
• PoE Connectivity: IEEE 802.3af Power over Ethernet.
• 12V DC Power Option: Alternative compatible power supply.
• IP67 Weather Protection: Suitable for correctly installed outdoor applications.
• Metal Housing: Durable metal cover and main body.
• Hik-Connect Compatibility: Supported through compatible configuration.
• 3-Year Australian Warranty: Subject to applicable warranty terms.

Detailed Features & Benefits

6MP High-Resolution Surveillance

The HiLook Pro IPC-T561H-MU captures detailed 3200 × 1800 video at up to 25fps, providing excellent image clarity for professional residential and commercial CCTV installations.

Advanced Hi-Color Technology

Hi-Color technology combines a high-sensitivity sensor, F1.0 lens and white supplemental lighting to provide vivid colour surveillance throughout the day and night.

24/7 Full-Colour Imaging

Unlike conventional infrared cameras that typically switch to black-and-white imaging in darkness, the IPC-T561H-MU is designed to maintain colour surveillance using available light and integrated white illumination.

Large 1/1.8-Inch CMOS Sensor

The large image sensor improves light collection and supports detailed high-resolution imaging in challenging lighting environments.

F1.0 Super-Aperture Lens

The F1.0 aperture allows more light to reach the sensor, helping produce brighter images under low-light conditions.

Exceptional 0.0005 Lux Sensitivity

The camera's minimum colour illumination of 0.0005 lux at F1.0 supports imaging in extremely low ambient light.

30-Metre White Supplemental Light

Integrated white illumination supports colour surveillance at distances up to 30 metres when additional lighting is required.

130 dB Wide Dynamic Range

Advanced WDR helps maintain image visibility in high-contrast environments, such as entrances with strong sunlight or areas containing bright and shaded sections.

Scene-Adaptive Image Processing

Scene-adaptive WDR helps optimise surveillance footage in changing lighting conditions.

2.8mm Wide-Angle Lens

The 2.8mm version provides approximately 108.8° horizontal coverage, making it suitable for entrances, driveways and larger surveillance areas.

4mm Fixed Lens Option

The 4mm version provides approximately 93.3° horizontal coverage for more focused monitoring.

AI Human Detection

Deep-learning technology supports classification of people, helping reduce unwanted alerts from general movement.

AI Vehicle Detection

The camera supports vehicle classification for compatible intelligent security events.

Intelligent Perimeter Protection

Line-crossing, intrusion, region entrance and region exiting detection allow installers to monitor selected security boundaries and areas.

Face Capture Functionality

The IPC-T561H-MU supports face capture for compatible surveillance applications. Face capture is not equivalent to facial recognition or identity matching.

Built-In Dual Microphones

The arrayed dual-microphone system provides high-quality audio capture with supported environmental noise filtering.

H.265+ Video Compression

Efficient video compression helps reduce network bandwidth and recording storage requirements when supported by compatible recording equipment.

512GB MicroSD Storage Support

The built-in memory card slot supports compatible microSD, microSDHC and microSDXC cards up to 512GB for supported local recording applications.

Electronic Image Stabilisation

EIS helps compensate for certain types of image movement, improving surveillance stability in supported conditions.

IP67 Weather-Resistant Housing

The metal enclosure provides IP67-rated protection against dust and water ingress when correctly installed.

Power over Ethernet

IEEE 802.3af PoE allows compatible network equipment to provide power and data through a single Ethernet cable.

ONVIF Integration

ONVIF Profiles S, G and T support integration with compatible third-party network video systems.

Compatible HiLook and Hikvision NVRs

The camera can be integrated with compatible HiLook and Hikvision network video recorders for centralised recording, playback and event management.

Ideal Applications

• Residential Properties: Driveways, entrances, garages and outdoor security.
• Retail Stores: Entrances, shopfronts and stockrooms.
• Commercial Offices: Reception areas, entrances and building exteriors.
• Warehouses: Loading docks and equipment storage.
• Apartment Buildings: Common areas and shared entrances.
• Car Parks: Vehicle and pedestrian monitoring.
• Workshops: Equipment and workplace surveillance.
• Restaurants and Cafés: Entrances and appropriate operational areas.
• Low-Light Locations: Areas requiring detailed colour surveillance after dark.
• Commercial CCTV Upgrades: Replacing older cameras with 6MP Hi-Color technology.
• Professional Security Installations: High-resolution systems requiring AI detection and audio capture.

Compatibility & Installation

The HiLook Pro IPC-T561H-MU is designed for professional IP CCTV installations using compatible HiLook, Hikvision and supported third-party recording equipment.

Camera Resolution: Supports 3200 × 1800 6MP recording at up to 25fps.

Lens Options: Available with 2.8mm or 4mm fixed lenses. Confirm the supplied lens variant before ordering.

Hi-Color Technology: Designed for full-colour surveillance using available light and integrated white supplemental illumination.

Night Illumination: White supplemental light supports monitoring up to 30 metres. This model does not use infrared illumination for night imaging.

AI Detection: Supports human and vehicle classification, intelligent perimeter protection and face capture.

Audio: Built-in dual microphones support audio recording with compatible systems. No built-in speaker is specified.

Local Storage: Supports compatible microSD cards up to 512GB. Memory card sold separately.

Power: Supports IEEE 802.3af PoE or a compatible 12V DC power supply.

Weather Protection: IP67-rated enclosure for correctly installed indoor and outdoor applications.

Recorder Compatibility: Compatible HiLook and Hikvision NVRs are recommended. Confirm 6MP recording, audio and intelligent event compatibility.

Third-Party Integration: Supports ONVIF Profiles S, G and T, subject to individual system compatibility.

Professional Installation: Installation by a qualified security professional is recommended for correct camera positioning, network configuration, waterproofing and night illumination setup.

Package Contents

• 1 × HiLook Pro IPC-T561H-MU 6MP Hi-Color Fixed Turret Network Camera.
• Manufacturer-supplied standard mounting accessories and documentation, as applicable to the Australian package.

Important: Network video recorder, surveillance hard drive, memory card, network cables, PoE switch, monitor and installation services are not included unless specifically stated. Confirm the supplied lens variant before ordering.

Frequently Asked Questions

What resolution does the HiLook Pro IPC-T561H-MU support?

The camera supports 3200 × 1800 resolution, providing 6MP high-definition surveillance video.

Does this camera support 25fps at 6MP?

Yes. The manufacturer specifies up to 25fps at 3200 × 1800 in 50Hz mode.

What is Hi-Color technology?

Hi-Color combines a high-sensitivity image sensor, F1.0 lens and white supplemental illumination to provide vivid full-colour surveillance throughout the day and night.

Can this camera record colour video at night?

Yes. The camera is designed for 24/7 colour imaging using available ambient light and integrated white illumination when required.

Does this camera use infrared night vision?

No. The IPC-T561H-MU uses white supplemental lighting for colour night surveillance.

What is the white-light illumination distance?

Up to 30 metres under suitable conditions.

What image sensor does the camera use?

A 1/1.8-inch progressive scan CMOS image sensor.

What is the minimum colour illumination?

0.0005 lux at F1.0 with AGC enabled.

What lens options are available?

The camera is available with 2.8mm and 4mm fixed lens options.

Which lens provides wider coverage?

The 2.8mm lens provides a wider field of view than the 4mm version.

What is the 2.8mm horizontal viewing angle?

Approximately 108.8°.

What is the 4mm horizontal viewing angle?

Approximately 93.3°.

Does this camera support 130 dB WDR?

Yes. The IPC-T561H-MU supports 130 dB Wide Dynamic Range.

Does this camera support AI human detection?

Yes. Deep-learning human classification is supported.

Does this camera support AI vehicle detection?

Yes. Deep-learning vehicle classification is supported.

Does this camera support line-crossing detection?

Yes. Intelligent line-crossing detection is supported.

Does this camera support intrusion detection?

Yes. Intelligent intrusion detection is supported.

Does this camera support face capture?

Yes. Face capture is supported. This does not automatically mean the camera can identify individuals.

Does this camera have a built-in microphone?

Yes. It includes an arrayed dual-microphone system.

Can the camera record audio?

Yes. Audio recording is supported with compatible equipment and appropriate configuration. Recording must comply with applicable laws.

Does this camera support two-way audio?

No built-in speaker is specified, so it should not be advertised as a two-way audio camera.

Does the camera support H.265+ compression?

Yes. H.265+, H.265, H.264+ and H.264 video compression formats are supported.

Does this camera support microSD recording?

Yes. It includes a memory card slot supporting compatible cards up to 512GB.

Is a memory card included?

No. A compatible memory card must be purchased separately.

Is this camera suitable for outdoor installation?

Yes. Its IP67 weather-resistant housing is suitable for correctly installed outdoor applications.

Does this camera support PoE?

Yes. It supports IEEE 802.3af Power over Ethernet.

Can I connect this camera to a HiLook NVR?

Yes. It is designed for use with compatible HiLook network video recorders.

Can I connect this camera to a Hikvision NVR?

Yes. Compatible Hikvision NVRs can support the camera, subject to resolution, firmware and feature compatibility.

Does this camera support ONVIF?

Yes. It supports ONVIF Profiles S, G and T.

Is this a PTZ camera?

No. The IPC-T561H-MU is a fixed turret network camera.

Does this camera include an NVR or hard drive?

No. Recording equipment and storage are sold separately unless specifically stated.

What warranty applies?

Civic Electronic supplies eligible HiLook IP cameras with a three-year Australian warranty, subject to applicable terms.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We supply genuine Australian HiLook and Hikvision security products to professional security installers, electricians and system integrators.

• Genuine Australian HiLook and Hikvision Stock
• Official Australian Warranty Support
• Competitive Wholesale and Trade Pricing
• Professional CCTV Product Selection Assistance
• Fast Australia-Wide Delivery
• Free Standard Shipping on Eligible Orders Over $300
• 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
• Professional Security Installer Support

For HiLook Pro camera selection, trade pricing, 6MP NVR compatibility or CCTV system assistance, contact Civic Electronic on 1300 024 842.
