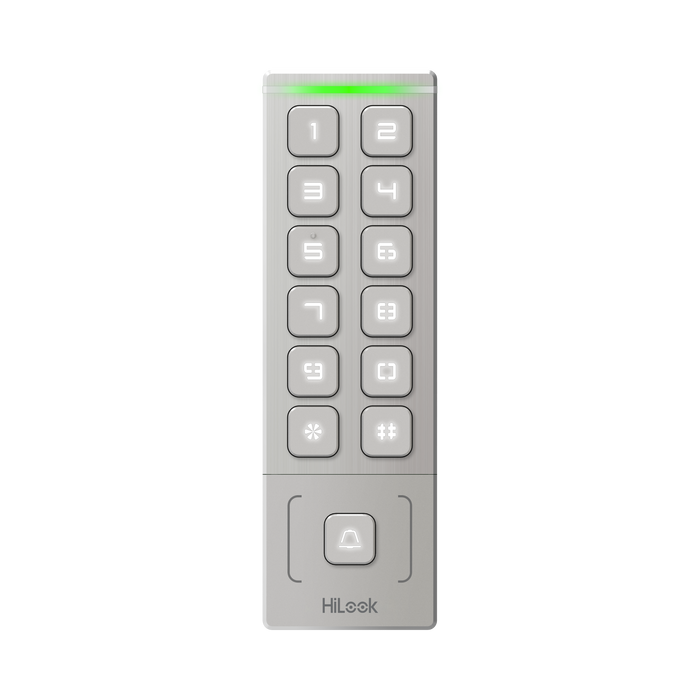

HiLook HA-AC-S1 Value Card Access Control Terminal – M1 Card & PIN, IP65
The HiLook HA-AC-S1 Value Card Terminal is a compact standalone access control solution designed for homes, offices, retail stores, warehouses, apartment buildings and commercial properties requiring simple and reliable door access management.
Featuring a slim metal design, built-in M1 card reader and physical keypad, the HA-AC-S1 supports both card and PIN authentication and can store up to 1,000 users and 1,000 cards. Its IP65-rated housing also makes it suitable for outdoor access-control applications.
The terminal provides connections for door lock control, exit button, door contact and alarm output, allowing it to form the core of a straightforward single-door access control system.
Key Features
- Standalone Value Card Access Control Terminal
- Slim & Flexible Metal Design
- Up to 1,000 Users
- Up to 1,000 Cards
- Built-In M1 Card Reader
- Card Reading Distance up to 3cm
- Card Reading Duration approximately 1 second
- Physical Keypad
- Card Authentication
- PIN Authentication
- Door Lock Control Interface
- Exit Button Interface
- Door Contact Input
- Alarm Output
- Wiegand Output
- Supports Wiegand 26 / 34
- IP65 Weather-Resistant Protection
- Suitable for Outdoor Applications
- 12V DC Power Supply
- Wide Operating Temperature Range
- Compact Wall-Mounted Design
- Ideal for Residential & Commercial Access Control
Card & PIN Access Control
The HA-AC-S1 provides two convenient authentication methods:
This gives users flexibility when entering a secured door and makes the terminal suitable for properties where different users may require different access methods.
Card and PIN access can be ideal for:
- Employees
- Residents
- Contractors
- Building Staff
- Authorised Visitors
- Warehouse Personnel
- Office Staff
Built-In M1 Card Reader
The HA-AC-S1 features an integrated M1 card reader, eliminating the need for a separate external card reader in straightforward access-control installations.
The terminal supports up to 1,000 cards, with a card reading distance of up to approximately 3cm and a reading duration of around 1 second.
This makes card access a fast and convenient alternative to conventional keys.
Up to 1,000 Users
With support for up to 1,000 users and 1,000 cards, the HA-AC-S1 provides sufficient capacity for many small and medium-sized access-control applications.
It is suitable for locations such as:
- Offices
- Small Businesses
- Warehouses
- Workshops
- Apartment Buildings
- Retail Stores
- Commercial Buildings
- Staff Entrances
- Restricted Rooms
Door Lock Control
The HA-AC-S1 provides a dedicated lock control interface, allowing it to form part of a complete electronic door access solution.
Depending on the overall system design, the terminal can be integrated with appropriate equipment such as:
- Electric Strikes
- Magnetic Locks
- Exit Buttons
- Door Contacts
- Access Control Power Supplies
This provides a practical solution for controlling access to individual doors and restricted areas.
Exit Button & Door Contact Support
The terminal provides dedicated interfaces for both an exit button and door contact input.
An exit button can provide convenient egress from inside the secured area, while a compatible door contact can be incorporated into the access-control installation to monitor the door's status.
Wiegand 26 / 34 Output
The HA-AC-S1 provides Wiegand output supporting Wiegand 26 and Wiegand 34, allowing integration with compatible access-control equipment where required.
This provides additional flexibility when designing or upgrading an access-control system.
IP65 Outdoor Protection
With an IP65 protective rating, the HA-AC-S1 is designed for suitable outdoor installations where the terminal may be exposed to dust and weather conditions.
This makes it suitable for:
- External Entry Doors
- Office Entrances
- Warehouse Entrances
- Building Access Points
- Staff Entrances
- Apartment Common Areas
- Commercial Properties
- Restricted Outdoor Access Points
Appropriate installation practices and weatherproofing of cabling and connections should still be used.
Slim Metal Design

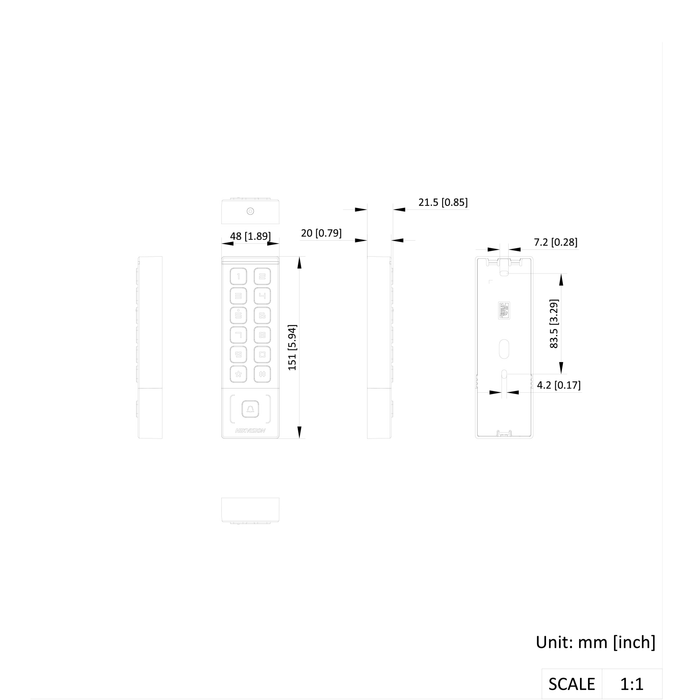

The HA-AC-S1 features a slim metal construction measuring approximately 151 × 48 × 21.5mm, providing a clean and professional appearance around doorways and access points.
Its narrow profile makes it particularly useful where mounting space around the door frame is limited.
Wide Operating Temperature Range
The HA-AC-S1 is specified for operation from -40°C to 65°C, with an operating humidity range of 0% to 90% non-condensing.
This wide operating range, together with its IP65 protection, makes it suitable for a broad range of indoor and outdoor access-control environments.
Specifications
-
Model: HA-AC-S1
-
Product Type: Value Card Access Control Terminal
-
User Capacity: 1,000
-
Card Capacity: 1,000
-
Card Type: M1 Card
-
Card Reading Distance: Up to 3cm
-
Card Reading Duration: Approx. 1 Second
-
Authentication: Card / PIN
-
Keypad: Physical Buttons
-
Lock Control: 1
-
Exit Button: 1
-
Door Contact Input: 1
-
Alarm Output: 1
-
Wiegand: Output, Wiegand 26 / 34
-
Power Supply: 12V DC, 1A
-
Protection Rating: IP65
-
Operating Temperature: -40°C to 65°C
-
Operating Humidity: 0%–90%, Non-Condensing
-
Dimensions: 151 × 48 × 21.5mm
-
Net Weight: Approx. 220.3g
Ideal For
- Residential Properties
- Offices
- Retail Stores
- Warehouses
- Workshops
- Apartment Buildings
- Staff Entrances
- Commercial Buildings
- Restricted Areas
- Storage Rooms
- Building Entrances
- Single-Door Access Control
- Indoor & Outdoor Access Points
Benefits
- Simple standalone access-control solution
- Card and PIN authentication
- Supports up to 1,000 users
- Stores up to 1,000 M1 cards
- Built-in card reader eliminates the need for a separate reader
- Slim metal housing provides a professional appearance
- IP65 protection for outdoor applications
- Direct lock control capability
- Exit button and door contact interfaces
- Alarm output
- Wiegand 26 / 34 output
- Wide operating temperature range
- Suitable for residential and commercial access control
The HiLook HA-AC-S1 Value Card Terminal provides a simple and cost-effective solution for controlling access to doors and restricted areas.
Combining a built-in M1 card reader, PIN authentication, 1,000-user capacity, lock control, exit button and door contact interfaces, Wiegand output and IP65-rated metal housing, the HA-AC-S1 is well suited to straightforward residential and commercial access-control applications.
