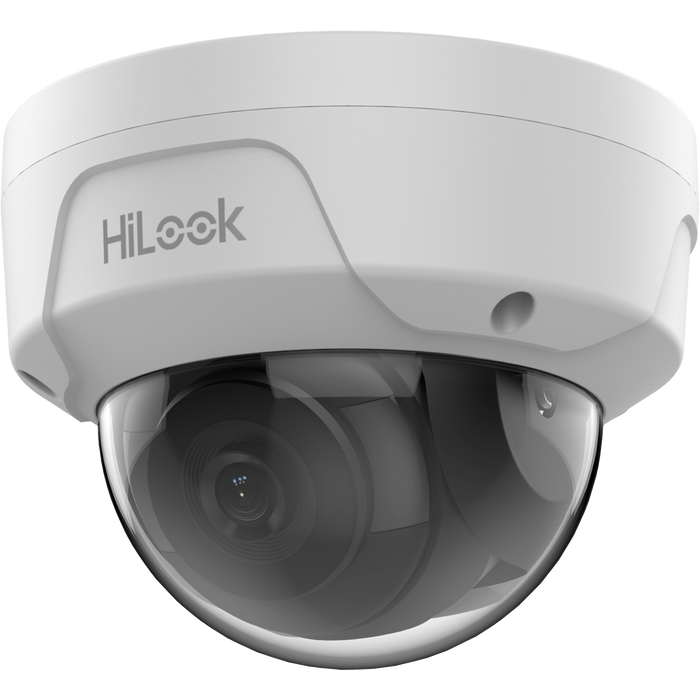

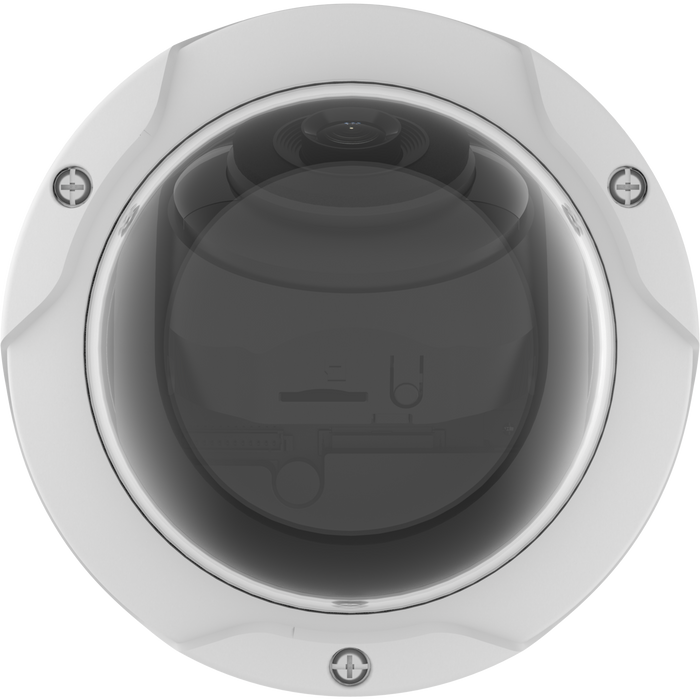

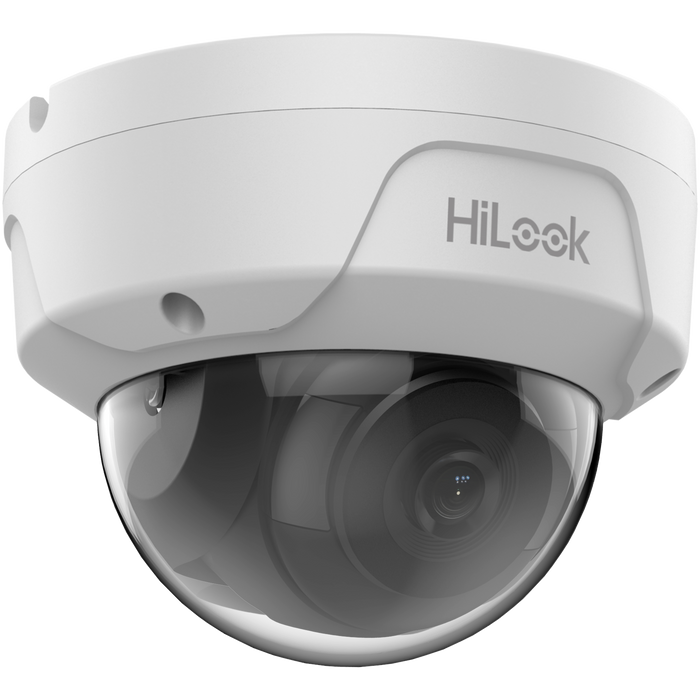

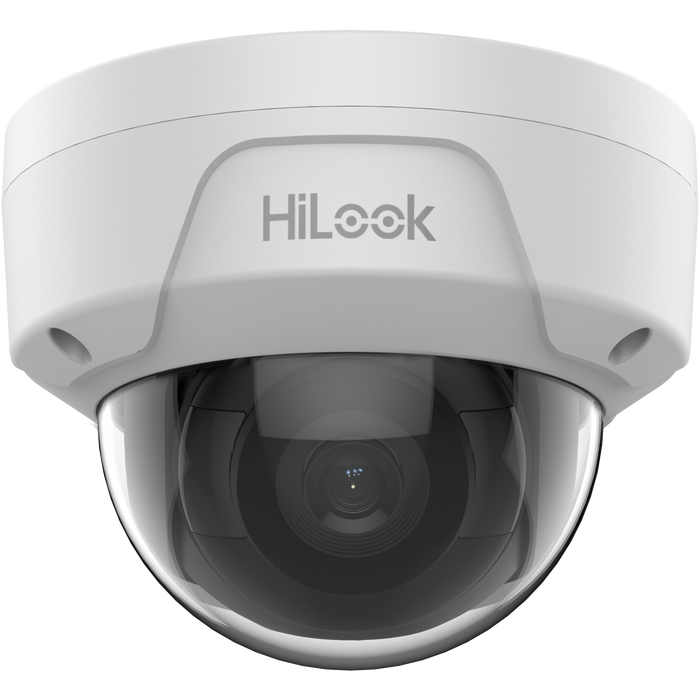

HiLook IPC-D140H 4MP MD 2.0 Fixed Dome IP Security Camera with 30m IR

Original price $144.00 - Original price $144.00
Original price $144.00
$147.00
$147.00 - $147.00
Current price $147.00
Availability:
in stock, ready to be shipped

HiLook IPC-D140H 4MP Fixed Dome IP Security Camera with 30m Infrared Night Vision

The HiLook IPC-D140H is a professional 4MP fixed dome IP security camera featuring high-resolution imaging, 30-metre infrared night vision, 120 dB true Wide Dynamic Range (WDR), efficient H.265+ video compression and a durable vandal-resistant enclosure.

Developed by HiLook, a Hikvision security camera brand, the IPC-D140H provides dependable network surveillance for residential properties, commercial premises, offices, retail stores, warehouses and other professional CCTV installations.

Equipped with a 1/3-inch progressive scan CMOS image sensor, the camera captures detailed video at resolutions up to 2560 × 1440 pixels (4MP), delivering improved image clarity compared with standard Full HD cameras.

The IPC-D140H is available with 2.8mm and 4mm fixed lens options. The 2.8mm lens provides a wider viewing angle, while the 4mm lens offers a narrower field of view for more focused surveillance coverage.

With 30m infrared night vision, the camera provides black-and-white surveillance footage in low-light and dark environments. Its automatic IR-cut filter supports day and night operation.

The camera features 120 dB true WDR, helping maintain image clarity in challenging lighting conditions such as building entrances, shopfronts and areas with strong backlighting.

Advanced 3D Digital Noise Reduction (3D DNR) helps reduce image noise, while configurable image settings allow installers to optimise surveillance performance for the installation environment.

The IPC-D140H supports motion detection, video tampering alarms and system exception events, allowing compatible recording equipment to respond to configured security events.

Its IP67 weather-resistant enclosure provides protection against dust and water ingress, while IK10 impact resistance makes the camera suitable for installations requiring additional physical protection.

The camera supports IEEE 802.3af Power over Ethernet (PoE), allowing compatible network equipment to provide power and data through a single Ethernet cable. A compatible 12V DC power option is also available.

Advanced H.265+ video compression helps optimise network bandwidth and recording storage when supported by the connected NVR and camera configuration.

The IPC-D140H is suitable for use with compatible HiLook and Hikvision network video recorders, as well as supported third-party recording systems through ONVIF integration.

Important: The IPC-D140H does not include a built-in microphone. The manufacturer's documentation for this exact model specifies standard motion detection rather than independently confirming Motion Detection 2.0 human and vehicle classification.

Combining 4MP resolution, 30m infrared night vision, 120 dB WDR, H.265+ compression, IP67 weather protection, IK10 vandal resistance and PoE connectivity, the HiLook IPC-D140H provides a practical solution for professional IP CCTV installations throughout Australia.

HiLook IPC-D140H 4MP Fixed Dome Camera 3-Year Australian Warranty - Civic Electronic

Three-year Australian camera warranty applies subject to applicable warranty terms.

Key Features

  • 4MP High-Resolution Imaging: Captures detailed video up to 2560 × 1440 pixels.
  • Fixed Dome Design: Professional network camera for indoor and outdoor CCTV installations.
  • 1/3-Inch CMOS Sensor: Progressive scan imaging for detailed security footage.
  • 2.8mm or 4mm Lens Options: Select the appropriate fixed lens for the installation.
  • Wide-Angle Coverage: The 2.8mm version provides approximately 98° horizontal viewing.
  • Focused Coverage: The 4mm version provides approximately 78.7° horizontal viewing.
  • 30m Infrared Night Vision: Black-and-white monitoring in darkness.
  • 850nm Infrared Illumination: Integrated IR lighting for night surveillance.
  • 120 dB True WDR: Improved visibility in high-contrast lighting conditions.
  • 3D Digital Noise Reduction: Helps produce cleaner images in low-light environments.
  • H.265+ Compression: Helps reduce bandwidth and recording storage requirements.
  • H.265 / H.264+ / H.264: Multiple supported video compression formats.
  • Motion Detection: Supports configurable motion-based events.
  • Video Tampering Alarm: Detects supported interference events.
  • System Exception Events: Supports compatible system status alerts.
  • IP67 Weather Protection: Suitable for correctly installed outdoor CCTV applications.
  • IK10 Vandal Resistance: Impact-resistant housing for exposed locations.
  • PoE Connectivity: Power and data through one compatible Ethernet cable.
  • 12V DC Power Option: Alternative compatible power connection.
  • ONVIF Compatibility: Integration with supported network recording equipment.
  • RTSP Streaming: Compatible network video streaming.
  • Privacy Masking: Configurable privacy protection for selected image areas.
  • Image Adjustment: Configurable brightness, contrast, saturation and sharpness.
  • Automatic Day/Night Switching: IR-cut filter for changing lighting conditions.
  • Wide Operating Temperature: Designed for demanding installation environments.
  • Compact Dome Housing: Suitable for compatible wall and ceiling mounting.
  • 3-Year Australian Warranty: Subject to applicable warranty terms.

Technical Specifications

Model IPC-D140H
Brand HiLook by Hikvision
Camera Type Fixed Dome Network Camera
Maximum Resolution 4MP (2560 × 1440)
Image Sensor 1/3-Inch Progressive Scan CMOS
Lens Type Fixed Focal Length
Available Focal Lengths 2.8mm / 4mm, Depending on Selected Variant
Aperture F2.0
2.8mm Horizontal FOV 98.0°
2.8mm Vertical FOV 53.1°
2.8mm Diagonal FOV 114.7°
4mm Horizontal FOV 78.7°
4mm Vertical FOV 43.1°
4mm Diagonal FOV 92.3°
Minimum Illumination Colour: 0.01 Lux @ F2.0, AGC ON
Minimum IR Illumination 0 Lux with IR
Infrared Night Vision Up to 30 Metres
Infrared Wavelength 850nm
Wide Dynamic Range 120 dB True WDR
Digital Noise Reduction 3D DNR
Shutter Speed 1/3s to 1/100,000s
Main Stream at 4MP 20fps at 2560 × 1440
Full HD Main Stream 25fps at 1920 × 1080 (50Hz)
Video Compression H.265+ / H.265 / H.264+ / H.264
Sub-Stream Compression H.265 / H.264 / MJPEG
Video Bitrate 32 Kbps to 8 Mbps
Motion Detection Supported
Motion Detection 2.0 Not Confirmed for Exact IPC-D140H Model
Video Tampering Alarm Supported
Built-In Microphone No
Built-In Speaker No
Ethernet Interface 1 × RJ45 10/100 Mbps
Network Integration ONVIF / ISAPI / RTSP
Power Supply 12V DC ±25% / PoE
PoE Standard IEEE 802.3af, Class 3
Maximum DC Power Consumption 5W
Maximum PoE Power Consumption 6.5W
Ingress Protection IP67
Impact Resistance IK10
Housing Material Aluminium Alloy Body
Dimensions Ø111 × 82.4mm
Approximate Weight 360g
Operating Temperature -30°C to +60°C
Operating Humidity 95% or Less, Non-Condensing
Camera Warranty 3 Years, Subject to Applicable Terms

Detailed Features & Benefits

4MP High-Definition CCTV Imaging

The HiLook IPC-D140H captures surveillance footage at up to 2560 × 1440 pixels, providing improved image detail compared with standard 1080p cameras.

Fixed Dome Network Camera Design

The compact dome housing is suitable for professional security installations requiring a fixed surveillance viewpoint and durable camera construction.

2.8mm Wide-Angle Lens Option

The 2.8mm variant provides approximately 98° horizontal coverage, making it suitable for monitoring entrances, rooms, corridors and general surveillance areas.

4mm Fixed Lens Option

The 4mm variant provides approximately 78.7° horizontal coverage, offering a narrower view for installations requiring more focused monitoring.

30-Metre Infrared Night Vision

Integrated infrared illumination supports black-and-white surveillance up to 30 metres in darkness, helping maintain monitoring coverage after sunset.

Automatic Day and Night Operation

The mechanical IR-cut filter supports automatic switching between daytime colour imaging and infrared-assisted night surveillance.

120 dB True Wide Dynamic Range

True WDR improves visibility in scenes containing strong differences between bright and dark areas, such as shopfronts and entrances facing sunlight.

3D Digital Noise Reduction

3D DNR helps reduce unwanted image noise, improving video clarity in low-light conditions.

Configurable Motion Detection

The camera supports motion detection for compatible event-based recording and notifications. Human and vehicle classification is not confirmed in the manufacturer's documentation for this exact model.

Video Tampering Detection

Supports video tampering alarm events, helping identify certain forms of camera interference.

H.265+ Video Compression

Efficient H.265+ compression helps reduce network bandwidth and storage consumption when supported by the connected recorder.

IP67 Weather-Resistant Construction

The IP67-rated enclosure provides protection against dust and water ingress when correctly installed, making the camera suitable for outdoor CCTV applications.

IK10 Vandal-Resistant Housing

The IK10 impact-resistance rating provides additional physical protection for cameras installed in accessible or exposed locations.

Power over Ethernet Installation

IEEE 802.3af PoE allows compatible network equipment to provide power and data through a single Ethernet cable, simplifying professional installation.

12V DC Power Option

The camera also supports a compatible 12V DC power supply where PoE is not available.

Compatible HiLook NVR Integration

Designed for use with compatible HiLook network video recorders, providing centralised video recording, playback and event management.

Compatible Hikvision NVR Integration

The IPC-D140H can be integrated with compatible Hikvision network video recorders, subject to firmware, resolution and feature compatibility.

ONVIF and RTSP Network Integration

Supports compatible third-party network recording systems through ONVIF and RTSP connectivity.

Configurable Image Settings

Brightness, contrast, saturation, sharpness and other image parameters can be adjusted through supported management interfaces.

Privacy Masking

Supports configurable privacy masking to help restrict viewing of selected areas within the camera image.

Professional Indoor and Outdoor Surveillance

The combination of 4MP imaging, infrared night vision, IP67 weather protection and IK10 impact resistance makes the camera suitable for a wide range of professional CCTV installations.

Ideal Applications

  • Residential Properties: Monitoring entrances, garages and outdoor areas.
  • Retail Stores: Surveillance of shop entrances, sales areas and stockrooms.
  • Commercial Offices: Monitoring reception areas, corridors and access points.
  • Warehouses: Surveillance of loading areas, entrances and equipment storage.
  • Apartment Buildings: Monitoring common areas and shared entrances.
  • Car Parks: Vehicle and pedestrian surveillance.
  • Workshops: Equipment and workplace security monitoring.
  • Restaurants and Cafés: Monitoring entrances and appropriate operational areas.
  • Building Exteriors: Outdoor security installations requiring IP67 protection.
  • Accessible Camera Locations: Installations benefiting from IK10 vandal resistance.
  • CCTV System Upgrades: Replacing older 1080p cameras with 4MP network surveillance.

Compatibility & Installation

The HiLook IPC-D140H is designed for professional IP CCTV installations using compatible HiLook, Hikvision and supported third-party network recording equipment.

Camera Resolution: Supports up to 4MP video at 2560 × 1440 pixels.

Lens Options: Available with 2.8mm or 4mm fixed lenses. Confirm the supplied lens variant before ordering.

Night Vision: Infrared illumination supports black-and-white surveillance up to 30 metres.

Motion Detection: Standard motion detection is supported. Human and vehicle classification is not confirmed for the exact IPC-D140H model.

Audio: The camera does not include a built-in microphone or speaker.

Power: Compatible IEEE 802.3af PoE or 12V DC power supply.

Weather Protection: IP67-rated enclosure for correctly installed indoor and outdoor applications.

Vandal Resistance: IK10-rated impact-resistant housing.

Recorder Compatibility: Compatible HiLook and Hikvision NVRs are recommended. Confirm camera resolution and feature support before installation.

Third-Party Systems: Compatible network video systems may be used through supported ONVIF and RTSP protocols.

Recording Storage: Recording duration depends on the connected NVR or supported network storage configuration, video bitrate, resolution and recording schedule.

Professional Installation: Installation by a qualified security professional is recommended for correct camera positioning, waterproofing, network configuration and recording performance.

Package Contents

  • 1 × HiLook IPC-D140H 4MP Fixed Dome Network Camera.
  • Manufacturer-supplied standard mounting accessories and documentation, as applicable to the Australian package.

Important: Network video recorder, surveillance hard drive, network cables, PoE switch, monitor and installation services are not included unless specifically stated. Confirm the lens variant supplied with this listing.

Frequently Asked Questions

What resolution does the HiLook IPC-D140H support?

The camera supports a maximum resolution of 2560 × 1440 pixels, providing 4MP surveillance video.

Does this camera support Motion Detection 2.0?

The manufacturer's documentation for the exact IPC-D140H model confirms standard motion detection but does not independently confirm Motion Detection 2.0 human and vehicle classification. Check the exact supplied hardware variant before relying on this feature.

Does this camera support human and vehicle classification?

Human and vehicle classification is not confirmed for the IPC-D140H in the manufacturer's published model-specific specifications.

Does this camera have a built-in microphone?

No. The IPC-D140H does not include a built-in microphone.

Can this camera record audio?

No. This model does not provide built-in audio capture.

Does this camera support two-way audio?

No. It does not include built-in microphone and speaker hardware for two-way conversation.

What lens options are available?

The camera is available with 2.8mm and 4mm fixed lens options. Confirm the supplied variant before ordering.

Which lens provides a wider viewing angle?

The 2.8mm lens provides a wider horizontal viewing angle than the 4mm version.

What is the 2.8mm horizontal viewing angle?

Approximately 98°.

What is the 4mm horizontal viewing angle?

Approximately 78.7°.

Does this camera support night vision?

Yes. It features infrared night vision up to 30 metres.

Does this camera provide full-colour night vision?

No. It uses infrared illumination for black-and-white surveillance in darkness. Colour imaging depends on available ambient light.

Does this camera support 120 dB WDR?

Yes. It supports 120 dB true Wide Dynamic Range.

Does this camera support H.265+ compression?

Yes. H.265+, H.265, H.264+ and H.264 video compression formats are supported.

Is this camera weather-resistant?

Yes. It has an IP67-rated enclosure for dust and water resistance when correctly installed.

Is this camera vandal-resistant?

Yes. Its housing has an IK10 impact-resistance rating.

Can this camera be installed outdoors?

Yes. Its IP67 weather protection makes it suitable for appropriately installed outdoor surveillance applications.

Can the camera be mounted on a ceiling?

Yes. It is suitable for compatible ceiling-mounted installations.

Can the camera be mounted on a wall?

Yes. Wall installation is possible using appropriate mounting arrangements and accessories.

Does this camera support PoE?

Yes. It supports IEEE 802.3af Power over Ethernet.

Can the camera use a 12V DC power supply?

Yes. A compatible 12V DC power supply can be used.

Does the camera support motion detection?

Yes. Standard motion detection is supported.

Does the camera support video tampering detection?

Yes. Video tampering alarm events are supported.

Can I connect this camera to a HiLook NVR?

Yes. It is designed for use with compatible HiLook network video recorders.

Can I connect this camera to a Hikvision NVR?

Yes. Compatible Hikvision NVRs can support this camera, subject to resolution and firmware compatibility.

Does this camera support ONVIF?

Yes. ONVIF integration is supported for compatible network video systems.

Does this camera support RTSP?

Yes. RTSP network video streaming is supported.

Does the camera include a network video recorder?

No. This listing is for the camera only.

Does the camera include a surveillance hard drive?

No. Recording equipment and storage must be arranged separately.

Is this camera suitable for residential CCTV systems?

Yes. It is suitable for professionally designed residential surveillance installations.

Is this camera suitable for commercial CCTV systems?

Yes. Its 4MP resolution, infrared night vision, IP67 protection and IK10 impact resistance make it suitable for many commercial security applications.

What warranty applies?

Civic Electronic supplies eligible HiLook IP cameras with a three-year Australian warranty, subject to applicable terms.

Why Buy from Civic Electronic?

Civic Electronic is an Australian professional security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.

We supply genuine Australian HiLook and Hikvision security products to professional security installers, electricians and system integrators.

  • Genuine Australian HiLook and Hikvision Stock
  • Official Australian Warranty Support
  • Competitive Wholesale and Trade Pricing
  • Professional CCTV Product Selection Assistance
  • Fast Australia-Wide Delivery
  • Free Standard Shipping on Eligible Orders Over $300
  • 2-Hour Click & Collect from Rouse Hill, NSW, subject to stock confirmation
  • Professional Security Installer Support

For HiLook camera selection, trade pricing, NVR compatibility or CCTV system assistance, contact Civic Electronic on 1300 024 842.

Official Hikvision Manufacturer Documentation

Review the official HiLook by Hikvision technical datasheet for complete information about the IPC-D140H camera, including 4MP resolution, available fixed lens options, 30m infrared night vision, 120 dB true WDR, H.265+ compression, PoE connectivity, IP67 weather protection and IK10 vandal resistance.

Download Official Hikvision / HiLook Technical Datasheet (PDF)

View Official Hikvision Manufacturer Product Specifications

Note: This description covers the IPC-D140H model. Lens specifications vary between 2.8mm and 4mm versions. Motion Detection 2.0 human/vehicle classification is not confirmed for this exact model. This listing is for the camera only.

Genuine Product Assurance, We are officially an authorized reseller of Hikvision

Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.

Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.

1. Free and Express Shipping

  • Free Standard Shipping applies to all orders valued at $300 or more.
  • Express Shipping is available for an additional $65 per order.

Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:

Australia Post Coverage

2. Order Processing

  • Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
  • Orders are processed Monday to Friday, excluding weekends and public holidays.
  • Tracking information will be provided via email after 11:00 AM on the day the order is shipped.

All orders are dispatched using the most efficient postage method available to ensure timely delivery.

3. Delivery Timeframes

  • Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
  • Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
  • Standard Shipping: Please allow up to 10 business days from dispatch.

If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.

4. Delivery Requirements and Limitations

  • All deliveries require a signature upon receipt.
  • Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
  • If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
  • We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.

Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.

We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.

If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.

5. Tracking Your Order

Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.

To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.

6. Additional Information

We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.

Price Beat Guarantee

At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.

How It Works

If you find a cheaper price, simply:

  1. Provide a link to the competitor's advertised product
  2. Confirm the seller is an authorised Australian reseller
  3. Submit your request before placing your order

Our team will verify the details and respond promptly.

Eligibility Requirements

To qualify for our Price Beat Guarantee, the following conditions must be met:

  • The competitor must be an authorised Australian reseller
  • The seller must operate as a legitimate Australian retail business
  • The item must be identical (same brand, model number and specifications)
  • The product must be brand new and currently in stock
  • The price must be publicly advertised (not a private quote or member-only offer)
  • The advertised price must include GST
  • Shipping costs must be included in the total comparison
  • The competitor must supply Australian warranty support

Exclusions

Our Price Beat Guarantee does not apply to:

  • Dropshippers or intermediary sellers who do not physically stock the product
  • Sellers operating without a verifiable Australian retail presence
  • Businesses with no registered retail location or identifiable trading address
  • Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
  • Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
  • Refurbished, used or open-box items
  • Pricing errors or misprints
  • Bundle deals, bonus offers or cashback promotions
  • Trade, bulk or special contract pricing

Important Conditions

  • Price Beat requests must be approved prior to purchase
  • Approved offers are valid for 24 hours only
  • Civic Electronic reserves the right to verify reseller authorisation status
  • We reserve the right to decline requests that do not meet the above criteria
  • This policy may be modified or withdrawn at any time without notice

Why Buy From Civic Electronic?

  • 100% Genuine Products
  • Authorised Australian Reseller
  • Local Australian Warranty
  • Real Stock, Not Dropshipped
  • Expert Technical Support
  • Fast & Secure Dispatch
