Key Features

• 5 × HiLook Pro 6MP IP Turret Cameras

• Maximum 3200 × 1800 Resolution

• Smart Hybrid Light Technology

• IR + White Supplementary Light

• Intelligent Human & Vehicle Classification

• Smart Motion Detection

• Line Crossing Detection

• Intrusion Detection

• Ultra-Wide Field of View up to 119.6°

• Excellent Low-Light Performance

• Built-In Microphone

• H.265+ Video Compression

• IP67 Weather Protection

• PoE Plug-and-Play Connectivity

• 8-Channel AI PoE NVR

• 8 Built-In PoE Ports

• 5 Cameras Included

• 3 Spare Camera Channels

• 3 Spare Physical PoE Ports

• Expandable to 8 Cameras

• Motion Detection 2.0

• Up to 4K HDMI Output

• Gigabit Ethernet

• Selectable HDD Storage

• Remote Viewing

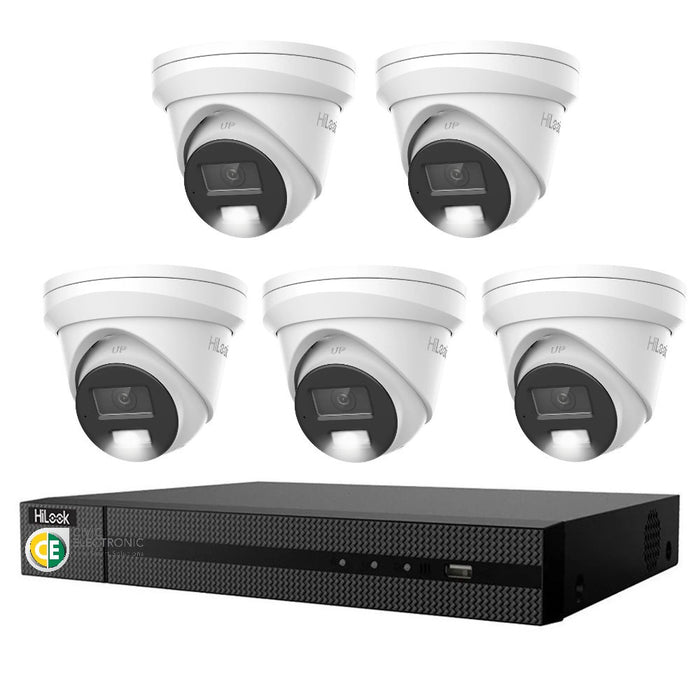

5 × HiLook Pro IPC-T363H-MU 6MP Smart Hybrid Light Cameras

The package includes:

5 × HiLook Pro IPC-T363H-MU 6MP Smart Hybrid Light Fixed Turret Network Cameras

The IPC-T363H-MU belongs to HiLook's Pro Series, combining improved low-light performance and an exceptionally wide field of view with Smart Hybrid Light and intelligent AI event detection.

This makes the camera an excellent choice for modern residential and commercial surveillance installations.

6MP High-Resolution Imaging

Each IPC-T363H-MU provides:

3200 × 1800 – 6 Megapixel Resolution

6MP provides substantially greater image detail than conventional 1080p Full HD CCTV.

This additional resolution can assist when reviewing:

• People

• Vehicles

• Clothing

• Entrances

• Driveways

• Property Activity

• Shopfronts

• Car Parks

• Warehouses

• Building Perimeters

• Security Incidents

Smart Hybrid Light Technology

One of the major advantages of the IPC-T363H-MU is:

Smart Hybrid Light

Unlike conventional IR-only cameras, the IPC-T363H-MU incorporates both:

• Infrared Light

• White Supplementary Light

This provides greater flexibility for night-time surveillance.

Smart Hybrid Light technology can provide different lighting behaviour depending on system configuration and surveillance requirements.

This makes it possible to use discreet infrared surveillance while also taking advantage of visible white supplementary lighting when colour information is required.

IR + White Light Night Surveillance

The IPC-T363H-MU uses both:

IR & White Supplementary Light

providing greater night-time flexibility than conventional IR-only cameras.

This is particularly useful for locations such as:

• Front Entrances

• Driveways

• Garages

• Side Access

• Rear Entrances

• Shopfronts

• Car Parks

• Commercial Entrances

• Building Perimeters

Excellent Low-Light Performance

The IPC-T363H-MU provides excellent low-light sensitivity with minimum illumination down to approximately:

0.001 Lux @ F1.2

This allows the camera to capture useful image detail in extremely low-light environments before supplementary lighting is required.

Ultra-Wide Field of View

The IPC-T363H-MU provides a horizontal field of view of up to approximately:

119.6°

This exceptionally wide viewing angle allows each camera to cover a broader area.

A wider field of view can be particularly beneficial for:

• Front Yards

• Driveways

• Wide Entrances

• Shops

• Offices

• Warehouses

• Car Parks

• Large Internal Areas

Strategically positioned cameras can therefore provide excellent general overview coverage.

AI Human & Vehicle Detection

The IPC-T363H-MU supports intelligent AI event detection focused on relevant targets such as:

• Humans

• Vehicles

This helps the CCTV system distinguish important activity from general environmental movement.

Intelligent classification can help reduce unnecessary events generated by:

• Trees

• Leaves

• Shadows

• Rain

• Animals

• Changing Light

• Other Environmental Movement

Smart AI Events

The IPC-T363H-MU supports intelligent security events including:

• Motion Detection

• Line Crossing

• Intrusion Detection

• Human Classification

• Vehicle Classification

These intelligent functions allow surveillance rules to be configured around specific areas of the property.

Line Crossing Detection

A virtual line can be configured within the camera image.

When a relevant person or vehicle crosses the defined line according to the configured rules, the system can generate an event.

This is useful for:

• Driveways

• Entrances

• Side Access

• Property Boundaries

• Restricted Areas

• Building Perimeters

Intrusion Detection

A defined surveillance area can be configured for intelligent intrusion monitoring.

This is particularly useful for:

• Car Parks

• Storage Areas

• Restricted Areas

• Workshops

• Warehouses

• Commercial Properties

• Building Perimeters

Built-In Microphone

Each IPC-T363H-MU features a:

Built-In Microphone

allowing compatible recordings to include:

Video + Audio

without requiring a separate external microphone at each camera location.

With five cameras supplied, this provides integrated audio capture across all five surveillance areas.

Audio recording should always be configured and used in accordance with applicable privacy and surveillance requirements.

H.265+ Video Compression

The system supports efficient:

H.265+ Video Compression

which can reduce storage and network bandwidth requirements compared with older compression technologies.

This is particularly valuable when recording multiple high-resolution 6MP cameras.

IP67 Weather Protection

Each IPC-T363H-MU provides:

IP67 Water & Dust Resistance

making the cameras suitable for correctly installed indoor and outdoor CCTV applications.

PoE Plug-and-Play Connectivity

The IPC-T363H-MU supports:

PoE – Power over Ethernet

allowing power and network data to travel through a single compatible Ethernet cable.

A typical installation is:

Camera → Cat5e/Cat6 Cable → NVR PoE Port

This provides a clean and professional IP CCTV installation without requiring separate camera power supplies.

HiLook NVR-108MH-K/8P 8-Channel AI PoE NVR

The package includes:

1 × HiLook NVR-108MH-K/8P 8-Channel AI PoE Network Video Recorder

The recorder provides:

8 × IP Camera Channels

and:

8 × Built-In PoE Camera Interfaces

With five cameras supplied:

5 Channels Are Used

and:

3 Camera Channels Remain Available

for future expansion.

Expand from 5 to 8 Cameras

Cameras Included

5

Maximum Camera Capacity

8

Channels Currently Used

5

Spare Camera Channels

3

The system can therefore be expanded with up to three additional compatible IP cameras without replacing the NVR.

Three Spare Physical PoE Ports

The NVR provides:

8 × Built-In PoE Interfaces

With five supplied cameras connected:

5 PoE Ports Are Used

and:

3 Physical PoE Ports Remain Available

This makes future expansion simple.

Additional compatible PoE cameras can be connected directly to the recorder.

80Mbps Incoming Bandwidth

The NVR provides:

Up to 80Mbps Incoming Bandwidth

for connected IP camera streams.

This provides an appropriate recording platform for this five-camera 6MP CCTV configuration and future expansion.

Motion Detection 2.0

The HiLook K-Series NVR supports:

Motion Detection 2.0

across its camera channels.

Human and vehicle classification can help improve alarm accuracy and make relevant recorded events easier to locate.

4K HDMI Output

The NVR provides:

HDMI Video Output up to 4K Resolution

allowing connection to a compatible 4K monitor or television for high-resolution local surveillance viewing.

8-Channel Synchronous Playback

The NVR supports:

Up to 8-Channel Synchronous Playback

allowing recorded footage from multiple cameras to be reviewed at the same time.

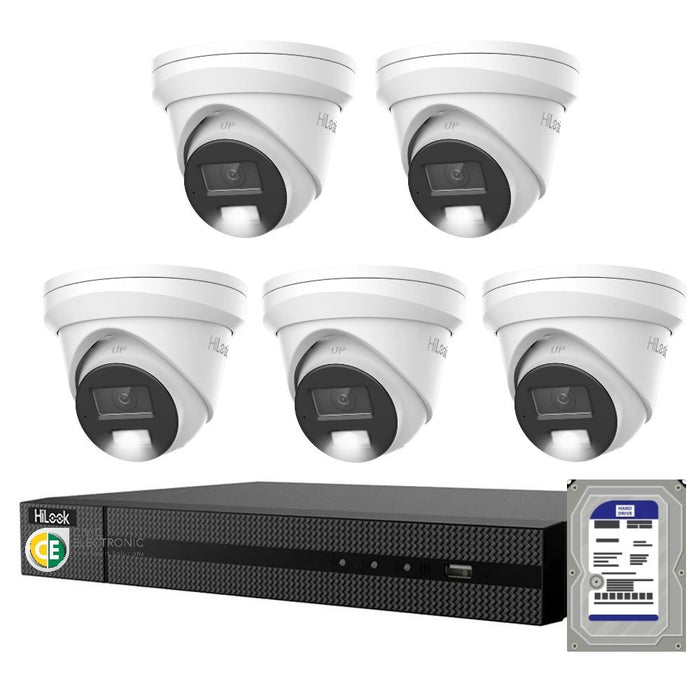

HDD Storage

The NVR provides:

1 × SATA HDD Interface

HDD: Select storage capacity from available options

The appropriate surveillance HDD capacity depends on:

• Number of Cameras

• 6MP Recording Resolution

• Frame Rate

• Video Bit Rate

• Audio Recording

• H.265+ Compression

• Continuous or Event Recording

• Required Recording Retention

• Future Expansion to 8 Cameras

A surveillance-rated HDD is recommended for continuous CCTV recording.

Remote Viewing

When the NVR is connected to the internet and correctly configured, compatible HiLook remote-access functionality can provide:

• Live Camera Viewing

• Recorded Playback

• Event Notifications

• Multi-Camera Viewing

• Remote CCTV Monitoring

Recommended 5-Camera Residential Layout

A practical residential configuration could include:

Camera 1 – Front Entrance

Camera 2 – Driveway

Camera 3 – Garage

Camera 4 – Side Access

Camera 5 – Rear Entrance / Rear Yard

This provides strong surveillance coverage while retaining three spare channels for future cameras.

Recommended Commercial Layout

A commercial installation could include:

Camera 1 – Main Entrance

Camera 2 – Customer / Reception Area

Camera 3 – Car Park

Camera 4 – Rear Entrance

Camera 5 – Warehouse / Storage Area

The remaining three channels can later be used to expand surveillance as business requirements change.

IPC-T363H-MU Main Camera Specifications

• Model: IPC-T363H-MU

• Series: HiLook Pro

• Quantity: 5

• Camera Type: Smart Hybrid Light Fixed Turret Network Camera

• Resolution: 6MP

• Maximum Resolution: 3200 × 1800

• Image Sensor: 1/2.4" CMOS

• Minimum Illumination: Approx. 0.001 Lux @ F1.2

• Horizontal Field of View: Up to Approx. 119.6°

• Supplementary Light: IR + White Light

• Smart Hybrid Light: Supported

• Human Classification: Supported

• Vehicle Classification: Supported

• Motion Detection: Supported

• Line Crossing: Supported

• Intrusion Detection: Supported

• Built-In Microphone: Yes

• Speaker: No

• Flashing Light: No

• Video Compression: H.265+ Supported

• PoE: Supported

• Weather Protection: IP67

• Application: Indoor & Outdoor IP Surveillance

NVR-108MH-K/8P Main Specifications

• Model: NVR-108MH-K/8P

• IP Camera Channels: 8

• Built-In PoE Interfaces: 8

• Cameras Included: 5

• Channels Used: 5

• Spare Camera Channels: 3

• PoE Ports Used: 5

• Spare Physical PoE Ports: 3

• Incoming Bandwidth: Up to 80Mbps

• Motion Detection 2.0: Supported

• Video Compression: H.265+ / H.265 / H.264+ / H.264

• HDMI Output: Up to 4K

• VGA Output: Supported

• Synchronous Playback: Up to 8 Channels

• HDD Interface: 1 × SATA

• HDD Capacity: Up to 16TB on current K-Series specification

• Network Interface: Gigabit Ethernet

• Remote Viewing: Supported

• HDD: Select Storage Capacity from Available Options

Ideal For

• Residential CCTV

• Home Security

• Commercial CCTV

• Retail Stores

• Offices

• Workshops

• Warehouses

• Car Parks

• Driveways

• Building Entrances

• Building Perimeters

• Smart Hybrid Light CCTV

• Human & Vehicle Detection CCTV

• 6MP CCTV Systems

• 5-Camera CCTV Systems

• Expandable 8-Channel CCTV Systems

• Professional PoE CCTV Installations

Benefits

• 5 × HiLook Pro 6MP cameras

• Smart Hybrid Light technology

• IR + white supplementary lighting

• Excellent low-light performance

• Ultra-wide field of view up to approximately 119.6°

• Human and vehicle classification

• Intelligent motion detection

• Line crossing detection

• Intrusion detection

• Built-in microphones

• H.265+ compression

• IP67 weather protection

• Professional PoE connectivity

• 8-channel AI PoE NVR

• 8 built-in PoE ports

• 3 spare camera channels

• 3 spare physical PoE ports

• Expandable from 5 to 8 cameras

• Motion Detection 2.0

• Up to 4K HDMI output

• Selectable HDD storage

• Remote viewing capability

The HiLook Pro IPC-T363H-MU 6MP Smart Hybrid Light AI 8CH CCTV Kit is an excellent choice for customers looking for a modern, expandable surveillance system with more advanced night imaging than conventional IR-only cameras.

The five IPC-T363H-MU Pro Series cameras combine 6MP imaging, Smart Hybrid Light, IR + white supplementary lighting, excellent low-light performance, ultra-wide viewing, human and vehicle classification and built-in audio.

Combined with the NVR-108MH-K/8P 8-channel AI PoE NVR, the package provides a professional five-camera system while retaining 3 spare camera channels and 3 spare physical PoE ports for future expansion.
