HiLook Pro 8MP 4K Smart Hybrid Light AI CCTV Kit – 5 Turret Cameras + 8CH 8PoE NVR
Upgrade your property security with the HiLook Pro IPC-T383H-MU 8MP 4K Smart Hybrid Light 8CH CCTV Kit, a professional five-camera IP surveillance package combining ultra-high-definition imaging, intelligent detection, flexible nighttime illumination and reliable network video recording.

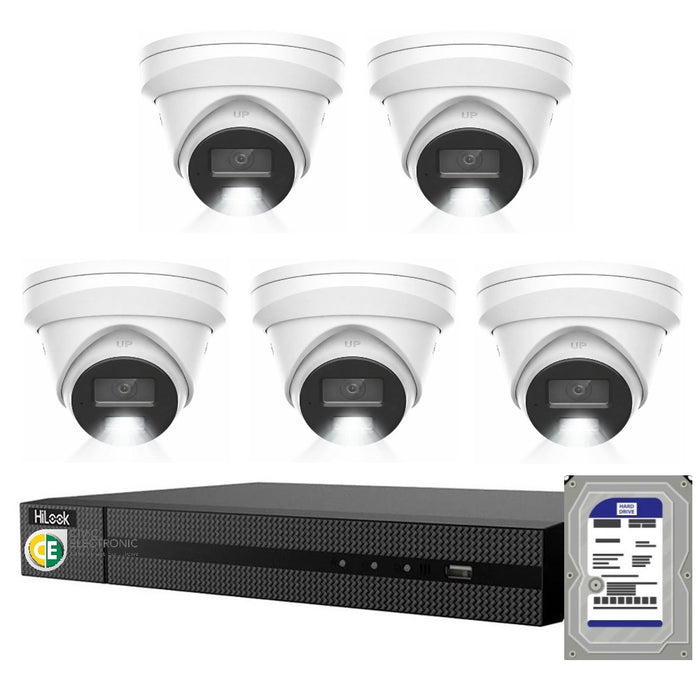

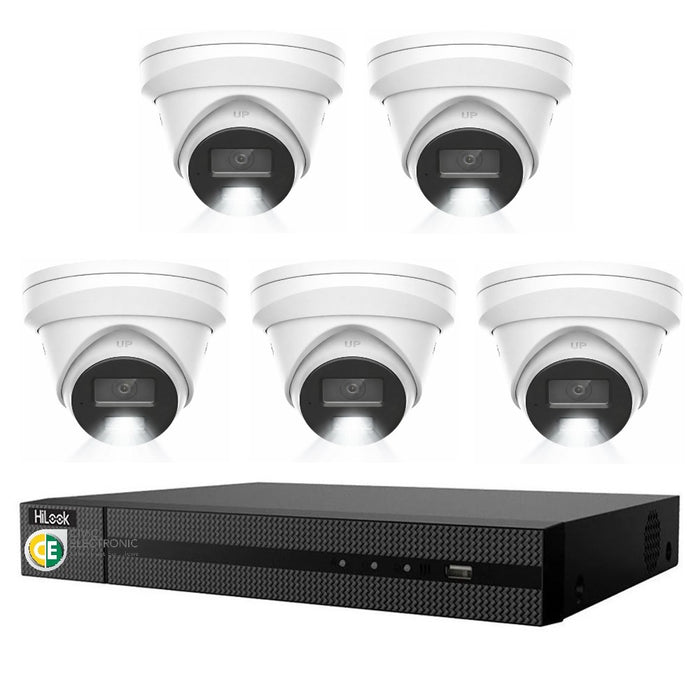

This CCTV system includes 5 × HiLook Pro IPC-T383H-MU 8MP Smart Hybrid Light Fixed Turret Network Cameras and 1 × HiLook NVR-108MH-C/8P 8-channel 8PoE 4K Network Video Recorder.
Each camera delivers 8MP / 4K Ultra HD surveillance, providing detailed video footage for entrances, driveways, warehouses, shops, offices, workshops and commercial premises.
The HiLook Pro IPC-T383H-MU incorporates a 1/2.4-inch CMOS image sensor and advanced low-light imaging technology designed to deliver detailed surveillance footage under challenging lighting conditions.
With Smart Hybrid Light technology, the cameras combine infrared and white supplementary illumination to provide flexible nighttime monitoring. Infrared illumination supports discreet nighttime surveillance, while white-light illumination can help capture colour image detail when appropriate.
The camera's ultra-wide viewing angle of up to 119.6° horizontally, depending on the supplied lens variant, makes it suitable for monitoring broad areas such as driveways, building entrances, shopfronts and outdoor spaces.
Intelligent security features include motion detection, line crossing and intrusion detection, with supported human and vehicle filtering helping identify relevant security events.
Each camera includes a built-in microphone, allowing compatible audio recording alongside video where legally permitted.
The supplied HiLook NVR-108MH-C/8P provides eight IP camera channels, eight integrated PoE ports, 4K HDMI display output, H.265+ video compression and centralised surveillance recording.
With five cameras connected to an eight-channel recorder, the system leaves three spare camera channels and three spare integrated PoE ports for future expansion to eight compatible IP cameras.
The NVR supports up to 80 Mbps incoming bandwidth and a 75 W combined PoE power budget. Future camera additions must remain within the recorder's supported bandwidth, decoding and power limits.
The recorder includes one SATA HDD interface supporting a compatible surveillance hard drive up to 8 TB. HDD inclusion and capacity depend on the product option selected when ordering.
All five turret cameras are supplied in white housings.
Supplied by Civic Electronic, an Authorised Hikvision Sales Partner and Hikvision Training Centre in Sydney, Australia, this genuine Australian-stock HiLook CCTV kit includes professional product support and a 3-year Australian warranty on the cameras and NVR, subject to applicable warranty terms.
IMPORTANT KIT INFORMATION: This package includes 5 × HiLook Pro IPC-T383H-MU 8MP 4K Smart Hybrid Light Turret Cameras and 1 × HiLook NVR-108MH-C/8P 8-channel 8PoE 4K NVR. All five cameras are white. The recorder provides 3 spare camera channels and 3 spare integrated PoE ports. Expansion is subject to the NVR's 80 Mbps incoming bandwidth and 75 W combined PoE power budget. The cameras feature built-in microphones but do not include integrated speakers, two-way audio or red-and-blue strobe warning. HDD inclusion and capacity depend on the selected product option. Ethernet cables, monitor, router and installation services are excluded unless expressly specified.
3-Year Australian Warranty – Cameras & NVR
What's Included in This CCTV Kit?
5 × HiLook Pro IPC-T383H-MU 8MP 4K Smart Hybrid Light Fixed Turret Network Cameras
- 8MP / 4K Ultra HD IP surveillance
- 1/2.4-inch CMOS image sensor
- Smart Hybrid Light technology
- Infrared and white supplementary illumination
- Advanced low-light imaging
- Up to 119.6° horizontal viewing angle on the applicable lens variant
- Fixed-lens turret camera design
- Intelligent motion detection
- Line crossing detection
- Intrusion detection
- Supported human and vehicle filtering
- Built-in microphone
- Efficient video compression support
- IP67 weather-resistant housing
- PoE network connectivity
- White camera housing
View HiLook Pro IPC-T383H-MU 8MP Turret Camera
1 × HiLook NVR-108MH-C/8P 8-Channel 8PoE 4K Network Video Recorder
- 8 IP camera channels
- 8 integrated PoE network ports
- Supports compatible IP cameras up to 8MP
- Up to 80 Mbps incoming bandwidth
- Up to 80 Mbps outgoing bandwidth
- Combined PoE power budget up to 75 W
- IEEE 802.3af/at PoE support
- 4K HDMI display output
- VGA display output
- H.265+ / H.265 / H.264+ / H.264 compression
- 1 SATA HDD interface
- Supports one compatible surveillance HDD up to 8 TB
- 8-channel synchronous playback support
- Compatible remote network monitoring
- 5 camera channels allocated
- 5 integrated PoE ports allocated
- 3 spare camera channels
- 3 spare integrated PoE ports
View HiLook NVR-108MH-C/8P 8CH PoE Recorder
HDD Storage: Inclusion and capacity depend on the available product options selected at checkout.
Package Exclusions: Ethernet cables, monitor, router, installation labour and additional accessories are excluded unless expressly specified.
Key Features
-
Five 8MP HiLook Pro Cameras: Professional 4K surveillance across five locations.
-
4K Ultra HD Imaging: High-resolution video capture.
-
Smart Hybrid Light: Flexible infrared and white-light illumination.
-
Advanced Low-Light Performance: Designed for challenging lighting environments.
-
1/2.4-Inch CMOS Sensor: High-resolution image capture.
-
Ultra-Wide Viewing Angle: Up to 119.6° horizontal field of view on the applicable lens variant.
-
Intelligent Motion Detection: Configurable security event monitoring.
-
Line Crossing Detection: Monitor defined virtual boundaries.
-
Intrusion Detection: Monitor selected security areas.
-
Human and Vehicle Filtering: Supported intelligent event classification.
-
Built-In Microphone: Compatible audio recording support.
-
IP67 Protection: Weather-resistant camera housing.
-
8-Channel NVR: Centralised surveillance recording.
-
8 Integrated PoE Ports: Simplified compatible camera connections.
-
3 Spare Camera Channels: Expand to eight cameras.
-
3 Spare PoE Ports: Available for future compatible cameras.
-
80 Mbps Incoming Bandwidth: Supports compatible high-resolution video streams.
-
75 W Combined PoE Budget: Shared power capacity across the eight ports.
-
4K HDMI Output: High-resolution local display support.
-
H.265+ Compression: Efficient recording storage.
-
1 SATA HDD Interface: Supports compatible storage up to 8 TB.
-
Remote Monitoring: Compatible HiLook network viewing.
-
White Camera Housings: All five cameras supplied in white.
-
Genuine Australian Stock: Authorised supply channel.
-
3-Year Australian Warranty: Cameras and NVR.
Technical Specifications
| Brand |
HiLook by Hikvision |
| Kit Configuration |
5 × 8MP Turret Cameras + 8CH 8PoE NVR |
| Camera Model |
IPC-T383H-MU |
| Camera Quantity |
5 |
| Camera Resolution |
8MP / 4K Ultra HD |
| Image Sensor |
1/2.4-inch CMOS |
| Minimum Illumination |
0.001 Lux @ F1.2 (specified conditions) |
| Camera Design |
Fixed Turret IP Camera |
| Camera Lens |
Fixed Lens – Supplied Variant |
| Horizontal Field of View |
Up to 119.6° (applicable lens variant) |
| Night Illumination |
Smart Hybrid Light / IR / White Light |
| Smart Events |
Motion, Line Crossing, Intrusion |
| Intelligent Detection |
Supported Human / Vehicle Filtering |
| Audio |
Built-In Microphone |
| Built-In Speaker |
No |
| Active Warning Strobe |
No |
| Weather Protection |
IP67 |
| Camera Connectivity |
IP Network / PoE |
| Camera Housing Colour |
White |
| NVR Model |
NVR-108MH-C/8P |
| NVR Camera Channels |
8 |
| Integrated PoE Ports |
8 |
| Camera Channels Used |
5 |
| Spare Camera Channels |
3 |
| PoE Ports Used |
5 |
| Spare Integrated PoE Ports |
3 |
| Maximum Camera Channels |
8 Compatible IP Cameras |
| Supported Recording Resolution |
Up to 8MP |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| Combined PoE Power Budget |
Up to 75 W |
| PoE Standard |
IEEE 802.3af/at |
| HDMI Output |
Up to 4K / 3840 × 2160 at 30 Hz |
| VGA Output |
Up to 1920 × 1080 at 60 Hz |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Synchronous Playback |
Up to 8 Channels |
| HDD Interfaces |
1 SATA |
| Maximum HDD Capacity |
Up to 8 TB per Compatible HDD |
| HDD Supplied |
As Specified in Selected Product Option |
| Remote Monitoring |
Compatible HiLook Network Viewing |
| Ethernet Cables Included |
No – Unless Expressly Specified |
| Warranty |
3 Years – Cameras and NVR; HDD Separate |
Detailed Features & Benefits
Five Professional 8MP / 4K Ultra HD Cameras
Five HiLook Pro IPC-T383H-MU cameras provide high-resolution surveillance across multiple important security locations.
Advanced HiLook Pro Imaging
The IPC-T383H-MU combines high-resolution imaging with a high-sensitivity sensor for detailed surveillance in suitable lighting conditions.
1/2.4-Inch CMOS Image Sensor
The 1/2.4-inch CMOS sensor supports high-resolution video capture and enhanced low-light performance.
Smart Hybrid Light Technology
Smart Hybrid Light combines infrared and white supplementary illumination to support flexible nighttime surveillance.
Infrared Night Monitoring
Infrared illumination provides nighttime monitoring when visible supplementary lighting is not preferred.
White-Light Night Illumination
White supplementary lighting can improve colour image detail in suitable nighttime environments.
Ultra-Wide Field of View
With up to 119.6° horizontal viewing angle on the applicable lens variant, the camera can monitor broad security areas.
Intelligent Motion Detection
Supported intelligent motion detection enables configurable event-based monitoring.
Line Crossing Detection
Line crossing rules help identify movement across configured virtual boundaries.
Intrusion Detection
Intrusion detection supports monitoring of selected restricted areas and security zones.
Human and Vehicle Filtering
Supported human and vehicle classification can help reduce unwanted alerts caused by unrelated movement.
Built-In Microphone
Each camera features an integrated microphone for compatible audio recording where legally permitted.
IP67 Weather Protection
The weather-resistant IP67 housing is suitable for appropriate indoor and outdoor surveillance installations.
Five-Camera Property Coverage
Five cameras provide surveillance across entrances, driveways, building exteriors and other important locations.
8-Channel HiLook Network Video Recorder
The NVR-108MH-C/8P supports centralised recording and management of up to eight compatible IP cameras.
Eight Integrated PoE Ports
Integrated PoE ports provide compatible network data and camera power through suitable Ethernet cabling.
Three Spare Camera Channels
Five of the eight camera channels are allocated, leaving three available for future expansion.
Three Spare Integrated PoE Ports
Three unused PoE ports provide connection points for additional compatible cameras.
Expandable to Eight Cameras
Up to three additional compatible cameras can be connected, subject to the recorder's supported limits.
80 Mbps Incoming Bandwidth
The NVR supports up to 80 Mbps incoming bandwidth for compatible IP video streams.
75 W Combined PoE Power Budget
The recorder provides a combined PoE power budget of up to 75 W across its eight integrated PoE ports.
4K HDMI Display Output
The recorder supports local HDMI output up to 4K resolution for compatible display equipment.
H.265+ Video Compression
H.265+ compression helps improve storage efficiency depending on video configuration and scene activity.
One SATA HDD Interface
The recorder supports one compatible surveillance HDD with a maximum capacity of up to 8 TB.
Flexible Surveillance Storage
HDD inclusion and capacity depend on the selected product option. Recording retention depends on storage and recording settings.
Compatible Remote Monitoring
Authorised users can access compatible remote viewing functions when the recorder is correctly configured and connected to the internet.
Professional Installation Flexibility
The five-camera configuration provides immediate coverage of five locations while retaining three spare NVR channels.
3-Year Australian Warranty
Civic Electronic provides a three-year Australian warranty on the cameras and NVR, subject to applicable warranty terms and Australian Consumer Law. HDD warranty coverage is separate.
Ideal Applications
-
Residential Homes: Entrances, driveways, garages and rear access.
-
Townhouses: Outdoor areas, entrances and vehicle access.
-
Small Businesses: Shopfronts, entrances and storage areas.
-
Retail Stores: Customer entrances, stockrooms and rear access.
-
Offices: Building entrances, corridors and parking areas.
-
Warehouses: Loading docks, entrances and external security.
-
Workshops: Equipment storage and vehicle access.
-
Commercial Properties: General surveillance and perimeter monitoring.
-
Car Parks: Vehicle entrances, exits and parking areas.
-
Storage Facilities: Entry points and restricted areas.
-
Industrial Properties: Operational areas and external surveillance.
-
Expandable CCTV Installations: Five-camera coverage with three spare NVR channels.
Compatibility & Installation
This HiLook Pro 8MP CCTV kit is designed for professional IP surveillance installations using the supplied NVR-108MH-C/8P eight-channel PoE recorder.
Recommended Installation Checklist
- Confirm all five cameras are IPC-T383H-MU.
- Confirm all five camera housings are white.
- Confirm the recorder is NVR-108MH-C/8P.
- Identify the supplied camera lens variant.
- Plan five suitable camera locations and viewing angles.
- Assess available daytime and nighttime lighting.
- Choose suitable mounting positions.
- Confirm HDD inclusion and selected storage capacity.
- Verify the HDD is compatible with the recorder.
- Ensure HDD capacity does not exceed supported limits.
- Install suitable Ethernet cabling to all five cameras.
- Connect the five cameras to five integrated PoE ports.
- Retain three spare integrated PoE ports for expansion.
- Check total camera power consumption against the 75 W PoE budget.
- Verify incoming bandwidth remains within 80 Mbps.
- Check the NVR's decoding limitations for simultaneous high-resolution viewing.
- Connect the recorder to the local network.
- Connect a compatible monitor if required.
- Activate the recorder and cameras securely.
- Configure strong passwords and appropriate security settings.
- Configure supported 8MP recording streams.
- Configure H.265+ compression where appropriate.
- Configure Smart Hybrid Light operating modes.
- Test infrared nighttime illumination.
- Test white-light nighttime illumination.
- Configure intelligent motion detection.
- Configure line crossing detection if required.
- Configure intrusion detection if required.
- Configure supported human and vehicle filtering.
- Configure microphone audio only where legally permitted.
- Configure recording schedules and notifications.
- Configure compatible remote monitoring if required.
- Test all five camera live streams.
- Verify recording and playback.
- Test nighttime image quality.
- Verify HDD recording and overwrite settings.
- Confirm three spare camera channels remain available.
- Confirm three spare PoE ports remain available.
- Complete professional commissioning and customer handover.
Camera Compatibility: Additional cameras must be compatible with the recorder's supported protocols, resolution, bandwidth and decoding capabilities.
PoE Notice: The recorder has a combined 75 W PoE power budget. Total connected camera consumption must remain within this limit.
Storage Notice: The NVR supports one compatible SATA HDD up to 8 TB. Recording duration depends on HDD capacity and recording settings.
Audio Notice: The cameras have built-in microphones. Audio recording must comply with applicable laws.
Package Exclusions: Ethernet cables, monitor, router and installation accessories are not included unless expressly specified.
Professional Installation: Installation by a suitably licensed security technician is recommended.
Package Contents
- 5 × HiLook Pro IPC-T383H-MU 8MP 4K Smart Hybrid Light Fixed Turret Network Cameras – White
- 1 × HiLook NVR-108MH-C/8P 8-Channel 8PoE 4K Network Video Recorder
-
Surveillance HDD: Included only where specified by the selected product option
Additional Information: Ethernet cables, monitor, router, installation labour and additional accessories are excluded unless expressly specified. Standard manufacturer accessories depend on the supplied product packaging.
Frequently Asked Questions
1. How many cameras are included in this HiLook CCTV kit?
Five HiLook Pro IPC-T383H-MU 8MP Smart Hybrid Light turret cameras.
2. Which camera model is supplied?
HiLook Pro IPC-T383H-MU.
3. What resolution do the cameras support?
Each camera supports 8MP / 4K Ultra HD surveillance.
4. What is Smart Hybrid Light?
Smart Hybrid Light combines infrared and white supplementary illumination for flexible nighttime monitoring.
5. Do all five cameras support Smart Hybrid Light?
Yes. All five supplied IPC-T383H-MU cameras support Smart Hybrid Light.
6. Can the cameras capture colour video at night?
White-light illumination can help provide colour image detail in suitable nighttime conditions.
7. Do the cameras support infrared night vision?
Yes. The cameras support infrared illumination for nighttime surveillance.
8. Do the cameras have built-in microphones?
Yes. Each IPC-T383H-MU camera features a built-in microphone.
9. Do the cameras support two-way audio?
No. The IPC-T383H-MU includes a microphone but does not have an integrated speaker.
10. Do these cameras have red-and-blue flashing warning lights?
No. The IPC-T383H-MU is not a red-and-blue strobe active-deterrence camera.
11. Do the cameras support intelligent motion detection?
Yes. Supported smart events include motion detection, line crossing and intrusion detection.
12. Can the cameras identify humans and vehicles?
Supported intelligent event filtering helps distinguish relevant human and vehicle activity.
13. What viewing angle do the cameras provide?
The camera family supports up to 119.6° horizontal field of view, depending on the supplied lens variant.
14. Are the cameras suitable for outdoor installation?
Yes. The IP67-rated housing is designed for suitable indoor and outdoor surveillance installations.
15. What colour are the cameras?
All five cameras are supplied in white.
16. Which NVR is included?
The HiLook NVR-108MH-C/8P eight-channel eight-PoE 4K network video recorder.
17. How many cameras can the NVR support?
Up to eight compatible IP cameras.
18. How many spare camera channels are available?
Three spare camera channels remain available.
19. How many spare physical PoE ports are available?
Three integrated PoE ports remain unused.
20. Can I add three more cameras later?
Yes. Up to three additional compatible IP cameras may be added, subject to recorder bandwidth, decoding and PoE power limits.
21. What is the NVR's incoming bandwidth?
The NVR supports up to 80 Mbps incoming bandwidth.
22. What is the combined PoE power budget?
The NVR provides a combined PoE power budget of up to 75 W across its integrated PoE ports.
23. Does the recorder support 4K HDMI output?
Yes. The NVR supports HDMI display output up to 4K resolution.
24. Does the NVR support H.265+ compression?
Yes. The NVR supports H.265+ / H.265 / H.264+ / H.264 video compression.
25. How many hard drives can the NVR support?
The recorder provides one SATA HDD interface.
26. What is the maximum supported HDD capacity?
Up to 8 TB for one compatible surveillance hard drive.
27. Is a surveillance HDD included?
HDD inclusion and capacity depend on the selected product option. Check the available storage options before ordering.
28. How long can the system retain recordings?
Recording retention depends on HDD capacity, camera bitrate, frame rate, compression, recording schedule and scene activity.
29. Can I monitor the cameras remotely?
Yes. Compatible remote monitoring is available when the recorder is correctly configured and connected to the internet.
30. What warranty is included?
Civic Electronic provides a three-year Australian warranty on the supplied cameras and NVR, subject to applicable warranty terms and Australian Consumer Law. HDD warranty coverage is separate.
Why Buy from Civic Electronic?
Civic Electronic is an Australian security equipment wholesaler and an Authorised Hikvision Sales Partner and Hikvision Training Centre.
-
Genuine Australian Stock: HiLook products supplied through authorised Australian channels.
-
3-Year Australian Warranty: Cameras and NVR warranty support.
-
Authorised Hikvision Training Centre: Professional product knowledge and installer training.
-
Trade Pricing: Competitive pricing for eligible security installers.
-
Technical Support: Assistance selecting compatible HiLook CCTV equipment.
-
Australia-Wide Delivery: Shipping throughout Australia.
-
Free Standard Shipping: Available on eligible orders of $300 or more.
-
2-Hour Click & Collect: Available from Rouse Hill for eligible stocked items, subject to confirmation.
For HiLook Pro CCTV equipment, installer support and trade enquiries, contact Civic Electronic on 1300 024 842.
Showroom: Unit 16, 2 Money Close, Rouse Hill NSW 2155.
Official Hikvision Manufacturer Documentation
HiLook is a Hikvision product brand. Review the official Hikvision manufacturer information for the supplied HiLook Pro cameras and network video recorder.
HiLook Pro IPC-T383H-MU – Official Camera Specifications
View Official Hikvision Australia HiLook Pro IPC-T383H-MU Camera Specifications
HiLook NVR-108MH-C/8P – Official NVR Specifications
View Official Hikvision Australia HiLook NVR-108MH-C/8P Product Specifications
Important: This kit includes five HiLook Pro IPC-T383H-MU 8MP Smart Hybrid Light cameras and one HiLook NVR-108MH-C/8P recorder. Three spare camera channels and three integrated PoE ports remain available. Expansion is subject to the NVR's 80 Mbps incoming bandwidth, 75 W combined PoE budget and decoding limitations. HDD inclusion depends on the selected product option.
