TP-Link VIGI 8MP 4K Full-Colour CCTV Kit | 2 InSight S485 Turret Cameras, 4CH NVR

Save 33% Save 33%
Original price $657.00
Original price $657.00 - Original price $657.00
Original price $657.00
Current price $440.00
$440.00 - $440.00
Current price $440.00
Availability:
in stock, ready to be shipped
🚚 Free Delivery $300+ 💲 Price Beat Guarantee
🛡 Authorised Warranty
🎧 Priority Product Support
📦 Genuine AU Stock
🏪 2-Hour Pickup
👷 Trade Account Sign In ☎ Call 1300 024 842

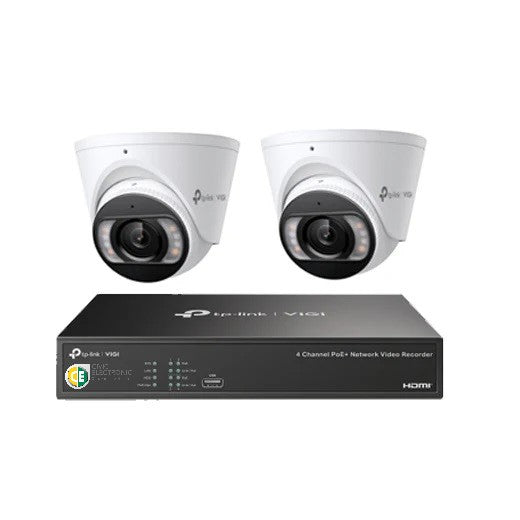

TP-Link VIGI 8MP 4K Full-Colour CCTV Kit – 2 Turret Cameras with Two-Way Audio & 4CH PoE NVR (No HDD)

2 × 8MP InSight S485 Cameras | 4CH PoE NVR | 24-Hour Full-Colour | Two-Way Audio | Active Defence | Smart Detection

Protect your property with the TP-Link VIGI 8MP 4K Full-Colour 2 Camera CCTV Kit, a professional IP surveillance solution combining two high-resolution VIGI InSight S485 turret cameras with a four-channel VIGI PoE network video recorder.

This kit includes 2 × TP-Link VIGI InSight S485 8MP Full-Colour Turret Network Cameras (White) and 1 × TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder.

Each InSight S485 camera delivers 8MP / 4K Ultra HD video, 24-hour full-colour imaging, intelligent human and vehicle classification, smart detection, active defence and two-way audio through its integrated microphone and speaker.

Designed for indoor and outdoor surveillance, the cameras feature IP67 weather protection, H.265+ video compression and 12V DC or PoE power options.

The included VIGI NVR1004H-4P supports up to four compatible IP cameras and features four integrated 10/100Mbps PoE+ ports with a combined 53W PoE budget.

With two cameras included, the system provides two spare recording channels for future expansion, subject to camera compatibility, available PoE power and recorder performance limits.

The recorder also supports 4K HDMI video output, 80Mbps incoming bandwidth, 60Mbps outgoing bandwidth, H.265+ compression and remote monitoring.

IMPORTANT: This CCTV kit is supplied without a hard drive and without camera network cables. A compatible surveillance-grade SATA HDD must be purchased separately for local recording.

Ideal for homes, retail stores, offices, workshops, warehouses and small commercial premises, this professional CCTV kit combines detailed 8MP imaging, intelligent detection and convenient wired PoE connectivity.

Purchase from Civic Electronic Pty Ltd for genuine Australian stock, professional CCTV product advice and a 3-Year Australian Warranty on eligible cameras and recorders.

TP-Link VIGI CCTV Kit 3-Year Australian Warranty NDAA badge

IMPORTANT PRODUCT INFORMATION: This kit includes 2 × VIGI InSight S485 8MP cameras (White) and 1 × VIGI NVR1004H-4P four-channel PoE recorder. Hard drives and camera network cables are not included. Two recorder channels remain available for compatible camera expansion. Confirm that the total connected camera power requirements remain within the recorder's 53W PoE budget. People and vehicle analytics require VIGI-specified software. The NDAA badge is reproduced from the supplied listing; product-specific compliance should be confirmed against current manufacturer documentation.

What's Included in This CCTV Kit?

2 × TP-Link VIGI InSight S485 8MP Full-Colour Turret Network Cameras – White

Professional 8MP / 4K IP turret cameras featuring 24-hour full-colour imaging, intelligent detection, active defence and two-way audio.

  • 8MP / 4K Ultra HD video
  • 24-hour full-colour imaging
  • People and vehicle analytics with specified VIGI software
  • Human and vehicle classification
  • Smart detection
  • Smart video enhancement technology
  • Built-in microphone
  • Built-in speaker
  • Two-way audio communication
  • Active defence
  • IP67 weather protection
  • H.265+ video compression
  • 12V DC / PoE power options
  • White camera housing

View Included 8MP Full-Colour Camera at Civic Electronic

1 × TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder – No HDD

Professional four-channel IP network video recorder with integrated PoE+ ports, 4K HDMI output and two spare camera channels for expansion.

  • 4 IP camera channels
  • 4 × 10/100Mbps PoE+ ports
  • 53W total PoE budget
  • 4K HDMI output
  • Up to 4-channel synchronous playback
  • 80Mbps incoming bandwidth
  • 60Mbps outgoing bandwidth
  • 1 × SATA HDD interface
  • Supports a compatible HDD up to 10TB
  • H.265+ compression
  • HDMI and VGA simultaneous output
  • Remote monitoring
  • No HDD included

View Included 4CH PoE NVR at Civic Electronic

Key Features

  • 2-Camera Professional CCTV Kit: Two 8MP turret cameras and one 4CH PoE recorder.
  • 8MP / 4K Ultra HD: High-resolution surveillance imaging.
  • 24-Hour Full-Colour: Colour video in supported lighting conditions.
  • Built-In Microphone and Speaker: Supported two-way communication.
  • Active Defence: Camera-based deterrence functions.
  • Human and Vehicle Classification: Intelligent event identification.
  • People and Vehicle Analytics: Supported with specified VIGI software.
  • Smart Detection: Intelligent event monitoring.
  • IP67 Weather Protection: Suitable for outdoor installation.
  • 4CH PoE Recorder: Supports up to four compatible cameras.
  • Two Spare Camera Channels: Expand the system later.
  • 53W PoE Budget: Shared camera power budget.
  • 4K HDMI Output: High-resolution local monitoring.
  • H.265+ Compression: Helps reduce recording storage requirements.
  • Remote Monitoring: Supported remote surveillance access.
  • No HDD Included: Select compatible storage separately.
  • 3-Year Australian Warranty: Eligible cameras and recorder.

Camera Technical Specifications – VIGI InSight S485

Brand TP-Link VIGI
Model InSight S485
Quantity 2
Camera Type IP Turret Network Camera
Camera Colour White
Resolution 8MP / 4K Ultra HD
Night Imaging 24-Hour Full-Colour
Human and Vehicle Classification Supported
People and Vehicle Analytics Supported with Specified VIGI Software
Smart Detection Supported
Video Enhancement Smart Video Enhancement Technology
Microphone Built-In
Speaker Built-In
Two-Way Audio Supported
Active Defence Supported
Weather Protection IP67
Video Compression H.265+
Power Supply 12V DC / PoE

NVR Technical Specifications – VIGI NVR1004H-4P

Model VIGI NVR1004H-4P
Recorder Type 4 Channel PoE+ Network Video Recorder
IP Camera Channels 4
Cameras Included 2
Spare Camera Channels 2
PoE+ Ports 4 × 10/100Mbps
PoE Power Budget 53W Total
HDMI Output Up to 4K
VGA Output Supported
Display Configuration HDMI and VGA Simultaneous Output
Decoding Capacity Up to 8-ch @ 2MP/25fps or 4-ch @ 4MP/25fps
Synchronous Playback Up to 4 Channels, Subject to 16MP Combined Resolution Limit
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 60Mbps
SATA Interfaces 1
Maximum HDD Capacity Up to 10TB
HDD Included No
Video Compression H.265+
Remote Monitoring Supported

Detailed Features & Benefits

8MP / 4K Ultra HD Video

Both VIGI InSight S485 turret cameras capture detailed 8MP surveillance video, helping users monitor entrances, driveways and important areas with greater image clarity.

24-Hour Full-Colour Imaging

Full-colour imaging technology is designed to retain colour information in supported lighting conditions, including low-light environments.

Built-In Microphone and Speaker

Each camera features an integrated microphone and speaker for supported audio recording and communication functions.

Two-Way Audio Communication

Communicate through compatible VIGI software and network connections using the camera's two-way audio capabilities.

Active Defence

The InSight S485 supports active defence functionality for compatible event-triggered deterrence configurations.

Human and Vehicle Classification

Intelligent classification helps identify people and vehicles, supporting more relevant security notifications.

People and Vehicle Analytics

Supported analytics features are available when used with the VIGI software specified by the manufacturer.

Smart Detection

Smart detection provides intelligent surveillance event monitoring, subject to camera configuration and compatible software.

IP67 Weather Protection

Both turret cameras feature IP67-rated weather protection for suitable outdoor installations.

Wired PoE Camera Connectivity

The NVR provides four integrated PoE+ ports, allowing compatible cameras to receive power and network connectivity over suitable Ethernet cabling.

Expandable 4-Channel Recorder

The system includes two cameras and supports up to two additional compatible IP cameras, subject to recorder capacity and PoE power requirements.

4K HDMI Local Monitoring

The recorder supports 4K HDMI video output for high-resolution local surveillance monitoring on a compatible display.

H.265+ Video Compression

H.265+ helps reduce storage consumption with compatible video streams and settings.

Remote Monitoring

Supported remote monitoring allows authorised users to access compatible surveillance functions through appropriate software and network connectivity.

Hard Drive Storage & Recording

NO HDD INCLUDED – SURVEILLANCE HARD DRIVE SOLD SEPARATELY.

The included VIGI NVR1004H-4P features one SATA HDD interface supporting a compatible hard drive up to 10TB.

Recommended HDD Type

Use a compatible surveillance-grade SATA hard drive designed for continuous CCTV recording workloads.

Recording Retention

Actual recording duration depends on installed HDD capacity, camera resolution, bitrate, compression, frame rate and recording schedule.

Continuous Recording

Configure continuous recording where required by the surveillance system design and available storage capacity.

Event-Based Recording

Supported motion and event recording can help reduce storage consumption when configured with compatible cameras and software.

Future Camera Expansion

When adding additional cameras, recalculate recording bitrate, required HDD capacity and expected retention time.

Expandable from 2 to 4 Cameras

The included VIGI NVR1004H-4P supports up to four compatible IP cameras.

With two cameras supplied, two camera channels remain available for future expansion.

Before adding cameras, confirm:

  • Compatibility with the VIGI NVR1004H-4P.
  • Available PoE ports.
  • Combined camera power requirements within the 53W budget.
  • Supported recording bandwidth.
  • Live-view and decoding performance.
  • Available HDD storage capacity.
  • Required recording retention period.

For a reliable wired CCTV installation, quality Cat5e or Cat6 Ethernet cabling is recommended.

Ideal Applications

  • Residential Security: Monitor entrances, driveways and outdoor areas.
  • Retail Stores: Surveillance of entrances, sales areas and stockrooms.
  • Offices: Monitoring reception areas and authorised common spaces.
  • Warehouses: CCTV monitoring of access points and storage areas.
  • Workshops: Monitor equipment and entrances.
  • Small Businesses: Professional two-camera CCTV with future expansion.
  • Car Parks: Monitoring vehicle access and parking areas.
  • Commercial Premises: Wired IP camera surveillance.

Professional Installation & Setup Guide

  1. Plan the two camera locations and required fields of view.
  2. Confirm suitable mounting locations and cable routes.
  3. Install appropriate Cat5e or Cat6 Ethernet cabling.
  4. Mount the two VIGI InSight S485 turret cameras.
  5. Position the NVR in a secure, ventilated location.
  6. Select and install a compatible surveillance-grade SATA HDD.
  7. Connect both cameras to the NVR's PoE+ ports.
  8. Confirm the camera power consumption is within the 53W PoE budget.
  9. Connect the NVR to the network.
  10. Connect a compatible HDMI or VGA display if required.
  11. Configure administrator credentials and network settings.
  12. Initialise the installed HDD.
  13. Configure camera recording schedules.
  14. Enable supported smart detection functions.
  15. Configure two-way audio and active defence where required.
  16. Set up supported remote monitoring.
  17. Test live viewing, recording and playback.
  18. Verify camera image quality during day and night conditions.
  19. Confirm recording retention and available storage.
  20. Complete final system commissioning.

Professional Installation: Installation and commissioning by a suitably licensed security installer is recommended.

Package Contents & Exclusions

This CCTV Kit Includes:

  • 2 × TP-Link VIGI InSight S485 8MP Full-Colour Turret Network Cameras – White
  • 1 × TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder – No HDD
  • Standard manufacturer-supplied accessories for the included products

Not Included:

  • Surveillance hard drive
  • Cat5e or Cat6 camera cables
  • Additional cameras
  • HDMI or VGA monitor
  • Installation labour
  • Additional mounting accessories unless supplied with the cameras

Important: A compatible surveillance-grade SATA HDD must be purchased separately for local recording.

Frequently Asked Questions

1. What cameras are included in this CCTV kit?

Two TP-Link VIGI InSight S485 8MP Full-Colour Turret Network Cameras in white.

2. What recorder is included?

One TP-Link VIGI NVR1004H-4P four-channel PoE+ network video recorder without a hard drive.

3. What resolution do the cameras support?

8MP / 4K Ultra HD.

4. Do the cameras support full-colour night imaging?

Yes. The cameras feature 24-hour full-colour imaging technology, subject to lighting conditions.

5. Do the cameras have built-in microphones?

Yes. Both cameras include integrated microphones.

6. Do the cameras have built-in speakers?

Yes. Both cameras include integrated speakers.

7. Can I talk through the cameras?

Yes. Supported two-way audio communication is available through compatible software and network connectivity.

8. Do the cameras support active defence?

Yes. The VIGI InSight S485 supports active defence functionality.

9. Can the cameras detect people and vehicles?

Yes. Human and vehicle classification is supported.

10. Do the cameras support people and vehicle analytics?

Yes, when used with the VIGI software specified by the manufacturer.

11. Are the cameras suitable for outdoor installation?

Yes. They feature IP67 weather protection.

12. Can the cameras use PoE power?

Yes. The cameras support PoE or compatible 12V DC power.

13. How many cameras can the NVR support?

Up to four compatible IP cameras.

14. Can I add two more cameras later?

Yes. Two recording channels remain available, subject to compatibility, PoE power and recorder performance.

15. Does the NVR have built-in PoE ports?

Yes. Four 10/100Mbps PoE+ ports are included.

16. What is the NVR's total PoE budget?

53W across the supported PoE+ ports.

17. Does the NVR support 4K HDMI output?

Yes. The recorder supports 4K HDMI video output.

18. Can the NVR record 8MP cameras?

The kit is supplied with 8MP cameras. Recording and live-view performance depend on supported camera stream settings, bandwidth and decoding limits.

19. Does the NVR include a hard drive?

No. A surveillance hard drive must be purchased separately.

20. What is the maximum HDD capacity?

The included NVR supports one compatible SATA HDD up to 10TB.

21. What type of HDD is recommended?

A compatible surveillance-grade SATA HDD designed for continuous CCTV recording.

22. Are network cables included?

No. Cat5e or Cat6 camera cables must be purchased separately.

23. Can I use Cat5e cables?

Yes. Suitable Cat5e Ethernet cables can carry power and network data to compatible PoE cameras.

24. Can I use Cat6 cables?

Yes. Quality Cat6 Ethernet cables are suitable for professional PoE camera installations.

25. Does the kit support H.265+ compression?

Yes. Both the cameras and recorder support H.265+ compression.

26. Can I monitor the cameras remotely?

Yes. Supported remote monitoring is available with suitable software and network connectivity.

27. Is the kit suitable for residential security?

Yes. It is suitable for professional home surveillance installations.

28. Is the kit suitable for commercial premises?

Yes. It can be used in suitable retail, office, workshop and small commercial CCTV installations.

29. What is the NVR's synchronous playback limitation?

Up to four channels are supported, but fewer or none may be simultaneously playable if the combined resolution exceeds 16MP.

30. What warranty is included?

The eligible cameras and recorder are supplied with a 3-Year Australian Warranty through Civic Electronic, subject to applicable warranty terms and Australian Consumer Law.

Why Buy TP-Link VIGI CCTV Kits from Civic Electronic?

Civic Electronic Pty Ltd supplies professional CCTV, networking, security equipment and installation accessories to security installers, trade customers and businesses throughout Australia.

  • Genuine Australian stock
  • 3-Year Australian Warranty on eligible cameras and NVR recorders
  • Professional CCTV product advice and technical support
  • Competitive pricing for eligible trade customers
  • Australia-wide shipping
  • Free standard shipping on eligible orders of $300 or more
  • Click & Collect for eligible stocked products
  • Sydney showroom in Rouse Hill, NSW

Showroom: Unit 16, 2 Money Close, Rouse Hill NSW 2155

Phone: 1300 024 842

NSW Master Security Licence: 000103048

Website: Civic Electronic Australia

Official TP-Link VIGI Manufacturer Documentation

Refer to the official manufacturer pages for current specifications, installation instructions and supported functions.

VIGI InSight S485 8MP Full-Colour Turret Camera:

Official VIGI InSight S485 Camera Specifications

VIGI NVR1004H-4P 4 Channel PoE Recorder:

Official VIGI NVR1004H-4P Specifications – No HDD

Manufacturer Notes: People and vehicle analytics require VIGI-specified software. The 53W PoE budget is based on laboratory testing, and actual available power may vary. The NVR supports up to four-channel synchronous playback, but fewer or none may be playable if the combined resolution exceeds 16MP. HDD is not included.

Genuine Product Assurance, We are officially an authorized reseller of Hikvision

Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.

Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.

1. Free and Express Shipping

  • Free Standard Shipping applies to all orders valued at $300 or more.
  • Express Shipping is available for an additional $65 per order.

Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:

Australia Post Coverage

2. Order Processing

  • Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
  • Orders are processed Monday to Friday, excluding weekends and public holidays.
  • Tracking information will be provided via email after 11:00 AM on the day the order is shipped.

All orders are dispatched using the most efficient postage method available to ensure timely delivery.

3. Delivery Timeframes

  • Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
  • Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
  • Standard Shipping: Please allow up to 10 business days from dispatch.

If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.

4. Delivery Requirements and Limitations

  • All deliveries require a signature upon receipt.
  • Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
  • If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
  • We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.

Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.

We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.

If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.

5. Tracking Your Order

Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.

To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.

6. Additional Information

We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.

Price Beat Guarantee

At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.

How It Works

If you find a cheaper price, simply:

  1. Provide a link to the competitor's advertised product
  2. Confirm the seller is an authorised Australian reseller
  3. Submit your request before placing your order

Our team will verify the details and respond promptly.

Eligibility Requirements

To qualify for our Price Beat Guarantee, the following conditions must be met:

  • The competitor must be an authorised Australian reseller
  • The seller must operate as a legitimate Australian retail business
  • The item must be identical (same brand, model number and specifications)
  • The product must be brand new and currently in stock
  • The price must be publicly advertised (not a private quote or member-only offer)
  • The advertised price must include GST
  • Shipping costs must be included in the total comparison
  • The competitor must supply Australian warranty support

Exclusions

Our Price Beat Guarantee does not apply to:

  • Dropshippers or intermediary sellers who do not physically stock the product
  • Sellers operating without a verifiable Australian retail presence
  • Businesses with no registered retail location or identifiable trading address
  • Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
  • Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
  • Refurbished, used or open-box items
  • Pricing errors or misprints
  • Bundle deals, bonus offers or cashback promotions
  • Trade, bulk or special contract pricing

Important Conditions

  • Price Beat requests must be approved prior to purchase
  • Approved offers are valid for 24 hours only
  • Civic Electronic reserves the right to verify reseller authorisation status
  • We reserve the right to decline requests that do not meet the above criteria
  • This policy may be modified or withdrawn at any time without notice

Why Buy From Civic Electronic?

  • 100% Genuine Products
  • Authorised Australian Reseller
  • Local Australian Warranty
  • Real Stock, Not Dropshipped
  • Expert Technical Support
  • Fast & Secure Dispatch
