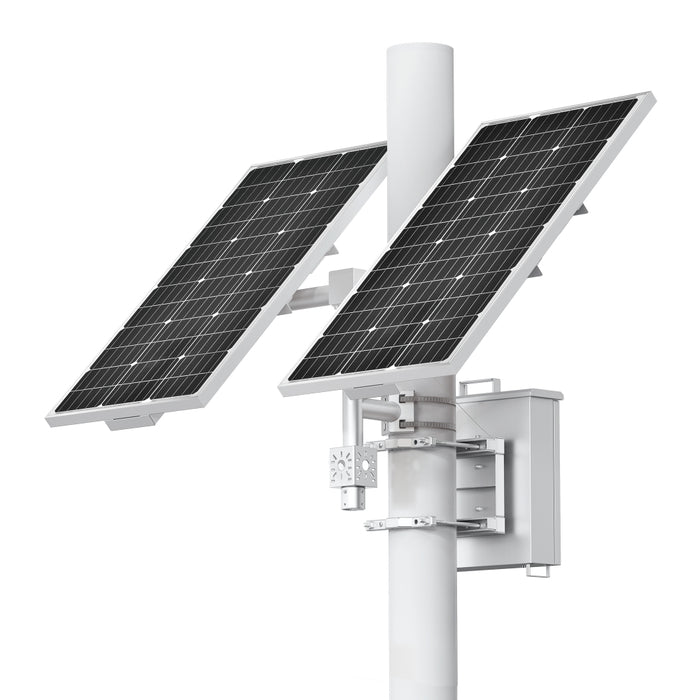

TP-Link VIGI SP18090 Intelligent Solar Power Supply System
2 × 90W Solar Panels | 93.6Ah Lithium Battery | MPPT Charging | 3 DC Outputs | IP66 Weatherproof
Power professional outdoor security installations with the TP-Link VIGI SP18090 Intelligent Solar Power Supply System, an integrated solar energy solution designed for compatible off-grid surveillance equipment and remote monitoring applications.
Featuring 2 × 90W photovoltaic panels, a 93.6Ah / 10.95V lithium battery, three DC voltage output ports and an intelligent Maximum Power Point Tracking (MPPT) charging controller, the VIGI SP18090 combines solar energy generation, battery storage and intelligent power management in a modular system.
Designed for locations where conventional mains power may be unavailable or impractical, the VIGI SP18090 solar power system can support appropriately specified remote security installations, including compatible network cameras and associated low-voltage equipment.
The system incorporates adjustable solar panel angles, an independent protection circuit, intelligent auxiliary heating technology, remote management capabilities and an IP66 weatherproof design to support reliable operation when correctly sized and installed.
Its modular construction and adjustable panel mounting angles help installers optimise solar exposure for the installation site, while the MPPT charging controller manages energy harvesting and battery charging.
Purchase from Civic Electronic Pty Ltd for genuine Australian stock, professional product advice and a 3-Year Australian Warranty.
3-Year Australian Warranty
IMPORTANT PRODUCT INFORMATION: The TP-Link VIGI SP18090 is an intelligent solar power supply system, not a CCTV camera or network video recorder. Its specified configuration includes 2 × 90W photovoltaic panels, a 93.6Ah / 10.95V lithium battery and three DC output ports. Confirm the complete manufacturer package contents, DC output specifications, connected equipment power consumption, solar exposure and mounting requirements before purchasing. Actual operating autonomy depends on sunlight, battery condition, environmental temperature and connected load. Continuous or uninterrupted power cannot be guaranteed under all conditions.
Key Features
- 180W Total Solar Panel Rating: Two 90W photovoltaic panels for solar energy generation.
- 93.6Ah Lithium Battery: Integrated energy storage with a nominal voltage of 10.95V.
- 3 DC Output Ports: Multiple low-voltage power connections for compatible equipment.
- MPPT Charging Controller: Maximum Power Point Tracking technology for intelligent solar charging.
- Modular Design: System architecture designed to simplify installation and servicing.
- Six Adjustable Panel Angles: 5°, 15°, 25°, 35°, 45° and 55°.
- Independent Protection Circuit: Dedicated electrical protection technology.
- Intelligent Auxiliary Heating: Battery temperature management support in suitable operating conditions.
- IP66 Weatherproof: Protection against dust and powerful water jets under specified test conditions.
- Remote Management: Supported monitoring and management capabilities.
- Off-Grid Power Applications: Designed for suitable locations without convenient mains power.
- Professional Security Integration: Suitable for compatible low-voltage surveillance installations.
- 3-Year Australian Warranty: Local warranty support through Civic Electronic.
Technical Specifications
Detailed Features & Benefits
180W Solar Energy Generation
The VIGI SP18090 features two 90W photovoltaic panels, providing a combined rated panel output of 180W under standard test conditions.
The solar panels convert sunlight into electrical energy to support connected equipment and recharge the battery through the charging controller.
Actual power generation varies with sunlight intensity, panel orientation, temperature, shading and weather conditions.
93.6Ah Lithium Battery Storage
The system features a 93.6Ah lithium battery rated at 10.95V, providing stored energy for connected equipment when solar generation is insufficient.
Based on the stated battery capacity and nominal voltage, the theoretical nominal energy is approximately 1,025Wh.
Usable energy will be lower and depends on battery management limits, discharge conditions, temperature and conversion losses.
Three DC Voltage Output Ports
Three DC output ports provide connection options for compatible low-voltage equipment.
Before connecting any device, verify the required voltage, maximum current, connector type and total system power budget against the manufacturer's specifications.
Intelligent MPPT Solar Charging
The integrated Maximum Power Point Tracking (MPPT) charging controller helps optimise the electrical operating point of the photovoltaic panels to improve available energy harvesting.
MPPT technology is especially useful when solar conditions change throughout the day.

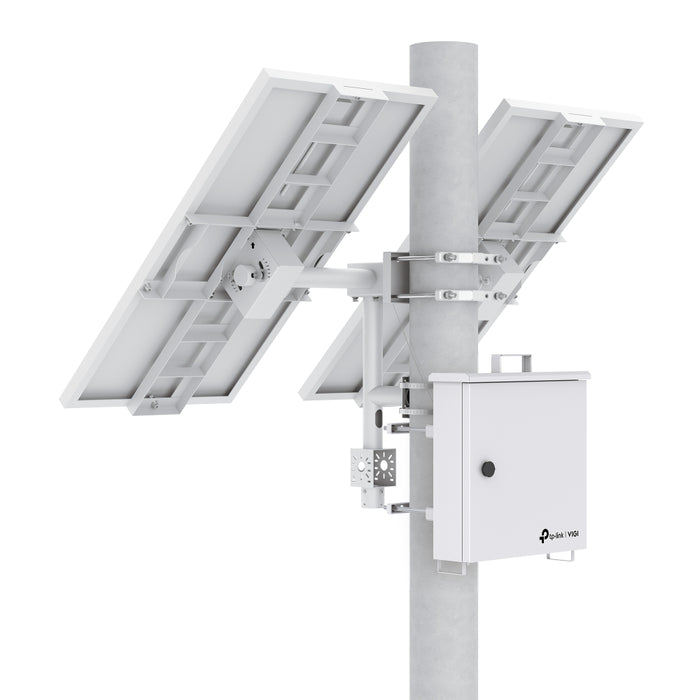

Six Adjustable Solar Panel Angles
The mounting arrangement supports 5°, 15°, 25°, 35°, 45° and 55° adjustment positions.
Installers can select a suitable panel angle based on installation location, mounting orientation and seasonal solar exposure.
Modular System Design
The modular architecture supports structured installation and maintenance of the solar power system.
Follow the official installation guide for approved component arrangements, mechanical assembly and electrical connections.
Independent Protection Circuit
An independent protection circuit provides dedicated electrical protection functionality within the system.
The specific protection thresholds and supported fault conditions should be confirmed in the official manufacturer documentation.
Intelligent Auxiliary Heating Technology
The SP18090 includes intelligent auxiliary heating technology to assist battery temperature management under supported conditions.
Heating operation and battery charging performance remain subject to the manufacturer's specified temperature limits.
IP66 Weatherproof Design
The system features IP66 weatherproof protection, providing resistance to dust ingress and powerful water jets under specified test conditions.
Correct installation, cable sealing and suitable mounting are essential for outdoor reliability.
Remote Management
Supported remote management functions assist with monitoring and managing the solar power installation.
Available information, remote controls and connectivity requirements depend on the compatible VIGI management platform and system configuration.
Off-Grid Security Power
The VIGI SP18090 is suited to compatible remote surveillance installations where mains power is difficult or costly to provide.
System suitability must be determined by calculating the connected equipment's energy consumption and comparing it with expected solar generation and usable battery storage.
Ideal Applications
- Remote CCTV Installations: Compatible surveillance equipment at sites without convenient mains power.
- Construction Sites: Temporary or remote security monitoring.
- Farms and Rural Properties: Remote gates, sheds and selected monitoring locations.
- Industrial Sites: Suitable low-voltage equipment at remote facility locations.
- Outdoor Storage Areas: Surveillance equipment installed away from buildings.
- Remote Access Points: Compatible security devices at entrances and access routes.
- Infrastructure Monitoring: Selected off-grid monitoring applications.
- Commercial Perimeters: Surveillance at suitable remote boundary locations.
Application Note: All installations require appropriate solar and battery load calculations. The SP18090 is not a universal power supply for arbitrary equipment.
Solar Power & Battery Sizing Considerations
Correct system sizing is essential for reliable off-grid surveillance.
Step 1: Calculate Connected Equipment Load
Determine the total power consumption of all connected devices, including peak operating loads and any additional network or communication equipment.
Step 2: Estimate Daily Energy Consumption
For continuously operating equipment:
Daily energy requirement (Wh) = Total load (W) × 24 hours.
Step 3: Assess Solar Generation
Estimate usable daily solar energy based on local peak sun hours, panel orientation, shading, temperature and system losses.
The 180W figure is the combined rated panel output, not a guaranteed continuous output.
Step 4: Assess Battery Autonomy
The stated battery specifications correspond to approximately 1,025Wh of nominal energy. Actual usable storage is lower.
Required autonomy should account for overnight operation, cloudy weather and seasonal reductions in solar generation.
Step 5: Confirm Output Compatibility
Check each connected device's voltage, current and connector requirements against the available DC output specifications.
Step 6: Confirm Installation Conditions
Consider mounting strength, wind loading, environmental conditions, cable protection, access for servicing and applicable installation requirements.
Compatibility & Installation
The TP-Link VIGI SP18090 is intended for compatible professional off-grid power installations.
Recommended Installation Checklist
- Confirm the exact model is VIGI SP18090.
- Verify the manufacturer-approved package contents.
- Calculate the total connected equipment load.
- Confirm required DC output voltages and current limits.
- Assess available sunlight throughout the year.
- Identify possible shading from buildings, trees or structures.
- Select a suitable mounting location and structure.
- Confirm mounting strength and wind-load requirements.
- Select an appropriate solar panel adjustment angle.
- Follow the manufacturer-approved panel assembly procedure.
- Install the lithium battery system according to manufacturer instructions.
- Verify MPPT charging controller connections.
- Connect only compatible low-voltage equipment.
- Protect external cabling and weather-exposed connections.
- Configure supported remote management functions.
- Test battery charging and DC output operation.
- Verify the expected operating load.
- Check nighttime and low-sunlight operating performance.
- Complete commissioning and maintenance documentation.
Professional Installation: Installation should be completed by suitably qualified personnel in accordance with manufacturer instructions and applicable Australian electrical and safety requirements.
Package Contents & Exclusions
Product: TP-Link VIGI SP18090 Intelligent Solar Power Supply System.
Manufacturer-Specified System Configuration:
- 2 × 90W photovoltaic panels
- 93.6Ah / 10.95V lithium battery system
- Three DC output ports
- MPPT charging and intelligent power management functionality
- Modular mounting and adjustment functionality
Important: The list above describes the system configuration and does not independently confirm how each component is packaged. Refer to the official manufacturer packing list for the exact accessories, brackets, cables and hardware supplied.
Not Included Unless Expressly Specified: CCTV cameras, NVR, surveillance HDD, additional networking equipment, external communication devices, installation labour and site-specific mounting materials.
Frequently Asked Questions
1. What is the TP-Link VIGI SP18090?
It is an intelligent solar power supply system designed for compatible off-grid low-voltage equipment and security installations.
2. How many solar panels does the system have?
The specified system configuration includes two photovoltaic panels.
3. What is the power rating of each panel?
Each panel is rated at 90W.
4. What is the combined solar panel rating?
The two panels provide a combined rated output of 180W under standard test conditions.
5. Does the SP18090 include battery storage?
Yes. The specified system configuration includes a lithium battery.
6. What is the battery capacity?
93.6Ah.
7. What is the battery's nominal voltage?
10.95V.
8. How much nominal energy does the battery store?
Approximately 1,025Wh based on the stated capacity and nominal voltage. Actual usable energy is lower.
9. Can the SP18090 operate equipment at night?
The battery can provide stored energy when solar generation is unavailable, subject to connected load, available charge and system limits.
10. Does the system guarantee uninterrupted power?
No. Operating continuity depends on solar generation, battery capacity, weather conditions and equipment consumption.
11. Does the system use MPPT charging?
Yes. It includes a Maximum Power Point Tracking charging controller.
12. What is MPPT?
MPPT is a charging technology that adjusts the solar panel operating point to help optimise available power harvesting.
13. How many DC output ports are available?
Three DC output ports.
14. Can I connect any CCTV camera?
No. The camera's voltage, current and power requirements must be compatible with the solar system's DC outputs.
15. Can the system power multiple devices?
Potentially, provided the combined load and individual output requirements remain within the manufacturer's specifications.
16. Does the system have adjustable solar panel angles?
Yes. It supports six adjustment angles.
17. Which adjustment angles are available?
5°, 15°, 25°, 35°, 45° and 55°.
18. Is the system weatherproof?
Yes. It has an IP66 weatherproof rating.
19. What does IP66 mean?
It indicates protection against dust ingress and powerful water jets under specified test conditions.
20. Does the system include an independent protection circuit?
Yes. An independent protection circuit is a listed feature.
21. Does the system support auxiliary heating?
Yes. It features intelligent auxiliary heating technology.
22. Can the SP18090 be remotely managed?
Yes. Remote management is supported through compatible management arrangements.
23. Is the SP18090 suitable for rural properties?
Yes, for appropriately sized off-grid installations with suitable sunlight and compatible connected equipment.
24. Can it be used on construction sites?
Yes, where the mounting arrangement, electrical load and environmental conditions are suitable.
25. Does the system work during cloudy weather?
Solar generation may continue at reduced levels, while the battery can supply stored energy subject to its available charge.
26. How long will the battery last without sunlight?
Runtime depends on usable battery energy, connected equipment consumption, temperature and system operating limits.
27. Does the system include a CCTV camera?
No. CCTV cameras are not included unless expressly specified.
28. Does the system include an NVR or hard drive?
No. An NVR and surveillance HDD are not included unless expressly specified.
29. Is professional installation recommended?
Yes. Professional installation and electrical load assessment are strongly recommended.
30. What warranty is included?
Civic Electronic provides a 3-Year Australian Warranty, subject to applicable warranty terms and Australian Consumer Law.
Why Buy TP-Link VIGI from Civic Electronic?
Civic Electronic Pty Ltd supplies genuine professional surveillance, networking and security equipment to security installers, trade customers and businesses throughout Australia.
- Genuine Australian stock
- 3-Year Australian Warranty
- Professional product advice and technical support
- Competitive pricing for eligible trade customers
- Australia-wide shipping
- Free standard shipping on eligible orders of $300 or more
- Click & Collect for eligible stocked products
- Sydney showroom in Rouse Hill, NSW
Showroom: Unit 16, 2 Money Close, Rouse Hill NSW 2155
Phone: 1300 024 842
NSW Master Security Licence: 000103048
Website: Civic Electronic Australia
Official TP-Link VIGI Manufacturer Documentation
Refer to the official TP-Link Australia product page for current electrical specifications, output ratings, operating temperature limits, installation instructions, supported management features and package contents.
TP-Link VIGI SP18090 – Official Australian Product Specifications
Manufacturer Notes: Solar panel ratings are measured under standard test conditions. Actual solar generation, battery runtime and system performance depend on environmental conditions, installation and connected equipment power consumption.
Genuine Product Assurance, We are officially an authorized reseller of Hikvision
Hikvision, Dahua, TP-Link and Ruijie Products are covered by a 3 year manufacturer warranty, except all Access Controls, Intercoms, Alarms, and Display Monitors are 2 year warranty, Hard Drive and any spare parts 12-month warranty.
Our warranty does not include damage due to incorrect fitting of parts or accessories, setup applications or products integration.
1. Free and Express Shipping
- Free Standard Shipping applies to all orders valued at $300 or more.
- Express Shipping is available for an additional $65 per order.
Please note that Express Shipping is not available for all postcodes. Customers are advised to confirm eligibility through the Australia Post Coverage link below before selecting the express shipping option. As shipping fees are passed directly to couriers, we are unable to refund shipping costs for postcodes not covered by the express delivery network:
2. Order Processing
- Orders placed before 8:00 AM (Sydney time) on a business day may packed and dispatched the same day base on stock availability.
- Orders are processed Monday to Friday, excluding weekends and public holidays.
- Tracking information will be provided via email after 11:00 AM on the day the order is shipped.
All orders are dispatched using the most efficient postage method available to ensure timely delivery.
3. Delivery Timeframes
- Express Shipping: Next business day delivery within the Australia Post Express Post Network Or Priority Shipping by other couriers for non covered Australia Post Areas (capital cities and major metropolitan areas, including Perth CBD only).
- Regional Areas Express/Priority Shipping: Delivery may take between 2 to 5 business days, depending on location and courier service coverage.
- Standard Shipping: Please allow up to 10 business days from dispatch.
If you have not received your order within 5 business days (express) or 10 business days (standard) after receiving your shipment tracking details, please contact us with your full name and order number so we can investigate your delivery status.
In most cases, a delivery attempt has been made and the parcel is awaiting collection at your nearest depot or collection point. Please check your email spam or junk folder for any courier notification emails.
4. Delivery Requirements and Limitations
- All deliveries require a signature upon receipt.
- Parcels will not be left unattended or with a “safe drop” unless specifically authorised in writing by the customer before dispatch.
- If no authorised person is available to sign for the parcel at the time of delivery, a delivery card will be left, and your parcel will be transferred to the nearest depot or collection point for pickup.
- We do not deliver to PO Boxes. Orders must be addressed to a valid physical delivery address within Australia.
Delivery times are estimates only and may vary due to courier schedules, regional service limitations, or other unforeseen circumstances. Once an order has been dispatched from our warehouse, it becomes the responsibility of the courier or postal service.
We are not liable for delays, loss, or damage that occur during transit, as these are beyond our control.
Any claims for loss or damage during delivery must be raised directly with the relevant courier company.
If an incorrect, incomplete, or undeliverable address (including PO Boxes) is provided, the customer will be responsible for all additional shipping charges incurred to resend the order.
5. Tracking Your Order
Once your order has been dispatched, you will receive an email containing a tracking number.
Customers are responsible for monitoring their delivery progress and liaising with the courier directly for updates or redelivery arrangements.
To ensure secure delivery, a signature is required upon receipt. The courier will not leave the parcel unattended under any circumstances. If delivery cannot be completed, a collection notice will be issued.
6. Additional Information
We strive to ensure timely and accurate delivery of all orders; however, as we are not a courier company, we cannot guarantee delivery times and are unable to intervene in courier operations once a parcel has been dispatched.
By placing an order, customers acknowledge and accept the above terms regarding shipping, delivery, and courier responsibility.
Price Beat Guarantee
At Civic Electronic, we are committed to offering genuine products at the most competitive prices in Australia. If you find a lower advertised price from an authorised
Australian seller, we won't just match it, we'll beat it.
How It Works
If you find a cheaper price, simply:
- Provide a link to the competitor's advertised product
- Confirm the seller is an authorised Australian reseller
- Submit your request before placing your order
Our team will verify the details and respond promptly.
Eligibility Requirements
To qualify for our Price Beat Guarantee, the following conditions must be met:
- The competitor must be an authorised Australian reseller
- The seller must operate as a legitimate Australian retail business
- The item must be identical (same brand, model number and specifications)
- The product must be brand new and currently in stock
- The price must be publicly advertised (not a private quote or member-only offer)
- The advertised price must include GST
- Shipping costs must be included in the total comparison
- The competitor must supply Australian warranty support
Exclusions
Our Price Beat Guarantee does not apply to:
- Dropshippers or intermediary sellers who do not physically stock the product
- Sellers operating without a verifiable Australian retail presence
- Businesses with no registered retail location or identifiable trading address
- Marketplace sellers (eBay, Amazon, etc.) unless officially authorised
- Grey imports or overseas-based sellers Clearance, liquidation or closing-down sales
- Refurbished, used or open-box items
- Pricing errors or misprints
- Bundle deals, bonus offers or cashback promotions
- Trade, bulk or special contract pricing
Important Conditions
- Price Beat requests must be approved prior to purchase
- Approved offers are valid for 24 hours only
- Civic Electronic reserves the right to verify reseller authorisation status
- We reserve the right to decline requests that do not meet the above criteria
- This policy may be modified or withdrawn at any time without notice
Why Buy From Civic Electronic?
- 100% Genuine Products
- Authorised Australian Reseller
- Local Australian Warranty
- Real Stock, Not Dropshipped
- Expert Technical Support
- Fast & Secure Dispatch
Our Range of Accessories
4TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba
Western Digital4TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba Expand your CCTV security system's recording capacity wi...
View full details2TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba
Western Digital2TB Surveillance Hard Drive for CCTV DVR/NVR – WD Purple, Seagate SkyHawk or Toshiba Expand your CCTV system's recording storage with a 2TB S...
View full detailsCAT6 Patch Lead Network Cable 20m
Cable AUCAT6 Patch Lead Network Cable Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmissio...
View full detailsCAT6 Patch Lead Network Cable 30m
Cable AUCAT6 Patch Lead Network Cable 30m Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmi...
View full detailsCAT6 Patch Lead Network Cable 15m
Cable AUCAT6 Patch Lead Network Cable 15m Perfect in conjunction with 10 and 100 Base-T50 micron gold plated connectors to ensure a clean and clear transmi...
View full details
